Default 1.6: AT long block, MT head?

This is all totally hypothetical, but since winter is here, I've got four months of fabrication.


Here's the story: Blew my 1.6 MT engine and thinking of swapping a T2 RX-7 13b into it. However, would a GReddy 1.6 be easier? For the 7, i'd have to fab up engine mounts, and rebuild a frankenstein trans (front bh and gears from 7, rear housing from Miata), whereas the 1.6, I'm thinking of the auto long block (lower compression) and MT head (cams). So would that be a better option than a bolt-on to a 1.6 MT engine?
iluvtruenos is offline   Reply With Quote
Old 12-11-2006, 05:52 PM   #2
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

dropping a 13B into the miata requires a dry sump oiling system since the rotary would sit VERY low into the miata chassis. Its not worth it when you consider the cost unless you are just some rotary nut ( I know people like this )

You can use a 1.6L AT long block with a 1.6L MT head since the 1.6L MT head has better cams.
F20turbo is offline   Reply With Quote
Old 12-11-2006, 06:02 PM   #3
I'm Miserable!
Thread Starter

Join Date: Dec 2006
Posts: 212
Total Cats: 0
Default

What about rebuilding the oil pan? I know I can do it to clear the crossmember, and I can weld, just do not have a good welder.
iluvtruenos is offline   Reply With Quote
Old 12-11-2006, 06:03 PM   #4
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by iluvtruenos View Post
What about rebuilding the oil pan? I know I can do it to clear the crossmember, and I can weld, just do not have a good welder.
If you think you can retool the oil pan to work then go ahead and try it I suppose. I just know that the stock 13b pan will sit too low.
F20turbo is offline   Reply With Quote
Old 12-11-2006, 06:09 PM   #5
I'm Miserable!
Thread Starter

Join Date: Dec 2006
Posts: 212
Total Cats: 0
Default

Any good websites to read up on the rotary oiling system?
iluvtruenos is offline   Reply With Quote
Old 12-11-2006, 07:13 PM   #6
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by iluvtruenos View Post
Any good websites to read up on the rotary oiling system?
not that I know of, sorry.
F20turbo is offline   Reply With Quote
Old 12-11-2006, 08:32 PM   #7
I'm Miserable!
Thread Starter

Join Date: Dec 2006
Posts: 212
Total Cats: 0
Default

No worries. I just called up one of my friends, and he told me that the 13b oil pan does just that, hold oil, and nothing else. Meaning that a dry sump system could be made for as cheap as $30.
iluvtruenos is offline   Reply With Quote
Old 12-11-2006, 08:36 PM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

am i missing something dont all oil pans just hold oil. or are there special oil pans that do other stuff
magnamx-5 is offline   Reply With Quote
Old 12-11-2006, 08:39 PM   #9
I'm Miserable!
Thread Starter

Join Date: Dec 2006
Posts: 212
Total Cats: 0
Default

No, on the 7 it's much easier because the oil does not have to flow through galleries into the oil pan. There's just a tube that drains the oil into it. On a piston engine, you have to accomodate for the oil draining from galleries into the pan, all that fun stuff. On the rotary, I can just extend the input/output tubes, and weld up a custom oil pan. Teehee.
iluvtruenos is offline   Reply With Quote
Old 12-11-2006, 10:57 PM   #10
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

doesnt the AT have lower comp pistons
Pitlab77 is offline   Reply With Quote
Old 12-12-2006, 01:28 AM   #11
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Quote:
Originally Posted by Pitlab77 View Post
doesnt the AT have lower comp pistons
Ahhhhhhh ya. Thats the whole point!
getsidewaysd1 is offline   Reply With Quote
Old 12-12-2006, 01:44 AM   #12
I'm Miserable!
Thread Starter

Join Date: Dec 2006
Posts: 212
Total Cats: 0
Default

Ya, lower compression long block (good for boost) mated with more agressive cams. Win/win.
iluvtruenos is offline   Reply With Quote
Old 12-12-2006, 02:43 AM   #13
Junior Member

Join Date: Oct 2004
Posts: 171
Total Cats: 3
Default

Having seen first hand a 13b conversion take place i can tell you guys the following......

*The sump did NOT require modifying,(i guess it depends on car it came from)
*The body needed to be releived at the very top of the transmission tunnel where it meets the firewall, to clear the bell housing as does the area around the gear shifter area...this is because the rotary engine "crankshaft" sits slightly higher than a piston engine so the gear box is held slightly higher although it retains the PPF on a frankenstein gearbox.
*The crossmember was modified to fit the engine....new engine mounts were made to come forward and down to meet the front mounting points on the engine.
Ill tey to get some pics next time im over to see it again.
4sfed5 is offline   Reply With Quote
Old 12-12-2006, 03:24 AM   #14
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

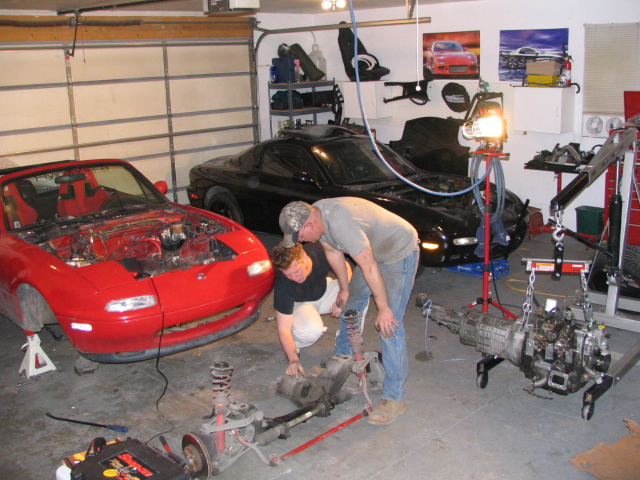

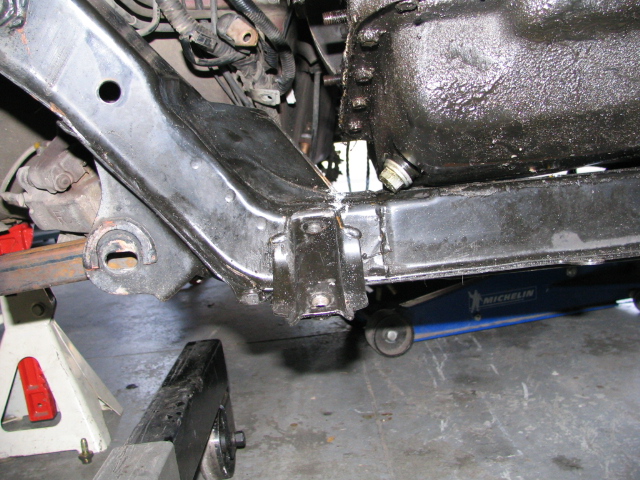

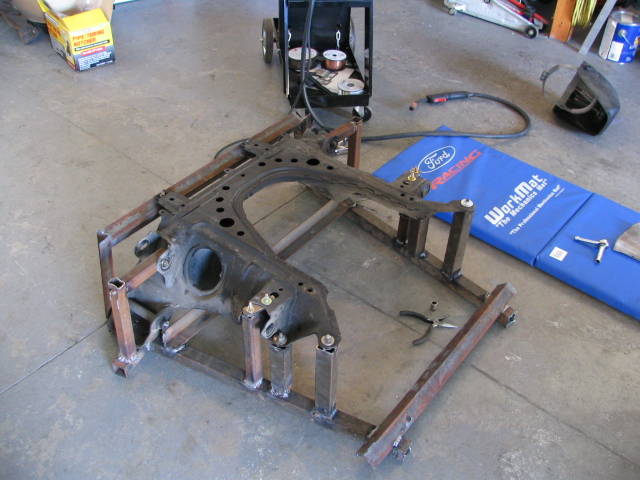

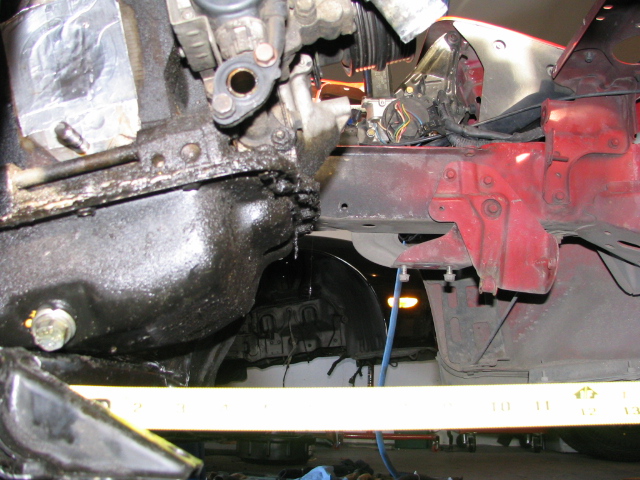

some pictures ive found when searchimg.
Attached Thumbnails
1.6: AT long block, MT head?-subframe-001.jpg   1.6: AT long block, MT head?-subframe-005.jpg   1.6: AT long block, MT head?-subframe-009.jpg   1.6: AT long block, MT head?-subframe-011.jpg
turbopezz is offline   Reply With Quote
Old 12-12-2006, 11:46 AM   #15
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Couldn't you just use A/T pistons? or are the rods/crank different as well?
miatamania is offline   Reply With Quote
