Default 18"x12"x3" EBAY Mount ?

For those of you running the 18"x12"x3" ebay IC, could you please post pics of how you did it? I'd like to try and have all the supplies I'll need handy before I yank the bumper cover. I tried searching for said pics, but found mostly wide/short ICs instead of this fella.

Hoping to install the IC next weekend, although I might settle for modifying the downpipe if I can't find pics before then. Stay tuned, my build thread is actually going to start soon
Arkmage is offline   Reply With Quote
Old 10-01-2007, 07:32 PM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

18"x12"x3" core size. Two steel flat stock pieces running to my rad bottom and one running to the steel brace behind the bumper support to the flat top of the IC secured with stainless sheet metal screws. Custom app, but does give you an idea of fit. Those big metric threaded bosses are good and strong for mounting. Flat stock comes from the hardware store.


m2cupcar is offline   Reply With Quote
Old 10-01-2007, 07:40 PM   #3
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

i bolted mine straight down into the attached bungs through the radiator support brace. i don't have A/C so I had plenty of room.

paul is offline   Reply With Quote
Old 10-01-2007, 08:31 PM   #4
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

mine is almost exactly that size, I mounted it with some all thread through the rad support.

like m3cup cars except all thread at the top through the bungs.
VRTSid is offline   Reply With Quote
Old 10-01-2007, 09:31 PM   #5
Elite Member
Thread Starter
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

anyone with a stock radiator and A/C want to contribute I appreciate the ideas so far. M2s flat stock idea is probably along the lines I'll take.
Arkmage is offline   Reply With Quote
Old 10-01-2007, 09:48 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

I had pics, cant find them.

basically two s-curved alumin pieces.

bolted to the top bungs, then screwed down onto the shelf from above, covered with my radiator plate so you cant see them
Braineack is offline   Reply With Quote
Old 10-01-2007, 10:22 PM   #7
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Scott, were you able to use the oem hood latch? I'm also considering this I/C and want to keep A/C
TurboTim is offline   Reply With Quote
Old 10-01-2007, 10:26 PM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

ark- have you bought yours yet? Did you read JasonC's post regarding the air flow thru his tackdog IC that's tube and fin? Since you're running a/c, you might consider the same size IC as tube and fin just to get some more air to the condenser and rad.
here it is

I don't think there's a problem using the OE hood latch. Any interference could be resolved with tin snips OR you could just drop it down some. Mine was removed originally to make room for the oil cooler (which is now gone from that location).
m2cupcar is offline   Reply With Quote
Old 10-01-2007, 10:37 PM   #9
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

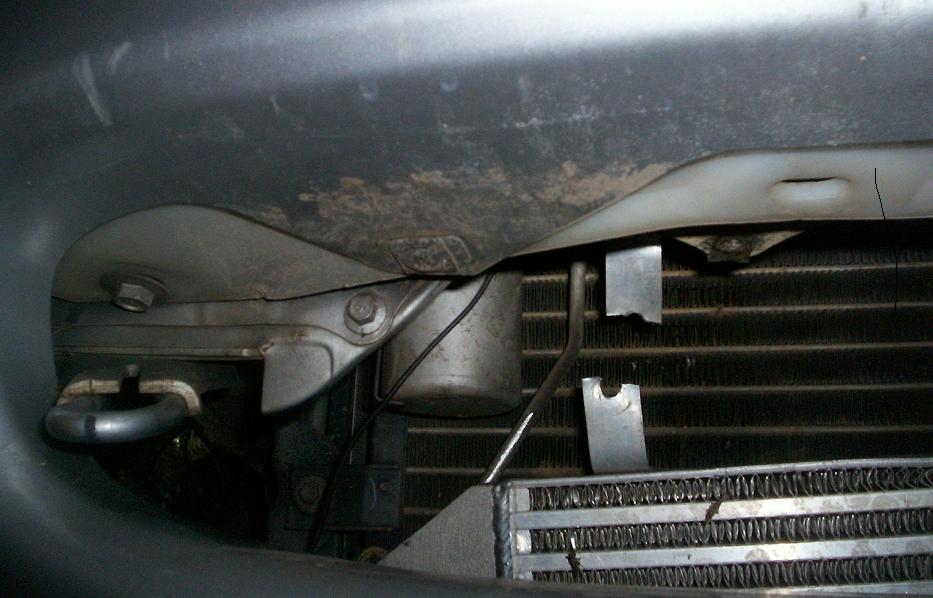

i set the bar pretty low, but you gotta do better than this
Attached Thumbnails
18"x12"x3" EBAY Mount ?-snappedic.jpg
Ben is offline   Reply With Quote
Old 10-01-2007, 11:42 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

Quote:
Originally Posted by TurboTim View Post
Scott, were you able to use the oem hood latch? I'm also considering this I/C and want to keep A/C

yeah, any taller and it wouldn't fit. i didnt have to move one thing to make it fit. only trim the undertray and front splitter.
Braineack is offline   Reply With Quote
Old 10-02-2007, 12:11 AM   #11
Elite Member
Thread Starter
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
ark- have you bought yours yet? Did you read JasonC's post regarding the air flow thru his tackdog IC that's tube and fin? Since you're running a/c, you might consider the same size IC as tube and fin just to get some more air to the condenser and rad.
here it is

I don't think there's a problem using the OE hood latch. Any interference could be resolved with tin snips OR you could just drop it down some. Mine was removed originally to make room for the oil cooler (which is now gone from that location).
Already in the garage with a thin coat of satin black on it... Not too worried about it.
Arkmage is offline   Reply With Quote
Old 10-02-2007, 09:05 AM   #12
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by m2cupcar View Post
ark- have you bought yours yet? Did you read JasonC's post regarding the air flow thru his tackdog IC that's tube and fin? Since you're running a/c, you might consider the same size IC as tube and fin just to get some more air to the condenser and rad.
here it is

I don't think there's a problem using the OE hood latch. Any interference could be resolved with tin snips OR you could just drop it down some. Mine was removed originally to make room for the oil cooler (which is now gone from that location).
I haven't been able to find tube & fin I/C's on ebay for cheap, anyone else?
TurboTim is offline   Reply With Quote
Old 10-02-2007, 09:47 AM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

i saw one a few weeks ago. same 18x12x2.5 core. would be perfect!



yeah here: http://cgi.ebay.com/ebaymotors/Inter...spagenameZWDVW
Braineack is offline   Reply With Quote
Old 10-02-2007, 10:00 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by m2cupcar View Post
...
here it is...
Same number of tubes as the bar and plate of equal core size too.
m2cupcar is offline   Reply With Quote
Old 10-02-2007, 10:39 AM   #15
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

this is an NB with AC, i hop this helps, but i just did this IC this weekend with MUSANOVIC
http://s134.photobucket.com/albums/q...Picture067.jpg
http://s134.photobucket.com/albums/q...Picture068.jpg
i have never posted pics here so i hope this works...ill try to upload more of the IC mounts
Zabac is offline   Reply With Quote
Old 10-02-2007, 10:43 AM   #16
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Zabac is offline   Reply With Quote
Old 10-02-2007, 10:58 AM   #17
Junior Member
iTrader: (7)

Join Date: Jun 2005
Location: Texas
Posts: 376
Total Cats: 16
Default

Yes, stock radiator and A/C. I took a slightly different approach. I wanted as much space between the ic and ac condenser. This configuration is working very well.

Here's a couple of horrible pictures and a description of the install:
https://www.miataturbo.net/showpost....5&postcount=14
Entire thread: https://www.miataturbo.net/general-miata-chat-9/intercooler-fan-12423/

The intercooler works so well that I don't think the fan and sprayer are really necessary or at least probably don't pay back enough to justify the extra work and cost.
dvcn is offline   Reply With Quote
Old 10-02-2007, 11:09 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default



Braineack is offline   Reply With Quote
Old 10-02-2007, 11:09 AM   #19
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by Braineack View Post
i saw one a few weeks ago. same 18x12x2.5 core. would be perfect!



yeah here: http://cgi.ebay.com/ebaymotors/Inter...spagenameZWDVW
Thanks!
TurboTim is offline   Reply With Quote
Old 10-02-2007, 11:33 AM   #20
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by m2cupcar View Post
Sorry, I didn't click this obviously.
TurboTim is offline   Reply With Quote
