Default 440cc Injectors, good, bad? (Denso part # 23250-03010)

I ordered a set of reman. injectors from ebay, was supposed to be RX-8 injectors (yellow body part # 195500-4450)(Mazda RX 8 1 3L 2004 2008 Set of 4 440cc Direct Fit Fuel Injectors | eBay)

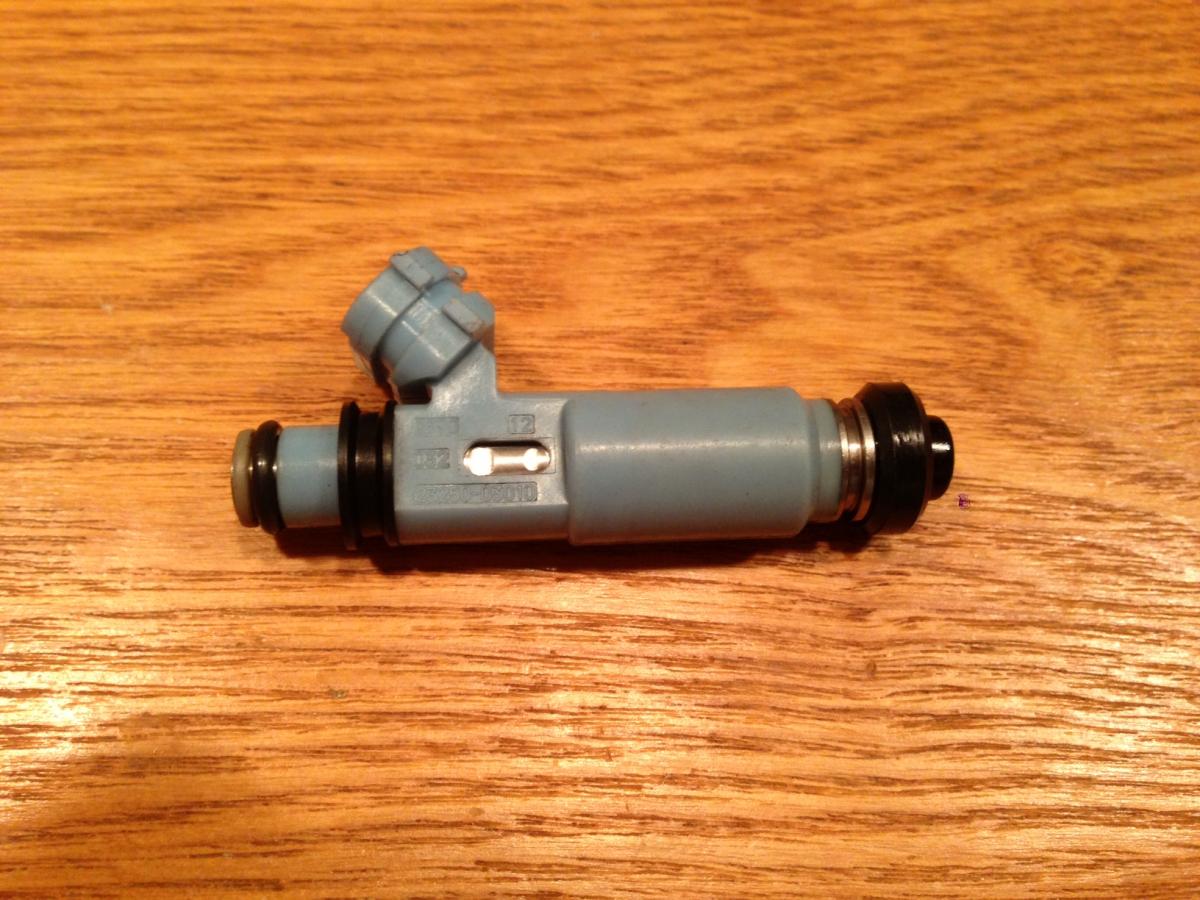

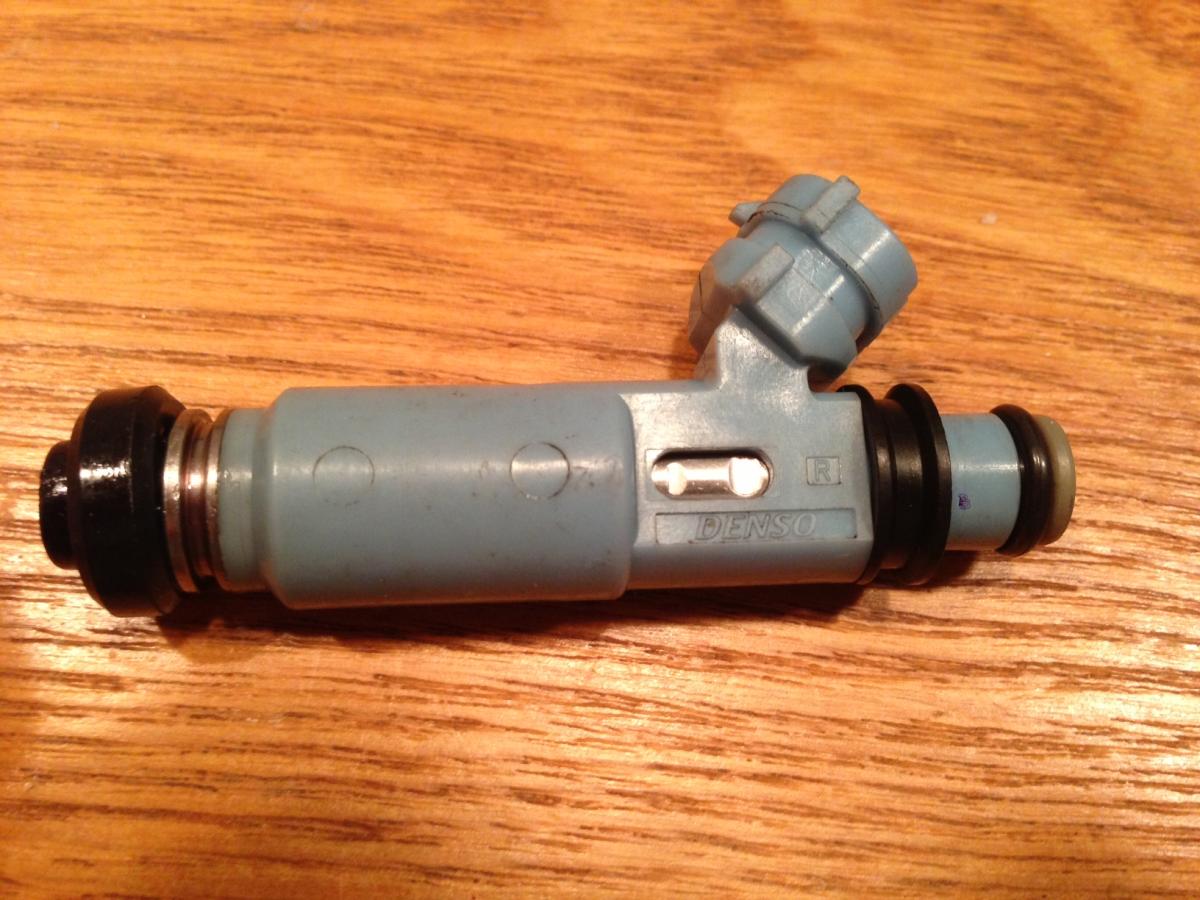

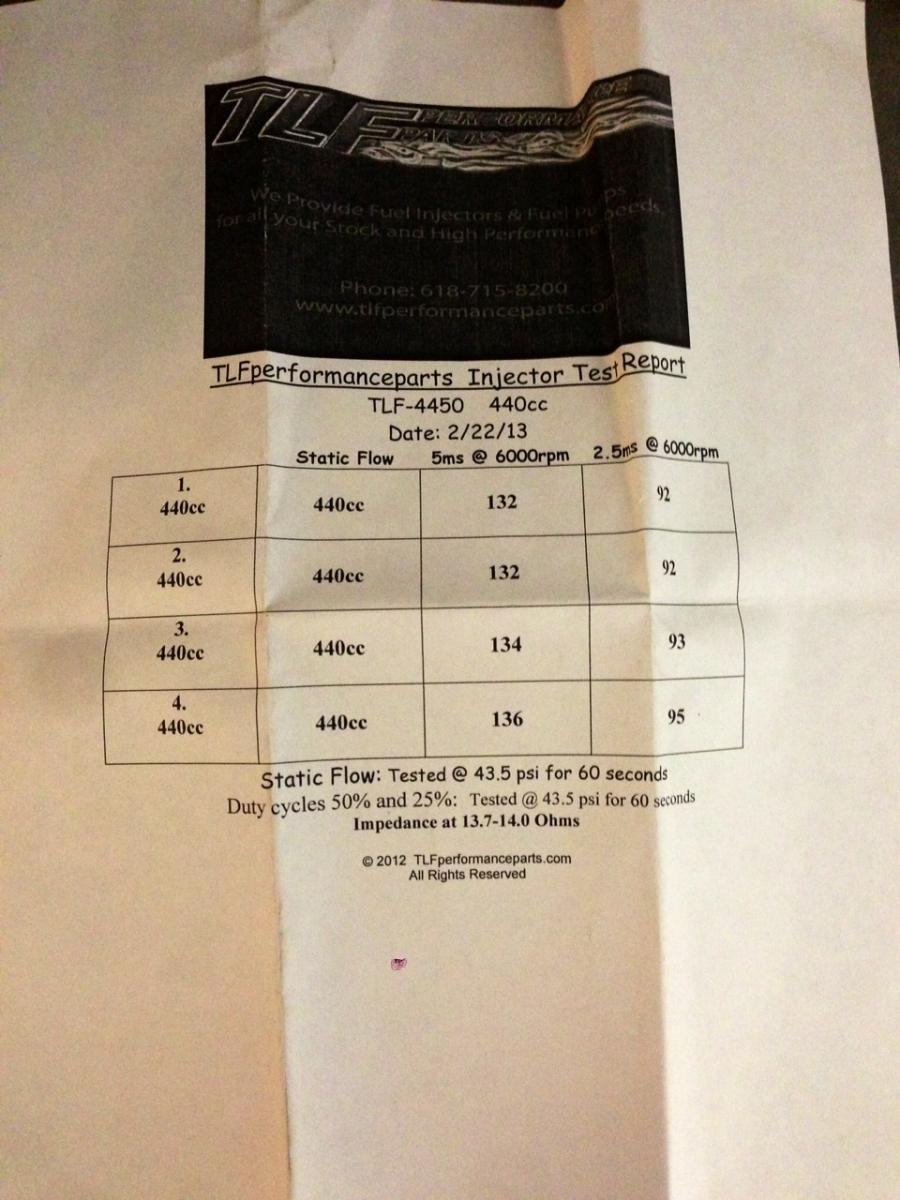

Instead I recieved a green body injector (Denso part # 23250-03010), has anyone used these injectors before, they were flow tested and I have the documentation for them but not sure if these will work or if they are any good to use.
Attached Thumbnails
440cc Injectors, good, bad? (Denso part # 23250-03010)-photo-1.jpg   440cc Injectors, good, bad? (Denso part # 23250-03010)-photo-2.jpg   440cc Injectors, good, bad? (Denso part # 23250-03010)-photo-3.jpg   440cc Injectors, good, bad? (Denso part # 23250-03010)-photo.jpg
tplociniak is offline   Reply With Quote
Old 02-26-2013, 11:17 AM   #2
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

They look like WRX 440's. If that is the case they will be too short by about 1/2 inch you will need extensions off the fuel rail.
duffbuster243 is offline   Reply With Quote
Old 02-26-2013, 11:23 AM   #3
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Never mind, A google search of the part number says they are from a Toyota Camry, As long as they are the same height they should work fine.
duffbuster243 is offline   Reply With Quote
Old 02-26-2013, 11:25 AM   #4
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Part number says Camry...
I think the RX8 are yellow? But double check that.
Zabac is offline   Reply With Quote
Old 02-26-2013, 11:31 AM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

The Camary is what I found as well, should I send these back or give them a try? Shitty part is they make me pay return shipping even though they sent the wrong product
tplociniak is offline   Reply With Quote
Old 02-26-2013, 11:36 AM   #6
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Scranton PA
Posts: 266
Total Cats: 4
Default

Well Either they are modifying these injectors to flow higher or you are being ripped off. Research shows that part number only flows 248 cc. They are also showing 550cc injectors in this add that appear to be yellow rx8 injectors:
Mazda 1990 05 Miata 1 8L 1 6 Set of 4 550cc Direct Fit Fuel Injectors | eBay
duffbuster243 is offline   Reply With Quote
Old 05-15-2013, 04:21 PM   #7
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

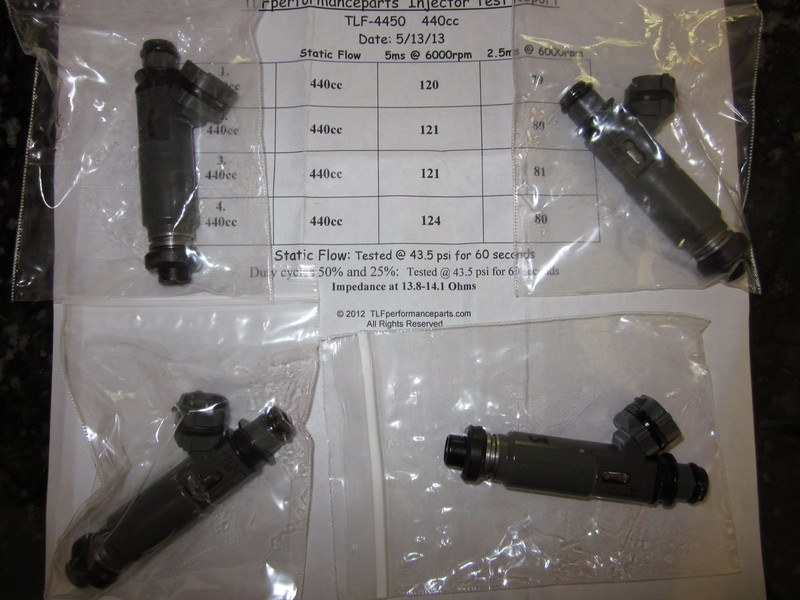

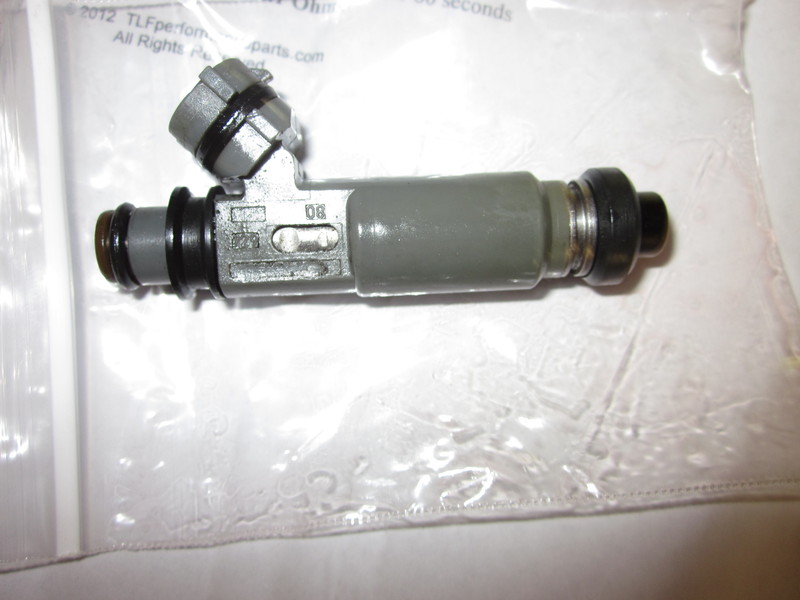

I recently order a set of RX-8 440cc injectors from this seller without carefully reading the ad or seeing this thread prior to my purchase. I received a set of these mysterious green denso injectors instead of the expected RX-8 yellow tops. They look like the toyota camry injectors in the post above, but the part numbers have been removed.

Mazda RX 8 1 3L 2004 2008 Set of 4 550cc Direct Fit Fuel Injectors | eBay




Attached Thumbnails
440cc Injectors, good, bad? (Denso part # 23250-03010)-fuelinjectors002.jpg   440cc Injectors, good, bad? (Denso part # 23250-03010)-fuelinjectors005.jpg   440cc Injectors, good, bad? (Denso part # 23250-03010)-fuelinjectors004.jpg
southernmx5 is offline   Reply With Quote
Old 05-15-2013, 07:13 PM   #8
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

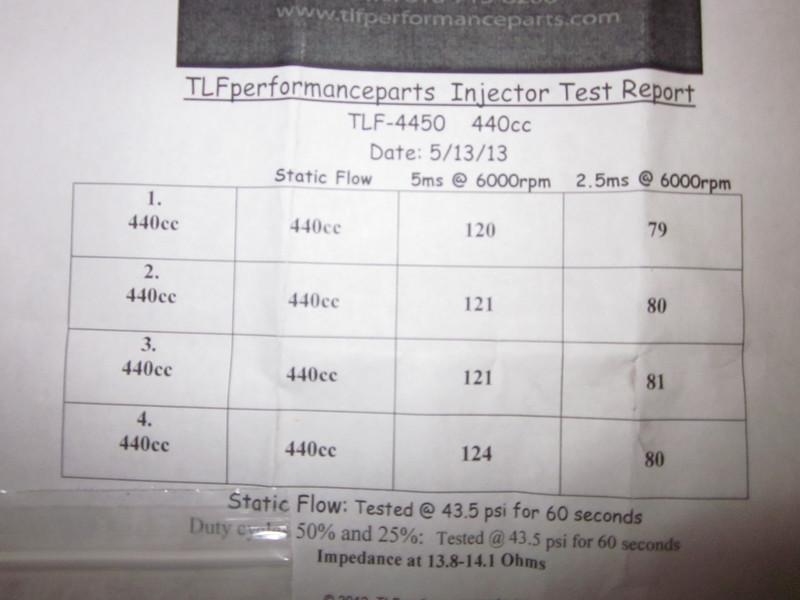

I called TLF Performance and argued with the owner about these injectors. He claimed that Denso removes the part numbers on all remanufactured units, and they have been internally modified to flow 440cc according to his flow test sheet. I told him that they appear to be denso units for the toyota camry instead of the advertised rx-8 440cc units, and that I wanted a full refund.

I strongly suspect that the part numbers were removed to avoid customer returns, and that TLF is knowingly trying to scam people by misrepresentating items.
southernmx5 is offline   Reply With Quote
Old 05-15-2013, 07:27 PM   #9
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Damn, that sucks. I guess if you want to keep throwing good money after bad you can get them flow tested elsewhere.
thenuge26 is offline   Reply With Quote
Old 05-15-2013, 07:40 PM   #10
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

I sent them back already instead of wasting money to flow test them and verify his claims. Rx-7 460cc injectors are on the way until I can find a deal on genuine rx8 injectors.

Last edited by southernmx5; 05-15-2013 at 09:33 PM.
southernmx5 is offline   Reply With Quote
Old 05-15-2013, 08:12 PM   #11
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I'm quite sure thats a false test sheet too. That said i'd return them asap. The fact that the seller is lying is enough to doubt it.

They arent RX8 injectors.
triple88a is offline   Reply With Quote
Old 05-15-2013, 09:46 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

LOL @ 440 across the board on all 4 when even some ev14's aren't that closely matched
18psi is offline   Reply With Quote
Old 05-16-2013, 02:28 PM   #13
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

MD323 is offline   Reply With Quote
Old 05-17-2013, 02:08 AM   #14
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Quote:
Originally Posted by MD323 View Post
Good catch! Unfortunately here is another one: https://www.miataturbo.net/miata-par...jectors-72268/
southernmx5 is offline   Reply With Quote
Old 05-29-2013, 09:07 PM   #15
Junior Member
iTrader: (2)

Join Date: Mar 2013
Posts: 68
Total Cats: 0
Default

I checked the part numbers on mine and they matched....I never installed them so I didn't know they were camry injectors. I'm selling my car so they never had any use. Well off to the camry forums I guess -.- since I bought these months ago, no ebay buyer protection.

SO do not buy these

http://www.ebay.com/itm/181025237749...witem=&vxp=mtr
Turbonator is offline   Reply With Quote
