Default AMS 500 EBC

Hey,

After searching around I found AMS500, I understand that it is highly recommended and it gives a very very stable boost curve.

It uses two solenoids in order to do that (the only EBC that I know that does that)

Anyway, I emailed them and got an answer that I need a dual port actuator (I use internal wastgate)

I got a few questions:
1. Is it an over kill for my setup ? 15-17psi top
2. What dual port actuator would you recommend?

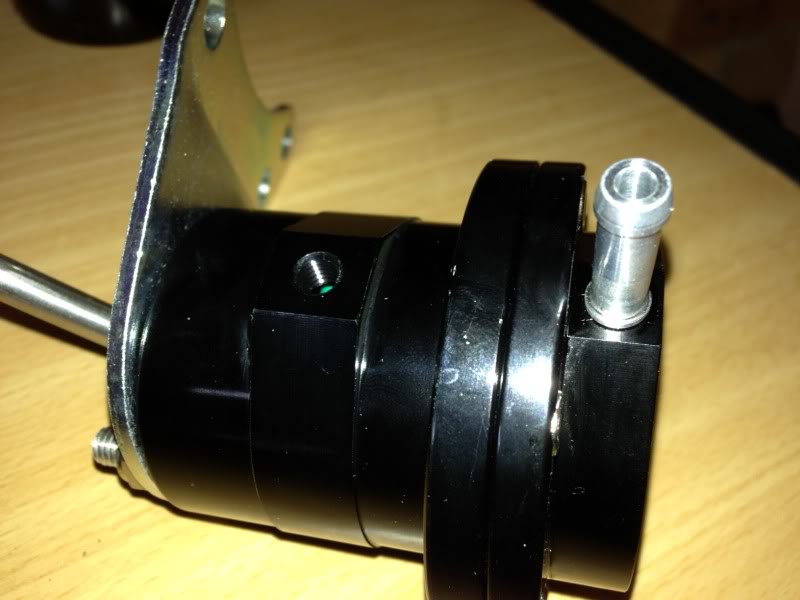

3. My current actuator got two "ports" technically.

after a quick check I can tell that the bottom compartment is not air sealed... (must it be ?)

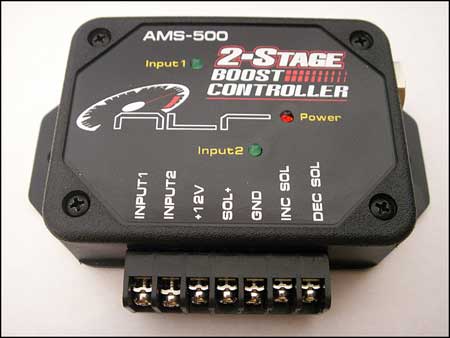

AMS500
NLR SYSTEMS



Attached Thumbnails
AMS 500 EBC-photo.jpg   AMS 500 EBC-ams500-front-pic.jpg   AMS 500 EBC-ams500-under-cover.jpg

Last edited by elior77; 03-02-2014 at 05:57 AM.
elior77 is offline   Reply With Quote
Old 03-01-2014, 03:30 AM   #2
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

You have a Megasquirt. Why in the world are you looking at a $1300 boost controller when you have access to a $60 or so boost controller kit that is likely just about as good?
blaen99 is offline   Reply With Quote
Old 03-01-2014, 04:38 AM   #3
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

it's a 400$ EBC, I would like to have 3 modes EBC, MS gives only 1 as far as I understand.
elior77 is offline   Reply With Quote
Old 03-02-2014, 05:59 AM   #4
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Any input ?
elior77 is offline   Reply With Quote
Old 03-02-2014, 08:28 AM   #5
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

f*ck it, just ordered it
elior77 is offline   Reply With Quote
Old 03-02-2014, 08:48 AM   #6
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

i was using the AEM tru boost, worked great, has multiple modes and scramble boost. Best was that everything was right in front of you on the gauge. So if you started over boosting due to weather conditions, you could adjust it without a laptop.
ctdrftna is offline   Reply With Quote
Old 03-02-2014, 09:04 AM   #7
Junior Member

Join Date: Mar 2012
Location: Searcy, AR
Posts: 149
Total Cats: -2
Default

I've used AMS products drag racing in the past (ams1000) and they are nice. That said I would look to leash electronics now if I wanted a standalone controller.
FrankL is offline   Reply With Quote
Old 03-02-2014, 09:14 AM   #8
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Quote:
Originally Posted by ctdrftna View Post
i was using the AEM tru boost, worked great, has multiple modes and scramble boost. Best was that everything was right in front of you on the gauge. So if you started over boosting due to weather conditions, you could adjust it without a laptop.
No weather boost change problem with this unit
elior77 is offline   Reply With Quote
Old 03-02-2014, 09:51 AM   #9
Junior Member
iTrader: (1)

Join Date: Nov 2011
Posts: 75
Total Cats: 5
Default

AMS is a nice unit, but almost pointless for IWG, especially at "moderate" boost levels. AMS dual port configuation works best for EWG with two ports. Able to hold the gate closed longer, aiding in spool, then open to exact boost set point with zero oscillation. You won't be bale to do that with a single port IWG, so it will take some finagling to get it to old the gate closed long enough to impact spool, while not creating a boost spike.
StratoBlue1109 is offline   Reply With Quote
Old 03-02-2014, 01:05 PM   #10
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Attached Thumbnails

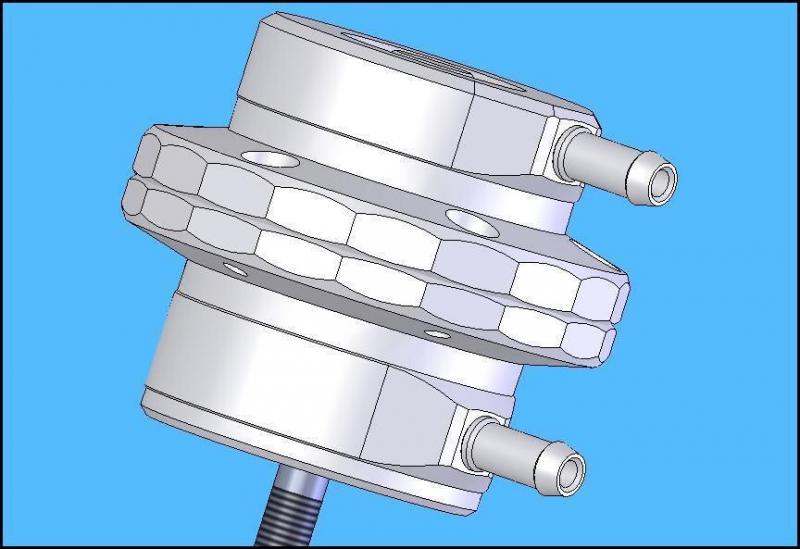

AMS 500 EBC-efr-dual-port-internal-wg-actuator-content-11.jpg
elior77 is offline   Reply With Quote
Old 03-02-2014, 02:19 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

so let me get this straight: you spent 400 on a boost controller, when you could have upgraded your MS1 to a MS3x for the same amount?

yikes

Well, I hope its worth it. I cannot comprehend doing something like this, but at least you got a really nice product and not something stupid.
18psi is offline   Reply With Quote
Old 03-02-2014, 02:39 PM   #12
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Plus, an MS1 CAN be tuned to give good closed-loop EBC in any weather. There's a sticky on how to do this.

This doesn't make sense unless you just like adding expensive parts.

Probably not to late to return new, uninstalled parts. We're talking a new set of Rivals or RS-3s here.
hornetball is offline   Reply With Quote
Old 03-02-2014, 04:43 PM   #13
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by hornetball View Post
Plus, an MS1 CAN be tuned to give good closed-loop EBC in any weather. There's a sticky on how to do this.
OP said he wants 3 boost tables/levels.
Reverant is offline   Reply With Quote
Old 03-02-2014, 10:26 PM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Reverant View Post
OP said he wants 3 boost tables/levels.
For some retarded reason. Cant the MS3x do at least 2 switchable boost tables?

I'd have just got a 5way noid to match that 2 port wastegate actuator rather than running 2 3 way noids. I bought a 2 port actuator specifically for that reason so I could have better part throttle boost control by using a lower pressure spring and still get high boost by pressurising the 2nd port.
Leafy is offline   Reply With Quote
Old 03-03-2014, 11:37 AM   #15
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

I've got 2 levels with my 1st gen MSPNP. CLEBC and wastegate-only. This provides a lower-boost failsafe when I run out of water injection fluid on track (right around minute 27 ).

Honestly, not sure what I would do with 3 levels. I guess E85 vs. gasoline vs. ???
hornetball is offline   Reply With Quote
Old 03-03-2014, 03:13 PM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Leafy View Post
For some retarded reason. Cant the MS3x do at least 2 switchable boost tables?

I'd have just got a 5way noid to match that 2 port wastegate actuator rather than running 2 3 way noids. I bought a 2 port actuator specifically for that reason so I could have better part throttle boost control by using a lower pressure spring and still get high boost by pressurising the 2nd port.
MS3 will allow 2 switchable boost tables, so you could have EBC 1, EBC 2, and EBC off (spring pressure) for a total of 3 boost levels.
It also does boost by gear, speed, rpm, and time after launch.

These expensive aftermarket controllers with dual solenoids are generally used on drag applications. They use regulated compressed air or regulated CO2 instead of manifold pressure to control a 2-port external gate. This allows the controller to dial in less boost than the gate spring during launch by applying air or CO2 pressure to the bottom port. After launch, air or CO2 is directed to the top port to increase boost.

2 pressure regulators are used. The top port is set for higher pressure than the bottom port.

This allows for really fast reacting boost control, very important for bracket racing. Not ideal for HPDE or road race due to limited supply of CO2.
Ben is offline   Reply With Quote
Old 04-26-2014, 10:12 AM   #17
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

elior77 is offline   Reply With Quote
Old 04-26-2014, 02:32 PM   #18
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by elior77 View Post
This is a two port actuator. Just get a fitting to screw into the bottom port.

Keith
Twodoor is offline   Reply With Quote
