Default Blowing Oil

I finally got my fresh JDM 1.8 BP to start the other day, only to be welcomed by a lot of white smoke.

I know before every comes running saying im burning coolant im not. I checked the dip stick, all the oil is clean, and i have checked the radiator for any oil bubbles none to be found.

I did a compression test on a cold engine and these were my results.
1. 137 2. 145 3. 130 4. 135

After all the smoked cleared, i looked under the car to find oil everywhere under the car by the downpipe.

The oil looked fresh, but burn so im guessing its coming from the Turbo, which is a Godspeed GT2870. It has a 4AN SS oil feed coming from the back of the block, 2 6an SS water lines, and a 10 AN SS drain. Along with a restrictor feed on the top of the turbo

I was reading that either my seals are blown which im not convinced since this is a brand new turbo. OR my oil return is constricting flow and the oil is backing up into the turbo and being blown out. The fins on the cold side are dry and oil free.

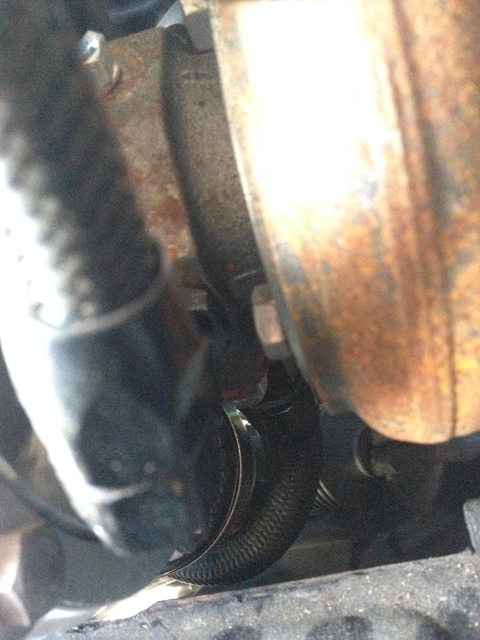

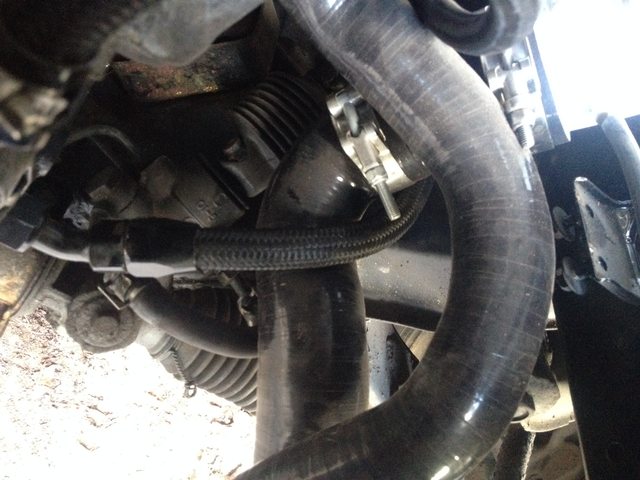

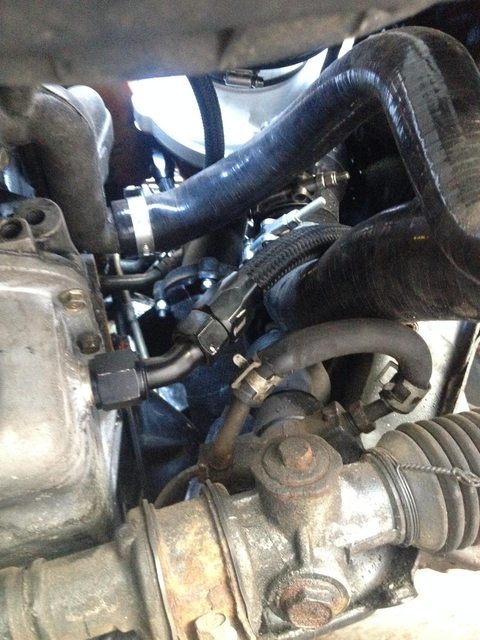

Here are some pictures of the oil return lines.







Now questions, since im leaking so much does that mean the seals are bad and need to be replaced even if i make a new drain line?
Attached Thumbnails
Blowing Oil-hrzz30ll.jpg   Blowing Oil-6lje33jl.jpg   Blowing Oil-unex7ynl.jpg
4ddiction is offline   Reply With Quote
Old 04-24-2014, 02:00 AM   #2
Newb

Join Date: Apr 2014
Posts: 30
Total Cats: 4
Default

highly doubt your blowing oil externally out of the turbo. when the seals go out generally its ingested into the exhaust or compressor side.

does it smell like burnt oil? the pics look pretty dry to me.
dooderek is offline   Reply With Quote
Old 04-24-2014, 09:22 AM   #3
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

What size restrictor did you use in the oil feed line to the turbo?
sixshooter is offline   Reply With Quote
Old 04-24-2014, 11:17 AM   #4
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Yeah I dont see any oil leaking from those pics? Your compression numbers seem low to me though.
flounder is offline   Reply With Quote
Old 04-24-2014, 11:53 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

JDM motors blow oil; that's why they are so cheap and abundant.

also, gunk and filth burn...
Braineack is offline   Reply With Quote
Old 04-24-2014, 12:06 PM   #6
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 68
Total Cats: 0
Default

Quote:
Originally Posted by dooderek View Post
highly doubt your blowing oil externally out of the turbo. when the seals go out generally its ingested into the exhaust or compressor side.

does it smell like burnt oil? the pics look pretty dry to me.
It smells like burnt oil all right. The turbo isnt leaking externally. Just straight out of the exhaust downpipe

Quote:
Originally Posted by sixshooter View Post
What size restrictor did you use in the oil feed line to the turbo?
1.5 mm restrictor

Quote:
Originally Posted by flounder View Post
Yeah I dont see any oil leaking from those pics? Your compression numbers seem low to me though.
The compression are on a cold engine that was started once since september...

Quote:
Originally Posted by Braineack View Post
JDM motors blow oil; that's why they are so cheap and abundant.

also, gunk and filth burn...
Once i take the turbo off ima check if the oil is coming from the exhaust manifold but i highy doubt that.



What i was thinking is that the oil isnt draining properly and blowing out of the exhaust. Or my turbo seals are blown. I have a rebuild kit for the turbo so its not a real big issue.
4ddiction is offline   Reply With Quote
Old 04-24-2014, 12:14 PM   #7
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

https://www.miataturbo.net/diy-turbo...ild-kit-73912/

It may be from a failing turbo, it may be from the fact that you just started it after sitting for a long time?

Try out this little test like in the video from the linked thread and make a video of the smoking or better pics of the leak.
flounder is offline   Reply With Quote
Old 04-24-2014, 12:54 PM   #8
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 68
Total Cats: 0
Default

Quote:
Originally Posted by flounder View Post
https://www.miataturbo.net/diy-turbo...ild-kit-73912/

It may be from a failing turbo, it may be from the fact that you just started it after sitting for a long time?

Try out this little test like in the video from the linked thread and make a video of the smoking or better pics of the leak.
Well i thought it would be from sitting for so long but when i looked under the car where the downpipe ends (my mid pipe is not on yet) there is oil everywhere that was sprayed out.

Im doing some research and im starting to think more and more that my drain line is the cause of this. I highly doubt a brand new turbo seals would be bad.
4ddiction is offline   Reply With Quote
Old 04-24-2014, 12:57 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

its not your drain.

if anything it's the poor oil rings in your cheap motor.
Braineack is offline   Reply With Quote
Old 04-24-2014, 12:57 PM   #10
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,633
Total Cats: 1,559
Default

1.5mm=.060 so that should be fine
sixshooter is offline   Reply With Quote
Old 04-24-2014, 12:59 PM   #11
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 68
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
its not your drain.

if anything it's the poor oil rings in your cheap motor.
I dont understand how its a cheap motor? It came out of a stock miata...
4ddiction is offline   Reply With Quote
Old 04-24-2014, 01:04 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by 4ddiction View Post
I dont understand how its a cheap motor? It came out of a stock miata...
was the stock miata in japan?
Braineack is offline   Reply With Quote
Old 04-24-2014, 01:08 PM   #13
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 68
Total Cats: 0
Default

Yes, but the amount of oil coming out is not likely to be caused by leaking oil rings. This is a **** load of oil. I mean the entire garage was up in smoke.
4ddiction is offline   Reply With Quote
Old 04-24-2014, 01:09 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

That's like exactly the thing I'd expect from a motor from Japan that came shipped with bad rings. JDM motors are just bad bad bad. it's a gamble that typically doesn't pay off. They are abused to hell and then pulled and sold here for cheap.

I would have strongly suggested to get a motor from a better source...
Braineack is offline   Reply With Quote
Old 04-24-2014, 01:55 PM   #15
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

In Japan they have all these motors for sale because government mandates inspections so stringent that nobody can pass after a certain mileage. Owners who know from the start that they are not going to pay for a full rebuild at that point do ZERO maintenance on the engine while they own it. Why bother? Oil change? What's that? You just (at most) dump more cheap as you can find oil into it if the level gets low.

Keith
Twodoor is offline   Reply With Quote
Old 04-24-2014, 03:03 PM   #16
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Quote:
Originally Posted by Twodoor View Post
In Japan they have all these motors for sale because government mandates inspections so stringent that nobody can pass after a certain mileage. Owners who know from the start that they are not going to pay for a full rebuild at that point do ZERO maintenance on the engine while they own it. Why bother? Oil change? What's that? You just (at most) dump more cheap as you can find oil into it if the level gets low.

Keith
This is 100% correct. The JCI runs around $1,000 pass or fail. And if you fail, you don't get any credit. You have to pay for it all over again to get re-inspected. I found out the hard way on that. After paying it the first time, it just became a game of get rid of the car every 3 years. **** maintenance. No one can afford that ****.
dieselmiata is offline   Reply With Quote
Old 04-24-2014, 04:23 PM   #17
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 68
Total Cats: 0
Default

Oh wow not what I wanted to hear! Well I'll pull off the turbo and then we will know for sure if it's the engine or the turbo.
4ddiction is offline   Reply With Quote
Old 04-27-2014, 08:02 PM   #18
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Attached Thumbnails
Blowing Oil-im-so-jdm-yo.jpg
flounder is offline   Reply With Quote
Old 04-27-2014, 10:47 PM   #19
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

I would be OK with a 2 year old Japanese car. A car with synthetic oil can handle 2 years and 20,000 miles without an oil change. Many cars come from the factory with synthetic now. Anything older than that avoid like the plague. Strange as it seems, the car most likely to have regular engine maintenance is one used by someone who street races, tracks their car, or drifts.

Keith
Twodoor is offline   Reply With Quote
Old 04-27-2014, 10:49 PM   #20
Junior Member
Thread Starter

Join Date: Sep 2013
Posts: 68
Total Cats: 0
Default

Alls dandy. Found a problem with the drain guess a kink. Car runs fine no burning oil.
