Default Another Injector question - Siemens Deka

I've been reading through a lot of builds...and haven't found anyone using 60 lb/hr Seimens Deka IV Mototron injectors...is there a reason why they would be undesirable? (...other than the connector being different...)

Thanks!
zoomzoom365 is offline   Reply With Quote
Old 11-17-2011, 04:30 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

We like PNP and what is known.
shuiend is offline   Reply With Quote
Old 11-19-2011, 09:03 AM   #3
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

Quote:
Originally Posted by zoomzoom365 View Post
I've been reading through a lot of builds...and haven't found anyone using 60 lb/hr Seimens Deka IV Mototron injectors...is there a reason why they would be undesirable? (...other than the connector being different...)

Thanks!
what is the COMPELLING reason for using them? the $50/ea price?
http://www.bmotorsports.com/shop/pro...roducts_id/448

[and I believe is is Siemens]
and it looks like you can get them as either EV-1 or EV-6
mx594m is offline   Reply With Quote
Old 11-19-2011, 09:21 AM   #4
Newb
Thread Starter

Join Date: Jan 2008
Location: Ottawa, ON
Posts: 22
Total Cats: 0
Default

Price certainly is an interesting portion of their attractiveness...when compared to buying a set of junk-yard RX7 injectors, then having them cleaned...the pricing is getting comparable...plus they are new...and may have a better spray pattern (yes...I said may)

I've used a set in the past on another project (Saab 2.0l Ecotec turbo), with good results, but I didn't have any other comparison injectors on that car...
zoomzoom365 is offline   Reply With Quote
Old 11-19-2011, 05:07 PM   #5
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

Quote:
Originally Posted by zoomzoom365 View Post
Price certainly is an interesting portion of their attractiveness...when compared to buying a set of junk-yard RX7 injectors, then having them cleaned...the pricing is getting comparable...plus they are new...and may have a better spray pattern (yes...I said may)

I've used a set in the past on another project (Saab 2.0l Ecotec turbo), with good results, but I didn't have any other comparison injectors on that car...
interesting enough to have me considering replacing my Delphi 50-lb'er
mx594m is offline   Reply With Quote
Old 12-16-2011, 05:51 PM   #6
Newb
Thread Starter

Join Date: Jan 2008
Location: Ottawa, ON
Posts: 22
Total Cats: 0
Default

My only worry is being able to idle the injectors well on a 1.6...
zoomzoom365 is offline   Reply With Quote
Old 12-16-2011, 08:22 PM   #7
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by mx594m View Post
what is the COMPELLING reason for using them? the $50/ea price?
http://www.bmotorsports.com/shop/pro...roducts_id/448

[and I believe is is Siemens]
and it looks like you can get them as either EV-1 or EV-6
ev1 and ev6 is injector types and has nothing to do with injectors from siemens.
Techsalvager is offline   Reply With Quote
Old 12-16-2011, 08:58 PM   #8
Newb
Thread Starter

Join Date: Jan 2008
Location: Ottawa, ON
Posts: 22
Total Cats: 0
Default

I believe he was just referring to the connector compatibility...
zoomzoom365 is offline   Reply With Quote
Old 12-16-2011, 08:59 PM   #9
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by zoomzoom365 View Post
I believe he was just referring to the connector compatibility...
which has nothing to do with the connector.
Techsalvager is offline   Reply With Quote
Old 12-16-2011, 09:45 PM   #10
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

The connector has nothing to do with connector. Its so obvious now.
Miater is offline   Reply With Quote
Old 12-16-2011, 09:51 PM   #11
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I meant ev1\6 are not connectors, they are injector types from bosch.
The connector shown in the link is a minitimer connector
The other deka injectors have a USCAR connector.
Techsalvager is offline   Reply With Quote
Old 12-16-2011, 09:53 PM   #12
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

well then educate us, what exactly do EV1 and EV6 mean?

"USCAR (EV6) & Minitimer (EV1) connectors available!" from the deka advertisement

http://media.photobucket.com/image/e...1vsEV6.jpg?o=1
mx594m is offline   Reply With Quote
Old 12-16-2011, 09:57 PM   #13
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

I did
Look an EV6 injector with a minitimer connector

The EV6 injector pic in your post has a USCAR connector.
Attached Thumbnails
Another Injector question - Siemens Deka-motr-04672.jpg.thumb_300x282_mat.jpg
Techsalvager is offline   Reply With Quote
Old 12-16-2011, 10:14 PM   #14
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

"USCAR (EV6) & Minitimer (EV1) connectors available!" from the deka advertisement
mx594m is offline   Reply With Quote
Old 12-16-2011, 10:23 PM   #15
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by mx594m View Post
"USCAR (EV6) & Minitimer (EV1) connectors available!" from the deka advertisement
Your point is what? That you keep finding people that just use ev6 and ev1 for search words in search engines? ev6, ev1 aren't connectors despite what people may say in their website. their injector types from bosch that can and have different types of connectors on the injectors.

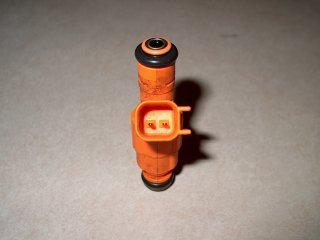

Look an EV6 injector with a USCAR connector on it.



Look an EV6 injector with a Minitimer connector on it.

Attached Thumbnails
Another Injector question - Siemens Deka-newinj.jpg
Techsalvager is offline   Reply With Quote
Old 12-16-2011, 10:26 PM   #16
Newb
Thread Starter

Join Date: Jan 2008
Location: Ottawa, ON
Posts: 22
Total Cats: 0
Default

So, if I understand your point... the marketplace generally refers to the connector based on the original connectors supplied these injector types...but that's not always the case...

For reference, what is the name of the connector on the Miata injectors?
zoomzoom365 is offline   Reply With Quote
Old 12-16-2011, 10:28 PM   #17
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by zoomzoom365 View Post
EV6 uses a USCAR connector.
In my last post what is the connector in the bottom picture and what is the injector type.

I would guess its liek that way because a lot of the EV1 injectors have minitimer connectors and everyone generally thinks they are refered as EV1 connectors. I've seen it on forums and in person. Just keeps going on like this because websites like that list that because either they know it as that or use it as search keywords for other people that know no better.
Techsalvager is offline   Reply With Quote
Old 12-16-2011, 11:15 PM   #18
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

okay, found this

"The EV1 is the earlier design type: it is a pintle injector, meaning it has tapered needle that atomizes and sprays the fuel into the engine. The EV6, on the other hand, is a disc-type or "director plate" style injector, which has four small holes to better atomize the fuel."

Read more: Specifications for the Bosch Fuel Injector | eHow.com http://www.ehow.com/list_7450463_spe...#ixzz1gl41v9Hh
mx594m is offline   Reply With Quote
Old 12-16-2011, 11:22 PM   #19
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

now what are EV14s? how do they differ? do miatas use 48mm or 60mm length?
mx594m is offline   Reply With Quote
Old 12-16-2011, 11:26 PM   #20
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

EV14's are the newest injector type from Bosch
composite materials make up the shell of them, they also have smaller internals compared to the EV6's and overall are a better buy compared to eariler bosch injectors for people going standalone.

I'm still interested in the Siemens deka V twin spray 39lb\hr fuel injectors.
Techsalvager is offline   Reply With Quote
