Default anyone have a custom t25 wastegate bracket?

For my first turbo setup I am using a t25 off of a sr20det. Basically to route the inlet side downwards you have to clock the housing 180*. Well doing so makes your wastegate mount on the opposite side! Has anyone fabbed up a custom bracket? or should I try to weld on some aluminum tabs for a bracket?
FowlerMotorsports is offline   Reply With Quote
Old 04-18-2012, 11:53 PM   #2
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Custom bracket that ----. Had wittyworks make me a bracket really quick, works fine even though its only held on with one bolt lol.
MartinezA92 is offline   Reply With Quote
Old 04-18-2012, 11:54 PM   #3
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

I just welded an L-bracket onto the wastegate, and proceeded to drill holes into it to match one of several mounting points from that position.
blaen99 is offline   Reply With Quote
Old 04-19-2012, 12:05 AM   #4
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

You guys have any pics? I would love to see some so I can get some ideas
FowlerMotorsports is offline   Reply With Quote
Old 04-19-2012, 12:09 AM   #5
Junior Member
iTrader: (10)

Join Date: May 2008
Location: Baldwin Park, CA
Posts: 151
Total Cats: 6
Default

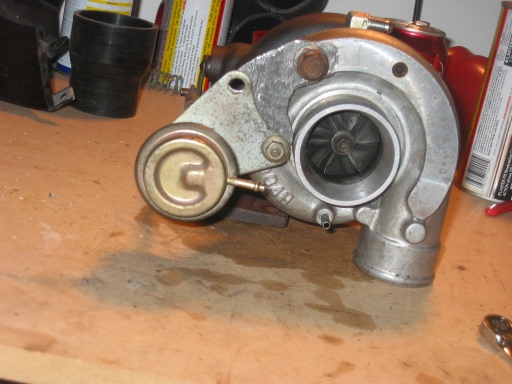

The basic idea.
Attached Thumbnails
anyone have a custom t25 wastegate bracket?-12.jpg
ssmith is offline   Reply With Quote
Old 04-19-2012, 12:36 AM   #6
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Thanks ssmith! That's what I had in mind, but mine is a tad different I will make more of a horseshoe bracket as it wraps around a lot further than yours does
FowlerMotorsports is offline   Reply With Quote
Old 04-19-2012, 02:00 AM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

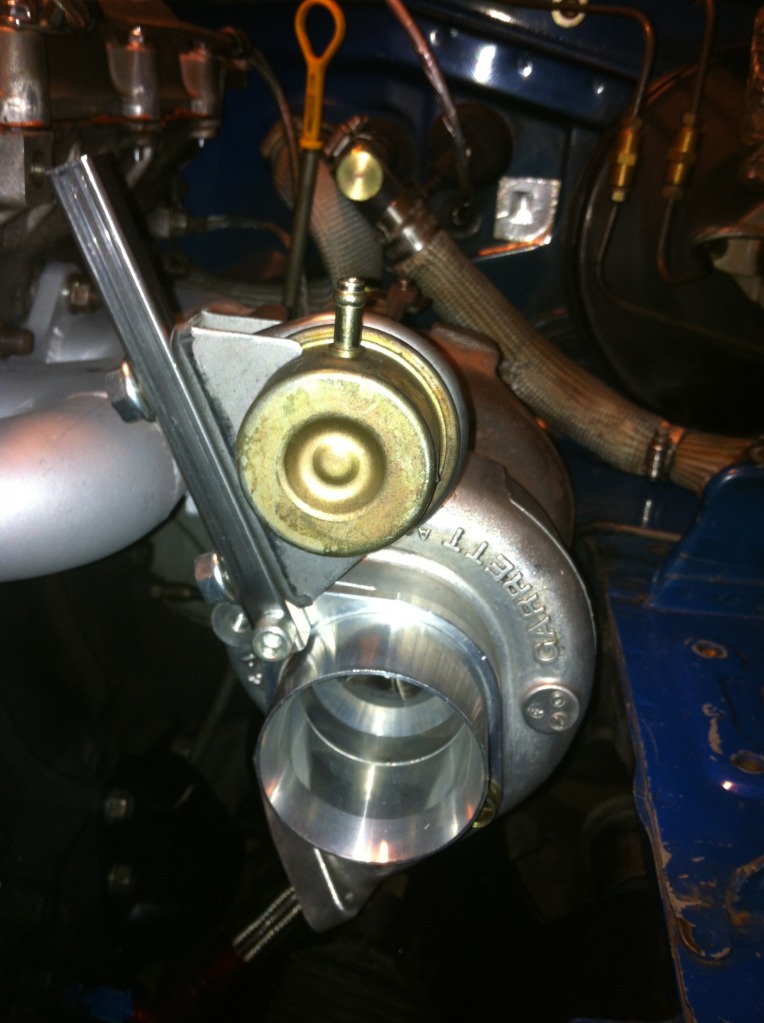

1/2" square tubing. Easiest ------- thing I've ever fabbed.

Attached Thumbnails
anyone have a custom t25 wastegate bracket?-img_1567.jpg
curly is offline   Reply With Quote
Old 04-19-2012, 10:45 PM   #8
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

easier done than said actually!

FowlerMotorsports is offline   Reply With Quote
Old 04-21-2012, 06:31 PM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Did you have issues making it? That's an exhaust bracket btw.
curly is offline   Reply With Quote
Old 04-21-2012, 08:34 PM   #10
Senior Member
Thread Starter
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

No problems at all. We actually used these to clip a spring to on the carburetor of my dirt track car so the throttle wouldn't stick. It's very durable, I had scrap pieces so it took me maybe 10 minutes
