Default opinions on rx7 460cc injectors im about to install

I put together a diy Turbo thread for my 2000 nb some time ago. The stock clutch went a month ago. I ditched the Garrett t3 once it failed me. I have been running the godspeed "super 60 t3" since September and love it. Autotuned on 7 psi with MS2. Have not dynod the car yet but I feel that it is time for more boost since the flyin miata clutch is broken in. I don't think the stock injectors will handle desired boost of 12psi. But I fucked up when I piecing together my kit and bought the red top rx7 injectors that you can't tell are high or low impedance until you try them out.what can I do and anyone see a problem here?
sickmiatabra is offline   Reply With Quote
Old 04-11-2012, 08:54 PM   #2
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

I'm running 15psi on 425cc rx8 injectors so you should be fine.
flounder is offline   Reply With Quote
Old 04-11-2012, 09:02 PM   #3
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

As for your dilemma: Try them, if they don't work, just sell them and buy the correct ones. Rx7 injectors *are not* expensive.
blaen99 is offline   Reply With Quote
Old 04-11-2012, 09:22 PM   #4
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

I run them and the work fine. 64% duty cycle at 12 psi. And you can just test the resistance between the two pins to tell if they are high or low impedance...
cardriverx is offline   Reply With Quote
Old 04-11-2012, 09:42 PM   #5
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

or you can read the part number on them, rx7 injectors are documented pretty well.
I still would get newer injectors instead.
Techsalvager is offline   Reply With Quote
Old 04-11-2012, 09:48 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

I looked up the number on the injector a while ago. I just have the one set that is "either/or" so i'm kinda stuck on that. How do I test the resistance to know if they're high or low?? what numbers should I be looking for. And can I still tune with them if they are low impedance on my MS II>??? thanks for the input guys
sickmiatabra is offline   Reply With Quote
Old 04-11-2012, 09:51 PM   #7
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

2010 at the last 4 of the injector part number?
They are high impdenance
and if you are worried just grab a mutlimeter, set it to read ohms and hit the 2 pins on the injector.
Techsalvager is offline   Reply With Quote
Old 04-11-2012, 10:08 PM   #8
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

http://miataturbo.wikidot.com/fuel-injectors

High Ohm/saturated direct fit Miata plug and play replacement injectors (F connector)

89-91 RX-7 NA 460cc - Red Top #195500-2010
89-91 RX-7 Turbo 550cc - purple top #195500-2020

As Cardriver and Tech both said... put a meter on them and get the resistance. If its more than about 12 Ω, you are golden.

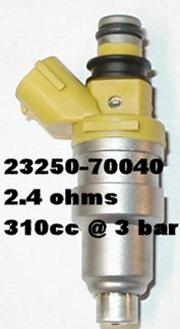

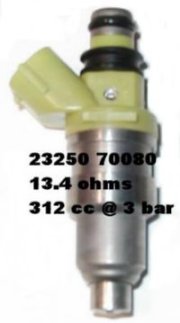

The link above also has pics for identifying high and low ohm F connectors


Notice the connector clip tab?

RC Engineering sez:

Quote:
Do I need high or low resistance injectors for my application?

Injectors are classified into two categories.
1. High impedance/resistance (saturated) 12-16 Ohms.
2. Low impedance/resistance (peak & hold) 0.5-6 Ohms.

Saturated injectors require roughly 1-1.5 amps to open the injector. Peak & hold injectors initially needs about 4-6 amps, and once open drops to roughly 2-3 amps to keep it open.

ECU design will dictate the use of one or the other. Most late model cars will use saturated injectors.
http://www.rceng.com/faq.aspx#Do_I_n...my_application

Of course if you are dead set on buying new injectors, you can always look into a set of FiveOhMotorsports or Injector Dynamics EV14s and ditch the 1970's level injector technology
Attached Thumbnails
opinions on rx7 460cc injectors im about to install-d2325070080.jpg   opinions on rx7 460cc injectors im about to install-d2325070040.jpg
EO2K is offline   Reply With Quote
Old 04-11-2012, 10:13 PM   #9
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Renown Performance sells FICs for less than Fiveo's injectors, and substantially better quality than Fiveo at that.

/Support a forum vendor and all that if you want to go cheap.
blaen99 is offline   Reply With Quote
Old 04-11-2012, 10:22 PM   #10
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Good call, I didn't realize Renown was selling FIC. I'd seen Reverent recommend FiveOh in the past, so that's what I bought. I was unaware there was a quality issue FiveOh??

Last edited by EO2K; 04-11-2012 at 10:33 PM. Reason: Changed ID for FIC, herpderp
EO2K is offline   Reply With Quote
Old 04-11-2012, 10:25 PM   #11
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

From what I understand, Fiveo buys the cheapest EV14 they can find, then bore it out to whatever they desire for cc-metric.

FIC buys the closest EV14 to their desired cc metric, then bores it out.

FIC's process is similar to ID's, FiveO's process is the classic fleabay injector process.

/YMMV and all though, I've only found that out via copious internet searching.
blaen99 is offline   Reply With Quote
Old 04-11-2012, 10:32 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

Alright here are the numbers, all four have the #195500-1350 on them. But on the other side of the injector, 2 of them have a 25 with "E" on the injector clip. The other to have 26 with "F" on the clip. Still good? lol
sickmiatabra is offline   Reply With Quote
Old 04-11-2012, 10:33 PM   #13
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Nope, those are lo-z and not hi-z.

Well, there's a *chance* they may be 88s, but 88s were the black sheep of the RX7 family with respect to injectors.
blaen99 is offline   Reply With Quote
Old 04-11-2012, 10:37 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

No! I'm pretty mad now. Came with pigtails too. Should I just scrap them. Or would I have a problem running these with megasquirt?
sickmiatabra is offline   Reply With Quote
Old 04-11-2012, 10:39 PM   #15
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by sickmiatabra View Post
No! I'm pretty mad now. Came with pigtails too. Should I just scrap them. Or would I have a problem running these with megasquirt?
Frankly, I'd strongly recommend against hacking up your harness just for RX7 injectors.

I've seen fully PNP hi-z 460cc RX7s go for as low as $50 in the classifieds here.

However, if you MUST use those...

high ohm---> http://www.witchhunter.com/flowdatapix/d1955001350h.jpg

low ohm---> http://www.witchhunter.com/flowdatapix/d1955001350L.jpg

Or just freaking test them with a multimeter already and get final answers.
blaen99 is offline   Reply With Quote
Old 04-11-2012, 10:44 PM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

I'll check later tonight. I don't feel like going through that hassle either. If anyone has a set of injectors for sale/ let me know. I need to upload vids of my car and this is all I'm waiting on
sickmiatabra is offline   Reply With Quote
Old 04-11-2012, 10:44 PM   #17
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Crap, now I'm questioning MY injectors. Thanks BALEN Now I have to pay WitchHunter $50 so I can sleep at night

But yeah, test them with a multimeter and see what's up.
EO2K is offline   Reply With Quote
Old 04-11-2012, 10:47 PM   #18
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by EO2K View Post
Crap, now I'm questioning MY injectors. Thanks BALEN Now I have to pay WitchHunter $50 so I can sleep at night

But yeah, test them with a multimeter and see what's up.
As much as I love WH (And man, do I LOVE them with all of my RX7 injectors...Seriously, I don't want to think of how much cash I've spent with them over the years), DW has a better forum-specific deal for MT.net.

/The more you know!
blaen99 is offline   Reply With Quote
Old 04-11-2012, 10:55 PM   #19
Junior Member
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Quote:
Originally Posted by sickmiatabra View Post
If anyone has a set of injectors for sale/ let me know.
I have a spare set of 425cc RX8 yellow injectors if you are interested. About 60k miles on them before they were pulled.
skou is offline   Reply With Quote
Old 04-11-2012, 10:55 PM   #20
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Yeah, I just checked and DW is still doing their "MT Special" upgraded service. The problem is that I only want these things flowed, not cleaned. I may PM or email DW and see if they have a "flow only" service. I really don't feel like spending ANOTHER $80 on injectors I may ultimately never use.

I'm really starting to hate my build
