DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 02-25-2010, 07:06 AM   #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2004
Location: Eire
Posts: 113
Total Cats: 3
Default ARTech GReddy Manifold

I looked at all the alternatives (ETD etc), then saw ARTech's work.. so asked him to make me a GReddy manifold.

Progress so far :








Stevo11 is offline   Reply With Quote
Old 02-25-2010, 09:05 AM   #2
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Beautiful!
TurboTim is offline   Reply With Quote
Old 02-25-2010, 09:34 AM   #3
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

looks good! Im sure you wont be disappointed.
slutz4 is offline   Reply With Quote
Old 02-25-2010, 09:44 AM   #4
Junior Member
iTrader: (2)

rbluemx6's Avatar

Join Date: Apr 2009
Location: San Antonio, TX
Posts: 179
Total Cats: 0
Default

Seeing that makes me very anxious to put in my order for a t3 log mani and 3" down pipe. I gotta get my TECII in quick, I am slacking too much.
rbluemx6 is offline   Reply With Quote
Old 02-25-2010, 09:48 AM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

no ABSURDFLOW, no care.
hustler is offline   Reply With Quote
Old 02-25-2010, 10:57 AM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Yeah that is pretty pimp.
miatamania is offline   Reply With Quote
Old 02-25-2010, 11:53 AM   #7
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by hustler View Post
no ABSURDFLOW, no care.


Just wait until you have it in your possession dude.

Are you currently running a greddy manifold? It would be cool to see someone with a greddy manifold switch over to a ARTech replacement and have some before and after dyno numbers.

Once it gets warmer here I plan on going back to the dyno for a sesh.
Vashthestampede is offline   Reply With Quote
Old 02-25-2010, 11:55 AM   #8
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Edmonton, Alberta
Posts: 86
Total Cats: 0
Default

Damn. These look soo nice.. and dyno numbers comparing to the other makes would be very cool indeed..
aphongt is offline   Reply With Quote
Old 02-25-2010, 12:07 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2004
Location: Eire
Posts: 113
Total Cats: 3
Default

hmmm.. won't get to the dyno before fitting.. I have a link ECU so can do before + after power runs instead (I've upgraded DP, injectors and WB02 since last dyno visit anywho).
Stevo11 is offline   Reply With Quote
Old 02-26-2010, 12:31 AM   #10
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

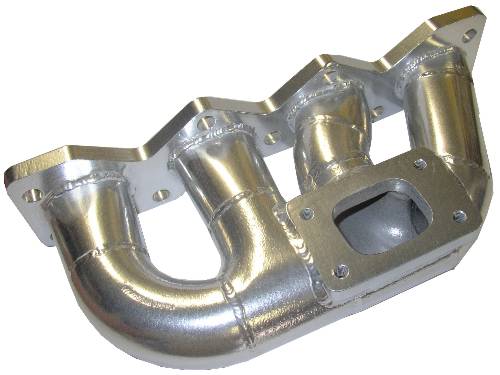

We used to have back to back numbers / dyno with our ETD Racing Greddy Manifold which this basically looks like a copy of. I will have to search for them as we started producing this product 4+ years ago.

IIRC we picked up about 7-8hp over the stock Greddy Manifold.

We also made a Stainless version, but let's just say we scraped it during testing stages an went with our current version.
Attached Thumbnails
ARTech GReddy Manifold-16greddy1.jpg
M-Tuned is offline   Reply With Quote
Old 02-26-2010, 12:47 AM   #11
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

his **** always looks beautiful. bravo.
rccote is offline   Reply With Quote
Old 02-26-2010, 01:02 AM   #12
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Is that a water-jet flange? Are they available as stand-alone parts for 1.8 and 1.6? I've been contemplating getting that done, and it only makes sense if I do a bunch. Not sure I want to be in the DIY MT parts business just yet.
SolarYellow510 is offline   Reply With Quote
Old 02-26-2010, 02:01 AM   #13
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Thanks

Quote:
Originally Posted by [email protected] View Post
We also made a Stainless version, but let's just say we scraped it during testing stages an went with our current version.
Did you achieve 100% penetration, and was it backpurged?

Here's a pic of a ETD KA manifold I found online:





From the 2nd pic, it seems like the welds do not penetrate the pipe on the middle two runners. I don't know how old this manifold is, but if the SS manifold you experimented with 4+ years ago was welded the same way, that would be the reason.

Solar, I'm pretty sure the flanges are laser cut. I PM'd you their contact info (Weir Technologies)
ARTech is offline   Reply With Quote
Old 02-26-2010, 09:53 AM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Abe,
I may pay you a visit this weekend. I'll call first, of course. I need some #10 fittings on my oil-cooler.
hustler is offline   Reply With Quote
Old 02-26-2010, 12:05 PM   #15
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by SolarYellow510 View Post
Is that a water-jet flange? Are they available as stand-alone parts for 1.8 and 1.6? I've been contemplating getting that done, and it only makes sense if I do a bunch. Not sure I want to be in the DIY MT parts business just yet.
I got some cheap 1.8 flanges I'm getting rid of.
Flanges
TurboTim is offline   Reply With Quote
Old 03-02-2010, 11:19 PM   #16
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

ARTech,

Do you have jigs/a local resource to make a DP for the Greddy set up? I've considered buying the Begi, however, I'd prefer a flex pipe over the 2 piece design they produce.

Nice welds BTW.

-Zach
thasac is offline   Reply With Quote
Old 03-03-2010, 12:30 AM   #17
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

nice jigging! And I thought our FSAE manifold looked nice haha.
cardriverx is offline   Reply With Quote
Old 03-03-2010, 03:06 AM   #18
Junior Member
iTrader: (1)

Join Date: May 2009
Posts: 120
Total Cats: 0
Default

whats the cost ?
mekaw is offline   Reply With Quote
Old 03-03-2010, 02:49 PM   #19
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by TurboTim View Post
I got some cheap 1.8 flanges I'm getting rid of.
Flanges
Do flanges need relief cuts? Just curious why some people have them and some don't.

Someone needs to take their NB to Abe so he can make a jig. I really want him to have my money.
dgmorr is offline   Reply With Quote
Old 03-03-2010, 02:56 PM   #20
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by dgmorr View Post
Do flanges need relief cuts? Just curious why some people have them and some don't.

Someone needs to take their NB to Abe so he can make a jig. I really want him to have my money.
Only cast manifolds need relief cuts in the flange so they dont crack.
wayne_curr is offline   Reply With Quote
