Default Bad Garrett out of the box??? with pics

And the adventure continues...

Turns out the original turbo my turn key ebay miata came with was blowing so much oil my mid pipe was leaking it under the car! Rather then rebuilbing it we decided to invest in the lastest and greatest from garrett. I ordered a brand new GT2554 for the '93.

Got it, clocked it and torqued it exactly to Garrett spec. Installed, oil primed.

First run, just a heat cycle for 30 mins then off.
Next day, check the mount bolts and fluids and took it for it's first street ride with the link set to prevent boost. About 30 minutes into low zone tuning the turbo started to scream. Back to the garage. Pulled it and found the turbine had hit the housing and done MAJOR damage!!! Check out the pics.

***!!! no shaft play, all torqued, maybe an hour total run time and never at boost and this crap happens!

Anyone had anything like this before? I guess I have to wait till monday to contact Garrett, Anyone know how their customer service is?
Attached Thumbnails

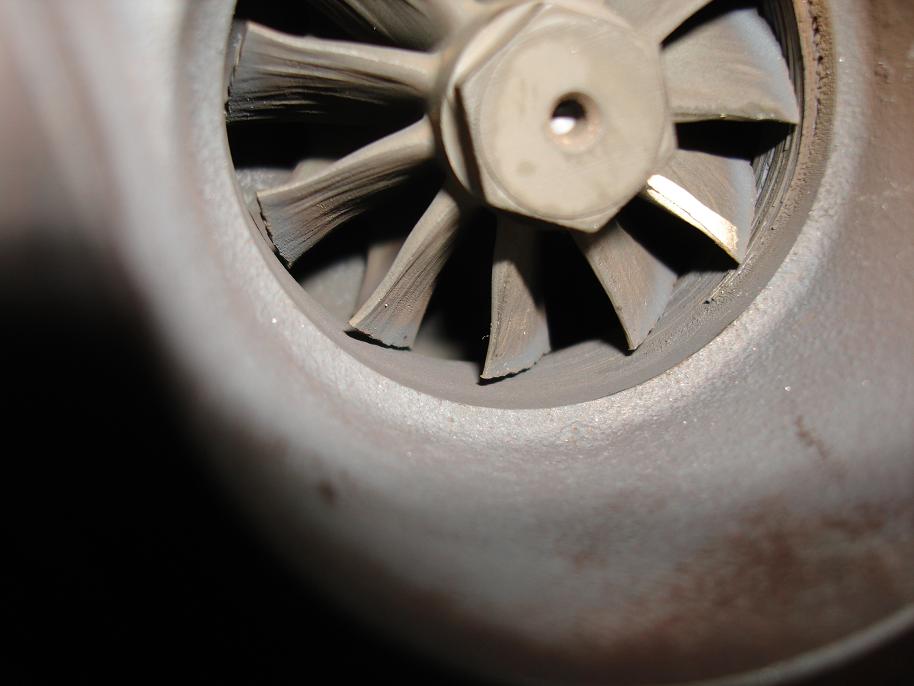

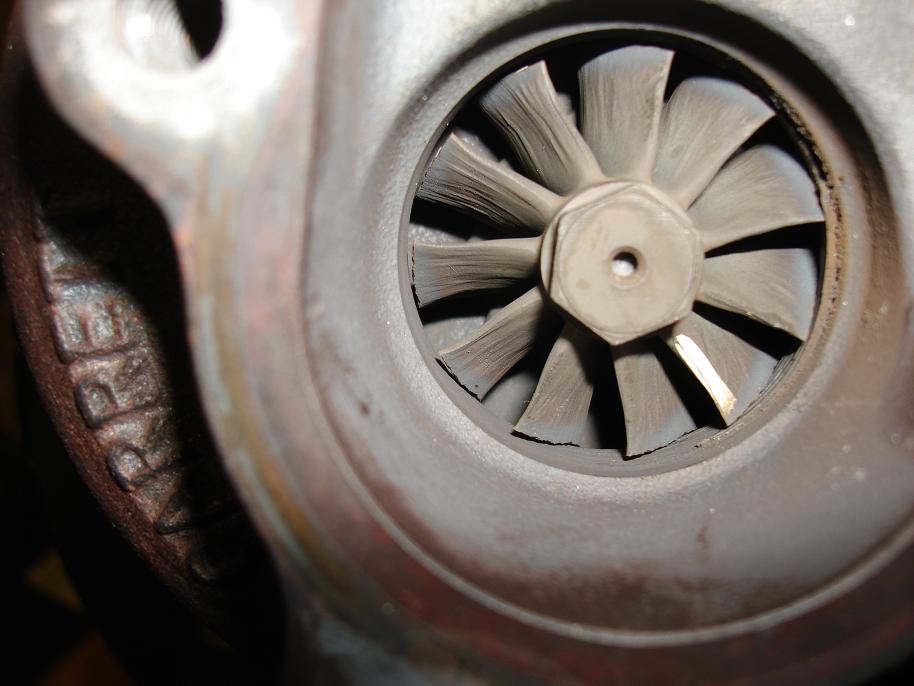

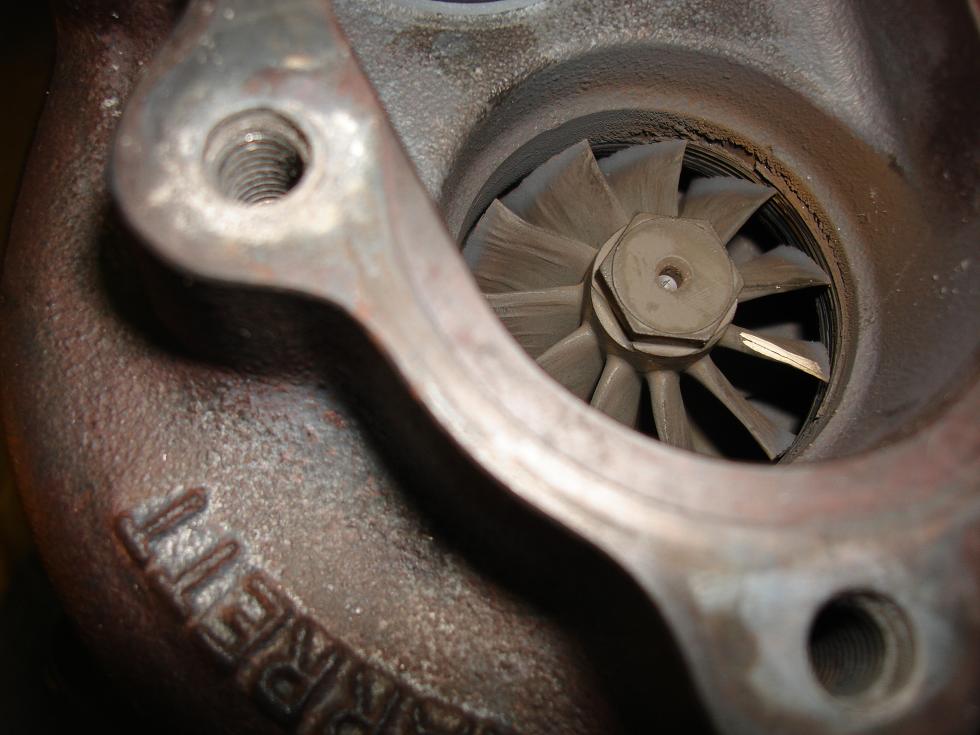

Bad Garrett out of the box??? with pics-garrett1.jpg   Bad Garrett out of the box??? with pics-garrett4.jpg
Underway is offline   Reply With Quote
Old 09-12-2010, 12:09 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Still no shaft play?
hustler is offline   Reply With Quote
Old 09-12-2010, 12:15 AM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

ouch.
Can't imagine how it could possibly score the walls like that with zero shaft play
good luck.
18psi is offline   Reply With Quote
Old 09-12-2010, 12:20 AM   #4
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

No axial shaft play maybe, but there has to be radial shaft play for it to grind out on the housing.

Few questions:
1) were you using an oil feed restrictor?
2) How did you "prime" the turbo with oil?
3) Where is your wastegate signal source?
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-12-2010, 12:23 AM   #5
Newb

Join Date: Jul 2009
Location: Biloxi, MS
Posts: 15
Total Cats: 0
Default

Ouch those pics are hard to look at Full Tilt has some good questions.
frodo is offline   Reply With Quote
Old 09-12-2010, 12:24 AM   #6
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 66
Total Cats: 0
Default

Google searched bad Garrett, found this:

http://forums.evolutionm.net/engine-...-gtr-site.html

Hope it's B.S.
Underway is offline   Reply With Quote
Old 09-12-2010, 12:28 AM   #7
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 66
Total Cats: 0
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
No axial shaft play maybe, but there has to be radial shaft play for it to grind out on the housing.

Few questions:
1) were you using an oil feed restrictor?
Yes, ordered it with the turbo.
2) How did you "prime" the turbo with oil?
Left the coils/fuel unplugged, cranked the motor over for about 10 seconds, 3 times after I had pressure on the gauge.
3) Where is your wastegate signal source?
The bolt on compressor adapter has a fitting.
What do you think?
Underway is offline   Reply With Quote
Old 09-12-2010, 12:32 AM   #8
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 66
Total Cats: 0
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
No axial shaft play maybe, but there has to be radial shaft play for it to grind out on the housing.
There is just enough play to barely allow the blade to touch and none in and out. It actually looks like the blades are deposited on the housing rather then digging out the housing. I have no way of messuring but the turbine doesn't look centered in the housing outlet. 2 playing cards distance on the side that didn't hit.

The shaft doesn't bind, I can just hear the turbine sing as the blades hit.

I'll work on some pics.

Last edited by Underway; 09-12-2010 at 12:44 AM.
Underway is offline   Reply With Quote
Old 09-12-2010, 12:32 AM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Underway View Post
Google searched bad Garrett, found this:

http://forums.evolutionm.net/engine-...-gtr-site.html

Hope it's B.S.
Sounds like a whiny faggette.
hustler is offline   Reply With Quote
Old 09-12-2010, 12:34 AM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Underway View Post
There is just enough play to barely allow the blade to touch and none in and out. It actually looks like the blades are deposited on the housing rather then digging out the housing. I have no way of messuring but the turbine doesn't look centered in the housing outlet. 2 playing cards distance on the side that didn't hit.

I'll work on some pics.
Um...if there is enough shaft play for the turbine to touch the housing, its bad. In for Daddy JKav to sign in and tell us the answers to your mystery.

CHRA exchange is $450 from ATP.
hustler is offline   Reply With Quote
Old 09-12-2010, 12:41 AM   #11
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 66
Total Cats: 0
Default

More pictures.

The Garrett site says to contact the distributor.

More info: Believe it or not the distributor here in Florida actually emailed me back at 230 on a sunday morning. That's awesome!

He gave me a heads up about how strict Garrett is and the warranty inspection process. Basically I send it to them, they decide what happened and we go from there.

I'll post the results.
Attached Thumbnails

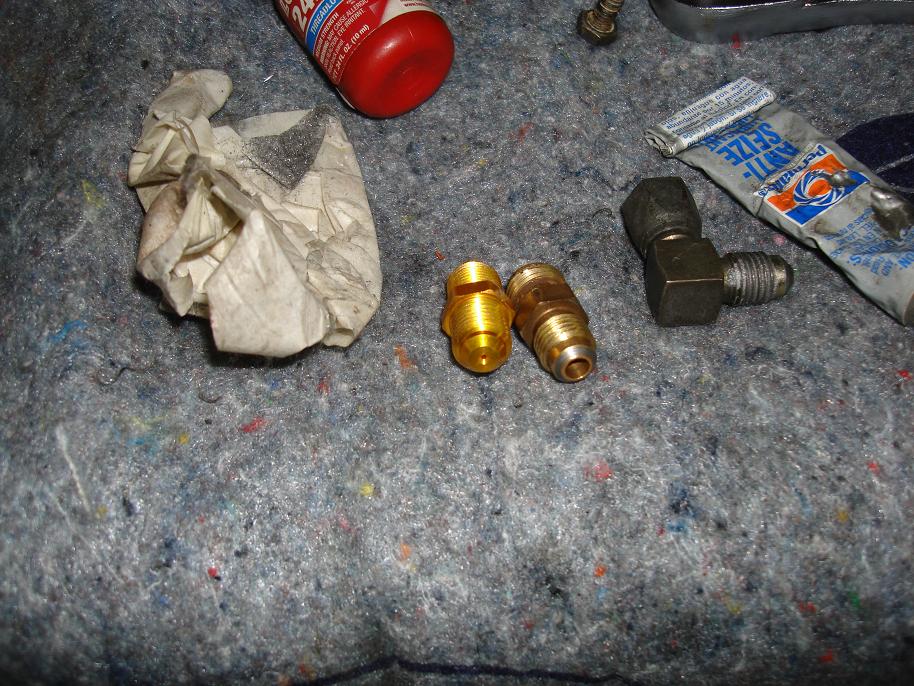

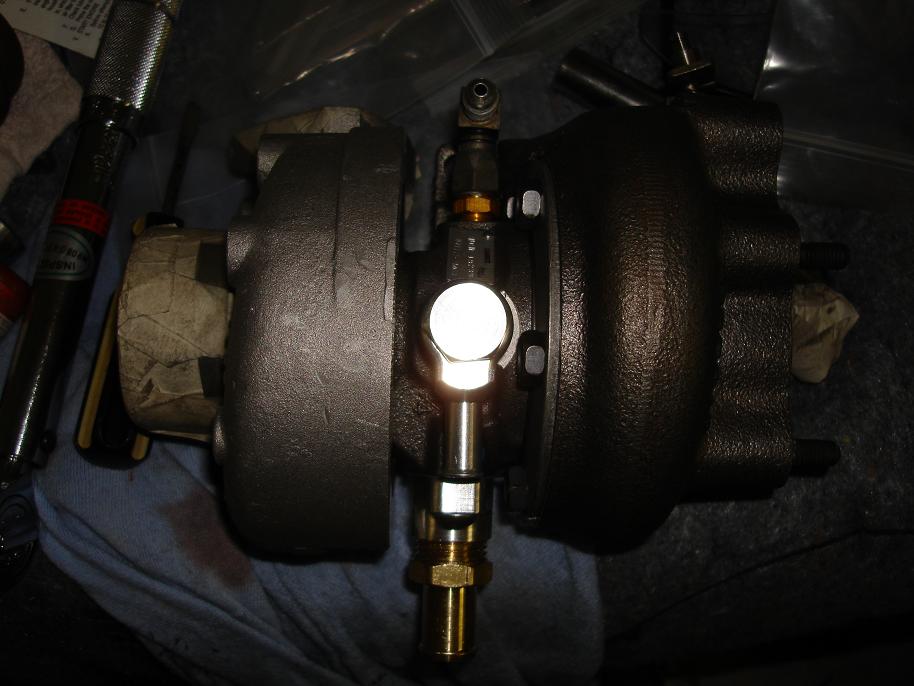

Bad Garrett out of the box??? with pics-assembled1.jpg   Bad Garrett out of the box??? with pics-restricters.jpg   Bad Garrett out of the box??? with pics-garrett7.jpg   Bad Garrett out of the box??? with pics-garrett6.jpg

Last edited by Underway; 09-12-2010 at 05:35 AM.
Underway is offline   Reply With Quote
Old 09-12-2010, 12:45 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Do the grooves go all the way around the housing?
hustler is offline   Reply With Quote
Old 09-12-2010, 12:45 AM   #13
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 66
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
Um...if there is enough shaft play for the turbine to touch the housing, its bad. In for Daddy JKav to sign in and tell us the answers to your mystery.

CHRA exchange is $450 from ATP.
This unit just came in Thursday! I hope Garrett is going to take care of this, I'll keep that in mind though.
Underway is offline   Reply With Quote
Old 09-12-2010, 12:47 AM   #14
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 66
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
Do the grooves go all the way around the housing?
nope, maybe 1/4 to 1/3...
Underway is offline   Reply With Quote
Old 09-12-2010, 12:50 AM   #15
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by Underway View Post
What do you think?
Sounds like you primed it good, and I know you could have overspun it with your signal source on the compressor

BUT
GT series turbos have a built in oil feed restrictor, meaning you dont need one built into the fitting, you just use a normal AN fitting.
Im no expert on fluid dynamics but maybe having 2 restrictors could have caused oil starvation. (This is why I immediately asked if you were using a restrictor)

Even with Garretts quality coming into question recently, you never really see these kind of quick failures even with the no-name ebay turbos unless something was done incorrectly.
Its still possible Garret just fucked up, but unless some of our members with engineering degrees chime in and say that a second restrictor wouldnt cause oil starvation, then I would think that it was likely the cause.

Either way, though break, It sucks to see a brand new expensive part bite the dust.
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-12-2010, 12:53 AM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Are you certain the turbine housing and CHRA are seated properly?

Quote:
Originally Posted by Full_Tilt_Boogie View Post
GT series turbos have a built in oil feed restrictor, meaning you dont need one built into the fitting, you just use a normal AN fitting.
Im no expert on fluid dynamics but maybe having 2 restrictors could have caused oil starvation. (This is why I immediately asked if you were using a restrictor)
https://www.miataturbo.net/showpost....33&postcount=5
Quote:
Originally Posted by JKav View Post
That doohickey is actually the locating pin for the bb cartridge, and the Garrett bb turbos have had those since forever. So you basically don't even have to think about it.

As such, the advice to add a restrictor so that you get ~35 psi (or whatever it is, I forget) at the turbo always has been and will be valid.
https://www.miataturbo.net/showpost....&postcount=113

I run a .032" restrictor and there is no smoke and its been raced. I've also considered one of those fancy turbo oil feed filters too just in case something floats down the hose.
hustler is offline   Reply With Quote
Old 09-12-2010, 12:56 AM   #17
Junior Member
Thread Starter

Join Date: Jul 2010
Posts: 66
Total Cats: 0
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Sounds like you primed it good, and I know you could have overspun it with your signal source on the compressor

BUT
GT series turbos have a built in oil feed restrictor, meaning you dont need one built into the fitting, you just use a normal AN fitting.
Im no expert on fluid dynamics but maybe having 2 restrictors could have caused oil starvation. (This is why I immediately asked if you were using a restrictor)

Even with Garretts quality coming into question recently, you never really see these kind of quick failures even with the no-name ebay turbos unless something was done incorrectly.
Its still possible Garret just fucked up, but unless some of our members with engineering degrees chime in and say that a second restrictor wouldnt cause oil starvation, then I would think that it was likely the cause.

Either way, though break, It sucks to see a brand new expensive part bite the dust.
Why would the install kit have a restrictor in it then? Recommended from the distibutor for gt25-28's?

Never thought about the over spun issue. Where else would you run your signal from? Also, the car was never over 3500 rpm, the link ecu limits it to prevent boost. If I never saw anything above 0 on the boost gauge then how could the turbo be overspeed?
Underway is offline   Reply With Quote
Old 09-12-2010, 12:58 AM   #18
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by hustler View Post
Are you certain the turbine housing and CHRA are seated properly?


https://www.miataturbo.net/showpost....33&postcount=5
O RLY?
I always thought that was a restrictor in there

Well anyway, Im full of fail like always.
Looks like Garrett fucked up, start giving them **** until they fix it.
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-12-2010, 01:02 AM   #19
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by Underway View Post
Why would the install kit have a restrictor in it then? Recommended from the distibutor for gt25-28's?

Never thought about the over spun issue. Where else would you run your signal from? Also, the car was never over 3500 rpm, the link ecu limits it to prevent boost. If I never saw anything above 0 on the boost gauge then how could the turbo be overspeed?
If your signal source is on the intake manifold, you can possibly overspin the turbo while boosting under partial throttle. Basically the wastegate isnt opening because its seeing the pressure in the IM, even though the pressure in front of the throttle could be way higher. With a little turbo its a real concern.

But if its on the compressor housing it couldnt have overspun.

But yah, I was wrong about the restrictor. Most of my experience is with journal bearing turbos, so I always thought that the little aperture inside the feed of GT turbos was an restricor.
Full_Tilt_Boogie is offline   Reply With Quote
Old 09-12-2010, 01:07 AM   #20
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Just relax and talk to someone from the retailer you bought it from, then call Garrett.
hustler is offline   Reply With Quote
