Default BEGI 2025 FPR What hose goes where?!

Hi,

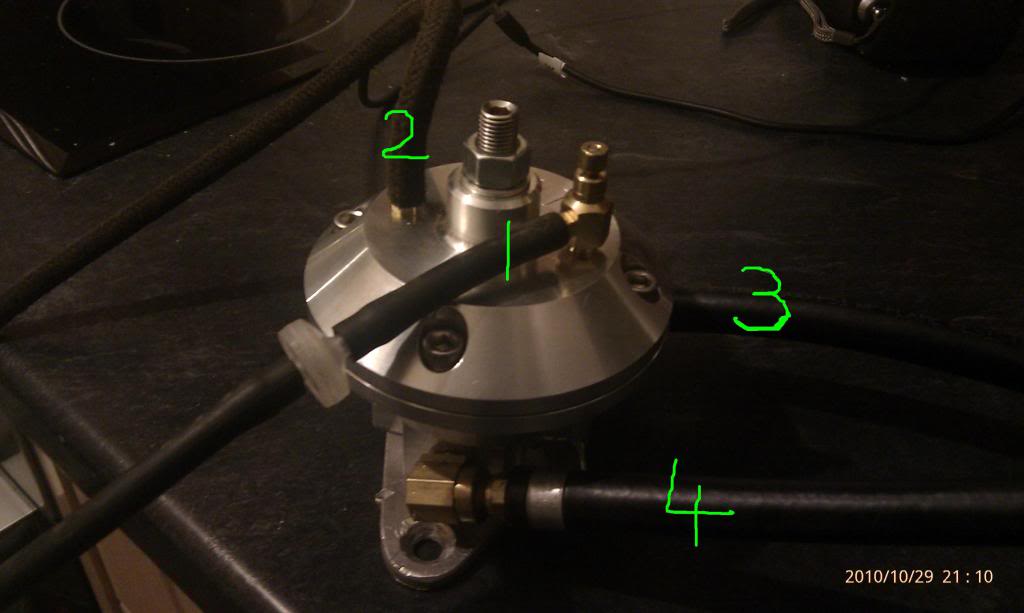

Almost done with my home brew FI and just need this BEGI 2025 fuel pressure regulator fitting. Ive bought it second hand and would just like to know which hose gets plugged into where?

I have labelled each hose 1-4.

Any advice would be much appreciated!

Name:  FPR004.jpg
Views: 12
Size:  44.0 KB
andy4157 is offline   Reply With Quote
Old 11-01-2010, 09:45 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

There should be an inlet and outlet. the inlet is typically the offset fitting, the outlet is the center...they should be labeled. The hose from the FPR outlet will go into the FMU Inlet and then out back to the hardline.

For the vacuum hose, tee off the stock FPR and then the needle valve fitting should have a check valve attached and it vents to the atmosphere, it should be able to bleed boost out but not let vacuum in.
Braineack is offline   Reply With Quote
Old 11-01-2010, 05:26 PM   #3
Newb
Thread Starter

Join Date: Oct 2010
Posts: 13
Total Cats: 0
Default

Ok, thanks for the reply. So the inlet hose on the FMU is connected to the stock FPR (correct?) Then the outlet hose on the FMU is connected to the hardline....is the hardline what was previously attached to the stock FPR(correct?) Sorry for being slow!

When you say tee off the Stock FPR, do you mean blank it off and seal it?Which end? So is the vacuum hose (no.2 pipe) connected into manifold or into the stock FPR?

The check valve...so thats not connected to anything and just left to vent off?

Thanks again!
andy4157 is offline   Reply With Quote
Old 11-01-2010, 05:49 PM   #4
Junior Member
iTrader: (1)

Join Date: May 2009
Posts: 120
Total Cats: 0
Default

Quote:
Originally Posted by andy4157 View Post
Ok, thanks for the reply. So the inlet hose on the FMU is connected to the stock FPR (correct?) Then the outlet hose on the FMU is connected to the hardline....is the hardline what was previously attached to the stock FPR(correct?) Sorry for being slow!

When you say tee off the Stock FPR, do you mean blank it off and seal it?Which end? So is the vacuum hose (no.2 pipe) connected into manifold or into the stock FPR?

The check valve...so thats not connected to anything and just left to vent off?

Thanks again!

use a T hose fitting and grab vacuum from stock FPR, it's the vacuum hose that connects from ur stock FPR to intake manifold, cut it and fit the T fitting and grab vacuum source from there.

yes check valve should be left unconnected to any vacuum source, just let it sit in your engine bay
mekaw is offline   Reply With Quote
Old 11-01-2010, 05:51 PM   #5
Junior Member
iTrader: (1)

Join Date: May 2009
Posts: 120
Total Cats: 0
Default

here this is helpful, go to the last page.

http://www.bellengineering.net/templ...structions.pdf
mekaw is offline   Reply With Quote
Old 11-01-2010, 08:51 PM   #6
Newb
Thread Starter

Join Date: Oct 2010
Posts: 13
Total Cats: 0
Default

Thank you to all for your help...great forum!
andy4157 is offline   Reply With Quote
