Old 06-09-2011, 02:11 PM   #1
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default BEGi fpr question

Just finished my bandaid system. Instruction from BEGi says that pressure gauge should show you 28-30psi at idle but mine showing 40psi, whn Im pulling signal line it shows 47-49psi, so what is a problem? and wideband all time showing different numbers sometimes it 12 sometimes 15.5?????
850808 is offline   Reply With Quote
Old 06-09-2011, 02:58 PM   #2
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Wow.

AFRs, through my very unprofessional experience should be ~15:1 at cruise, maybe a little less, ~13.0-12.5:1 at tip in and 12:1 in boost, less depending on how much boost.

Pics of how the FPR is routed.
rider384 is offline   Reply With Quote
Old 06-09-2011, 03:37 PM   #3
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default

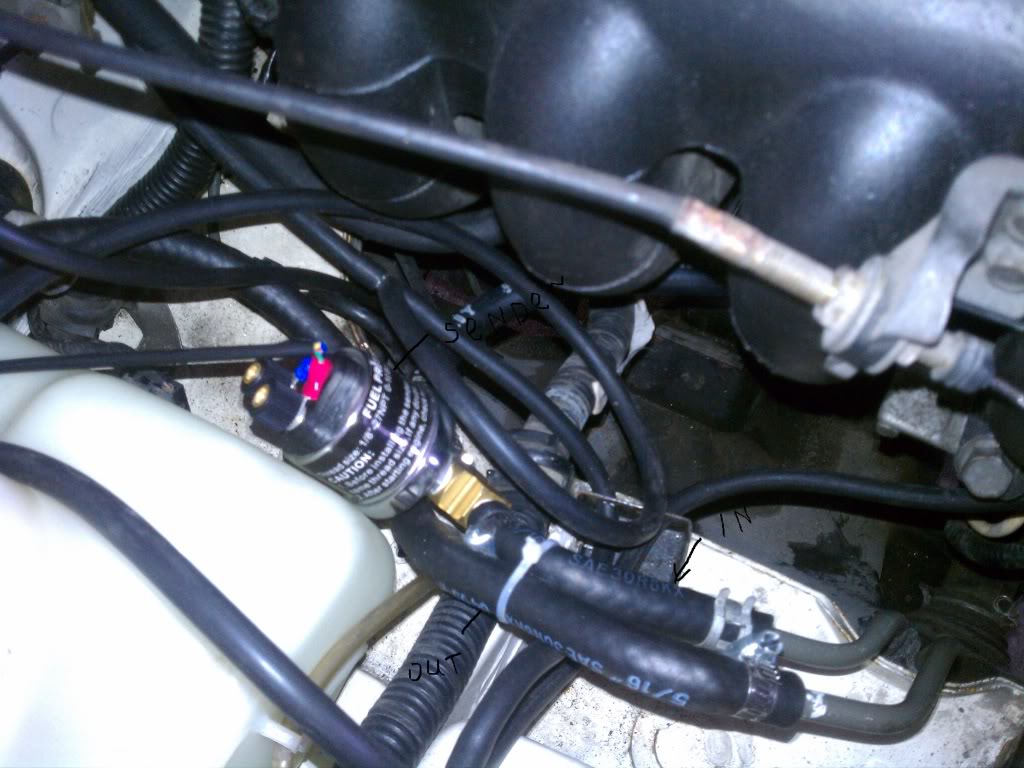

Name:  IMG_20110609_1423271-1.jpg
Views: 6
Size:  100.8 KB

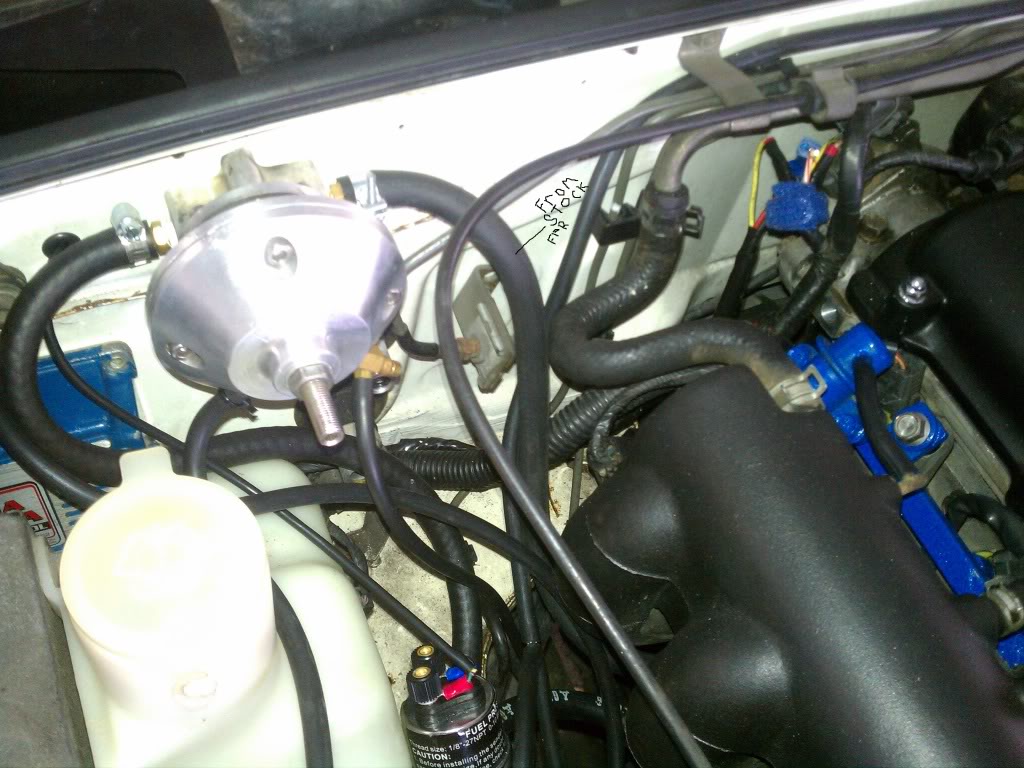

Name:  IMG_20110609_142318-1.jpg
Views: 6
Size:  127.5 KB
850808 is offline   Reply With Quote
Old 06-09-2011, 03:37 PM   #4
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default

I followed begi instruction
850808 is offline   Reply With Quote
Old 06-09-2011, 05:12 PM   #5
Junior Member
iTrader: (5)

Join Date: Jul 2007
Location: South Jersey
Posts: 112
Total Cats: 1
Default

You can adjust it by backing off the nut and threaded portion on top of the
Begi unit. Loose = less pressure if I remember correctly.
bogly is offline   Reply With Quote
Old 06-09-2011, 05:36 PM   #6
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default

Yes you can ajust it with nut, but it won't go lower than 40psi with signal line in
850808 is offline   Reply With Quote
Old 06-09-2011, 05:43 PM   #7
Newb
Thread Starter

Join Date: Apr 2011
Location: kw, FL
Posts: 34
Total Cats: 0
Default

I mean with signal line off gauge read 47-49psi, so thats numbers good follow begi instruction. But when you put signal line back on fpr it reads 40psi but begi manual says that it should be 28-30psi. And a wideband goes so crazy. I started car today and at idle number was 12.5, yesturday night time was 15.5 and early same day was around 12
850808 is offline   Reply With Quote
