DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 12-31-2007, 01:16 PM   #21
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

How effective is that two piece downpipe being fitted like that? No exhaust gas leaks?
Saml01 is offline   Reply With Quote
Old 12-31-2007, 01:49 PM   #22
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by Stephanie Turner View Post
As for the downpipe hitting the tranny, shoot me an e-mail - I have a part I can send you. There is a motor mount spacer that will help with clearances.
Stephanie
There's actually plenty of clearance on the tranny side, dp is up against the body side.
sv650_ck is offline   Reply With Quote
Old 01-01-2008, 09:25 PM   #23
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

IC tube shouldn't be sloped - has to go back to Begi for some minor corrections.

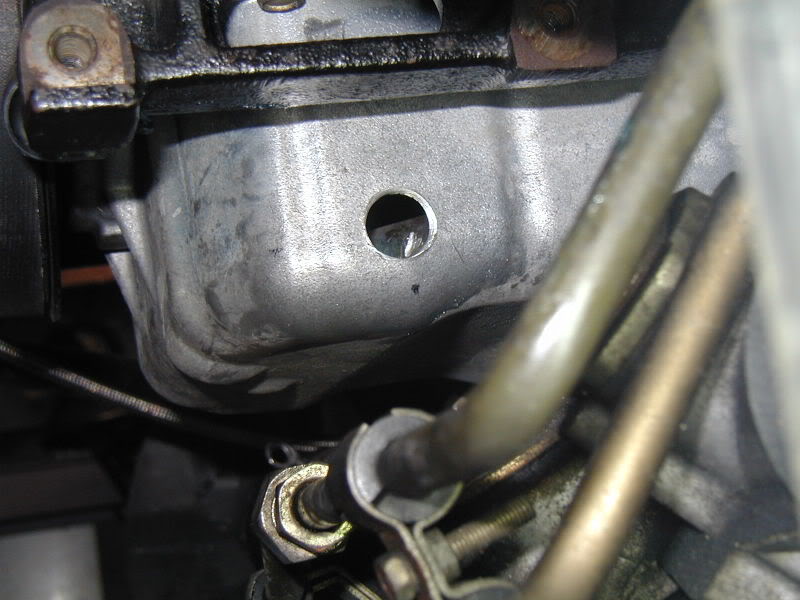

The tap gouged the pick-up tube. Anybody know the wall thickness of the tube or any repairs that can be made without pulling the pan?

Name:  P1010061.jpg
Views: 6
Size:  67.2 KB
sv650_ck is offline   Reply With Quote
Old 01-01-2008, 09:31 PM   #24
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Dang man, you have never ending issues with your install. Most the time we tape up the drill bit and tap so we can't run them that far into the pan. it doesn't look like it's that poorly scarred though it's hard to tell from a picture. Never had a tube in my hands though I doubt it's super thin.
cjernigan is offline   Reply With Quote
Old 01-01-2008, 09:34 PM   #25
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

That doesn't look bad. Flush the sump as per Corky's instructions and you'll be good to go.
soflarick is offline   Reply With Quote
Old 01-15-2008, 12:33 AM   #26
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

hows the install comin? got that F/IC working?
teknikscian is offline   Reply With Quote
Old 01-15-2008, 12:53 AM   #27
Junior Member

Join Date: Nov 2007
Posts: 98
Total Cats: 0
Default

loving the install... sorry you're having problems... i too had a grip during my install and thinking that i have to tear it apart to replace the manifold makes me want to vomit. i would say im jealous that u have plenty of time to work on your car... i had to make mine work by the end of the day or else i would have to be sleeping in a friends couch.
emmi is offline   Reply With Quote
Old 01-15-2008, 12:56 AM   #28
Junior Member
iTrader: (2)

Join Date: Nov 2007
Location: Fayetteville, NC
Posts: 143
Total Cats: 0
Default

Just saw this, so sorry for the delay in response.

I also hit my oil pick-up when drilling the pan during my install, but mine was actually punctured. As in there was a big *** hole in my tube. The tube is not super thin, so from the photos, I wouldn't worry about your scrape.

Pulling the pan to remove the pick-up tube, along with welding the hole up, set us back a couple of hours. Needless to say, I was pretty pissed. However, I now have the knowledge that all of the shavings from drilling the pan are out of there. There was quite a bit more metal sitting in the bottom of the pan than I figured there would be.
em99sport is offline   Reply With Quote
Old 01-15-2008, 01:18 AM   #29
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by sv650_ck View Post
i'm no expert on NB's but on NA's there is a check valve in that line going to the brake booster RIGHT where you cut out the hose to splice in the vacuum distributor. if the NB is the same that could be a problem.



edit: nevermind, someone pointed out that i can't read. go about your day
paul is offline   Reply With Quote
Old 01-15-2008, 01:38 AM   #30
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

On that note. I need that line. Prev owner of my car replaced that line with some Gayz blue silicone. Tried my brakes while in boost a while back, no way in hell was i going to be able to push that pedal.
cjernigan is offline   Reply With Quote
Old 01-15-2008, 08:22 AM   #31
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

- Never did get the F/IC working. AEM looked at some vids that I posted in their forum and it's going back for more troubleshooting. If they can't find the problem they said they would replace it.

http://forum.aempower.com/forum/inde...c,21424.0.html

- I'm not going to mess with the oil pick-up tube. If I lose oil pressure down the road, I'll know where to look. I will flush it out some more though.

- There is a check valve where I cut the brake booster line. Had to relocate it to the booster side. I have an extra check valve if you need one Chad. PM me your address and I'll send it to you.

- The only other issues I'm still having is with the BEGi's down pipe and IC tube. It's been ~2-1/2 weeks since I identified the issue and there's been no resolution but Stephanie was out sick for a week during this time.
sv650_ck is offline   Reply With Quote
Old 01-15-2008, 09:50 AM   #32
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by sv650_ck View Post
- Never did get the F/IC working. AEM looked at some vids that I posted in their forum and it's going back for more troubleshooting. If they can't find the problem they said they would replace it.

http://forum.aempower.com/forum/inde...c,21424.0.html

- I'm not going to mess with the oil pick-up tube. If I lose oil pressure down the road, I'll know where to look. I will flush it out some more though.

- There is a check valve where I cut the brake booster line. Had to relocate it to the booster side. I have an extra check valve if you need one Chad. PM me your address and I'll send it to you.

- The only other issues I'm still having is with the BEGi's down pipe and IC tube. It's been ~2-1/2 weeks since I identified the issue and there's been no resolution but Stephanie was out sick for a week during this time.
They are incredibly busy atm. I talked to Corky yesterday as Stephanie got snowed in up north over the weekend. I'm sure she'll get back to you as soon as she gets back to the shop.
Arkmage is offline   Reply With Quote
Old 01-15-2008, 09:52 AM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by cjernigan View Post
Dang man, you have never ending issues with your install. Most the time we tape up the drill bit and tap so we can't run them that far into the pan. it doesn't look like it's that poorly scarred though it's hard to tell from a picture. Never had a tube in my hands though I doubt it's super thin.

are you sure its the tube and not the baffle?
Braineack is offline   Reply With Quote
Old 01-15-2008, 11:15 AM   #34
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by sv650_ck View Post
- I'm not going to mess with the oil pick-up tube. If I lose oil pressure down the road, I'll know where to look. I will flush it out some more though.

It will probably never be an issue, it's not like it's under pressure and it doesn't (or shouldn't) experience any kind of load.

Mark
Markp is offline   Reply With Quote
Old 01-15-2008, 02:09 PM   #35
Junior Member
iTrader: (2)

Join Date: Nov 2007
Location: Fayetteville, NC
Posts: 143
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
are you sure its the tube and not the baffle?
It's the oil pick-up tube for sure. It sits ~1.25" inside the pan from where BEGi recommends drilling.

FYI, to anyone in a similar position, fixing this without pulling the subframe requires lifting the engine up about six inches. Luckily, I had to pull the tranny to put in my flywheel, so lifting the engine up wasn't that big a deal. However, it did require that I pull the engine with a cherry picker while having the car only a foot off the ground on the lift. It was no ******* cool. Don't drill too far and hit the pick-up tube.
em99sport is offline   Reply With Quote
Old 01-15-2008, 02:18 PM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default




just making sure.
Braineack is offline   Reply With Quote
Old 01-15-2008, 02:27 PM   #37
Junior Member
iTrader: (2)

Join Date: Nov 2007
Location: Fayetteville, NC
Posts: 143
Total Cats: 0
Default

Just looking that pic is sending shivers down my spine...
em99sport is offline   Reply With Quote
Old 01-15-2008, 02:37 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

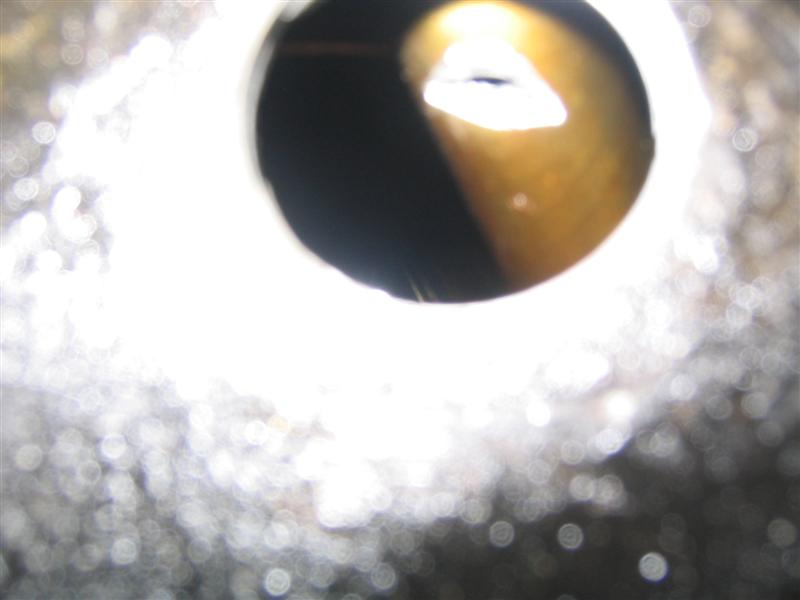

then you dont want to see this:

Braineack is offline   Reply With Quote
Old 01-15-2008, 04:41 PM   #39
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

ill have to remember to go super slow when drilling my pan haha!
teknikscian is offline   Reply With Quote
Old 01-15-2008, 04:43 PM   #40
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by teknikscian View Post
ill have to remember to go super slow when drilling my pan haha!
You only need like 3/8" of your drill bit exposed, same with the tap. Wrap a few coils of electrical tape around the bit. That will keep it from going in too deep.
cjernigan is offline   Reply With Quote
