Default BEGI SS SG DP Difficult to Fit Together

Should it be this hard to fit the 2 pieces together? Or should the bigger just slip over the smaller pipe, w/ ease?

It looks like the piping isn't truly round on one end.

Any tips?
kenzo42 is offline   Reply With Quote
Old 03-25-2009, 12:57 AM   #2
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Mine was a true bitch to slip together, prob better solutions, but...

I GENTLY wedged something, and applied forced between the 2 divorced pieces on 1 half of the DP until they lined up properly with the 2 pieces on the other side. Then pushed together.

I installed on the car like that, and then tightened the nut on the bolt that keeps the 2 halves together.
TonyV is offline   Reply With Quote
Old 03-25-2009, 01:07 AM   #3
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

+1 ^^^
RotorNutFD3S is offline   Reply With Quote
Old 03-25-2009, 01:13 AM   #4
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Quote:
Originally Posted by tvalenziano View Post
Mine was a true bitch to slip together, prob better solutions, but...

I GENTLY wedged something, and applied forced between the 2 divorced pieces on 1 half of the DP until they lined up properly with the 2 pieces on the other side. Then pushed together.

I installed on the car like that, and then tightened the nut on the bolt that keeps the 2 halves together.
I'm having a hard time visualizing this. Edit: I think I get it now.

I have the 2 pieces slipped together. I just can't push them down. Seems like something is binding the smaller pipe from going down into the larger pipe.
kenzo42 is offline   Reply With Quote
Old 03-25-2009, 01:22 AM   #5
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

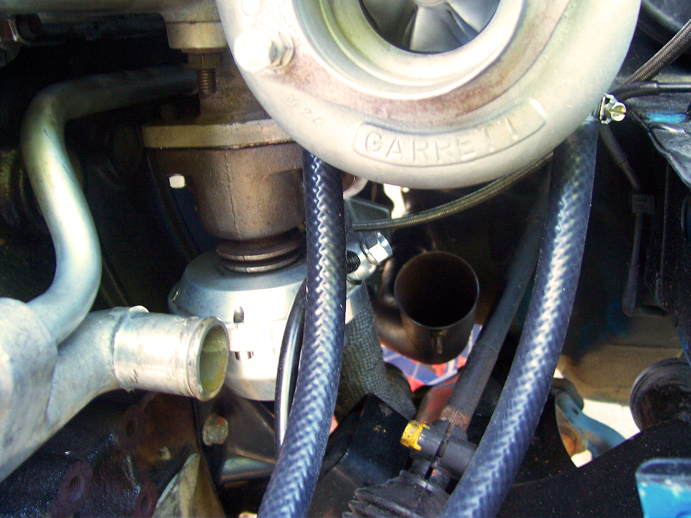

I got my longer section bolted to the tial first, then put my top section on. I just used moderate force with some back and forth motions to slip it in. lol

Seems like alot of people have a hard time with this DP.
Attached Thumbnails
BEGI SS SG DP Difficult to Fit Together-dp01.jpg
Vashthestampede is offline   Reply With Quote
Old 03-25-2009, 02:10 AM   #6
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by Vashthestampede View Post
I got my longer section bolted to the tial first, then put my top section on. I just used moderate force with some back and forth motions to slip it in. lol

Seems like alot of people have a hard time with this DP.
Isn't yours an FM3 with an external wastegate?
jayc72 is offline   Reply With Quote
Old 03-25-2009, 02:29 AM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

You just need to wiggle it until it's lined up. They are a bitch to get together.
Savington is online now   Reply With Quote
Old 03-25-2009, 03:08 AM   #8
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by jayc72 View Post
Isn't yours an FM3 with an external wastegate?
I thought they were somewhat the same kind of design. As far as the wiggling and pushing concept goes anyway.
Vashthestampede is offline   Reply With Quote
Old 03-25-2009, 07:30 AM   #9
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Rubber mallet once you get the parts started. Or a hammer and a block of wood.

Frank
fmowry is offline   Reply With Quote
Old 03-25-2009, 08:53 AM   #10
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

+1 on the rubber mallet. that's what i used.
johndoe is offline   Reply With Quote
Old 03-25-2009, 09:52 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

I used the Force.
Braineack is offline   Reply With Quote
Old 03-25-2009, 12:41 PM   #12
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I had the opposite problem. Mine was too loose that to get it to stop rattling I had to tighten the bolt up so much it brought the bottom section too close and it rattled against the transmission. I had an exhaust pipe expanded I used to make the fit much tighter. I also welded one end of the bolt to the DP, made tightening that bolt a little easier. They would have been better off with a band clamp.
jayc72 is offline   Reply With Quote
Old 03-25-2009, 01:33 PM   #13
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

My FM3 downpipe was a bitch to slip together.

+1 on the brute force.
viperormiata is offline   Reply With Quote
Old 03-25-2009, 01:50 PM   #14
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Quote:
Originally Posted by kenzo42 View Post
I'm having a hard time visualizing this. Edit: I think I get it now.

I have the 2 pieces slipped together. I just can't push them down. Seems like something is binding the smaller pipe from going down into the larger pipe.

Same thing applies, get somethign in there to wedge, otherwise it'll still be a bitch. Wiggle, TAPPING with rubber mallet, and I even used some wd40, but dont think it did too much.

But use the wedging technique even while your tryign to push them together. Mine were kinda too close together, and even after slipping it on, still wasn't going without wedging to line it up
TonyV is offline   Reply With Quote
Old 03-25-2009, 02:00 PM   #15
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

Mine lined up fine, but I couldn't push it in all the way. I had to put a longer bolt in and tighten it down to pull the pieces together.
SamS is online now   Reply With Quote
Old 03-25-2009, 03:48 PM   #16
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

I used a rubber malet on mine. Also, where the locking bolt goes...it was hitting the frame of the car so I just used a cheap exhaust clamp instead...
Turbo_4 is offline   Reply With Quote
Old 03-26-2009, 07:03 PM   #17
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Quote:
Originally Posted by kenzo42 View Post
Should it be this hard to fit the 2 pieces together? Or should the bigger just slip over the smaller pipe, w/ ease?
With Ease? No. Get them lined up and GENTLY use a rubber mallet.
Stephanie
