Default Bolt holding plate (oem NISSAN)

Does anyone have experiance with the t25 bolt locking plate on oem NISSAN 180-20sx??

Looks nice. Gonna give is a try..
PN 14495-17f00

They are in the middle of the pic, just right from the manifold to turbo gasket.
Instal: Onbolt the nuts, Instal plate with 90degree facing turbo foot, instal nuts again.
Fold tabs against nut (so they cannot backout.)

http://www.ttzd.com/tech/engine/engine020.JPG



Another pic (arrow shows nuts with locking tabs)





http://www.240sxmotoring.com/nisrt2tulopl.html

http://www.frsport.com/Genuine-OEM-N...ab_p_8123.html

also this PN:

http://img221.imageshack.us/img221/1...ingtabsed4.jpg

Last edited by greddymx5; 07-20-2009 at 06:08 PM.
greddymx5 is offline   Reply With Quote
Old 07-20-2009, 04:38 PM   #2
Junior Member

Join Date: Jan 2008
Location: Sparta, NJ
Posts: 96
Total Cats: 0
Default

I've used them on my SR20DET before and never had a bolt back out.
However, one thing to note is that the piece is made for 8mm studs and will not work with 10mm studs.
avante43 is offline   Reply With Quote
Old 07-20-2009, 04:43 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

I ve used a greddy set... Nothing more to say...
Now with FM washers... No problems..
I think this is a perfect (cheap) solution..
greddymx5 is offline   Reply With Quote
Old 07-20-2009, 04:45 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Have you tracked your "solution"?
Savington is offline   Reply With Quote
Old 07-20-2009, 05:01 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

What do you mean?? (English is not my main language)

Found this setup on a friends car (greddy setup) and told me it's a oem nissan part.
Looks very good and stable. Thought i share it with you guys..
greddymx5 is offline   Reply With Quote
Old 07-20-2009, 05:21 PM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Change the thread title from "bold" to "bolt". No one can tell what you're talking about.

By "tracking your solution", Savington is asking if you've raced your car with this plate without the hardware backing out. Racing is when a lot of us are having problems.

This is the same design motorcycles have for rotor retention, as well as front sprocket lock washer, but that's just for one huge nut. I think a lot of us would have issues getting a tool in there to bend the tabs up.
curly is offline   Reply With Quote
Old 07-20-2009, 05:47 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

Quote:
Change the thread title from "bold" to "bolt". No one can tell what you're talking about.

By "tracking your solution", Savington is asking if you've raced your car with this plate without the hardware backing out. Racing is when a lot of us are having problems.

This is the same design motorcycles have for rotor retention, as well as front sprocket lock washer, but that's just for one huge nut. I think a lot of us would have issues getting a tool in there to bend the tabs up.
Thanks curly...

No never raced the FM washers.. Only on the road..
Never tried the NISSAN locks... (going to buy them)
greddymx5 is offline   Reply With Quote
Old 07-20-2009, 06:11 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

It's a good idea. I actually saw it on an SR20 last week in a shop. What it doesn't solve is the issue of expanding/stretching studs.
Savington is offline   Reply With Quote
Old 07-20-2009, 06:14 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

My S13 SR20DET Prep - Page 8 - 240SX Forums

Very good pictorial how they work..
greddymx5 is offline   Reply With Quote
Old 07-20-2009, 10:35 PM   #10
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

I had them on my sr20 with great results.

I just posted this up in the bolt loosening thread a few weeks ago
240_to_miata is offline   Reply With Quote
Old 07-21-2009, 03:32 PM   #11
Junior Member
iTrader: (1)

Join Date: Jul 2008
Location: The Netherlands
Posts: 104
Total Cats: 0
Default

Its prob a good option when you need only the washers.
sending only washers from the states to the Netherlands is a bit expensive.
Youre solution we can get at a local nissan dealership.
martijn is offline   Reply With Quote
Old 07-21-2009, 05:02 PM   #12
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

I've been using them on my SE-R for a long time and never had an issue even on the track.
paNX2K&SE-R is offline   Reply With Quote
Old 07-21-2009, 06:02 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

studs stretch. Kill yourself.
hustler is offline   Reply With Quote
Old 07-21-2009, 06:06 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by paNX2K&SE-R View Post
I've been using them on my SE-R for a long time and never had an issue even on the track.
that's because you drive like a *****.
hustler is offline   Reply With Quote
Old 07-21-2009, 06:19 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by greddymx5 View Post
My S13 SR20DET Prep - Page 8 - 240SX Forums

Very good pictorial how they work..

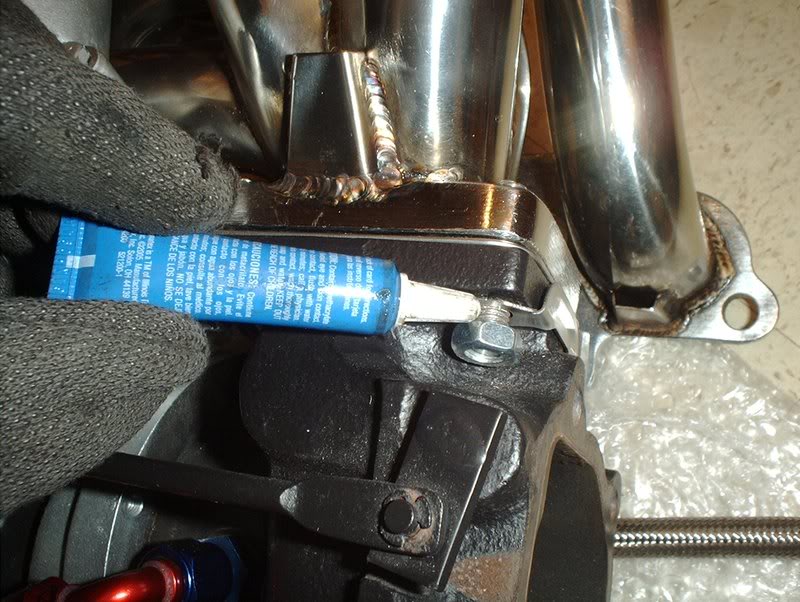

did you look at it? AFter that fucktard uses blue loctite, he then showed pics of them failing with that metal ****.
hustler is offline   Reply With Quote
Old 07-21-2009, 06:28 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

lol

Name:  IMAG001232.jpg
Views: 13
Size:  103.7 KB
hustler is offline   Reply With Quote
Old 07-21-2009, 06:46 PM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

@ hustler:

Maybe it's better to try to find a sollution..
It's easy to crap on anotherone's treath.

Nissan is using them on all their turbocharged t25 cars... Maybe you are better then the engineers an nissan... At least they try...
greddymx5 is offline   Reply With Quote
Old 07-21-2009, 07:00 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

/\ Don't take hustler too seriously. If you do you won't last here very long
18psi is offline   Reply With Quote
Old 07-21-2009, 07:06 PM   #19
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Quote:
Originally Posted by greddymx5 View Post
@ hustler:

Maybe it's better to try to find a sollution..
It's easy to crap on anotherone's treath.

Nissan is using them on all their turbocharged t25 cars... Maybe you are better then the engineers an nissan... At least they try...
I don't think you grasp the severity of the problems we have: We stretch the studs. This is not a mechanical fastening problem. This is a material problem. You may as well suggest Nordlocks.
Savington is offline   Reply With Quote
Old 07-21-2009, 07:09 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

I think many people on here (myself included) don't realize how huge the difference in stress is between regular driving and racing. You guys beat the living **** out of your cars on the track and push them to their limits, getting them many times hotter than we ever do driving our cars on the street.
18psi is offline   Reply With Quote
