Default Bolt size and thread pitch of coolant plug?

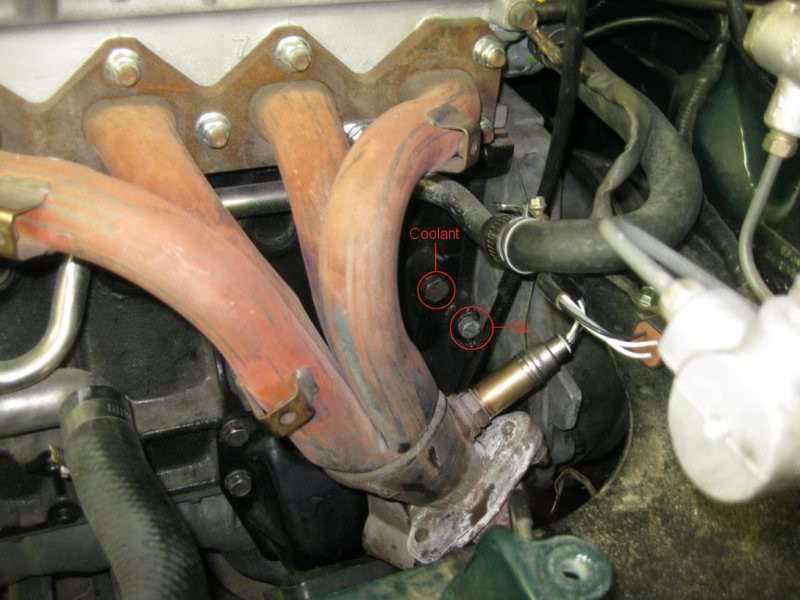

What is the bolt size and thread pitch of this coolant plug in the 1.6L block (see pic)?

I'm planning on using it as my coolant source for the turbo.

Name:  blockbungs.jpg
Views: 18
Size:  60.6 KB

Note: I have a coldside coolant reroute, and the front of the engine has no t-stat housing, just a freezeplug. The t-stat housing is now at the rear.

I was thinking about using the T-stat bypass hose/heater core hose to just route directly from the rear t-stat housing to the water inlet of the turbo (as seen in the faq pic below), but I think the turbo's coolant lines would be too restrictive and wouldn't flow enough. I do like the idea though. Somehow I think this routing wouldn't allow for enough flow to keep the water pump happy when the t-stat is closed. I suspect this pic is on an engine that doesn't have a reroute/freeze plug on the front of the block, right?

mrwoolery is offline   Reply With Quote
Old 02-04-2009, 10:26 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

M12 x 1.25


/thread
Braineack is offline   Reply With Quote
Old 02-04-2009, 10:52 AM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Braineack View Post
M12 x 1.25


/thread
pun.
y8s is offline   Reply With Quote
Old 02-04-2009, 12:16 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

is this port present on a 99 motor, and will my CLT sensor screw into it?

in ftw!
hustler is offline   Reply With Quote
Old 03-08-2009, 04:56 PM   #5
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

the port is not there on your engine.
WestfieldMX5 is offline   Reply With Quote
Old 03-10-2009, 02:38 PM   #6
Guest

Join Date: Mar 2006
Location: So Cal
Posts: 407
Total Cats: 0
Default

a bit off topic but is the OIL plug the same size? M12 x 1.25?
krayzrac3r is offline   Reply With Quote
Old 03-10-2009, 02:50 PM   #7
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Quote:
Originally Posted by krayzrac3r View Post
a bit off topic but is the OIL plug the same size? M12 x 1.25?
No, the oil feed is M10x1.5.

--Ferdi
ftjandra is offline   Reply With Quote
