boned up tapping oil pan, sorta. PS bracket interfering

DIY Turbo Discussion greddy on a 1.8? homebrew kit?
Sponsored by:
Sponsored by:

boned up tapping oil pan, sorta. PS bracket interfering


Old 08-22-2008, 09:59 PM
  #1
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 345
Total Cats: 0
Default boned up tapping oil pan, sorta. PS bracket interfering

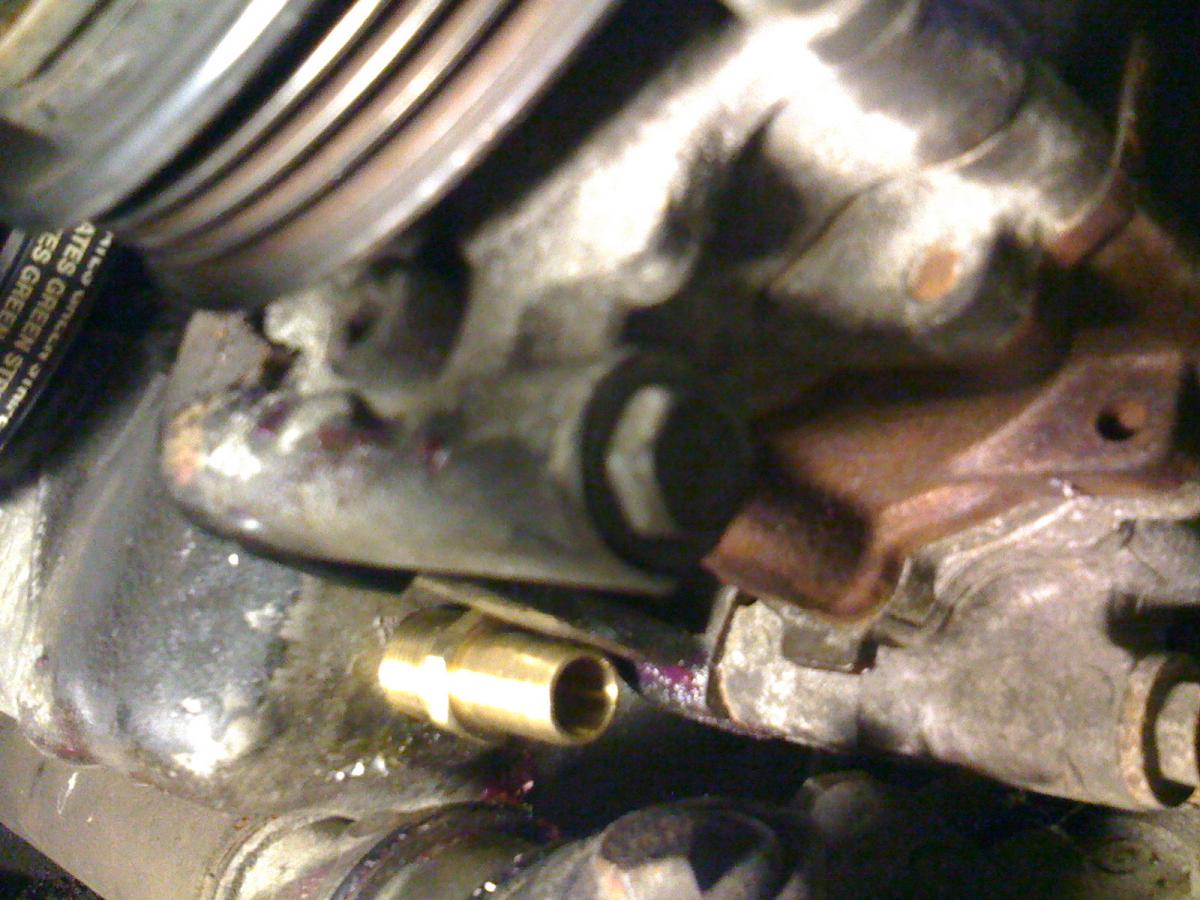

Pictures may tell the story better, but basically, I am tapping pan for a 1/2NPT bung, for a slip on drain. There wasn't a lot of room to work with and I had to get real macguyver to get the various drill bits and the tap in there around PS lines, etc. When I finally got done I found that I was just a little bit to high - the bung is going to screw in, but the top of the barb is in full contact with the power steering pump. Options, so far as I can see:

1. Take the bracket off and cut the offending piece of the bracket off
2. grind a groove into the bracket so that the drain line can slip on
3. source a manual steering rack, delete the power steering and the bracket along with it
4. forget the slip on drain and see if I can get a 1/2 NPT to AN angled adapter, and go stainless on the drain...if that would fit

there is always the possibility that if I screw it in all the way, there will be more clearance, but I can't be sure.
thoughts?
lemme get this out of the way:
I'm dumb. Fully aware.
Attached Thumbnails boned up tapping oil pan, sorta.  PS bracket interfering-philly-036.jpg
tronik is offline
Old 08-22-2008, 10:08 PM
  #2
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 6,117
Total Cats: 841
Default

Grind the bracket. It's over designed as far as I can see (just put P/S on my car).
Just don't cut all the way through it.

Angled fitting might be easier if you can find one.


Edit: isn't that the A/C pump? I thought the P/S pump was on top.
rleete is online now
Old 08-22-2008, 10:13 PM
  #3
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,482
Total Cats: 0
Default

I dunno dude,options 1 & 2 seem about the same.

It seems like the only way to angle it would be down but I don't think you want to do that. You need gravity to drain your oil. If you angle it down,oil may pool up in your drain and cause problems.

#3 depends on how much you would miss your power steering.

I would just grind enough of a radius in the bracket to clear a hose and clamp. But thats just me. Mabey somebody will chime in with a better idea.

Last edited by lordrigamus; 08-22-2008 at 10:29 PM.
lordrigamus is offline
Old 08-22-2008, 10:20 PM
  #4
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,161
Total Cats: 5
Default

I'm pretty sure that is not PS related?
miatamania is offline
Old 08-22-2008, 10:25 PM
  #5
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,482
Total Cats: 0
Default

Yea,that should be the a/c. What was I thinking?

By the way,if you put it any deeper you might hit the oil pump pickup. That could be bad.
lordrigamus is offline
Old 08-22-2008, 10:46 PM
  #6
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 854
Total Cats: 13
Default

remove the ac. problem solved.
The_Pipefather is offline
Old 08-22-2008, 10:47 PM
  #7
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 345
Total Cats: 0
Default

yeah, you guys are right, that is the ac pump - I have no problem deleting that. Never use it. Do I need an idler pully in order to retain PS though?

As to depth, if I stick my finger in there i can feel the pickup, I didn't damage it (phew) and there is a decent amount of distance to it, though I should probably lop off half my threads with a cutoff wheel to be sure.
tronik is offline
Old 08-22-2008, 11:03 PM
  #8
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,482
Total Cats: 0
Default

Cool! I've heard of people drilling right into them.
lordrigamus is offline
Old 08-22-2008, 11:19 PM
  #9
Junior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2006
Posts: 345
Total Cats: 0
Default

answered my own question - you can get a typical PS, no ac belt from mazda/advance/whoever and it works. Sweet. minus 35lbs and no more worries. Phew! Thanks guys!
tronik is offline
Old 08-22-2008, 11:32 PM
  #10
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,482
Total Cats: 0
Default

I can't live without my a/c...I'm too old for that crap. I need cold air blowing on my old man nuts!
lordrigamus is offline
Old 08-23-2008, 10:25 AM
  #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,651
Total Cats: 111
Default

I had a similar issue. I removed the a/c compressor bracket, attached installed the oil drain line, then reinstalled the bracket.

The difference was I have a pipe fitting then a barbed fitting then the hose. I couldn't tighten the barbed fitting onto the pipe fitting because the corner of the "nut" would strike the comp bracket.
__________________
DIYAutoTune.com Tech Support
10AE-T|BEGi S4|MSPNP-Pro EMS|Enthuza Duals|6UL|Etc
Track Rat|2001|VVT|MS3-Pro EMS|Enthuza|Exocet in Progress

Originally Posted by concealer404 View Post
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 08-23-2008, 05:32 PM
  #12
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,612
Total Cats: 2,314
Default

Originally Posted by tronik View Post
yeah, you guys are right, that is the ac pump - I have no problem deleting that. Never use it. Do I need an idler pully in order to retain PS though?

I'd just grind the bracket away. I was really close to not being able to fit the hose on mine as well.

if you do delete it, the p/s has the tensioner so it's all you need.
