Default Boost Surge - New Disco Potato on 1600.

Since fitting the new GT2860rs my MS tuner/dyno guy says the car pulls like crazy but has boost surge issues under 2800 rpm.

I have spent the past few days trying to find a thread I am sure I read here somewhere a year or two ago about how all the MT guns offered solutions and methods to resolve a common boost surge issue with this turbo.


Am I on the right track or have i imagined this in a previous life...?

Something about porting around the wastegate....if anyone can point me in the right direction or offer advice i'd appreciate it.
mx5-kiwi is offline   Reply With Quote
Old 12-16-2015, 11:35 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

What BOV?
aidandj is offline   Reply With Quote
Old 12-16-2015, 11:51 PM   #3
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default Boost Surge - New Disco Potato on 1600.

Anti reversion housing?

Wastegate porting is for boost creep near redline, not surge.

--Ian
codrus is offline   Reply With Quote
Old 12-16-2015, 11:58 PM   #4
Senior Member
Thread Starter

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Thanks codrus. That'll be why my searching hasn't found it..

Aidandj - It is a mid level Turbosmart unit. The cars out of town at the tuners so I cant check what model but I think its a vee port from their web site...
mx5-kiwi is offline   Reply With Quote
Old 12-17-2015, 12:08 AM   #5
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

AIUI, surge usually means you're using too big a turbo on too small a motor. Anti reversion compressor housings help. I'm a bit surprised a 2860 would do that on a 1.6 though.

--Ian
codrus is offline   Reply With Quote
Old 12-17-2015, 12:16 AM   #6
Senior Member
Thread Starter

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Well it is a biggish turbo for a 1600 to my understanding.

I suspect we may have exaggerated the problem by using a log/extreme short runner manifold as well.

Previous turbo was a journal bearing T28 with downsized compressor housing. Didn't have the problems then but turbo was on its way out anyway (we since found out..).
mx5-kiwi is offline   Reply With Quote
Old 12-17-2015, 12:25 AM   #7
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Interesting issue.

Do you perhaps have very restrictive charge pipes and/or intercooler? Being that it is a dynamic compressor, I am not sure that this would matter, but it is worth a thought.

Plenty of people have run the ol' Potato on the B6 and the spool being too fast is not a common issue as far as I know.
Full_Tilt_Boogie is offline   Reply With Quote
Old 12-17-2015, 01:45 AM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

This doesnt sound right. You'll need to post boost plots to convince us it's actually surge, because I've tuned 6th gear pulls (that's right, from 2k all the way to 7k or 155mph) on a 30R and 1.6 and we had no surge. I can't see a disco potato doing this

The one miata where I've seen this was a 1.8 bp with a 35r at 25+psi on e85 and doing pulls in 5th on the freeway (because he's crazy, that's why)
18psi is offline   Reply With Quote
Old 12-17-2015, 01:49 AM   #9
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I don't think your exhaust manifold choice would do this.

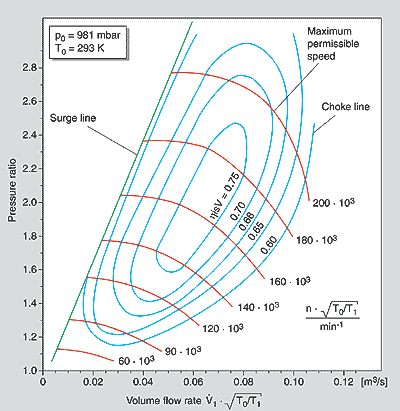

Compressor surge happens when you are too far to the "left" of a compressor map, high pressure ratio but very low airflow. The compressor is essentially chopping nonmoving air.

See surge line here



Though I guess technically you could try and target less boost to get rid of the surge though.
Attached Thumbnails
Boost Surge - New Disco Potato on 1600.-compressormap.gif
aidandj is offline   Reply With Quote
Old 12-17-2015, 01:52 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

A 3port bcs will sometimes create "flutter" that sounds kinda like faint surge when it activates in interrupt mode.
Have said tuner disable bcs and run wastegate. if it still "surges" then it aint surge
18psi is offline   Reply With Quote
Old 12-17-2015, 02:21 AM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by 18psi View Post
A 3port bcs will sometimes create "flutter" that sounds kinda like faint surge when it activates in interrupt mode.
Have said tuner disable bcs and run wastegate. if it still "surges" then it aint surge
Well disabling bcs would build boost slower and not surge. So wire the wastegate shut too when disabling ebc
aidandj is offline   Reply With Quote
Old 12-17-2015, 01:30 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

He needs to rule out if it's the preload on the wga or the bcs
18psi is offline   Reply With Quote
Old 12-17-2015, 02:53 PM   #13
Senior Member
Thread Starter

Join Date: Dec 2010
Location: Auckland, NZ
Posts: 783
Total Cats: 23
Default

Actually we did put slight preload on the Wastegate......picking car up tomorrow will see.

Do you think we will see any change buy uprating the IC piping from 2" to 2.5"?
mx5-kiwi is offline   Reply With Quote
Old 12-17-2015, 02:53 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

if anything, a restrictive ic should be helping you not have boost surge
18psi is offline   Reply With Quote
Old 12-17-2015, 03:00 PM   #15
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,332
Default

I've seen similar issues on a 56-trim 2871R without the anti-surge housing, but it only happened on the dyno because you're able to hang the motor at very low RPM and let boost slowly build to the surge line. On the road, the RPMs rise fast enough that it's never an issue. If you aren't seeing real-world surge, I wouldn't be awfully concerned about it.
