Default AFR issue (LC-1)

No idea why it's not reading correctly. The brown wire was spliced into the stock o2 sensor wire, then I tried connecting it to pin 10 in mspnp center connector with no luck. LC-1 grounds and ECU ground are in the same location. (cylinder head)

LC-1 Controller was programmed (output 2)

0.0V - 10.0 AFR
5.0V - 20.0 AFR

Attached Thumbnails

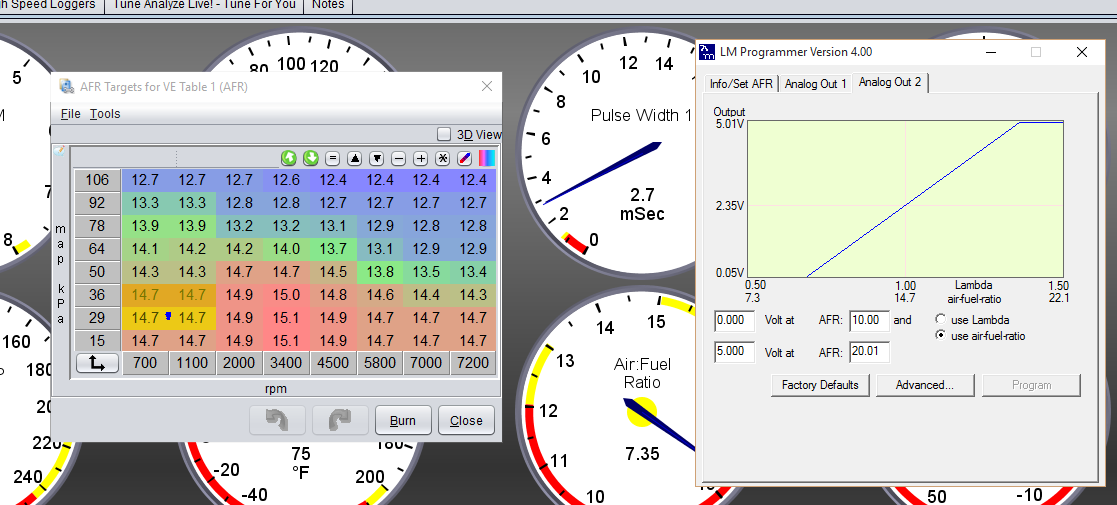

AFR issue (LC-1)-yho8x3b.png
.one lane is offline   Reply With Quote
Old 11-29-2015, 10:05 AM   #2
Junior Member

Join Date: May 2007
Location: Atlanta
Posts: 383
Total Cats: 38
Default

Wideband is set via project properties in tunerstudio iirc.
gooflophaze is offline   Reply With Quote
Old 11-29-2015, 02:25 PM   #3
Junior Member
Thread Starter

Join Date: May 2011
Location: Signal Hill, CA
Posts: 246
Total Cats: 11
Default

It's set to innovate lc-1 default 0-5v lambda at the moment. I've also tried the other options without successes.

-Update-

Switched the gauge to read lambda and it reads fine. Switch the controller setting to Innovated 0-5v 10-20 AFR and the afr gauge in TS is stuck on 10 afr

Last edited by .one lane; 11-29-2015 at 04:24 PM.
