Default Boost is unstable at peak when wastegate opens

Hey guys.

I have a 1992 miata with a FM2 kit on it.

Same old garret 2560r. Im running a megasquirt ms3 build by rev. Im also using a manual turbosmart boost controller.

My problem is, the car pulls and drives really well until you hit the wastegate pressure. Then the car bounces around almost like its hitting a fuel cut rev limiter.

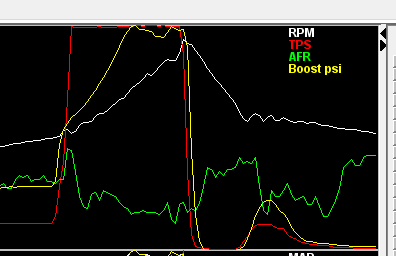

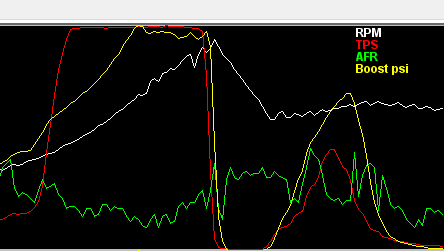

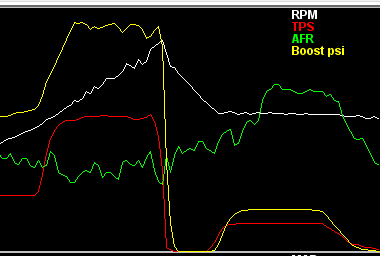

I can see in the graphs that the boost is really unstable when the wastegate is opening.

This can happen at a variety of rpm's and if I dont hit peak boost to open the wastegate everything is smooth and fine. My boost controller is set to 12psi.

Any ideas? Ive attached a log in which this happens often and here are some photos of the issue aswell.

Thanks!






Attached Thumbnails
Boost is unstable at peak when wastegate opens-80-boostdrop1_a7dc26bc8269637ebaebbd75ab2aba0e39a3074a.png   Boost is unstable at peak when wastegate opens-80-boostdrop2_a76df328fd7e86428af79ee38379a57437d6fb05.png   Boost is unstable at peak when wastegate opens-80-boostdrop3_e262d9e9d1df9f1b65ef34403601bf6c91163fa7.png
Attached Files
File Type: msl 2015-11-13_21.37.26_drive.msl (2.08 MB, 60 views)
Fatvod is offline   Reply With Quote
Old 11-19-2015, 01:50 PM   #2
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 54
Total Cats: -3
Default

Figured out it was spark blowout (was unfamiliar with this).

Needed to gap the plugs down a bit more.
Fatvod is offline   Reply With Quote
Old 11-19-2015, 02:04 PM   #3
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Thanks for following up with the solution, I hate searching and pulling up old unresolved threads.

Sometimes new plugs will help if yours have been in there a while. If you keep having issues the Toyota COP thread is great for walking you through building a relatively inexpensive coil on plug conversion.
pdexta is online now   Reply With Quote
Old 11-19-2015, 03:01 PM   #4
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 54
Total Cats: -3
Default

Ya, me too, thats why I came back and posted what I found.
Obligatory XKCD https://xkcd.com/979/

I got some nice new plugs and wires, gaped em down, and have no issues now.

COP's are on my list of things to eventually do to the car.

Thanks!
