Default Bottom mounters: lower rad hose/wp inlet

Bottom mount crew, what are you using for the lower rad hose/water pump inlet/heater core hose return? I saw a pic of Artieparty's which was what I'm looking for, maybe he'll see this... I know Begi has a piece, I'm just wondering if I can use something that I already have? Related, if guys came up with something, what rad hose are you using?

I have thought of reworking the existing mixing mani, just turning it around and plugging the heater core hard line inlet and tapping the mixing mani on the other side. Also, the '97 t-stat housing ALMOST fit on the water pump inlet, there just wasn't much meat on one side where it contacted the inlet.
webby459 is offline   Reply With Quote
Old 04-05-2010, 02:55 PM   #2
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

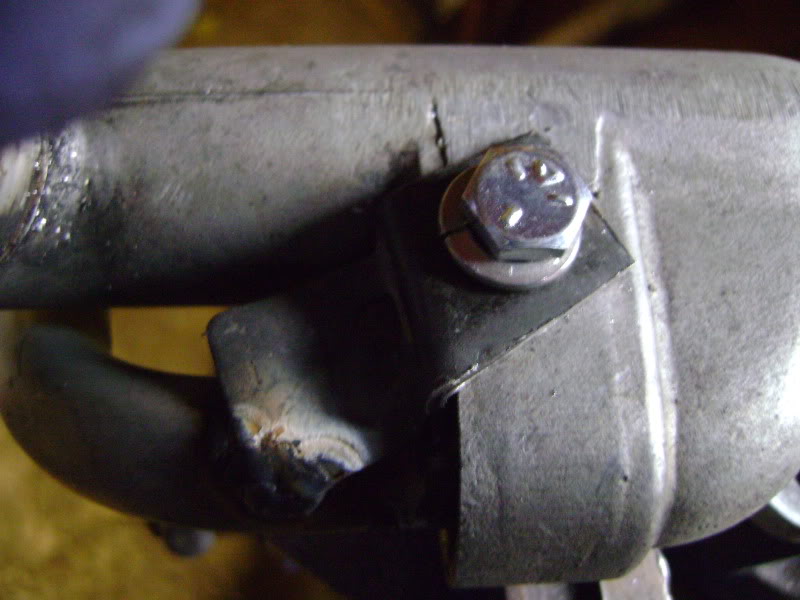

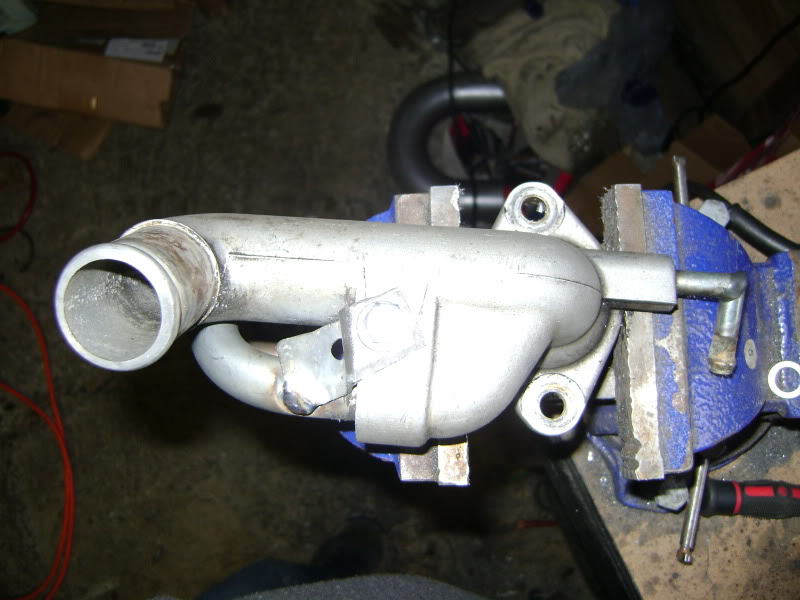

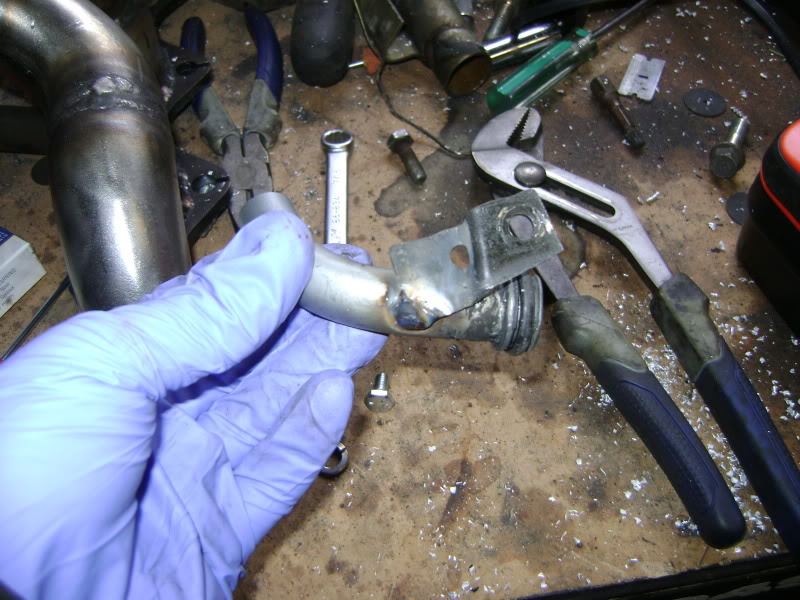

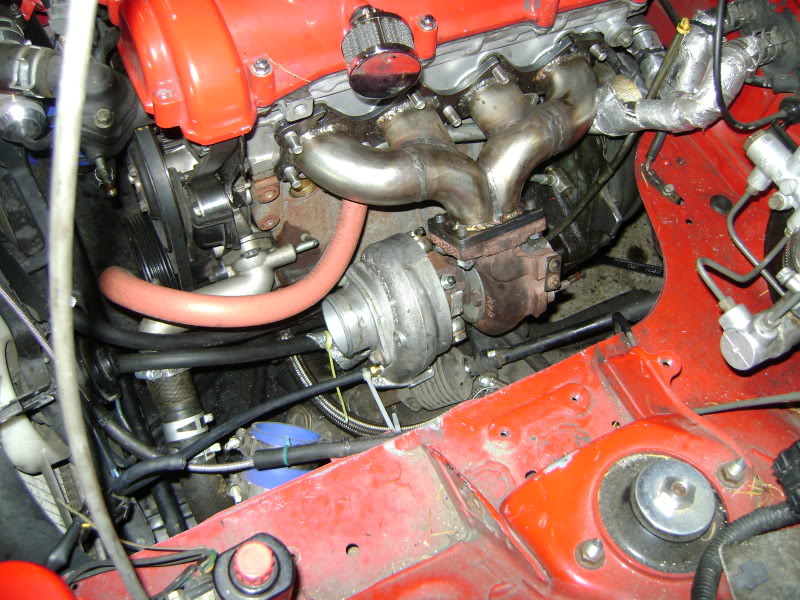

I cut the heater core hardline and welded a tab to it so that I could bolt it back into the housing. Then just connected the two hardlines with a piece of hose. This was all so I could flip the mixing manifold around 180*. In all honesty its ghetto but works great.

Name:  DSC01660.jpg
Views: 26
Size:  124.8 KB
Name:  DSC01661.jpg
Views: 24
Size:  92.8 KB
Name:  DSC01662.jpg
Views: 18
Size:  83.8 KB
Name:  DSC01663.jpg
Views: 41
Size:  157.1 KB
wayne_curr is offline   Reply With Quote
Old 04-05-2010, 02:56 PM   #3
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

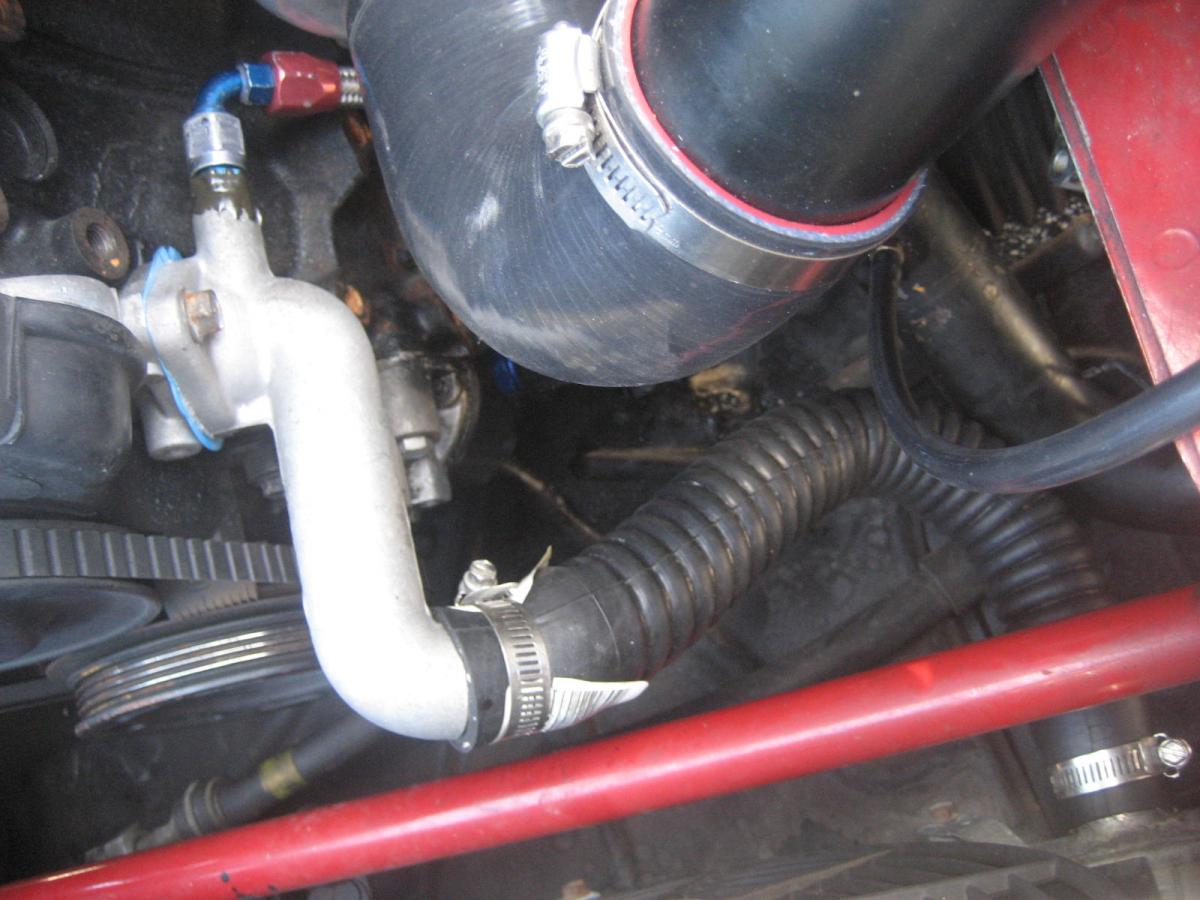

Stock mixing manifold flipped around and shortest flex hose I could find. I'm sure you could find a molded hose that would fit better.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
Attached Thumbnails
Bottom mounters:  lower rad hose/wp inlet-img_0712.jpg
levnubhin is offline   Reply With Quote
Old 04-05-2010, 03:00 PM   #4
Elite Member
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Thanks and thanks. I'll take more responses if anyone has any.

nubbins, eff you for not having heater. Want "roommate?" I have lots of baggage, though.
webby459 is offline   Reply With Quote
Old 04-05-2010, 03:06 PM   #5
Elite Member
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

https://www.miataturbo.net/forum/t32377/#post379444

Check out Artie's. Looks kind of like the tstat housing cover.
webby459 is offline   Reply With Quote
Old 04-05-2010, 04:27 PM   #6
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

A link to my setup.

http://www.cardomain.com/ride/737924/9

Doesn’t have a real good pic of the inlet I made it but basically it is an inlet from a 323 GTX. The steel hard line for the heater core return comes in lower and closer to the block so it clears my turbo placement better this also required modifying the hard line mount at the exhaust manifold stud. The inlet for the hose from the radiator was cut off and reoriented forward and down. And I welded on a fitting for the coolant return from the turbo as well.

Bob
bbundy is offline   Reply With Quote
Old 04-05-2010, 10:56 PM   #7
Junior Member
iTrader: (1)

Join Date: Jun 2009
Location: Auburn Maine
Posts: 185
Total Cats: 0
Default

sweet set up Bbundy!
vw_nut is offline   Reply With Quote
Old 04-17-2010, 10:21 PM   #8
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

are you guys just just getting rid of the line that runs (i think) from the mixing mani to the thermostat housing and plugging both those ports? Or is that a bad Idea?
kewilso3 is offline   Reply With Quote
Old 04-18-2010, 05:13 PM   #9
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

I think the main issue is relocating the lower radiator hose. In the stock location, it sits right where everyone wants to run their intercooler tubes.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 04-18-2010, 08:51 PM   #10
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

i know what they're doing (i'm doing it soon in preparation for bottom mount), I just see that 90 degree little inlet left open on all these. Maybe i'm missing something, or maybe you guys ran the line after taking these photos? I'm struggling to convince myself that the mxing-mani to thermostat line is either useless or very important.

on wayne's it's left open, and levnubbin looks to have turbo return going in there
kewilso3 is offline   Reply With Quote
Old 04-18-2010, 08:59 PM   #11
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

and i'm talking about on a stock coolant flow layout, no reroute of any kind, 1994
kewilso3 is offline   Reply With Quote
Old 04-18-2010, 09:41 PM   #12
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by kewilso3 View Post
i know what they're doing (i'm doing it soon in preparation for bottom mount), I just see that 90 degree little inlet left open on all these. Maybe i'm missing something, or maybe you guys ran the line after taking these photos? I'm struggling to convince myself that the mxing-mani to thermostat line is either useless or very important.

on wayne's it's left open, and levnubbin looks to have turbo return going in there
I use that as water feed for my turbo as well. My setup wasn't fully assembled in that picture
wayne_curr is offline   Reply With Quote
Old 04-19-2010, 11:45 AM   #13
Elite Member
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

This is pretty much what I ended up with. Two AN lines hanging there are going to the turbo, shortened, of course. Blue hose is good for 300*, and is the heater return. I spun the mixing mani around (no PS or AC, ymmv), pulled the hard steel line for heater return out, had it tapped 3/4" NPT, and put on a NPT to AN adapter on it. 90* 5/8" barb to AN fitting stuck on the hose, QED. With this setup, the mixing mani lower rad hose nipple does not contact my 1.125 RB fsb, and it looks like the lower rad hose will just about clear the fsb. I'll take more pics of it installed later in the week and update somewhere.

webby459 is offline   Reply With Quote
Old 04-19-2010, 11:50 AM   #14
Elite Member
Thread Starter
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

BTW, I yanked the little inlet tube out of the mixing mani opposite the rad hose nipple and tapped it for 1/8" NPT, then got a 1/8" NPT to -6 AN 90* swivel fitting from Earl's (slick piece). Likewise with the upper rad hose neck that's now blocked off, I pulled the nipple out of that and tapped 1/8" NPT, 1/8" NPT to -6 str8 adapter to -6 AN line. Kewl?
webby459 is offline   Reply With Quote
Old 04-24-2010, 04:16 PM   #15
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

kewl, thanks fellas

*edit: tapping this thing for 3/4npt is proving to be a bitch

Last edited by kewilso3; 04-28-2010 at 04:47 PM.
kewilso3 is offline   Reply With Quote
Old 04-24-2010, 04:51 PM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by webby459 View Post
This is pretty much what I ended up with. Two AN lines hanging there are going to the turbo, shortened, of course. Blue hose is good for 300*, and is the heater return. I spun the mixing mani around (no PS or AC, ymmv), pulled the hard steel line for heater return out, had it tapped 3/4" NPT, and put on a NPT to AN adapter on it. 90* 5/8" barb to AN fitting stuck on the hose, QED. With this setup, the mixing mani lower rad hose nipple does not contact my 1.125 RB fsb, and it looks like the lower rad hose will just about clear the fsb. I'll take more pics of it installed later in the week and update somewhere.

I'm a retard. Nice ****, I may do the same. I want to redo all my SS lines.
hustler is offline   Reply With Quote
Old 05-10-2010, 10:50 PM   #17
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

ok scratch all this complicated stuff, i'm just gonna flip the mixing mani and eliminate the HC hardline (weld the hole shut), gonna tee it into the lower rad hose instead.

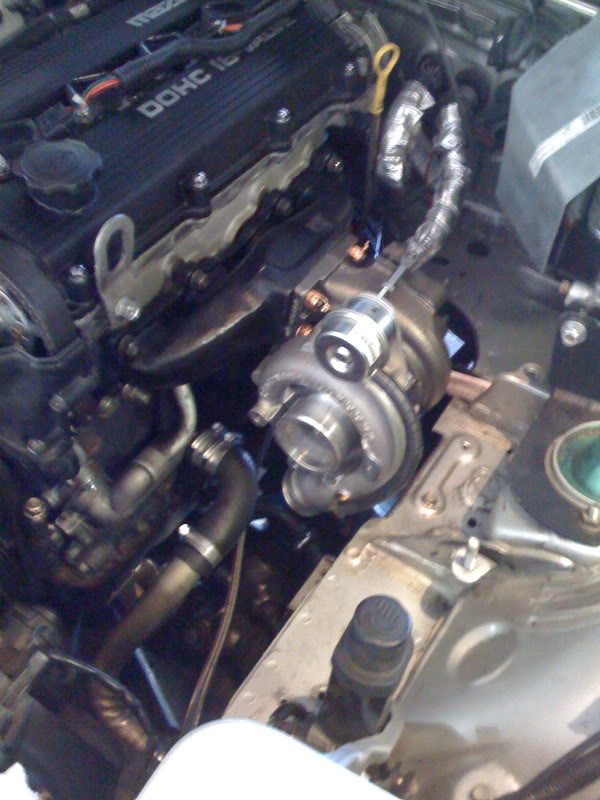

edit: here's what thesnowboarder did before going low mount, might work for some, idk:
Name:  IMG_0052.jpg
Views: 18
Size:  75.9 KB

Last edited by kewilso3; 05-21-2010 at 02:26 PM.
kewilso3 is offline   Reply With Quote
