DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 12-04-2009, 02:08 PM   #41
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

So the BOV needs to be before the AFM right? That's how the setup was when I got and haven't saw the need to change it
johnmatt is offline   Reply With Quote
Old 12-04-2009, 02:14 PM   #42
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by johnmatt View Post
So the BOV needs to be before the AFM right? That's how the setup was when I got and haven't saw the need to change it
Here is how it should go.
Air filter, AFM, Turbo, intercooler, BOV, Throttle
and the outlet of the BOV should vent into the intake pipe for the turbo AFTER the AFM, and BEFORE the turbo.
Apparently, you and mazpr are running blow-through AFMs, which makes no sense...
Full_Tilt_Boogie is offline   Reply With Quote
Old 12-04-2009, 02:17 PM   #43
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Ok I gotcha. The PO had it run like that and I haven't had any issues so far so I'll leave it that way
johnmatt is offline   Reply With Quote
Old 12-04-2009, 02:19 PM   #44
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by johnmatt View Post
Ok I gotcha. The PO had it run like that and I haven't had any issues so far so I'll leave it that way
What does it have for engine management?
Full_Tilt_Boogie is offline   Reply With Quote
Old 12-04-2009, 02:26 PM   #45
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Working on getting a haltech in it. I've heard good things about them for it being old
johnmatt is offline   Reply With Quote
Old 12-04-2009, 02:27 PM   #46
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by johnmatt View Post
Working on getting a haltech in it. I've heard good things about them for it being old
so what do you have now? nothing?
Full_Tilt_Boogie is offline   Reply With Quote
Old 12-04-2009, 02:46 PM   #47
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Perty much but I almost never drive the car for this reason and figured I'd take the motor out for a rebuild before I put the standalone on it
johnmatt is offline   Reply With Quote
Old 12-04-2009, 03:16 PM   #48
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Toyota Paseo
Mazda 626 ECU
Mazda 323 wiring harness
Turbo II injectors
MPV AFM
1.5 engine
stock rods
Suzuki cast pistons

300 HP, 25 psi on pump gas

No Megasquirt or any standalone system'

Make a note, the AFM from an MPV is pressurized, no problem last I heard running 30 psi after the build.

Name:  Paseo4.jpg
Views: 4
Size:  43.8 KB

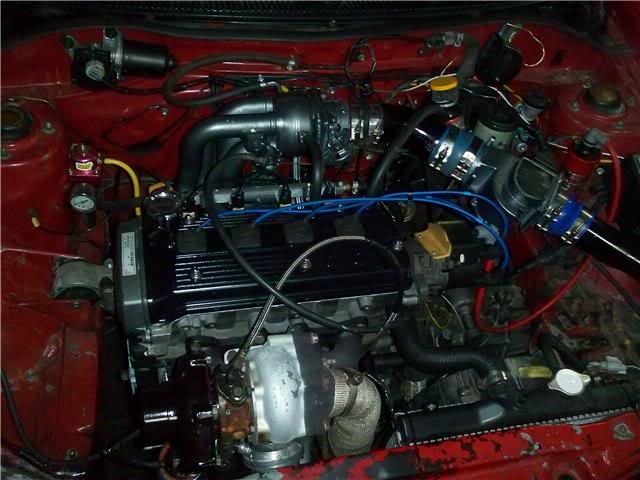

Name:  Paseo.jpg
Views: 4
Size:  53.1 KB

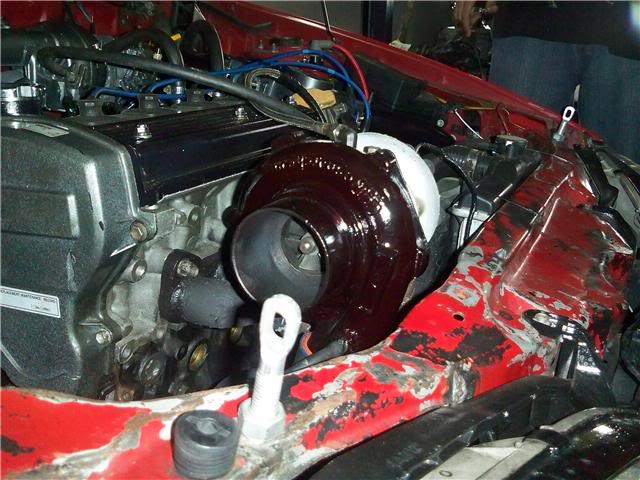

Name:  Paseo2.jpg
Views: 4
Size:  62.7 KB

http://www.youtube.com/watch?v=fsAZRd819DE

http://www.youtube.com/watch?v=IvUQznycb7k

If the last video seems too long at the beginning, at least start from 2:40 where he is running against a Hayabusa.

Embeding the videos did not work, so I posted the links.

FYI: Car is not mine

Last edited by mazpr; 12-05-2009 at 10:28 AM. Reason: JDMPOWELOL
mazpr is offline   Reply With Quote
