Default My Greddy I/C build.

As some of you that have helped me out know, I'm in the process of intercooling my greddy with an ebay type i/c. I figured I'd post some pics of what I have done so far. I've been using the ebay DIY thread in the useful saved threads and got a lot of ideas. I mounted the i/c today with the stock condensor brackets and some angle aluminum. After a few hours of measuring cutting and drilling, my Dad and I came up with this. Any input as to how it looks? I dont have it fully bolted in yet(no bolts), but the bracket itself is very sturdy. Don't mind the crappy fiberglass bumper and chicken wire. The wire is coming out tomorrow when I have some light.

Front of i/c and bracket


From the rear.


Tilted forward a little since it wasnt tight




2k6750 is offline   Reply With Quote
Old 11-30-2009, 12:07 AM   #2
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Doesn't look too bad. Although that angle is going to create some obstruction for your radiator and possibly lead to cooling problems. Are you using the stock radiator?
SKMetalworks is offline   Reply With Quote
Old 11-30-2009, 12:11 AM   #3
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

It's tilted towards the front because I don't have any hardware to bolt it in properly right now. Is that what you're talking about? I am running the stock rad for now. I've got a big Koyo in my garage that I can use, I just want to make sure i can clear i/c piping. I might have to get some slim fans. Any suggestions?
2k6750 is offline   Reply With Quote
Old 11-30-2009, 12:22 AM   #4
Junior Member
iTrader: (6)

Join Date: May 2009
Location: Victorville, CA
Posts: 204
Total Cats: 0
Default

Correct that tilt and you should be good there. Sounds like you have the right idea, slim fans w/ upgrade radiator it should clear up some room for your intercooler piping to the turbo and throttle body.
JerryMouse4U is offline   Reply With Quote
Old 11-30-2009, 12:24 AM   #5
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

What i ment is the aluminum angle that you are using to mount your intercooler. See how it blocks the flow?

Read my DIY Intercooler in my signature. Made with the greddy kit
Attached Thumbnails
My Greddy I/C build.-p3090058.jpg
SKMetalworks is offline   Reply With Quote
Old 11-30-2009, 12:27 AM   #6
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

Yeah I got that once I read your post again. I was thinking about drilling some holes like a ricer honda rear bumper in it. Also if anyone has pics of piping setups with this type of i/c and greddy feel free to post them up. Input is greatly appreciated.
2k6750 is offline   Reply With Quote
Old 11-30-2009, 12:34 AM   #7
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

Quote:
Originally Posted by sbkcocker499 View Post

Read my DIY Intercooler in my signature. Made with the greddy kit
Didn't see this before I posted, thanks. Any input on what I should do about the angle aluminum?
2k6750 is offline   Reply With Quote
Old 11-30-2009, 12:36 AM   #8
I'm Miserable!

Join Date: Nov 2009
Location: Triad, North Carolina
Posts: 23
Total Cats: 0
Default

For slim fans I recommend the Mishimoto fans and shroud, very thin and light, google to get their site, but buy it off of ebay, I got a great deal on mine. The other choice is Godspeed, same kind of set-up but without the shroud. You might have to buy from them direct because all I found on ebay were complete sets, radiator and fans. Of course you could sell the Koyo and with what you could get for that you could get the Godspeed set (I think it's like $185) and still have some cash left over for some other goodies.
DreadedRed is offline   Reply With Quote
Old 11-30-2009, 12:37 AM   #9
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Id cut the middle section vertical legs off where it creates the blockage. Although i would probably leave the ends for rigidity
SKMetalworks is offline   Reply With Quote
Old 11-30-2009, 12:37 AM   #10
Junior Member
iTrader: (6)

Join Date: May 2009
Location: Victorville, CA
Posts: 204
Total Cats: 0
Default

My bad, I see what you mean now. I made some custom brackets for my greddy kit but I don't have a camera at the moment. I too need to redo my set up, it sits to low.
JerryMouse4U is offline   Reply With Quote
Old 11-30-2009, 12:48 AM   #11
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

Quote:
Originally Posted by sbkcocker499 View Post
Id cut the middle section vertical legs off where it creates the blockage. Although i would probably leave the ends for rigidity
Sounds like a plan. I'll have to mess around with it a little after work tomorrow.

Thanks for the suggestions on the fans. I'll take a look on ebay tonight.
2k6750 is offline   Reply With Quote
Old 11-30-2009, 02:22 AM   #12
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

I just did my IC this weekend. If my camera wasn't at Sony I would take some pics.
Bond is offline   Reply With Quote
Old 11-30-2009, 04:58 PM   #13
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

Just did a little cutting on the bracket. I'll get some pics when I get home from work. Ordered some couplers and have some piping at home, so hopefully I'll get this thing finished pretty soon.
2k6750 is offline   Reply With Quote
Old 11-30-2009, 05:08 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,836
Total Cats: 1,786
Default

Quote:
Originally Posted by sbkcocker499 View Post
What i ment is the aluminum angle that you are using to mount your intercooler. See how it blocks the flow?

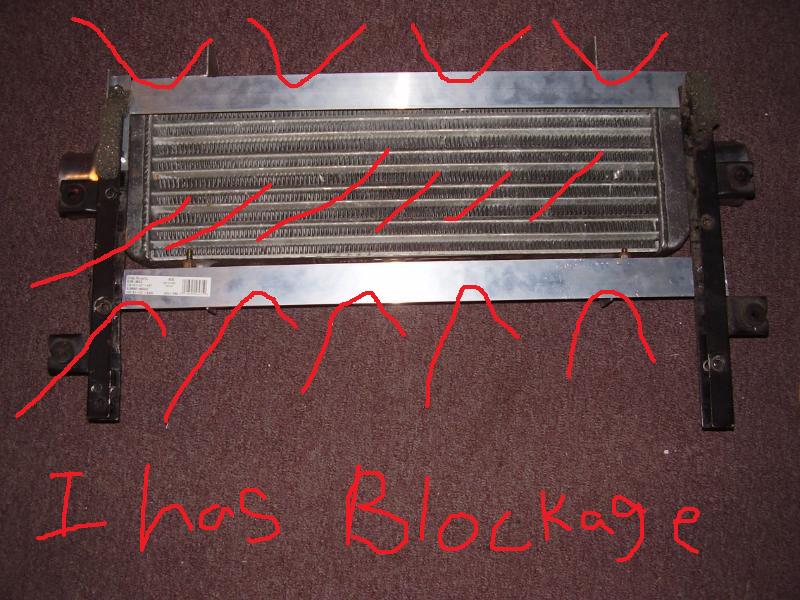

I has, diversion!



fwiw, the airflow through his tube & fin IC is much better than any B&P could ever dream of.
Braineack is online now   Reply With Quote
Old 11-30-2009, 06:43 PM   #15
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

^^ haha thanks for the illustration brain. Are you saying mine is tube and fin?!?!?! Call me a but I really don't know the difference. I got that thing for 35 bucks with a bunch of 2.5 aluminum piping.
2k6750 is offline   Reply With Quote
Old 11-30-2009, 10:16 PM   #16
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

Here's the pics of the cuts. It still feels pretty solid. Any input?

Front:


Rear:


On a side note does anyone else have experience with the Mishimoto fans and shroud? Should I opt for these at $150 plus or just buy some slim fans?
2k6750 is offline   Reply With Quote
Old 11-30-2009, 11:08 PM   #17
Junior Member
iTrader: (4)

Join Date: Feb 2008
Location: North NJ
Posts: 271
Total Cats: -1
Default

Post some pics of your pipes!
1stproject is offline   Reply With Quote
Old 11-30-2009, 11:39 PM   #18
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

I don't have it piped yet. Getting it mounted first so I can do the piping. Here's a shot of some of the pipes I've got.

2k6750 is offline   Reply With Quote
Old 12-01-2009, 12:43 AM   #19
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Looks good.
SKMetalworks is offline   Reply With Quote
Old 12-01-2009, 07:00 PM   #20
Junior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Naples FL
Posts: 227
Total Cats: 0
Default

My friend put a couple welds on the seams of angle today, so now I'm gonna paint it and mount it up. Next comes piping. Thanks for the help guys.
