Default BOV Plumbing

Hi all, i have a greddy kit running 5psi at the TB. it has a ebay knock off BOV, i think its designed after the greddy also. there are 2 vacuum nipples on it one was hooked up when i bought the car and the other was open. what is it supposed to be hooked to. diagrams are awesome if you know of any.
redturbomiata is offline   Reply With Quote
Old 08-16-2011, 06:54 PM   #2
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

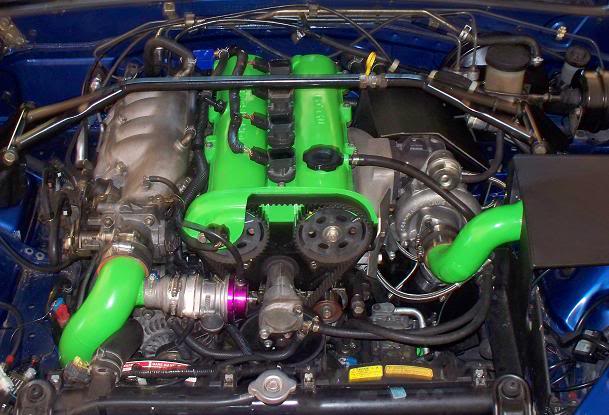

I've got mine hooked up to the top nipple:



I hooked it up the wrong way before and got massive compressor surge, so I'm pretty sure it's correct now.
Attached Thumbnails
BOV Plumbing-enginebay-1.jpg
pdexta is offline   Reply With Quote
Old 08-16-2011, 07:07 PM   #3
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

Bottom can be left open or plumbed to a boost only source. I currently have nipple on my compressor housing plumbed to the bottom nipple of my GReddy Type-S. It reacts quicker with it plumbed this way.
Sokool is offline   Reply With Quote
Old 08-16-2011, 07:16 PM   #4
Senior Member
Thread Starter
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

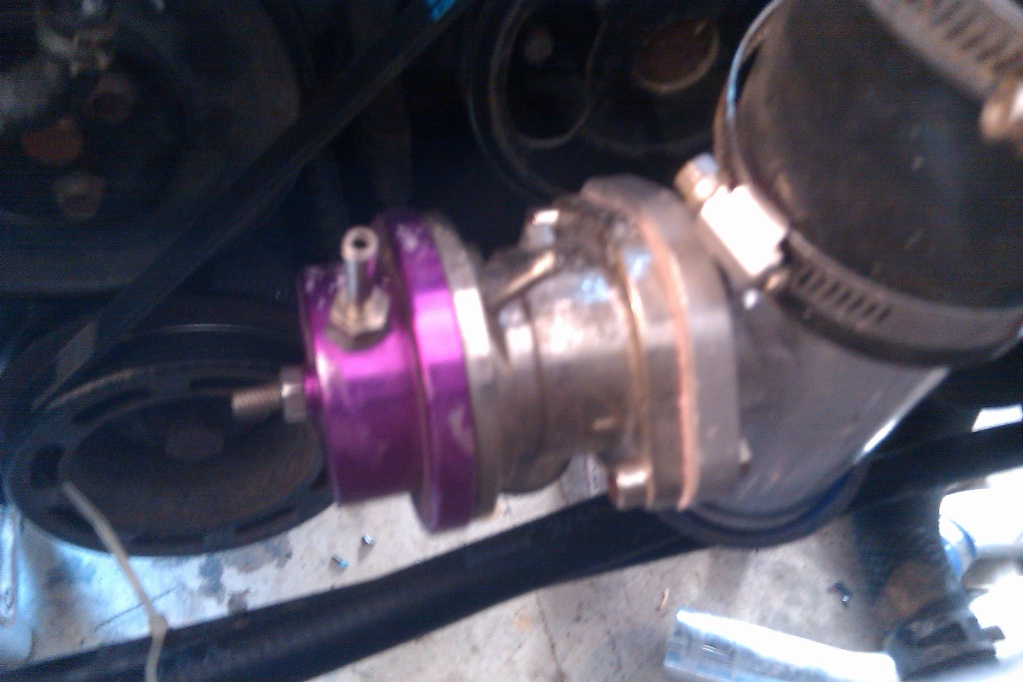

im a to the turbo world, here is my bov. so as i understand it one goes to vacuum line and the other goes to the turbo.
Attached Thumbnails
BOV Plumbing-imag0134.jpg
redturbomiata is offline   Reply With Quote
Old 08-16-2011, 07:30 PM   #5
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

The one in the top (the purple part) needs to be plumbed someplace in the intake manifold AFTER the throttle body (so it sees vacuum when you close the throttle). The other one can either be left open to atmosphere, or plumbed somewhere in your intercooler piping BEFORE the throttle body (so it will only ever see boost or very very little vacuum when you're off the throttle).
It allows the valve to act more quickly.
Jeff_Ciesielski is offline   Reply With Quote
