Default Dear MT, oil and coolant leakkkzzzz

Dear MT.net,

I am dealing with two leakzzzz, one coolant, one oil.

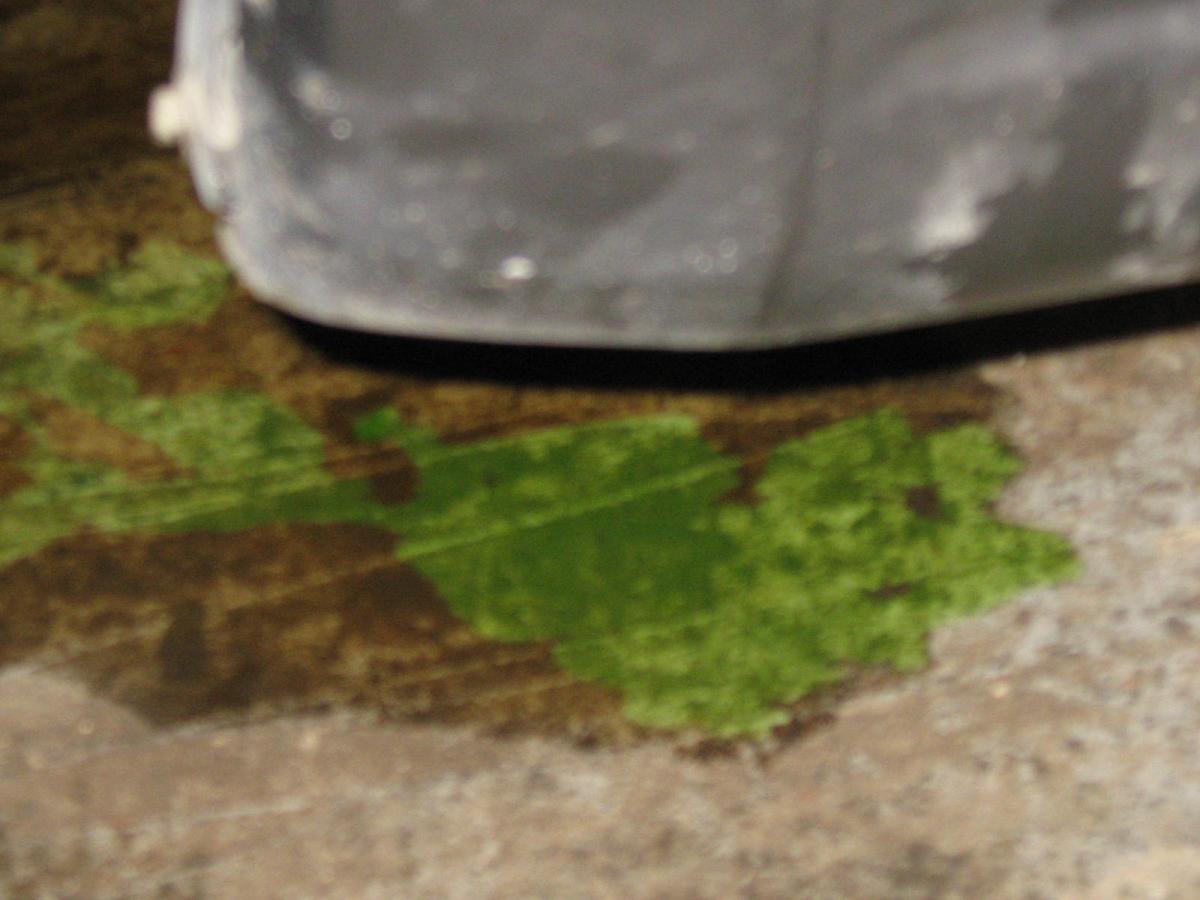

My coolant is leaking steadily and visibly. I am worried that it is my heater core - see picture below. It is leaking from behind the wheel well, and I cannot figure out what else it could be.

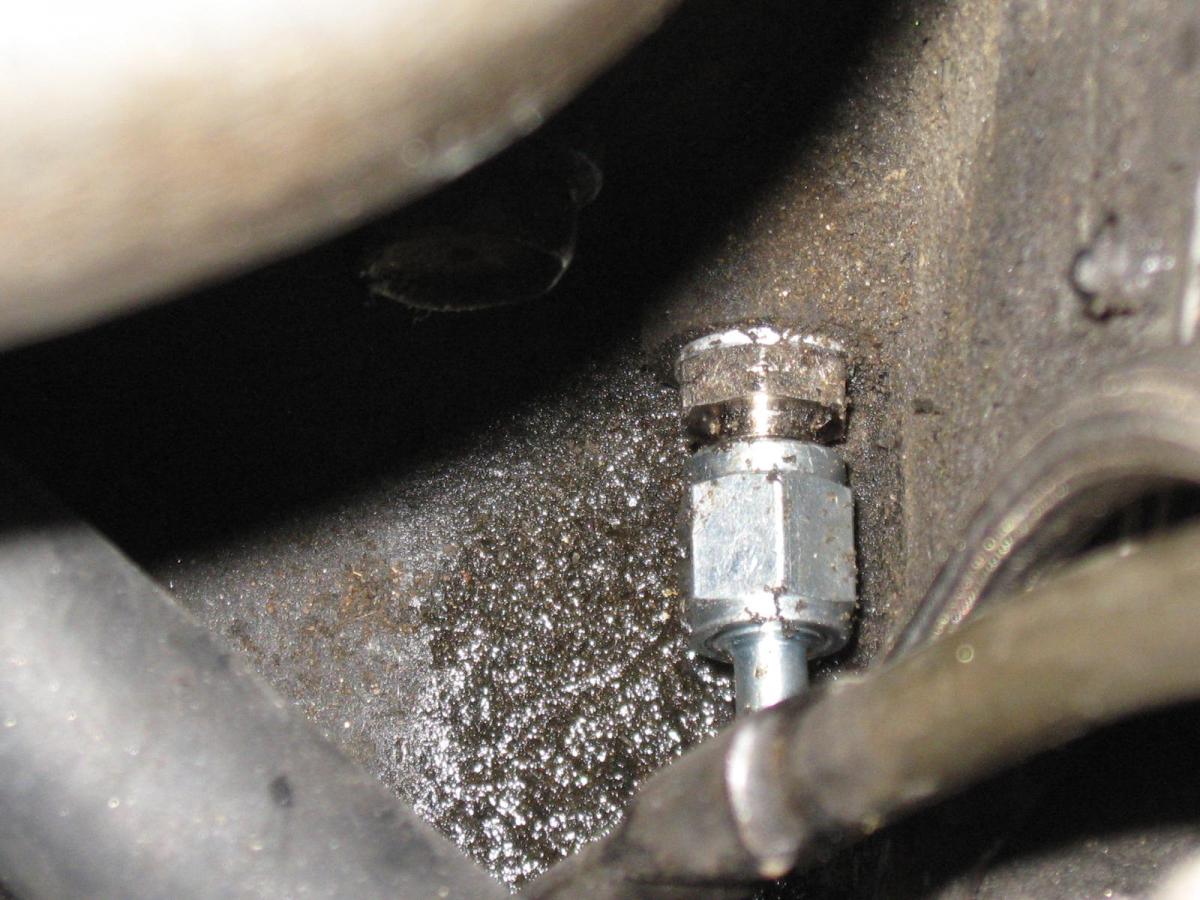

Secondly, I am dealing with an oil leak. I am using Abe's SS kit for coolant and oil - oil is leaking from the feed steadily. I tightened it down untill it felt snug, but not tight with a wrench (Inch lbs of torque at best - MAYBE mid-single digit ft lbs). Do I need to tighten the AN lines more than that? Note that the oil is coming from the fitting-fitting connection, not the fitting-block connection.
Attached Thumbnails
Dear MT, oil and coolant leakkkzzzz-img_0617.jpg   Dear MT, oil and coolant leakkkzzzz-img_0616.jpg
blaen99 is offline   Reply With Quote
Old 08-14-2011, 02:42 PM   #2
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

You should probably tighten the oil fitting with a wrench pretty snug. Just hold the wrench from the middle when you tighten so you don't overtighten
wittyworks is offline   Reply With Quote
Old 08-14-2011, 02:50 PM   #3
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by wittyworks View Post
You should probably tighten the oil fitting with a wrench pretty snug. Just hold the wrench from the middle when you tighten so you don't overtighten
Got a ftlbs or inlbs # to go for by any chance? "Pretty snug" varies a lot I've found.
blaen99 is offline   Reply With Quote
Old 08-14-2011, 03:11 PM   #4
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

http://thefactoryfiveforum.com/archi...hp/t-453.html?

Here ya go. About half a turn past finger tight according to this
wittyworks is offline   Reply With Quote
Old 08-14-2011, 03:23 PM   #5
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

got any pics of the heater core hoses?
any coolant in the engine bay?
phillyb is offline   Reply With Quote
Old 08-14-2011, 03:29 PM   #6
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by wittyworks View Post
http://thefactoryfiveforum.com/archi...hp/t-453.html?

Here ya go. About half a turn past finger tight according to this
I think I'm SOL there then - tightened it more than half a turn past finger tight.

Quote:
Originally Posted by phillyb View Post
got any pics of the heater core hoses?
any coolant in the engine bay?
Yes, there is two coolant leaks. One in the engine bay, and one that has it leaking from the wheel well.
blaen99 is offline   Reply With Quote
Old 08-14-2011, 05:50 PM   #7
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Update: Oil fitting was undertightened, other fittings were undertightened, causing all the leaks but one.

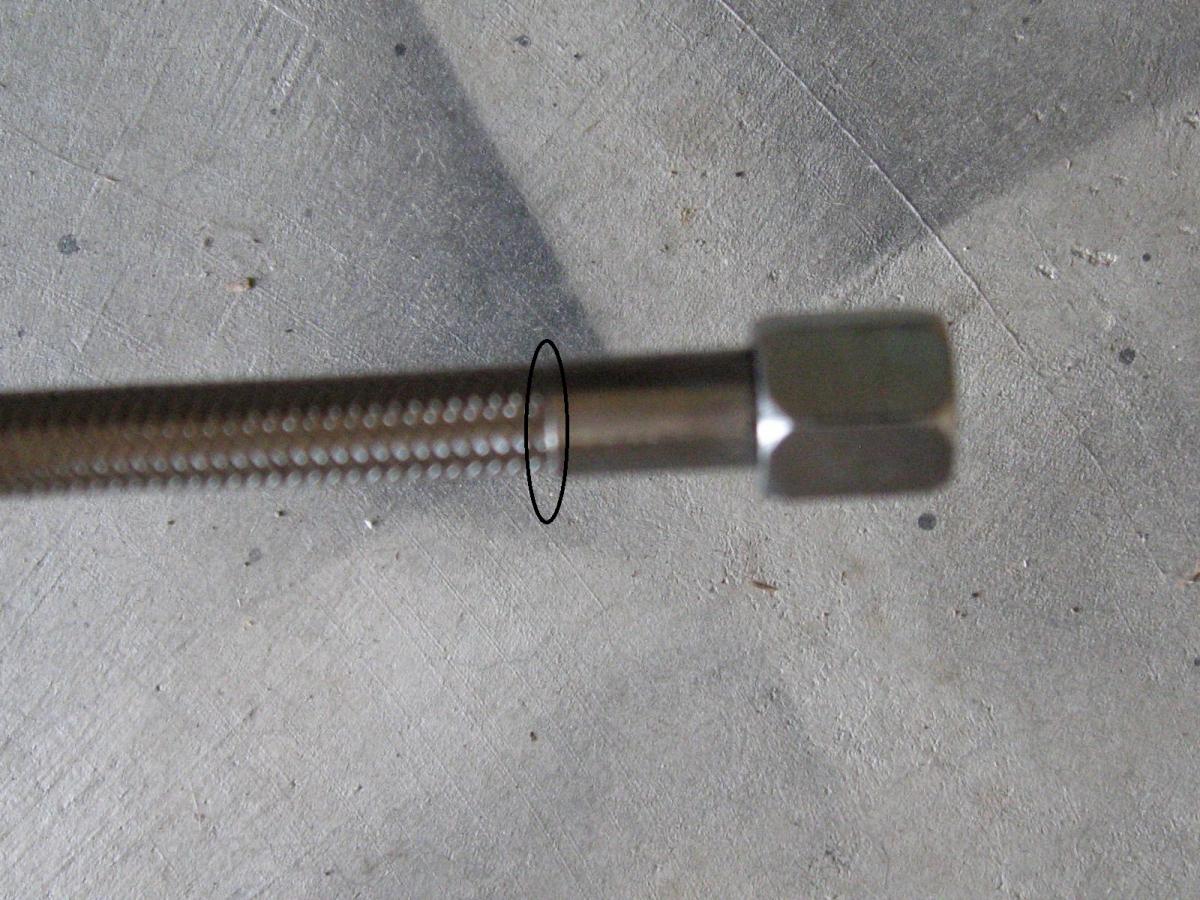

Picture included where the final coolant leak is. It is leaking from the circled area - bad hose?
Attached Thumbnails
Dear MT, oil and coolant leakkkzzzz-img_0618.jpg
blaen99 is offline   Reply With Quote
Old 08-17-2011, 05:03 AM   #8
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Yeah, you need a new hose if it's leaking there.
Nagase is offline   Reply With Quote
