Default BOV question

How normal is it for a blow off valve to be blowing air at idle. And not like a little bit, but a lot. How about when revving?

I noticed today while under the hood that the BOV was definitely blowing quite a bit of air. Should I be concerned?
Atlanta93LE is offline   Reply With Quote
Old 08-05-2007, 10:35 PM   #2
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Usually the BOV is adjusted to be closed at idle vacuum. If you are running an afm/maf then it's an issue but since your not recirc. then I assume your not. If you are then you should be recirculating your bov anyways. The valve should open when the throttle is closed but the rpm is above 2000 or so.
lazzer408 is offline   Reply With Quote
Old 08-05-2007, 10:44 PM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

you sure it's blowing and not sucking?
Ben is offline   Reply With Quote
Old 08-05-2007, 10:50 PM   #4
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by Ben View Post
you sure it's blowing and not sucking?
I get a nice breeze coming out of it. I checked with the seran wrap trick (carefully) to make sure it was blowing, not sucking.

This is what the sound you noticed last weekend was.
Atlanta93LE is offline   Reply With Quote
Old 08-05-2007, 10:56 PM   #5
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

super weird. try swapping the throttle side and open side around.
Ben is offline   Reply With Quote
Old 08-05-2007, 11:09 PM   #6
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by Ben View Post
super weird. try swapping the throttle side and open side around.
That was the first thing I tried. No dice.

Thinking I may pick up one of those BOVs that Rob had good luck with, see how that does.
Atlanta93LE is offline   Reply With Quote
Old 08-05-2007, 11:25 PM   #7
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

yeah, I should have known that you did.
F-It. You're running what 8-8.5 psi? Pull that boost leak off and let's see what happens. Yee haw.

We should get together again soon and make sure your tune is good. Maybe invite Stan too. Plus you need to drive my car with the new intercooler. It pulls good up top now.

B
Ben is offline   Reply With Quote
Old 08-06-2007, 12:10 AM   #8
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

It is a bosch bov? Those open fairly easy. Is it sealing under boost?
lazzer408 is offline   Reply With Quote
Old 08-06-2007, 12:25 AM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

do those have two ports or just one?
y8s is offline   Reply With Quote
Old 08-06-2007, 02:34 AM   #10
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 754
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
yeah, I should have known that you did.
F-It. You're running what 8-8.5 psi? Pull that boost leak off and let's see what happens. Yee haw.

We should get together again soon and make sure your tune is good. Maybe invite Stan too. Plus you need to drive my car with the new intercooler. It pulls good up top now.

B

I want to come.... i know I am not worthy with my n/a but but...lol
wildfire0310 is offline   Reply With Quote
Old 08-06-2007, 04:25 AM   #11
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by lazzer408 View Post
It is a bosch bov? Those open fairly easy. Is it sealing under boost?

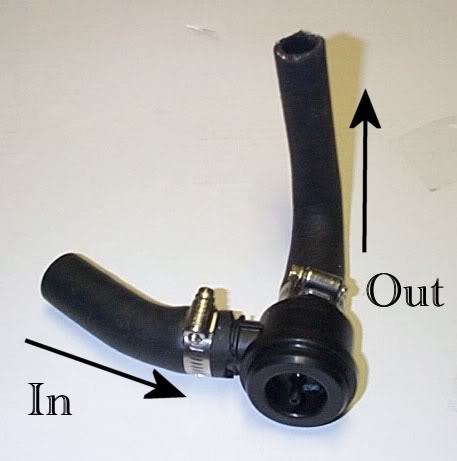

I forgot to mention. Some bov's that were "inline", like the bosch, work better backwards so the boost doesn't blow them open. In other words put the side into your charge pipe, not the bottom.

Name:  gtx-boschbovkit-1.jpg
Views: 1
Size:  19.9 KB
lazzer408 is offline   Reply With Quote
Old 08-06-2007, 04:37 AM   #12
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

That's how I have my Bosch, I thought it was wrong but was too lazy to change it.. oh well it's getting replaced soon enough!
kotomile is offline   Reply With Quote
Old 08-06-2007, 04:54 AM   #13
I'm Miserable!
iTrader: (-1)

Join Date: May 2007
Location: West Sacramento Ca
Posts: 948
Total Cats: 0
Default

Right now, i have a forge BOV, and the bottom goes to the IC pipe that comes off the Throttle body, and a vaccum hose off the nipple from the top of it. I have an Extra Bosch BOV with a Check valve on it (what ever the hell that is) How would I hook that up If There is two places to hook it up at like the one above?
Slidin'Miata916 is offline   Reply With Quote
Old 08-06-2007, 04:59 AM   #14
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

the one above is shown as recirc. You just hook up the end w/o check valve to the pipe.
kotomile is offline   Reply With Quote
Old 08-06-2007, 05:38 AM   #15
I'm Miserable!
iTrader: (-1)

Join Date: May 2007
Location: West Sacramento Ca
Posts: 948
Total Cats: 0
Default

Ok Cool. I wonder how its gona sound.
Thanks.
Slidin'Miata916 is offline   Reply With Quote
Old 08-06-2007, 07:35 AM   #16
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by lazzer408 View Post
It is a bosch bov? Those open fairly easy. Is it sealing under boost?
Nope, not Bosch...it's a stock all-metal recirculating BOV from a 323 GTX. Not sure if it's sealing under boost.

Quote:
Originally Posted by lazzer408 View Post
I forgot to mention. Some bov's that were "inline", like the bosch, work better backwards so the boost doesn't blow them open. In other words put the side into your charge pipe, not the bottom.
First thing I tried, no dice. Thanks though.
Atlanta93LE is offline   Reply With Quote
Old 08-06-2007, 07:40 AM   #17
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by Ben View Post
We should get together again soon and make sure your tune is good. Maybe invite Stan too. Plus you need to drive my car with the new intercooler. It pulls good up top now.
For sure. Hopefully I'll have a TPS by the weekend. Accidentaly got the wrong one, so I have another I ordered yesterday. You still need to drive my car!
Atlanta93LE is offline   Reply With Quote
Old 08-14-2007, 09:51 PM   #18
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

With the TPS working like a champ, I played around with this damned BOV some tonight. Conclusion: it is definitely FUBAR. Releasing at any breath of throttle, and not releasing during shifts. So I took it off. Holy compressor surge, Batman! Better get me a new BOV! I like a gentle "whoosh;" nothing fancy, nothing expensive, but something cheap and easy to plumb in. I'm thinking the cheap ebay BOV (purple ) that Rob found and had success with. Any other thoughts?
Atlanta93LE is offline   Reply With Quote
Old 08-15-2007, 04:07 AM   #19
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Stay FAR away from the Greddy r/s-wanna-be bovs off ebay. I popped it in a week.
lazzer408 is offline   Reply With Quote
Old 08-15-2007, 07:05 AM   #20
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by lazzer408 View Post
Stay FAR away from the Greddy r/s-wanna-be bovs off ebay. I popped it in a week.
Yikes. Thanks for the advice.
