Default Can I Clock a Gt2554 BB turbo myself?

Have an older BEGI 4.2 (FMI, GT25 - sleave bearing) and am looking at updating it with BEGI's newer Gt2554 BB turbo (compressor outlet pointing down). My setup has the compressor outlet pointing up. Can I reclock the new turbo myself, or do I have to send it to BEGI for that?

Thanks,
-Jon
mx5jon is offline   Reply With Quote
Old 09-13-2007, 05:29 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

its easy. there is either a big c-clip holding the compressor housing secure or a few bolts and plates. either/or remove and turn, reattach.

for the turbine, there should just be a few bolts and plates, again remove/loosen turn, tightening again.
Braineack is offline   Reply With Quote
Old 09-13-2007, 05:34 PM   #3
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

My 2554 has, I believe, 6 bolts on each housing. No big deal at all.

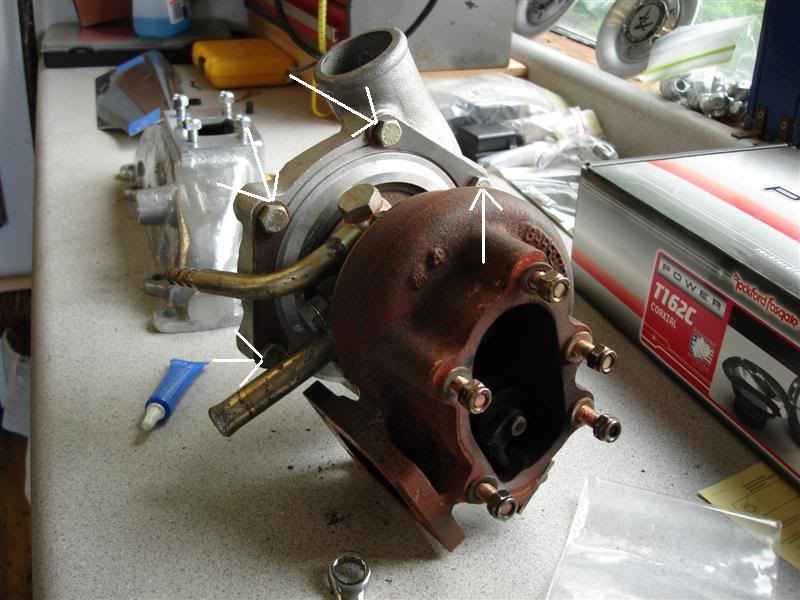

EDIT: here's what my bolts look like
Name:  DSC00181Medium.jpg
Views: 5
Size:  72.7 KB
SamS is offline   Reply With Quote
Old 09-13-2007, 05:55 PM   #4
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

if it's like SamS's, then it's SUPER easy. loosen the bolts (1/2" wrench) and the housing will rotate freely. dont take them out--you dont need to.
y8s is offline   Reply With Quote
