Default Can I go strait back from the downpipe for a custom exhaust?

I have plans of a 3" turboback. My plan was to have ARtech weld the flange just strait on the downpipe, neglecting the angle that Mazda used. I was going to just send a 3" exhaust straight back to the muffler with a series of 2 45* angles to offset the exhaust to get around the diff.

However, I have recently become worried that I won't be able to just send the exhaust strait off the back of the downpipe to the diff. Will this be possible? I am worried that the tranny tunnel may prevent me from just going strait back.

Do I have reason to worry or will I be fine?

EDIT: It's hard to explain. Stock exhaust routing looks like this:

Can I neglect the bend?
rider384 is offline   Reply With Quote
Old 02-01-2011, 11:16 PM   #2
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

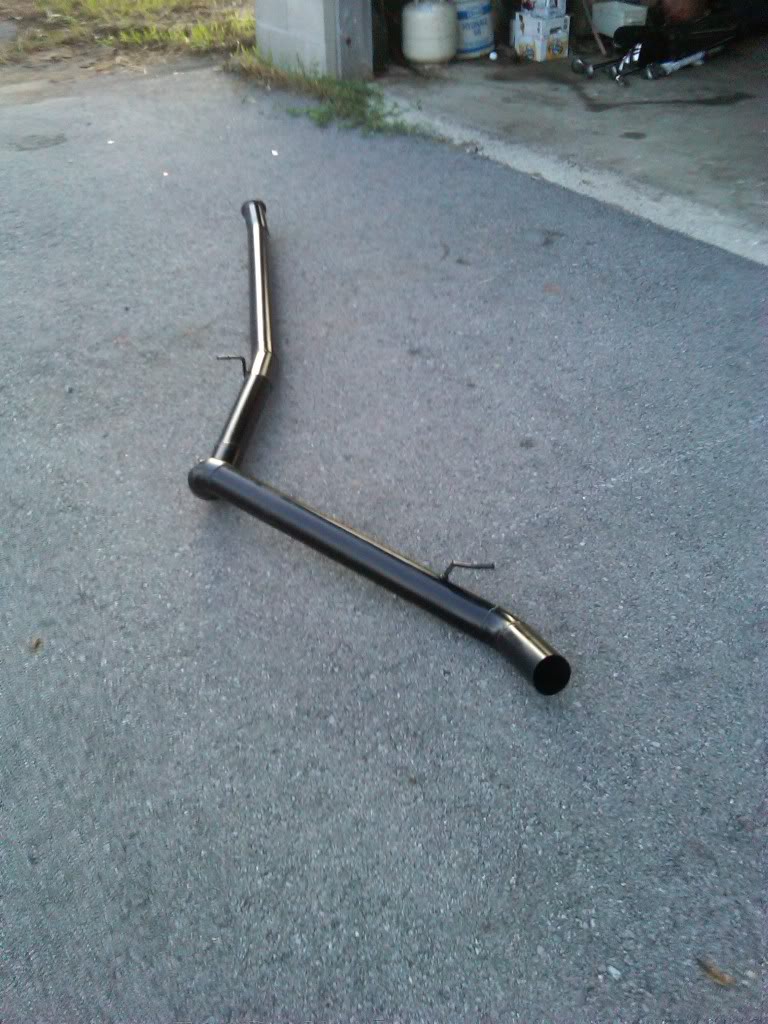

mine is as straight as it can be.... with a dip around the axles since i made it with 1.6 stubs, not my 1 peice axles

this can be seen here...
Name:  IMG00062-20090831-1943.jpg
Views: 2
Size:  140.3 KB
shlammed is offline   Reply With Quote
Old 02-02-2011, 02:49 AM   #3
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

it will have to be bent, it can't go straight back from downpipe to diff.
Techsalvager is offline   Reply With Quote
Old 02-02-2011, 03:09 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,202
Total Cats: 2,584
Default

Yes it can.
both my previous 2.5 and my current 3.0 are straight as arrows
18psi is offline   Reply With Quote
Old 02-02-2011, 04:52 AM   #5
Junior Member

Join Date: Dec 2007
Posts: 159
Total Cats: 0
Default

+1 3" straight as an arrow. you don't need two 45s to get around the axle, just 1. cut it straight in the middle of the bend so you have two straight pieces with a 22.5* bend on the end and weld back together so it forms an offset. with 3" pipe it will be the perfect offset to clear everything. only thing I had issues with is the seat belt bolt sticking into the tunnel. so I had to shorten it a touch. nbd
dynokiller90 is offline   Reply With Quote
