Default Can't find a M16x1.5 turbo coolant fitting.

I'm trying to find two M16x1.5 water coolant fittings for my T3 turbo. I don't care if they're a banjo bolt assembly or just fittings. The only type I've found have an AN fitting on the other end and I just want to be able to slip the hose on, not create a whole AN hose assembly.

I never thought it would be so difficult finding these fittings. Any suggestions?
Ric Herber is offline   Reply With Quote
Old 02-22-2009, 04:39 AM   #2
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

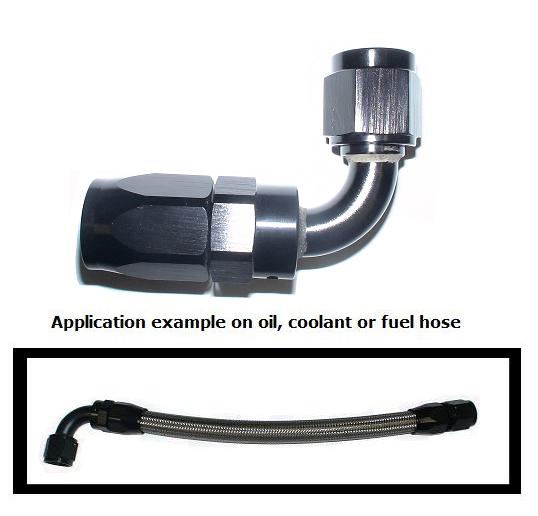

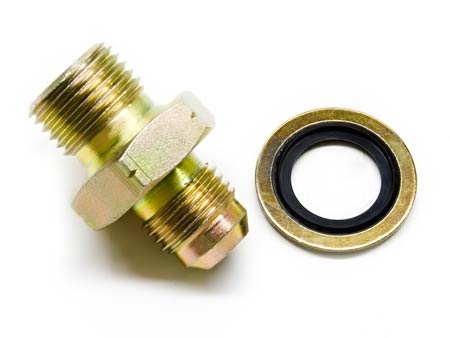

You may have to use a fitting that is 16X1.5 to -6 male. You can add a pair of -6 90's and then just slip your hoses on the end without using the compression collar. Just use a hose clamp. No braided hose needed.




Kelly is offline   Reply With Quote
Old 02-22-2009, 04:02 PM   #3
Junior Member

Join Date: Aug 2008
Location: BC, Canada
Posts: 58
Total Cats: 0
Default

Why not just use An fittings on the turbo side of the coolant lines and just hose clamp the braided line on the block side?
boosted7 is offline   Reply With Quote
Old 02-22-2009, 04:15 PM   #4
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Check out my post in here for another water line option. This is my favorite way to go.
https://www.miataturbo.net/forum/t31579/
Kelly is offline   Reply With Quote
Old 02-22-2009, 08:17 PM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

AN PLUMBING.COM Earls performance products, Hose ends Hose,Adapters, fittings
They sell adapters here. Order everything you'll ever need from him at one time otherwise constant reorders will screw you in shipping.
cjernigan is offline   Reply With Quote
Old 02-22-2009, 09:04 PM   #6
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

Goodridge
Corky Bell is offline   Reply With Quote
Old 02-22-2009, 11:54 PM   #7
Junior Member
Thread Starter

Join Date: Sep 2008
Location: So. Cal.
Posts: 62
Total Cats: 0
Default

Thanks for all the tips. I ended up getting what I needed from Earl's.
Ric Herber is offline   Reply With Quote
Old 02-23-2009, 12:33 AM   #8
Junior Member

Join Date: Jan 2008
Posts: 272
Total Cats: 0
Default

Quote:
Originally Posted by Ric Herber View Post
Thanks for all the tips. I ended up getting what I needed from Earl's.
Earl's the ****! Love those fittings.
Sleeper_MX5 is offline   Reply With Quote
