Chapman's Turbo & Parts - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 07-14-2008, 06:59 PM   #21
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Can you grab on to the remaining bolt with vice grips? Access to a welder?
jayc72 is offline   Reply With Quote
Old 07-14-2008, 07:04 PM   #22
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

I don't have a welder, I may be able to grab it with the vise grips. Do you need a specific bolt to use for the ground. This one seems to have a flat head on it (like a nail) and it's welded to the bracket.

I can't just throw a regular bolt on can I?
Chapman is offline   Reply With Quote
Old 07-14-2008, 07:10 PM   #23
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Relax man, no big problem here.
You should be able to use any bolt with the same thread.
To get the old one out, try vice grips if you can get to it, if not, sometimes beating it in with a flat head screwdriver works for me to get a line in it, and then just turn it out like a regular screw. there is some tool you can buy too just for this purpose.
Good luck and don't give up now.
Zabac is offline   Reply With Quote
Old 07-14-2008, 07:21 PM   #24
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

Alright guys, thanks for the advise. I'll give that a try when I get back from my class tonight. Hopefully all goes well. I've really got to try to get some pics up of the progress.
Chapman is offline   Reply With Quote
Old 07-15-2008, 04:45 PM   #25
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

i think ill have some time this sunday so i can come help
UrbanSoot is offline   Reply With Quote
Old 07-21-2008, 04:02 AM   #26
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

so... we finished it! almost...
it runs and boosts to 4psi and crawls into 5psi slightly. car feels fast and strong after a short session of tuning. just need to get that idle adjusted now and bov installed.

long day... worked nonstop for 12 hours on this car!
UrbanSoot is offline   Reply With Quote
Old 07-21-2008, 04:20 AM   #27
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

damn, you da man urbansoot....wanna drive up to sacramento and help me when its time to do mine?
haha j/k
18psi is offline   Reply With Quote
Old 07-21-2008, 04:51 AM   #28
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

i might be in sacramento in few months
UrbanSoot is offline   Reply With Quote
Old 07-21-2008, 04:34 PM   #29
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

Damn that was a long day Urbansoot. Thanks man, there is no way it would be running without your help!

I drove it around this morning and it's running pretty well. It was running almost perfectly, but now I've got a bit of an idle problem that it wasn't doing before. It's idling around 2000 rpm.

Also I've got a bit of an oil leak but I can't see where it's actually coming from. I do have a minor leak or two, and it is just being accentuated.

I think I may take it to your buddy's shop to get the leaks fixed and clutch put in...

I've also got to try to figure out how to get that damn boost gauge working and some heat shielding around the turbo.

Car feels great though, at the low psi it's at, it at least feels like it's pretty quick(not fast). It has got a good amount of mid-range power.

Almost done...
Chapman is offline   Reply With Quote
Old 07-21-2008, 05:45 PM   #30
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by UrbanSoot View Post
i might be in sacramento in few months
if you ever feel like stoppin by and checkin out my buckets, ill gladly give you my phone/address



and chapman, congrats man, make sure to get some vids of it for us non-turbo guys to drool over
18psi is offline   Reply With Quote
Old 07-21-2008, 06:44 PM   #31
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

scott, come by the shop any time (but tell me a day before so i can make some time) and we will get your bitch heat shielded and will fix those leaks and boost gauge.
UrbanSoot is offline   Reply With Quote
Old 07-21-2008, 06:45 PM   #32
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

leaks are probably from oil pan... needz more jb weld!
UrbanSoot is offline   Reply With Quote
Old 07-21-2008, 06:46 PM   #33
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

also, i think you should get my kaaz clutch-type! torsen SUCKS *****.
UrbanSoot is offline   Reply With Quote
Old 07-22-2008, 03:30 AM   #34
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

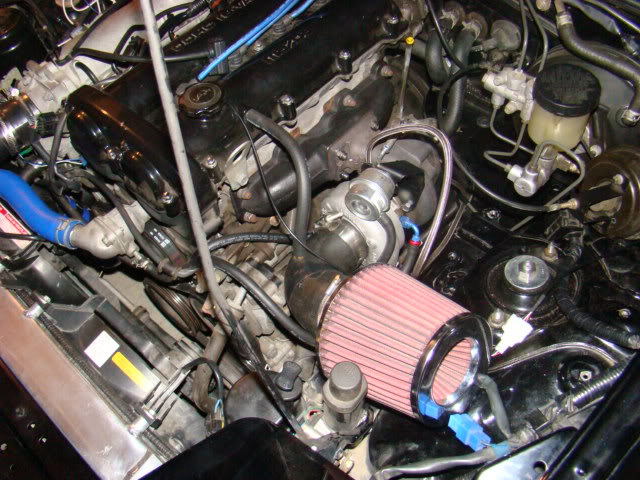

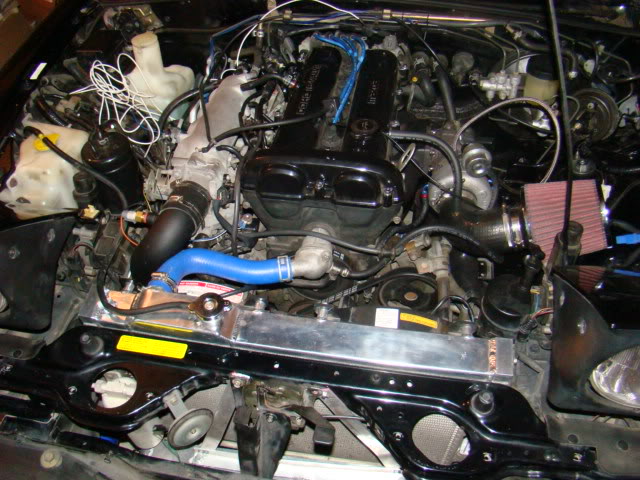

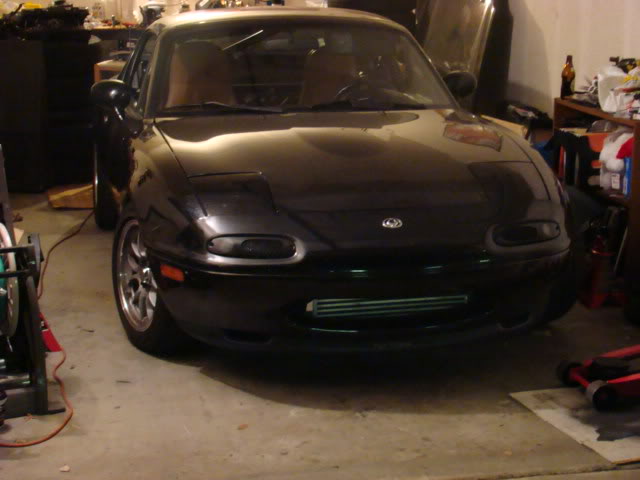

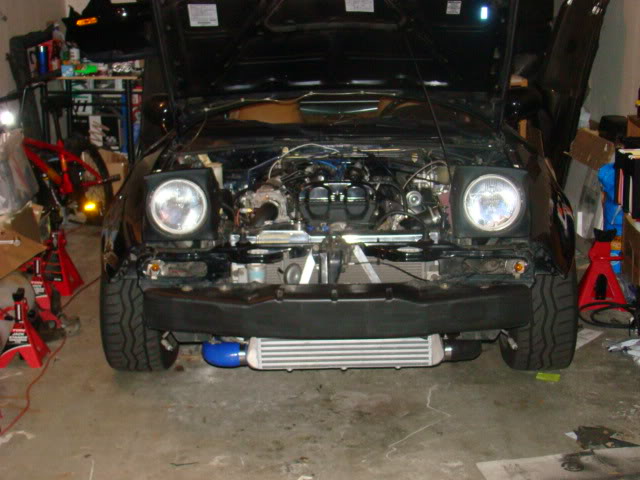

Here's a few pics... I'll get some more when I get teh time!
Name:  934c9766.jpg
Views: 0
Size:  92.2 KB

Name:  2ec35fdf.jpg
Views: 0
Size:  89.4 KB

Name:  76971925.jpg
Views: 0
Size:  66.1 KB

Name:  37aff5ab.jpg
Views: 0
Size:  44.5 KB
Chapman is offline   Reply With Quote
Old 07-22-2008, 04:27 AM   #35
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

dude... clean up that white wire
UrbanSoot is offline   Reply With Quote
Old 07-22-2008, 04:28 AM   #36
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

oh, and thats not an ebay IC as far as i remember
UrbanSoot is offline   Reply With Quote
Old 07-22-2008, 12:36 PM   #37
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

white wire isn't there. those were kind of old pics... looks better now
Chapman is offline   Reply With Quote
Old 07-28-2008, 01:17 PM   #38
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2007
Location: Santa Clarita, CA
Posts: 158
Total Cats: 0
Default

alright...
At first I was running around with no bpv/bov and the compressor surge sounded awful. I just hooked up a new Forge bov and love the sound of it but, I still get noise out of the turbo.
I'm first getting a little compressor surge noise, then I get the "woosh" from the bov.

Any suggestions? Is this normal?

Also, a side note, I was having a little fun with a porshce carrera s the other night and second gear could not catch almost until redline, on my shift into third, my downpipe(slip-fit style) slipped out. I got a huge crazy POP sound and then my car sounded like a V8...
I'm going to remove it and get it welded together. Currently, I have the pipe back in, and "repaired" with those exhaust repair tape bandages, and mazdacomp motor mounts are on order...

It really drives damn near stock right now, just a lot more power...
Chapman is offline   Reply With Quote
Old 08-10-2008, 05:43 PM   #39
Newb

Join Date: Aug 2008
Posts: 31
Total Cats: 0
Default

like the work looks good for the beginning of turbo install can only get better from here
kennymr25 is offline   Reply With Quote
Old 08-10-2008, 08:29 PM   #40
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

are you talking about noise as in the whine of the turbo spinning, or the flutter noise from the bov?
hustler is offline   Reply With Quote
