Default Clocking Turbo?

Hey do i need to clock my Turbo, because ive tried just about everything to stop it form burning oil. So far ive put a restrictor,changed oil drain, and put a new pcv valve. Just wondering if anyone has had a problem with their oil drain outlet pointing up this high of a degree. I have the same exact set up as U of A cats.

Thanks.

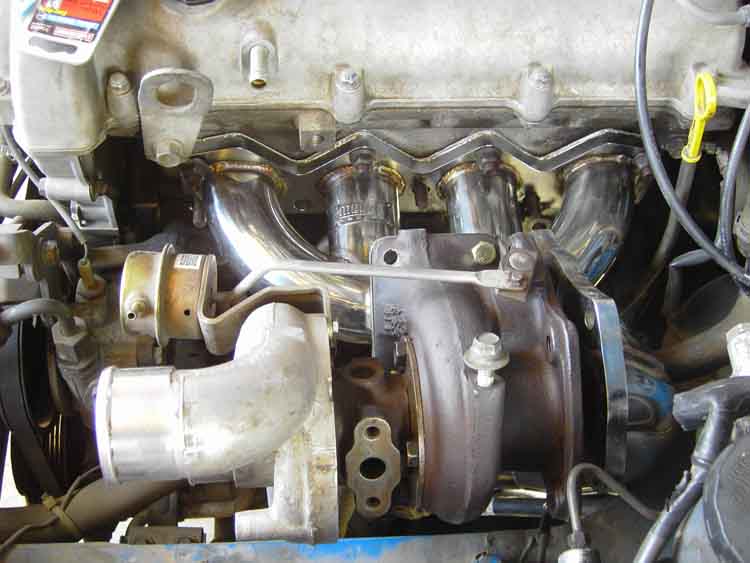

here's a pic
Kirby is offline   Reply With Quote
Old 10-05-2006, 06:34 PM   #2
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

I would get that drain pointing down.
olderguy is offline   Reply With Quote
Old 10-05-2006, 06:45 PM   #3
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

yeah oil drains by gravity
Mach929 is offline   Reply With Quote
Old 10-05-2006, 11:36 PM   #4
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

To clock that center section (which you should do) you're going to have to rotate both housings. If you have a newer turbo it's easy enough. If you have an older turbo, good luck my friend.

Here's an updated version.
Attached Thumbnails
Clocking Turbo?-miatahosedrain2.jpg   Clocking Turbo?-miatahosedrain.jpg
UofACATS is offline   Reply With Quote
Old 10-06-2006, 01:54 AM   #5
Newb
Thread Starter

Join Date: Jan 2006
Posts: 32
Total Cats: 0
Default

Hmm okay, what exactly do you have to take off to clock the turbo? Also is there any Tq specs to any of the bolts? I just had my turbo so it should be easy right?

Thanks
Kirby is offline   Reply With Quote
Old 10-06-2006, 08:54 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

it's not difficult, but it might want to be stubborn. Oil inlet and outlet need to point straight up and down, -+10*.
Braineack is online now   Reply With Quote
Old 10-06-2006, 10:06 AM   #7
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

How long have you been running the turbo like that?
bripab007 is offline   Reply With Quote
Old 10-06-2006, 10:45 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

heh heh, i just looked at that again! IS YOUR FEED ON THE BOTTOM?!
Braineack is online now   Reply With Quote
Old 10-06-2006, 12:38 PM   #9
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by Kirby View Post
Hmm okay, what exactly do you have to take off to clock the turbo? Also is there any Tq specs to any of the bolts? I just had my turbo so it should be easy right?

Thanks
On hotside you have bolts. Loosen and rotate until the correct drain orientation is achieved. No friggin clue on the torque specs, a torque wrench aint gonna fit anyway.

Compressor housing you have a snapring. It's a little tricky the first time. Here's a pic.

EDIT: add 2nd pic
Attached Thumbnails
Clocking Turbo?-snapring.jpg   Clocking Turbo?-miatasnapring.jpg

Last edited by UofACATS; 10-06-2006 at 12:46 PM. Reason: EDIT:
UofACATS is offline   Reply With Quote
Old 10-06-2006, 12:38 PM   #10
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
heh heh, i just looked at that again! IS YOUR FEED ON THE BOTTOM?!
