Default Comparing genuine vs chinacharger 2871?

So I have been looking around lately for a bigger turbo to go with my end of the year build. I want to make about 250 whp by 10psi without changing anything else on my current setup except the turbo and injectors (either going with DW 600's or RX-7 550's). I want to run whatever turbo I buy on a 10psi wastegate actuator, and my EBC is on a switch which will be set to 16psi or 20psi or whatever I feel like, and also whatever my fueling can handle. I found this turbo on the BEGI site:
http://www.bellengineering.net/produ...roducts_id=404
They say it compares to a GT2871, but if you look at the specs and then go here:
http://www.turbobygarrett.com/turbob...ison_sheet.htm
it's not really even close....or is it?
thirdgen is offline   Reply With Quote
Old 07-09-2010, 10:27 AM   #2
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

doesn't look close to me. other than turbine A/R, looks closer to a GT2560 to me http://www.turbobygarrett.com/turbob...R_466541_1.htm. I'm guessing your motor is built? If you've already spent that much money, might as well play it safe and do it right with a GT2871.

my Miata isn't even turbo'd yet, I've looked into the whole chinacharger thing, and it seems to work out for some/many guys, but I just feel better getting an actual proven and tested turbo
aaronc7 is offline   Reply With Quote
Old 07-09-2010, 10:35 AM   #3
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Nope. Thats more like a 2860. Try speedyracer gt2870. Phil measured and is almost identical to a Garrett 2871
buffon01 is offline   Reply With Quote
Old 07-09-2010, 11:00 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

DEAR EVERYONE,

If you follow this link: http://www.turbobygarrett.com/turbob...ochargers.html

You can be provided with a list of current Garrett Turbos. If you click each turbo, it shows you the wheel sizes. This is an easy way to compare and contrast different trim turbos, and even the Chinachargers on eBay which have specs...

Love,
Brain
Braineack is online now   Reply With Quote
Old 07-11-2010, 05:44 PM   #5
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

I made this for myself... might be useful for fellow noobs

SR turbos are the ebay speedy-racer ones since those seem to be pretty popular. the t25/28 are the stock 240sx ones.

aaronc7 is offline   Reply With Quote
Old 07-11-2010, 05:46 PM   #6
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

http://www.tbo-turbo.com/turbo%20lis.html

edit didn't notice begi has specs on their site now
southernmx5 is offline   Reply With Quote
Old 07-11-2010, 07:08 PM   #7
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Quote:
Originally Posted by aaronc7 View Post
I made this for myself... might be useful for fellow noobs

SR turbos are the ebay speedy-racer ones since those seem to be pretty popular. the t25/28 are the stock 240sx ones.

Link to the 240 T28?

Thanks
jbrown7815 is offline   Reply With Quote
Old 07-11-2010, 09:19 PM   #8
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Chinacharger will blow up after repeated visits to 20+ psi. Genuine will not.

I initially found it interesting that so many people here have luck with Chinese turbos, then I realized that most are not running more than about 15psi. Any asshat with a DSM and a cheap approach to high boost can verify that Chinese turbos do not last more than a couple thousand miles (but don't understand why it broke ), so I'll suggest using the genuine turbo.
matthewdesigns is offline   Reply With Quote
Old 07-11-2010, 11:11 PM   #9
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Quote:
Originally Posted by jbrown7815 View Post
Link to the 240 T28?

Thanks
http://www.240sxforums.com/forums/sr...rbo-specs.html

pulled the info from there.

From what my friend tells me (I really haven't looked into myself)... the stock T25s sell for dirt cheap...BUT the T28s guys will ask like 600 bucks... used..journal bearing. I don't get why, at that point might as well buy a Garrett. I was looking to get a T28, thinking it would be cheap cheap, but doesn't seem to be the case. specs wise it looks about the same as a GT2860 which is pretty sweet.
aaronc7 is offline   Reply With Quote
Old 07-11-2010, 11:20 PM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

Quote:
Originally Posted by thirdgen View Post
I want to make about 250 whp by 10psi
Why are you setting an arbitrary boost ceiling? BTW, you won't hit 250whp at 10psi with anything less than a 30R, and the spool on a 30R will suck.

Two cars, 250whp at 15psi or 250whp at 10psi, give me the 15psi car any day because it will spool better and drive smoother.
Savington is online now   Reply With Quote
Old 07-11-2010, 11:44 PM   #11
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

If it's not considered heresy in these parts, have a look at Mitsu flanged Big T28's, made by Forced Performance. Compressor wheel from a 16g stuffed into a T25 comp housing. Compact, full spool by 3000rpm, flows about 500cfm, and can be found used in good condition for $300-500.

http://store.forcedperformance.net/m..._Code=Turbo-FP
matthewdesigns is offline   Reply With Quote
Old 07-12-2010, 09:30 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

Quote:
Originally Posted by matthewdesigns View Post
Chinacharger will blow up after repeated visits to 20+ psi. Genuine will not.

I initially found it interesting that so many people here have luck with Chinese turbos, then I realized that most are not running more than about 15psi. Any asshat with a DSM and a cheap approach to high boost can verify that Chinese turbos do not last more than a couple thousand miles (but don't understand why it broke ), so I'll suggest using the genuine turbo.
cool story bro. I on you.
Braineack is online now   Reply With Quote
Old 07-12-2010, 01:08 PM   #13
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

That'th nathty.
matthewdesigns is offline   Reply With Quote
Old 07-12-2010, 01:25 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I don't really understand where the 20psi figure comes from either, but am kinda curious about the "being ran at higher boost the fake ones usually die fast while the real ones last" claim. Since I've heard it from a few people before.

Wonder if there is anyone here pushing a chinacharger to well over 18psi and the results.
18psi is offline   Reply With Quote
Old 07-12-2010, 01:27 PM   #15
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by aaronc7 View Post
http://www.240sxforums.com/forums/sr...rbo-specs.html

pulled the info from there.

From what my friend tells me (I really haven't looked into myself)... the stock T25s sell for dirt cheap...BUT the T28s guys will ask like 600 bucks... used..journal bearing. I don't get why, at that point might as well buy a Garrett. I was looking to get a T28, thinking it would be cheap cheap, but doesn't seem to be the case. specs wise it looks about the same as a GT2860 which is pretty sweet.
There are Nissan T28 turbos that are in fact ball bearing (I think from the S15s) that with current Garrett nomenclature would spec to a GT2560. Guys will ask anywhere from $450-600 for those, used, depending on condition and who is doing the asking. You can find good deals if you cruise the classifieds on sr20forum, zilvia.net and maybe nicoclub for a few weeks. The journal bearing T28s go for much less, say $125-200, and with those you might as well spend a few more bucks and get a rebuild kit too. When I was turbo shopping I had all the Nissan turbo part numbers along with wheel specs in a file somewhere but I can't find it now. Google S14 and S15 turbo specs and that should get you started. A journal bearing T28 would be a good street turbo for a 1.8 if you want to trade a bit of spool for a couple hundred bucks.
ScottFW is offline   Reply With Quote
Old 07-12-2010, 01:34 PM   #16
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

Thanks Scott. I guess my friend was off. I couldn't understand for the life of me how the journal bearing T28 could possibly be worth so much... Ball bearing..yeah I understand that. Thanks for the info
aaronc7 is offline   Reply With Quote
Old 07-12-2010, 01:39 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

Quote:
Originally Posted by 18psi View Post
Wonder if there is anyone here pushing a chinacharger to well over 18psi and the results.

Like Levnubhin who has been pushing +25psi on his china 2870 for weeks and weeks?
Braineack is online now   Reply With Quote
Old 07-12-2010, 03:53 PM   #18
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by 18psi View Post
I don't really understand where the 20psi figure comes from either, but am kinda curious about the "being ran at higher boost the fake ones usually die fast while the real ones last" claim. Since I've heard it from a few people before.
Quote:
Originally Posted by thirdgen View Post
...and my EBC is on a switch which will be set to 16psi or 20psi or whatever I feel like...
They drop like flies on DSMs, which is where I based my opinion. Perhaps they are improving in quality across the board, or a few good ones actually make it out of the factories and by sheer luck are balanced, or it's a specific model, but on the whole they have been worse for wear than genuine brand name turbos.

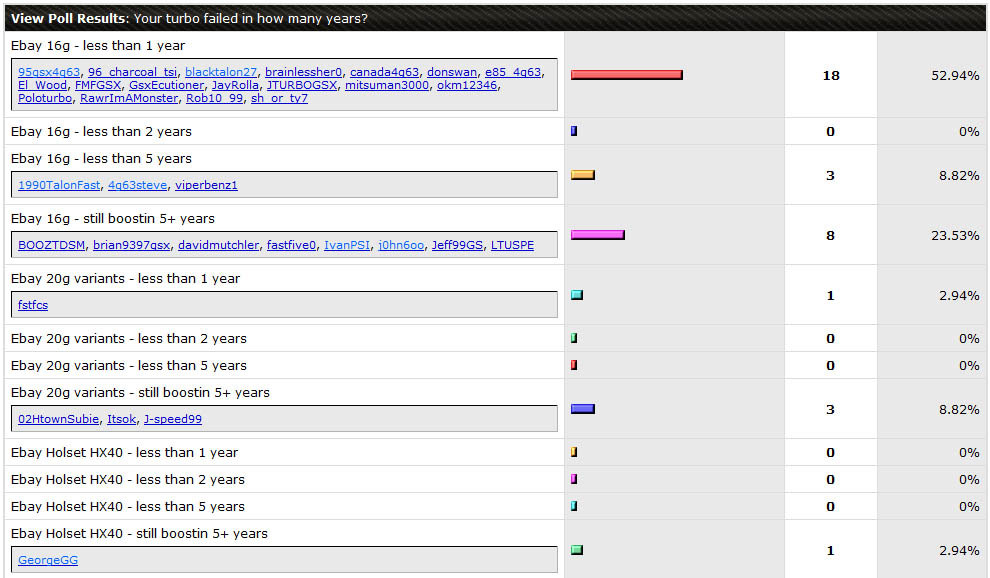

Here's a screenshot of a poll of DSM owners with Chinese/eBay turbos. The sample is small, but it reflects what I've heard/read about them. Thread.
Attached Thumbnails
Comparing genuine vs chinacharger 2871?-ebay-turbo-poll.jpg
matthewdesigns is offline   Reply With Quote
Old 07-12-2010, 04:38 PM   #19
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by matthewdesigns View Post
Chinacharger will blow up after repeated visits to 20+ psi. Genuine will not.

I initially found it interesting that so many people here have luck with Chinese turbos, then I realized that most are not running more than about 15psi. Any asshat with a DSM and a cheap approach to high boost can verify that Chinese turbos do not last more than a couple thousand miles (but don't understand why it broke ), so I'll suggest using the genuine turbo.
Wow, just wow. I have been over 15 psi for over a year now. Chinacharger has not complained one bit. In fact, my charger doesn't even reallly come alive until over 15 psi.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 07-12-2010, 04:51 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

so don't buy an ebay 16g.

my t3 chinacharger has lasted a year now running 15psi


the success rate % for the 20g and holset are much higher than the failure of the 16g

100% success vs. 60% failure
Braineack is online now   Reply With Quote
