Default Convert TD04-13t to vband mount

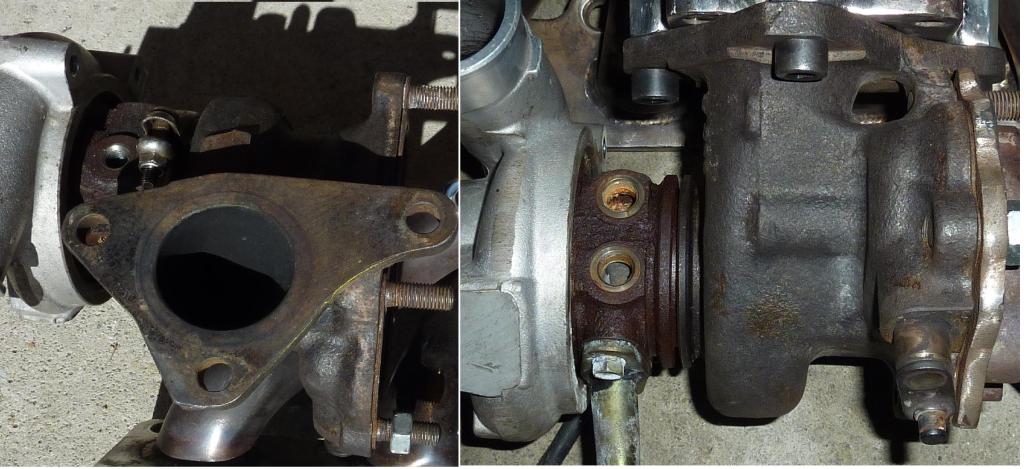

Has any one tried to convert a regular flanged turbo to a v-band setup? It looks like it should be doable for the Subaru TD04-13t.



Why? The 3 bolt Subaru flange is not prettiest or easiest to make a manifold for and reading on this forum people sing the praises of v-band set ups.

I think if I put in a lathe it will be a straight forward job to cut a v-band groove instead of the triangle flange.

(Even if it goes horribly wrong it cost only 30$ http://www.ebay.co.uk/itm/2510201057...84.m1423.l2649)

Any thoughts welcomed.
Attached Thumbnails
Convert TD04-13t to vband mount-td04.jpg
sturovo is offline   Reply With Quote
Old 03-31-2012, 05:33 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Do you have a 4 jaw chuck in your lathe?

I'd be more inclined to put the turbine housing in a vice and interpolate a circle with a mill. That's just me though. A CNC mill is probably harder to get a hold of than a lathe in Slovakia
curly is offline   Reply With Quote
Old 03-31-2012, 07:49 PM   #3
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

ATP turbo does it to housings for T25's and sells them. So yes, it's possible. Now as for doing it on a lathe, make sure you're protected from when it flys off due to being extremely unstable while spinning. I would suggest trying to find a mill instead.
falcon is offline   Reply With Quote
Old 04-01-2012, 03:42 AM   #4
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by falcon View Post
ATP turbo does it to housings for T25's and sells them. So yes, it's possible. Now as for doing it on a lathe, make sure you're protected from when it flys off due to being extremely unstable while spinning. I would suggest trying to find a mill instead.
Thanks for the advice/concern but I plan on putting the hot side only in the lathe, not the whole turbo! The exhaust housing is easily and securely clamped in a 4 jaw chuck as it has 2 parallel face flanges and good clamp points on the other 2 sides. A few strips of copper, moderate rpm, and it should be OK. It weighs about 1.5 kg and when set up correctly I would be v.surprised if it budges.

I may use a mill to lop off some of the excess material first but I think finishing the job in a lathe makes the most sense due to my available tooling. (It is much easier to cut custom v-band profiles using a knife tool in a lathe than to go looking for custom end mills.)
sturovo is offline   Reply With Quote
Old 04-01-2012, 04:14 AM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yeah, I guess I was just thinking about a weld prep on the mill for a v-band flange, but if you're machining the flange right into it, I'd want a lathe too. I'd probably hack saw off the flange, face it, and go from there. Although facing the flange off instead would give you that little extra bit of material you might need.
curly is offline   Reply With Quote
Old 04-02-2012, 01:06 AM   #6
Newb

Join Date: Aug 2007
Location: NC
Posts: 18
Total Cats: -3
Default

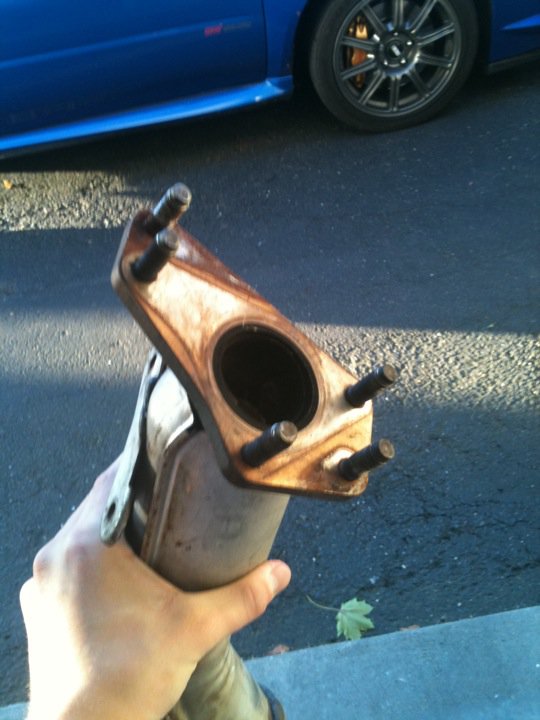

You can very well machine and I agree with the method of taking out the larger chunks first. Another option is to just use an wrx or sti uppipe. You can find these for next to nothing on the subaru forums and you could cut off the top portion and use it to weld onto your manifold

Attached Thumbnails
Convert TD04-13t to vband mount-40956_10150243981965244_747235243_14572882_6654074_n.jpg
lgt2000 is offline   Reply With Quote
Old 06-15-2012, 01:34 PM   #7
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

sturovo, did you pull this off? I was looking at a cheap MSM manifold and turbo I have had laying around and was wondering if I could stick it on a rotary table on the mill, properly index it and cut v-band flanges on the manifold and hotside.

The mill my brother got here recently would be just big enough to fit a miata sized manifold. I would be scared to spin something as big as the manifold on a lathe. My lathe only has a 12" swing so I would be pushing it.

I might start by just making a few V-band flanges for the exhaust piping. If I can make the proper flanges, it should be possible to do the manifold as long as I can get it mounted on a rotary table properly. CNC would make it much easier, but you still need to mount the odd shape of the manifold to the table. Too bad the turbo flange is not perpendicular or parallel to the head like some manifolds are. The MSM manifold is at a funky angle so that t turbo and manifold occupy rougly same space as a NB exhaust header and ties to the same/similar downpipe with the same flange location.
Rallas is offline   Reply With Quote
Old 06-15-2012, 07:35 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

I suspect he died from blunt force trauma after the turbine housing flew out of his lathe.
Savington is offline   Reply With Quote
Old 06-16-2012, 03:33 AM   #9
Senior Member
Thread Starter

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Savington View Post
I suspect he died from blunt force trauma after the turbine housing flew out of his lathe.

Quote:
Originally Posted by relte View Post
sturovo, did you pull this off?
I kind of went off this idea as proper OEM turbo flange set ups last for ever. Vbands probably make sense for track cars but the benefits on a DD would be minimal. I am currently making a manifold with a standard subaru 3 bolt flange and depending on how that works I will decide about the vband.
Attached Thumbnails
Convert TD04-13t to vband mount-turbohead.jpg
sturovo is offline   Reply With Quote
Old 06-16-2012, 10:31 AM   #10
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

If I can can get my hands on a rotary table for cheap I will give it a try and report back.

You guys have way too much time on your hands!
Rallas is offline   Reply With Quote
