Default Coolant Re-route idea

Hi All,

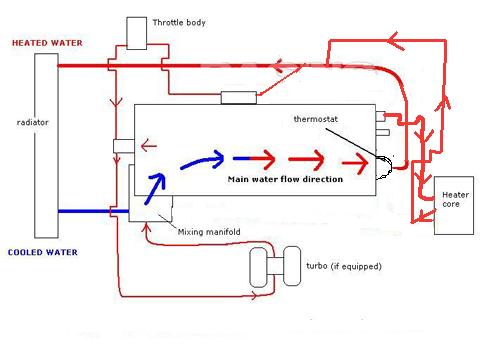

Tell me what you think of this re-route
From what I can see it would work
Attached Thumbnails
Coolant Re-route idea-custom-reroute.jpg
Preluding is offline   Reply With Quote
Old 03-31-2010, 12:25 PM   #2
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Pressure differential = flow
gospeed81 is offline   Reply With Quote
Old 03-31-2010, 12:27 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

This is how everyone does it.
hustler is offline   Reply With Quote
Old 03-31-2010, 12:36 PM   #4
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

where am I missing the pressure differential?

Thanks for the comments, more thoughts
Preluding is offline   Reply With Quote
Old 03-31-2010, 12:44 PM   #5
Junior Member
iTrader: (3)

Join Date: Nov 2007
Location: Boston / '90 Mariner Blue
Posts: 310
Total Cats: 14
Default

Have you looked at this?
alik is offline   Reply With Quote
Old 03-31-2010, 12:50 PM   #6
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Preluding View Post
where am I missing the pressure differential?
Wait, now I see it.

I got lost on your "t" going into the throttle body to turbo, but the other side of the turbo goes to the mixing manifold, which will be low pressure, making that whole system work.

Sorry for doubting.


I didn't know many people did this, seems a little complex. Mine is MUCH simpler. Like I added one big hose and swapped water necks simple. Everything still works right.


EDIT:

On a third perusing, it looks like the flow thru throttle body will be backwards from drawing, but won't matter at all.

What will matter is the low flow rate through the heater core.
gospeed81 is offline   Reply With Quote
Old 03-31-2010, 01:27 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

He's merging the heater core outlet into the feed to the upper radiator hose. This effectively bypasses the thermostat altogether.

And yeah, the arrow between the front outlet and the throttle body is backwards. Water will be coming out of the front, going into the TB and the oil cooler, and then heading up into the upper radiator hose.
Joe Perez is offline   Reply With Quote
Old 03-31-2010, 01:33 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,819
Total Cats: 1,781
Default

Quote:
Originally Posted by alik View Post
Have you looked at this?

This link is better:

Coolant Reroute
Braineack is online now   Reply With Quote
Old 03-31-2010, 01:39 PM   #9
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,642
Total Cats: 1,559
Default

Heater core no work when thermostat open, Kemosabe.
sixshooter is online now   Reply With Quote
Old 03-31-2010, 01:49 PM   #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by sixshooter View Post
Heater core no work when thermostat open, Kemosabe.
Actually, it would, if the thermostat ever did open. But I doubt it ever will.

He's taking coolant from the back of the head, before the thermostat, to feed the heater core. That's pretty standard.

But he's returning the coolant from the heater core to the radiator instead of the mixing manifold. This means that even when the thermostat is closed, 100% of the coolant being pumped (except for the tiny amount passing through the turbo) is going straight into the radiator after it leaves the engine. It's equivalent to not having a thermostat at all.

The one way around this would be to restrict the flow of coolant entering the heater core to the point where it's inconsequential. Of course, how you have reduced the overall flow of coolant through the engine when the thermostat is closed, and you'll warm up unevenly.
Joe Perez is offline   Reply With Quote
Old 03-31-2010, 01:57 PM   #11
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

ok... just realized... you're right, the thermostat will be by-passed completely....uh oh...

I have looked at those re-routes and I wanted to get rid of the heater core line running from the mixing manifold to the heatercore, so I figured running it from the upper rad hose would be the same as running it from the lower one....I guess not (unless someone can chime in, because I really want this to work)

By really wanting it to work, I mean... its all done and I only have to make a mixing manifold for the upper rad hose and thats it.

I currently have no spacer where the thermostat is and I have an FM manifold WITH AN EGR tube as well and it all fits!! Thats what I like
Preluding is offline   Reply With Quote
Old 03-31-2010, 02:42 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by Preluding View Post
I figured running it from the upper rad hose would be the same as running it from the lower one....
Not even close.

Running the heater core return to the lower radiator hose is equivalent to running it into the mixing manifold, which is the stock configuration on both the Miata and all of the FWD vehicles that the B engine went into as well.



Quote:
I currently have no spacer where the thermostat is and I have an FM manifold WITH AN EGR tube as well and it all fits!! Thats what I like
Sounds like a good design, other than the heater core return. I like that you're taking coolant for both the oil cooler and the turbo from the front of the engine- that's where the coolest water in the system is.
Joe Perez is offline   Reply With Quote
Old 03-31-2010, 02:45 PM   #13
Junior Member
iTrader: (1)

Join Date: Mar 2010
Location: Atlanta ga
Posts: 152
Total Cats: -10
Default

Is it plausible to block off the heater core completely ? IE I leave that entire section out completely ?
YeboGoGo is offline   Reply With Quote
Old 03-31-2010, 03:01 PM   #14
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

yes, but you will still need a path for coolant to travel from the back of the head directly back into the mixing manifold. The water pump needs a way to cycle coolant while the thermostat is closed, the heater core achieves this by always allowing an open path between the high and low sides of the water pump without requiring fluid to travel through the radiator. It works very similar to the way a bypass valve functions.
fooger03 is offline   Reply With Quote
Old 03-31-2010, 03:05 PM   #15
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Heater core or not, you need to have some kind of path for coolant to circulate through the engine when the thermostat is closed. Otherwise, you'll get uneven warmup, delayed thermostat operation, probably some localized boiling, all kinds of nasty ****.

Older Toyotas (the '87 Celica GT is one example) had a cable-operated valve which governed water flow through the heater core. You could use something like this, with the return going into the mixing manifold. Have it open at startup, and then close it once the thermostat is open. And of course, remember to open it again when you shut down.

Volkswagen used a system like this to regulate the airflow through the fan on the Beetle's cooling system, where you moved a lever depending on whether it was summer or winter.

In the 1940s.

(Too many people were killing their engines because they forgot to throw the lever back after the snow melted.)
Joe Perez is offline   Reply With Quote
Old 03-31-2010, 06:31 PM   #16
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

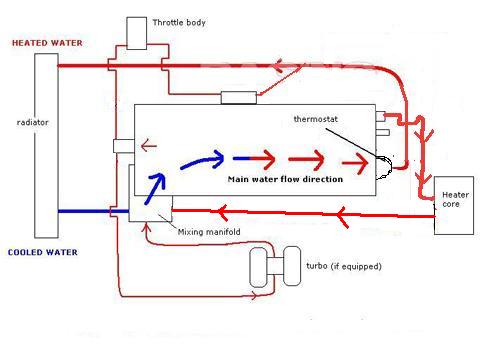

ok, here is another picture!

I'll have to buy another mixing manifold (cause the hole where where it used to go to heater core was welded shut) or I'll re-tap it and throw a SS hose on there so the heat from the turbo doesn't kill it.

on the picture, the line from the stock oil cooler and TB goes into the main return line (upper rad hose) It there a better spot? Should I T off of the heater core line somewhere instead where there is a constant steady flow?

I'll get there soon!



on a different note...I was approached by a few people asking if my car was going to be in Speedsport (largest car show in eastern canada) this year...that made my day
Attached Thumbnails
Coolant Re-route idea-custom-reroute.jpg
Preluding is offline   Reply With Quote
Old 03-31-2010, 09:26 PM   #17
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

I just did a reroute today due to my turbo install. Easiest is to run a hose from the heater return to a splice in the lower rad hose.

I did it this way since I was leaving the upper neck in place and using a begi mixing mani neck.

Slightly off topic but does no one with a 94-95 block get their turbo water from beside the oil source (on the rear of the block) and put it back by the motor mount like the gtx/gtr bp's do? I understand people use the oil passages provided for factory turbo setups but does anyone use the factory turbo coolant sources? Too much work?
inferno94 is offline   Reply With Quote
Old 03-31-2010, 09:42 PM   #18
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I've seen that passage on my block and thought about it....thats as far as it went

Wouldn't you have to get it from somewhere after the water pump and put it back before the water pump (or vise versa) to get enough flow.... ?

I hate to split the lower rad hose...but it might be done
Preluding is offline   Reply With Quote
Old 03-31-2010, 10:02 PM   #19
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

Quote:
Originally Posted by Preluding View Post
Wouldn't you have to get it from somewhere after the water pump and put it back before the water pump (or vise versa) to get enough flow.... ?
I owned a gtx powered 323 prior to the miata and that is how it's done on them. Water nipple near the trans mount (motor mount on miata) and beside the oil output. I'm not 100% on the internal coolant pathways but I assume the motor mount one in where the water goes in and the upper, closer to the rear nipple.

I bought a hose (for a GM I think) at NAPA and cut that up, I spent $22 taxes in for 3.5' of heater hose and the rad hose.
inferno94 is offline   Reply With Quote
Old 04-03-2010, 12:57 AM   #20
Senior Member
Thread Starter
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Nice, well thats sounds good either way then.



So I ended up swapping the distribution block on the lower rad hose for one that is not plugged. and then used the stock steel pipe that was cut a little on the end to avoid the downpipe (also bent at a 45 degree)

As a note, it is hard as hell to get that block off with the AC and PS still on the car!



Hooked up and gave the base tune to the AEM EMS as well, the car kicked over but didn't fire (I have fuel and spark) I still need to pick up my AEM AIT and MSD MAP sensor thought, so that would do it.... should be running by next week.



If ANYONE knows where to tune in the EAST/NORTH cost...that'd great...never tuned before, so I'm scared as hell to blow this one up
Preluding is offline   Reply With Quote
