Default Is this Corksport manifold w/IHI turbo's?

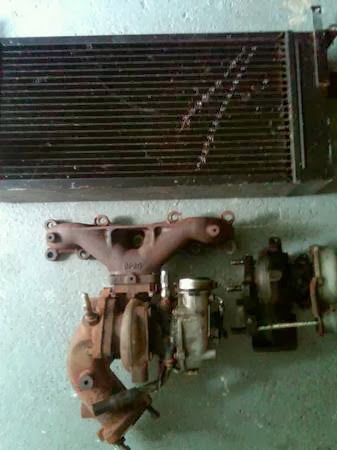

He said no cracks on manifold, its for 1.8, one turbo has like 6 hours on it, turbo on the manifold has no shaft play.. $300



What do ya'll think?.. I wasn't planning to turbo but this seems pretty cheap..
Attached Thumbnails
Is this Corksport manifold w/IHI turbo's?-00i0i_2b8ltufbelh_600x450.jpg
Hinano is offline   Reply With Quote
Old 12-14-2013, 01:10 AM   #2
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

no
viperormiata is offline   Reply With Quote
Old 12-14-2013, 01:51 AM   #3
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

You know, it's interesting. The turbine housing actually looks similar to the IHI housing in the MSM. It even looks like it has the boss on the bottom that bolts to the turbo support bracket and the casting looks similar. But everything else looks wrong to me.

For starters, isn't the whole setup backwards? I see the the turbo outlet elbow is going backwards correctly, but it just seems *** backwards to do that and then have the compressor on the backside of the engine bay.

Nice manifold design though.
slmhofy is offline   Reply With Quote
Old 12-14-2013, 01:54 AM   #4
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

He said it was for the 323 motor or something but that it should fit a Miata..
Hinano is offline   Reply With Quote
Old 12-14-2013, 02:06 AM   #5
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

Then the manifold seems cool, but there's no way you'd be able to run that turbo setup on a Left Hand Drive car. The exhaust would be going straight through the steering shaft.
slmhofy is offline   Reply With Quote
Old 12-14-2013, 02:57 AM   #6
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Sooo is this mirrored image or did he pull it out of a protege?
triple88a is offline   Reply With Quote
Old 12-14-2013, 03:28 AM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

guys I wasn't planning on turbocharging my car, and know nothing about it, but I got this here manifold that sorta looks like it might fit my car, so I'm gonna turbocharge my car.

What could possibly go wrong here?
18psi is offline   Reply With Quote
Old 12-14-2013, 06:26 AM   #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

But that's all you need...just a turbo and manifold. Everything will bolt right up they said, it'll run great they said.
thirdgen is offline   Reply With Quote
Old 12-14-2013, 06:24 PM   #9
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Thanks ya'll LOL
Hinano is offline   Reply With Quote
Old 12-17-2013, 12:09 PM   #10
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

This is not a Miata setup. That's a Familia GTX setup. Stock. Corksport has nothing to do with it besides probably importing it.

That's why it looks backwards.
concealer404 is offline   Reply With Quote
Old 12-17-2013, 02:00 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

it's an oem manifold that will fit on a 1.6L miata...but nothing else will.


6 hours on the turbo is lol. you really believe that?
Braineack is offline   Reply With Quote
Old 12-17-2013, 02:09 PM   #12
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Braineack View Post
it's an oem manifold that will fit on a 1.6L miata...but nothing else will.


6 hours on the turbo is lol. you really believe that?

Genuinely asking, here:

What makes you think it's not for a BP?
concealer404 is offline   Reply With Quote
Old 12-17-2013, 02:47 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Duh, it says BP26 on the manifold. so yeah 1.8L.

whateves.

I had B6T on my mind, not the GTX.
Braineack is offline   Reply With Quote
Old 12-17-2013, 02:48 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

*edit: nvm
18psi is offline   Reply With Quote
Old 12-17-2013, 02:57 PM   #15
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Braineack View Post
Duh, it says BP26 on the manifold. so yeah 1.8L.

whateves.

I had B6T on my mind, not the GTX.


Well to your credit, they ARE both GTXs, just only one was available in the states.

1.6 Familia/323 GTX was BF chassis, 1.8 Familia GTX was BG chassis and not brought here, which is the biggest reason Corksport was mentioned i'd guess. They used to import a lot of BP26 intake and exhaust manifolds.
concealer404 is offline   Reply With Quote
Old 12-17-2013, 06:44 PM   #16
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Wait so does the manifold fit NB2?
Hinano is offline   Reply With Quote
Old 12-17-2013, 06:46 PM   #17
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Hinano View Post
Wait so does the manifold fit NB2?
Attached Thumbnails
Is this Corksport manifold w/IHI turbo's?-31095510a1145f164e.jpg
concealer404 is offline   Reply With Quote
Old 12-17-2013, 06:55 PM   #18
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

XD

I gotta say, I'm happy ya'll atleast have a sense of humor!

But no really, I no get it.
Hinano is offline   Reply With Quote
Old 12-17-2013, 07:59 PM   #19
Junior Member
iTrader: (1)

Join Date: Aug 2010
Location: Kansas
Posts: 81
Total Cats: 5
Default

not that it matters, but

that is a vj11 turbo with the turbine housing inlet flange holes enlarged to mate to the bp26 mani. Basically the same as the stock gtx vj20 in size, except for the turbine housing being a larger a/r, and the compressor outlet is a hose connection instead of flanged.

Just thought I'd point that out.
92dx is online now   Reply With Quote
Old 12-17-2013, 08:50 PM   #20
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

No way that manifold works in a Miata. Besides putting the turbo into the engine mount it only fits with the turbo exhaust pointing forward. It’s made to fit in a car with a transverse mounted engine.

I have a lot of personal experiance with the IHI turbos. The VJ6/12/13/ or VJ14 turbo that came on the 1.6lGTX is good on a 1.6l makes rapid boost on those but a little limited on top end power. VJ20 turbo that came on the 1.8l BG GTX is a good turbo on a 1.8l bouth like a T28 with maybe better spool. The VJ11 that came on the 626/Probe GT is a complete dog on 1.6 or 1.8l engines it boosts dog slow and still won’t make good power at any boost it sucks on anything but the 2.2l it came off of and there it is only tolerable feels like an oversize tirbine with a small compressor or somthing. The VJ23 that came on the GTR version of the BP GTX is actually a bigger turbo than my GT3071R on my 2.0L and seems quite comparable might boost a little slower but can make really big power like 400hp or more.
