Default Custom Downpipe need alittle help

I am piecing together a custom down pipe and wanted to hear others opinions on how this setup will work. I am running a HKS manifold so the turbo is set in the middle, and a GT28RS turbo.

V-Band Adapter - GT25/GT28/GT307X-WG Series: atpturbo.com

http://www.atpturbo.com/Merchant2/me...de=ATP-MDP-010


to this

3.00" 90 V-Band Pipe - Short Leg: atpturbo.com
or this

3.00" 90 V-Band Pipe - Long Leg: atpturbo.com

Thanks ahead of time for your help
HKSturboMiata is offline   Reply With Quote
Old 01-08-2009, 03:55 PM   #2
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

my suggestion would to be: remove your current downpipe and make a cardboard cut-out o the new piece and see if it would work.
SloS13 is offline   Reply With Quote
Old 01-09-2009, 01:27 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

They do not have exact dimensions on the site so I was thinking of ordering these parts and making adjustments to make them fit.
HKSturboMiata is offline   Reply With Quote
Old 01-13-2009, 09:46 AM   #4
Junior Member

Join Date: Jan 2006
Location: Toronto
Posts: 182
Total Cats: 0
Default

Looks like that will bring you too close to the firewall

My turbo sits further forward than yours and I don't think that would fit on mine. Also, you're adding another v-band clamp that you don't need AFAIK, I wouldn't do that upstream of the O2 sensor since it may leak a bit.

Making a DP is pretty simple once you have the parts, a friend of mine and I built mine w/ an abrasive saw and a welder in ~ 3hrs.

Last edited by fluke; 01-13-2009 at 09:54 AM. Reason: pic didn't attach
fluke is offline   Reply With Quote
Old 01-17-2009, 11:23 PM   #5
Junior Member
iTrader: (2)

demetri's Avatar

Join Date: Jul 2005
Location: Montreal, Canada
Posts: 139
Total Cats: 0
Default

word of advice; the vband thingy from atp, although nicely welded, will NOT fit well in the miata with an hks top mount mani. btdt.
demetri is offline   Reply With Quote
Old 01-20-2009, 02:36 PM   #6
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

it will work but u will have to custom make your downpipe as them bends you put up wont work my turbo sits in the eact same place as hks topmount cast one this is what i did and it just clears

Name:  09122008257.jpg
Views: 205
Size:  88.3 KB

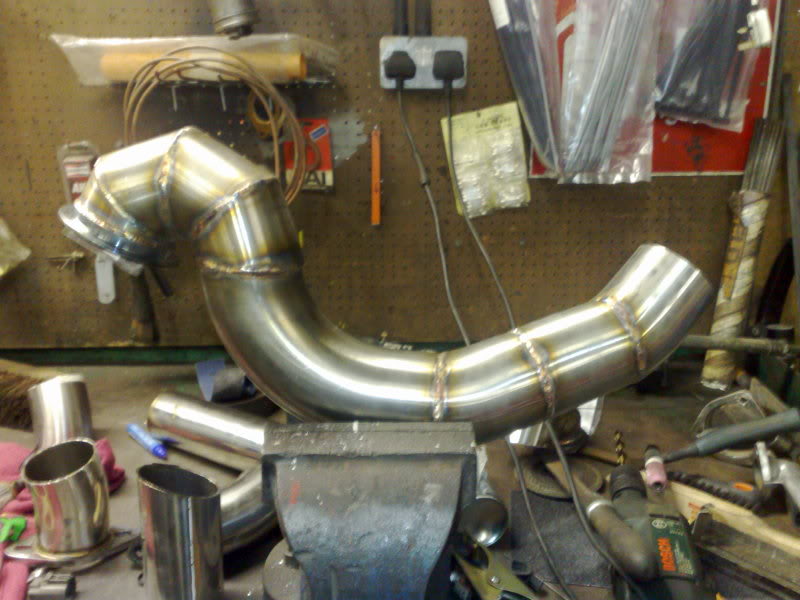

Name:  10122008259.jpg
Views: 278
Size:  76.7 KB

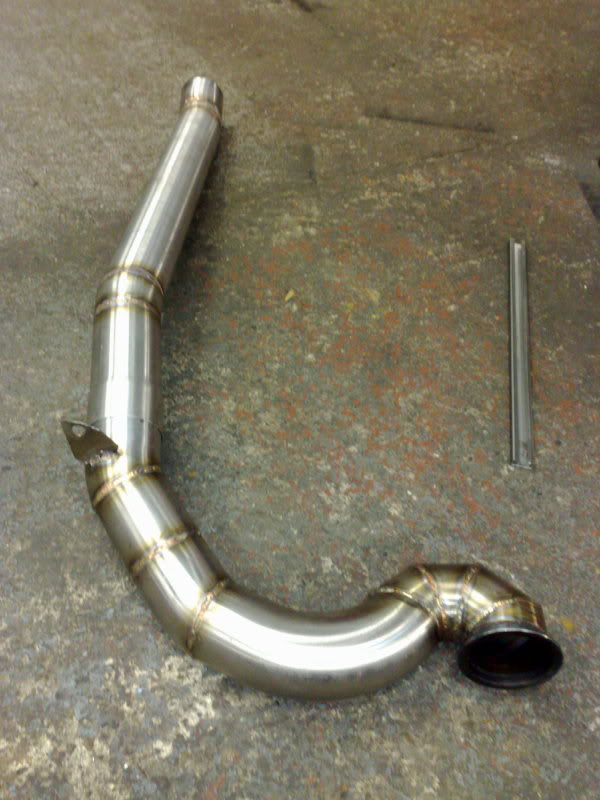

Name:  10122008267.jpg
Views: 91
Size:  77.4 KB
madmalc is offline   Reply With Quote
Old 01-20-2009, 03:50 PM   #7
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

eBay Motors: Turbo Manifold + Down pipe Mazda Miata MX5 90 91 92 93 (item 270330205733 end time Jan-20-09 20:30:37 PST)

Get one of these to start...
The quality of the downpipe is not bad.. You need to cut it just above/under the o2 sensor...
I used a 2.25 inch bend to connect it to my turbo...

1st hook it up to your kat (no lock nuts, testing only..)... mark where you want to cut...
greddymx5 is offline   Reply With Quote
Old 01-22-2009, 02:35 PM   #8
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default



here is mine... just an 2.25 inch on the ebay dp...
