Default Custom manifold - loooooong runners!

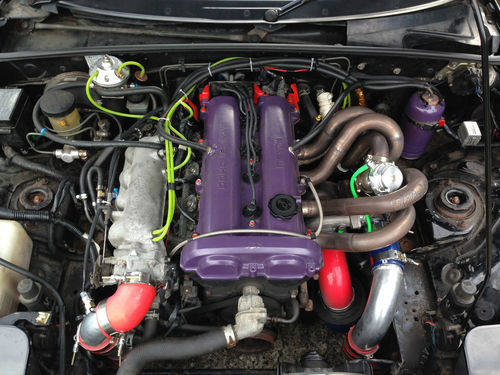

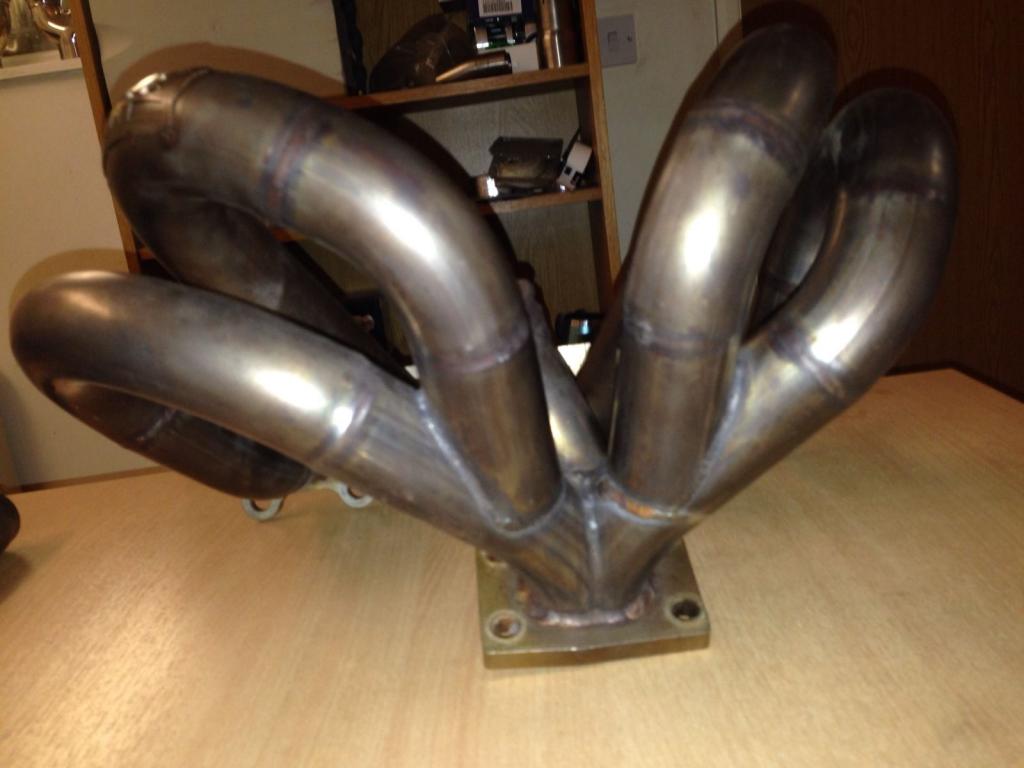

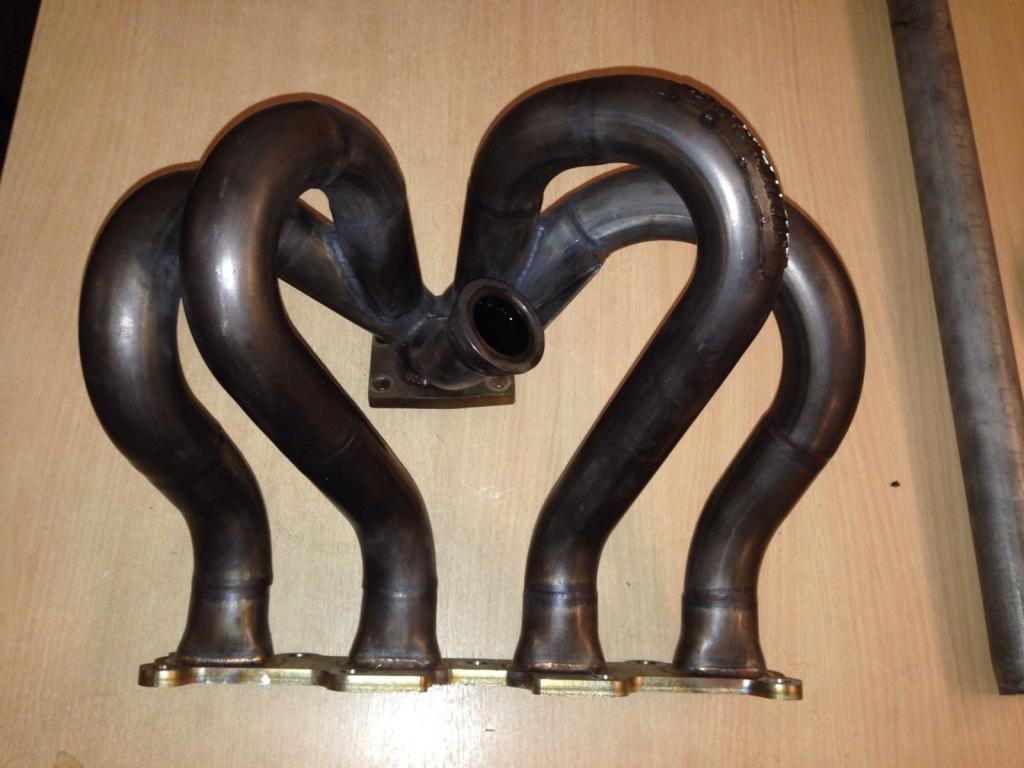

I've come across a custom manifold ... Its interesting as it appears to have been made to quite a high standard. It has very long runners and an external wastegate, T25 flange ... well pics are probably more use right now, its just quite a bit different to anything I've seen before, anyone know what it is?







I'd just be intrigued to know if anyone recognises it or knows who made it?

Russell.
Attached Thumbnails
Custom manifold - loooooong runners!-10_zps75f529c0.jpg   Custom manifold - loooooong runners!-9_zps259e9b3a.jpg   Custom manifold - loooooong runners!-6_zps86ffd8ea.jpg
vindi49 is offline   Reply With Quote
Old 12-13-2013, 03:25 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

WAT


THE


HECK






wow



If that thing lasts more than a few weeks without a crane I'll be impressed
18psi is offline   Reply With Quote
Old 12-13-2013, 03:29 PM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2009
Location: Under the car in a pool of oil
Posts: 64
Total Cats: 2
Default

Its apparently been running a standard T25 turbo, about 210bhp at 10psi for just over a year but no details on if its been welded up.

Edit - I'm intrigued why you'd design it like that though. By the sound of things it was made by a specialist exhaust maker, I'm trying to find out who and what material etc.

Russell.
vindi49 is offline   Reply With Quote
Old 12-13-2013, 03:32 PM   #4
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Wow... and no supports whatsoever from what it looks like. Thats insane... im sure it flows like no other... but...... WOW.... hahaha
supercooper is offline   Reply With Quote
Old 12-13-2013, 03:38 PM   #5
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

That is really cool. That length should be good for power, although the collector isn't to great and the cylinders are paired wrong.
Full_Tilt_Boogie is offline   Reply With Quote
Old 12-13-2013, 03:42 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2009
Location: Under the car in a pool of oil
Posts: 64
Total Cats: 2
Default

I was wondering about a brace, but I guess that could cause problems as well ... its mine if I want it (coming off a car thats being broken) so I might give it a go as I have everything else and all I need to find is a turbo

Russell.
vindi49 is offline   Reply With Quote
Old 12-13-2013, 04:05 PM   #7
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

its a t25 flanged turbo. pairing doesn't matter to whoever said that.

Long runners like that will make a lot of power, but your spool will suck more.

I agree that the collector isn't that great.
shlammed is offline   Reply With Quote
Old 12-13-2013, 04:10 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

nice collector.
Braineack is offline   Reply With Quote
Old 12-13-2013, 04:11 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

speed up all those exhaust gasses so they collide with one another more violently

wait
18psi is offline   Reply With Quote
Old 12-13-2013, 04:28 PM   #10
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,008
Total Cats: 583
Default

RHD vehicle.
hornetball is offline   Reply With Quote
Old 12-13-2013, 05:02 PM   #11
Junior Member
Thread Starter
iTrader: (2)

Join Date: May 2009
Location: Under the car in a pool of oil
Posts: 64
Total Cats: 2
Default

Quote:
Originally Posted by hornetball View Post
RHD vehicle.
Yep, its in the UK. Made by an exhaust specialist by the sound of things, but can't find any information on where the design came from ...

Russell.
vindi49 is offline   Reply With Quote
Old 12-13-2013, 05:50 PM   #12
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

I dont think that the collector is bad at all.

Collectors are FAR more complicated that just minimum angle is best.

Dann
nitrodann is offline   Reply With Quote
Old 12-13-2013, 06:25 PM   #13
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by vindi49 View Post




I've seen enough Hentai to know where this is going.
concealer404 is offline   Reply With Quote
Old 12-13-2013, 07:12 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

someone link Fae to this so he can bust a nut
18psi is offline   Reply With Quote
Old 12-13-2013, 07:21 PM   #15
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

Will it work with LHD steering shaft?
Miater is offline   Reply With Quote
Old 12-13-2013, 07:21 PM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by Miater View Post
Will it work with LHD steering shaft?


Believe the correct answer is: Who cares?
concealer404 is offline   Reply With Quote
Old 12-13-2013, 07:40 PM   #17
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

It wasn't a question so much for me as for OP. Might help him sway away from the tempting manifold.
Miater is offline   Reply With Quote
Old 12-13-2013, 07:48 PM   #18
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,008
Total Cats: 583
Default

Don't know OPs location though. Might be UK.

In addition to steering shaft, can you imagine what that manifold would do to a LHD brake reservoir?
hornetball is offline   Reply With Quote
Old 12-13-2013, 08:56 PM   #19
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by nitrodann View Post
I dont think that the collector is bad at all.

Collectors are FAR more complicated that just minimum angle is best.

Dann
It wouldnt be that bad if cylinders 1-4 and 2-3 were paired. As it is, its not that great.
Full_Tilt_Boogie is offline   Reply With Quote
Old 12-13-2013, 09:06 PM   #20
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

No one here knows without looking at a dyno sheet.

Many F1 turbo headers had crazy combined collector angles. This gives greater area inside the collector, which has it's benefits.

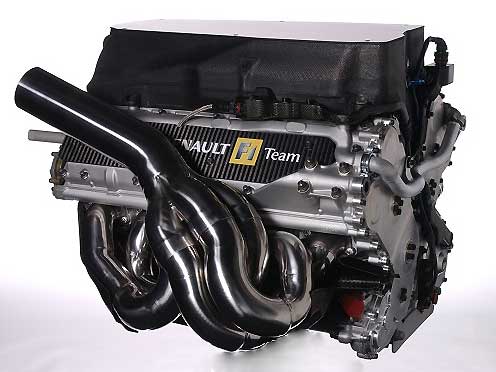

Here is the RBR header, with around 90* combined angles.

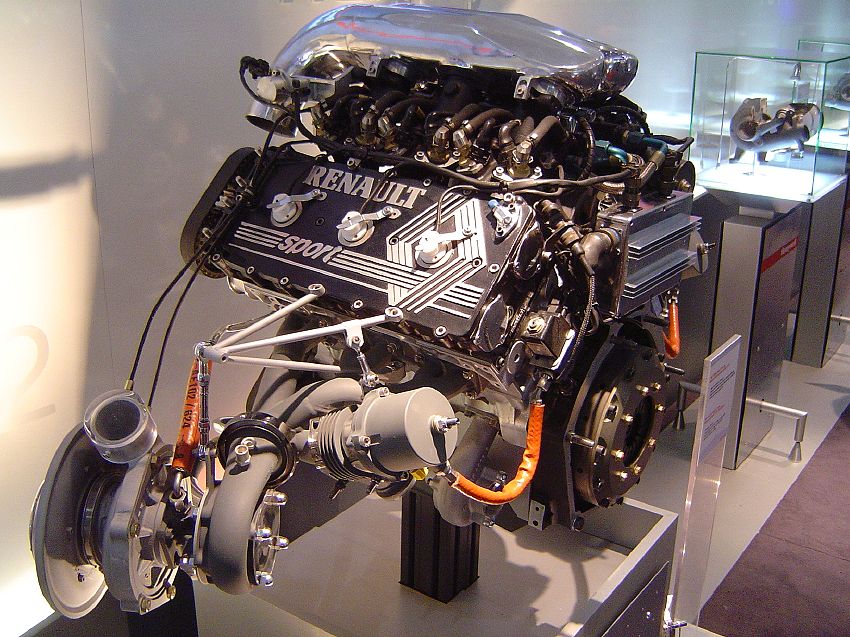

A turbo F1 engine with some crazy collector angles.



Dann
