Old 04-23-2009, 05:32 PM   #21
Newb

Join Date: Mar 2009
Posts: 30
Total Cats: 0
Default

mmmm... thats juicy... i've been trying to get my manifold fabbed up for a couple months now. i picked up an identical turbo... nice to see an actual setup..

if only i could finally get this on my thunderbird:


or i could put it on my 92 b&t.
sinhumane is offline   Reply With Quote
Old 04-23-2009, 06:34 PM   #22
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Quote:
Originally Posted by sixshooter View Post
Did you retain the stock oil cooler under the original position of the oil filter?
The 1.6 miata does not come with a factory oil cooler. I added it to my car and have it set inbetween the oil filter and the motor.
wrxnova is offline   Reply With Quote
Old 04-25-2009, 02:57 PM   #23
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Oh. Mine is a 1.8 and I thought that they all had them.
sixshooter is offline   Reply With Quote
Old 07-11-2009, 04:34 PM   #24
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Name:  CIMG1018.jpg
Views: 20
Size:  97.5 KB
Name:  CIMG1019.jpg
Views: 20
Size:  88.3 KB
Name:  CIMG1020.jpg
Views: 20
Size:  113.4 KB
Name:  CIMG1021.jpg
Views: 20
Size:  106.8 KB

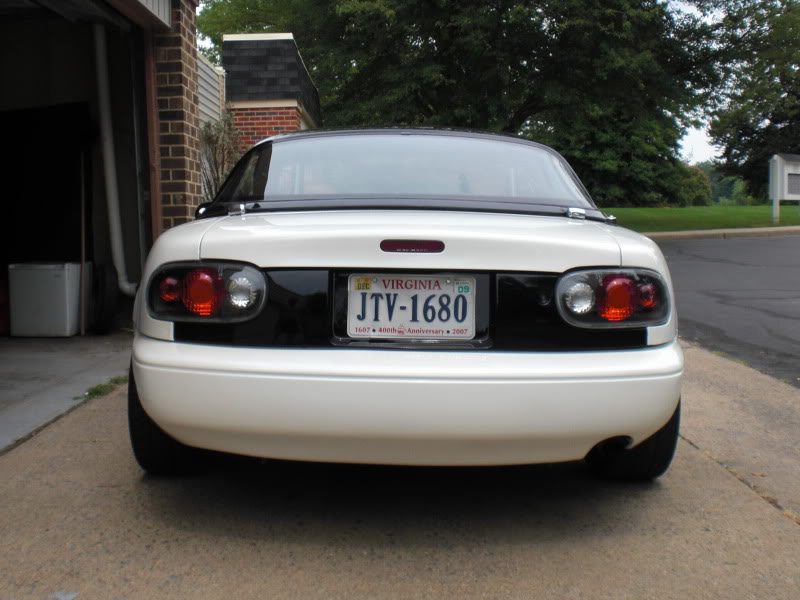

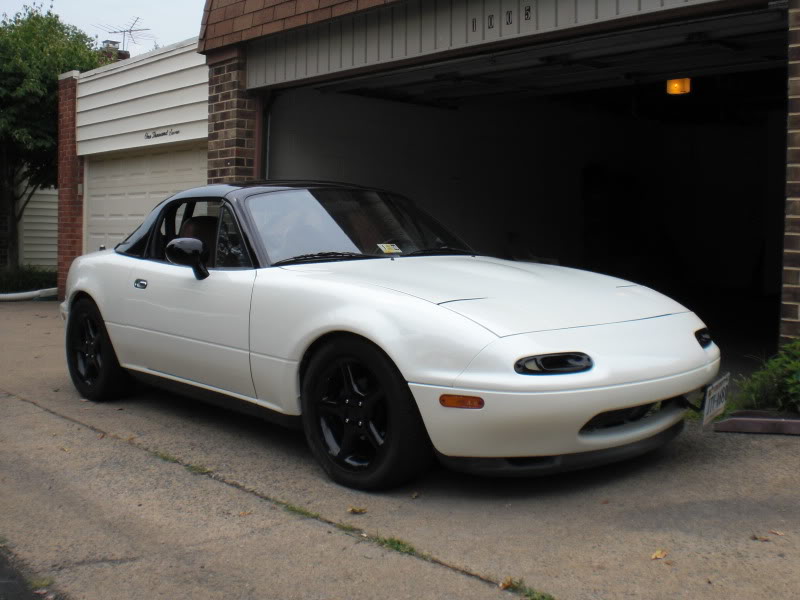

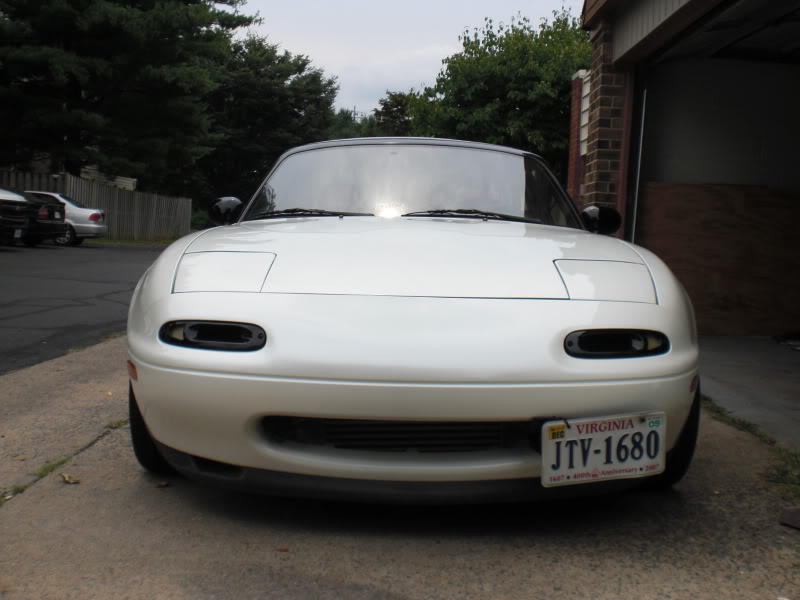

Just got it back from the paint shop.

Pearl white/gloss black
wrxnova is offline   Reply With Quote
Old 07-11-2009, 05:08 PM   #25
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Everyone should note how good it looks when the pillar matches the hardtop. Congrats on the paint.
sixshooter is offline   Reply With Quote
Old 07-11-2009, 06:57 PM   #26
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

I really like this car. It makes me wish I went turbo on my own car. I like the style too although I prefer the stock tail lights and white finish panel.

Where'd you pick up the turn signal intakes? I think I need a pair.
jdmaddox88 is offline   Reply With Quote
Old 10-06-2009, 09:52 AM   #27
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

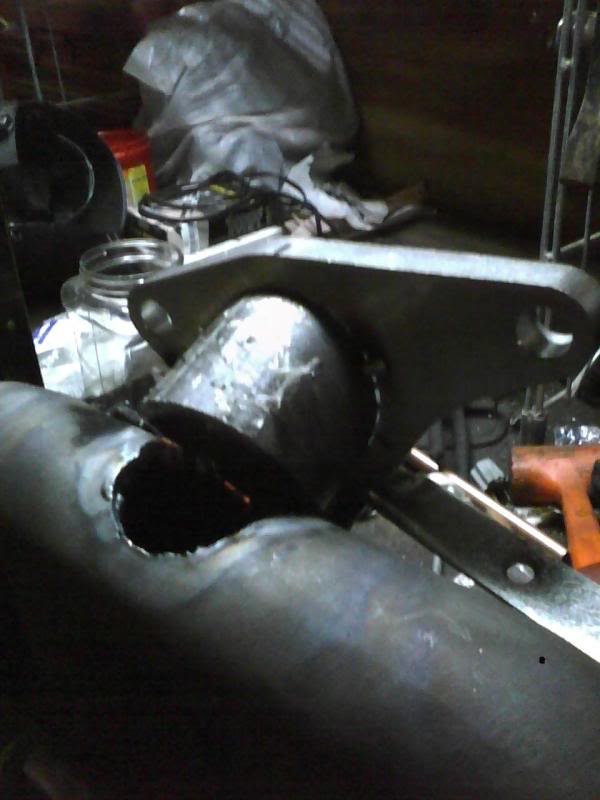

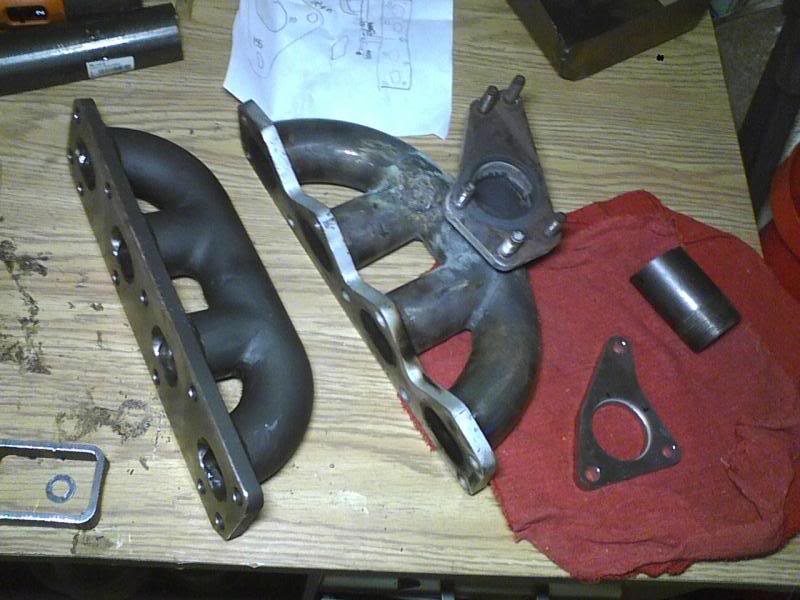

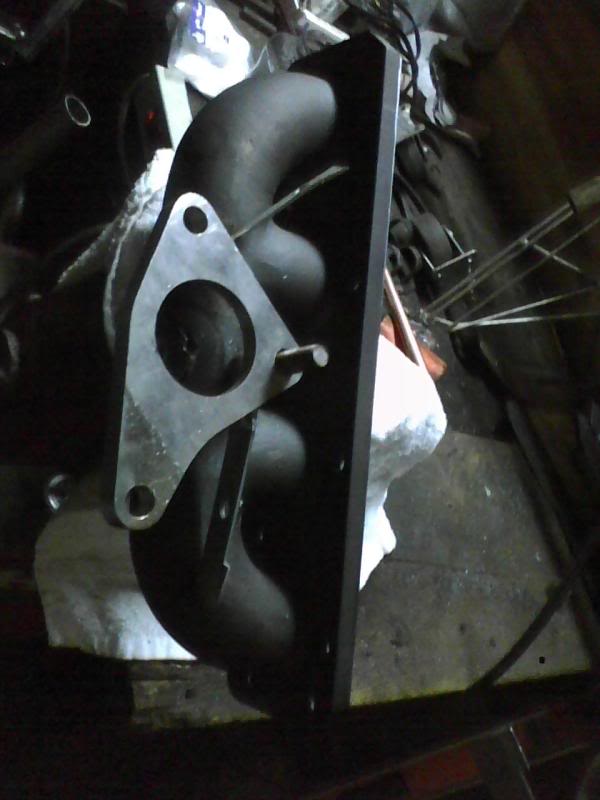

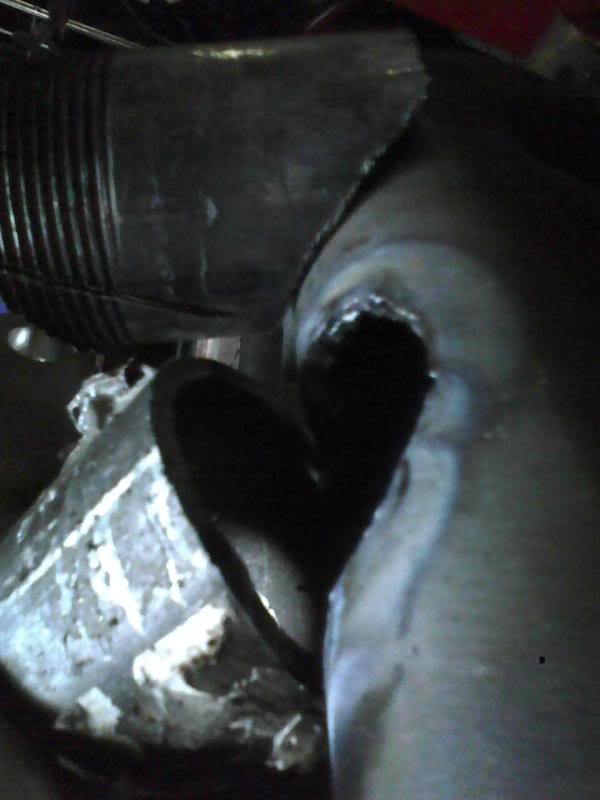

Finally started rebuilding exhaust manifold. New manifold is going to make the turbo sit lower and closer to engine block (eliminating my issue of the downpipe being 1/2" from the steering column).

Name:  Photo09282246.jpg
Views: 20
Size:  68.8 KB

Name:  Photo10051950.jpg
Views: 20
Size:  42.9 KB

Name:  Photo10052106.jpg
Views: 20
Size:  43.6 KB

Name:  Photo10052107.jpg
Views: 20
Size:  36.8 KB
wrxnova is offline   Reply With Quote
Old 10-11-2009, 07:07 PM   #28
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

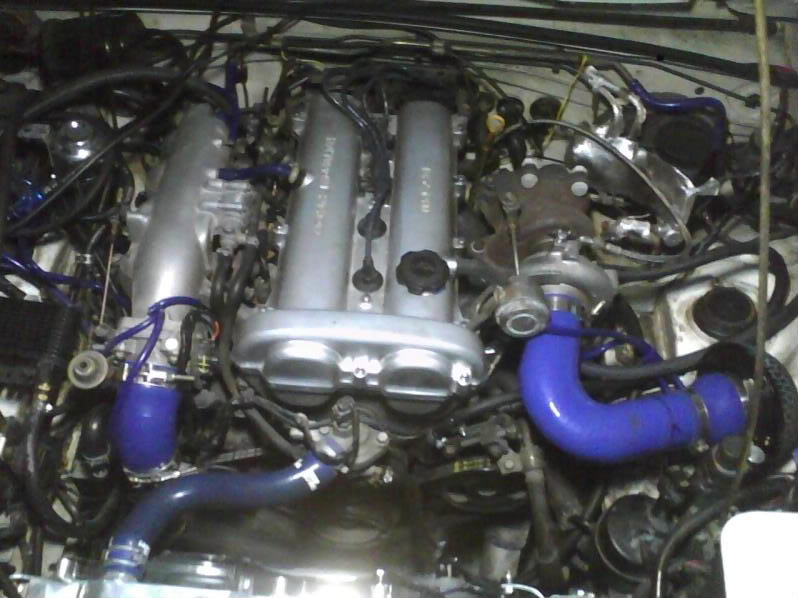

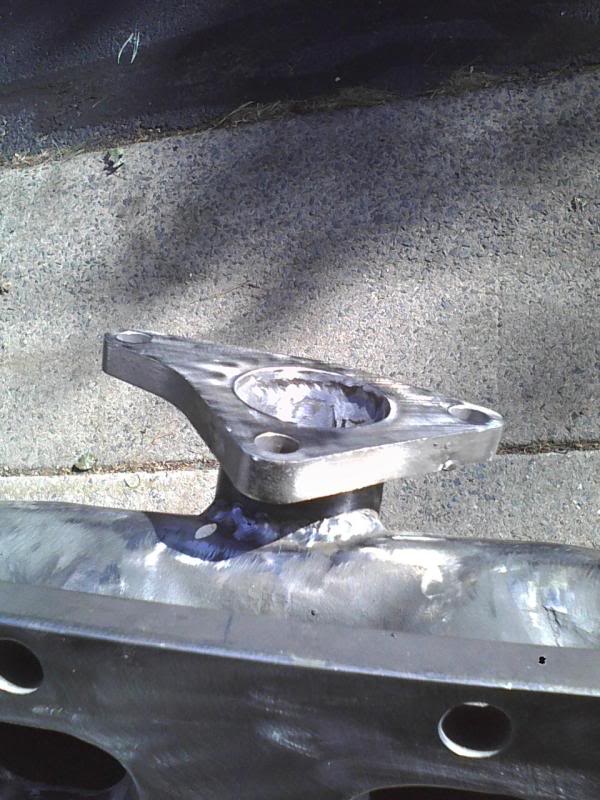

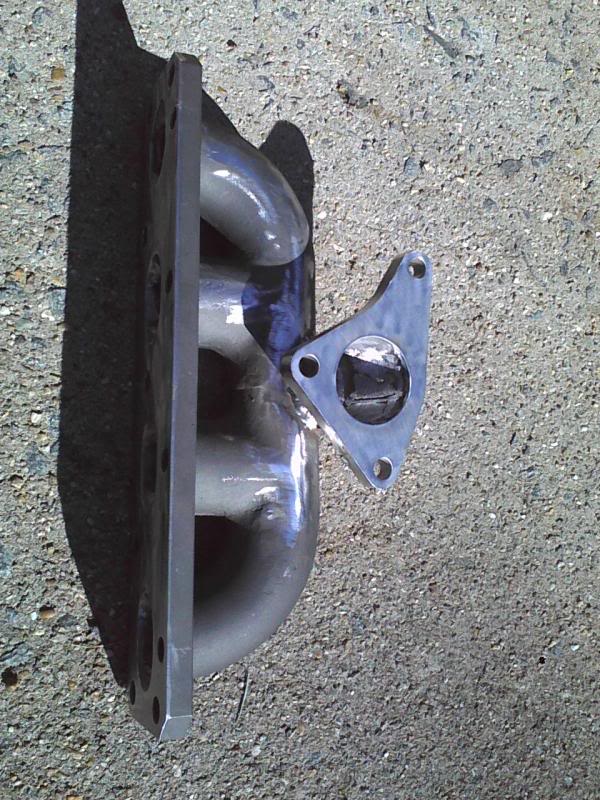

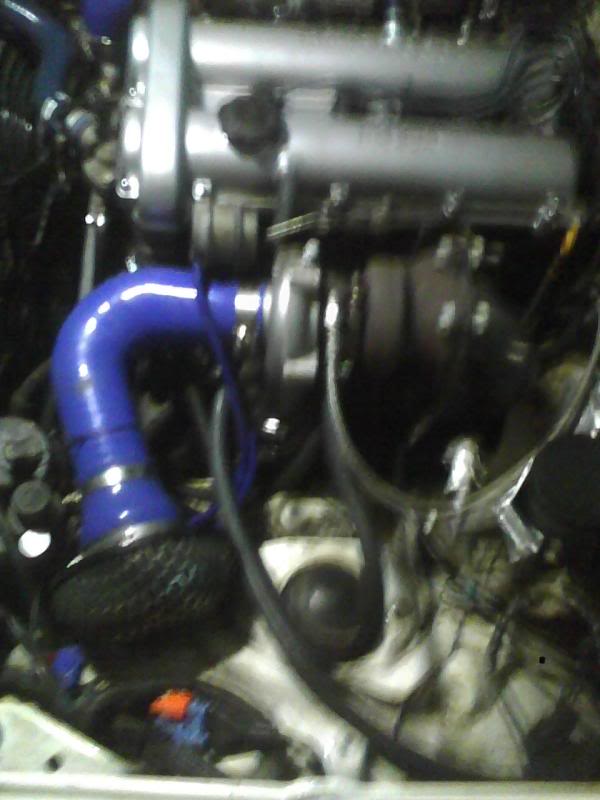

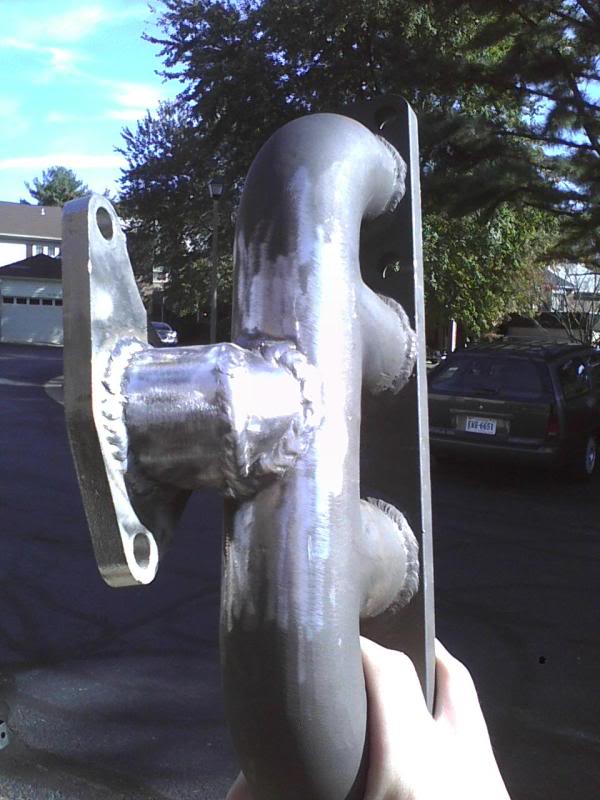

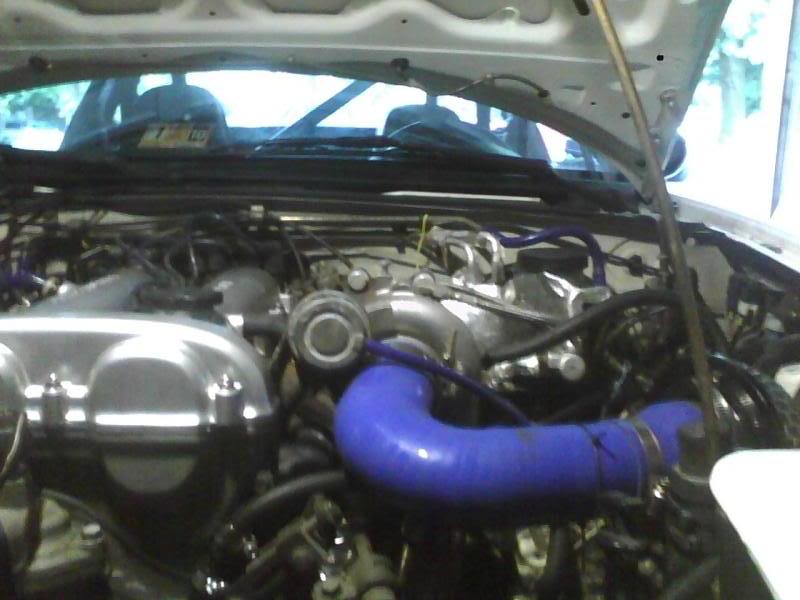

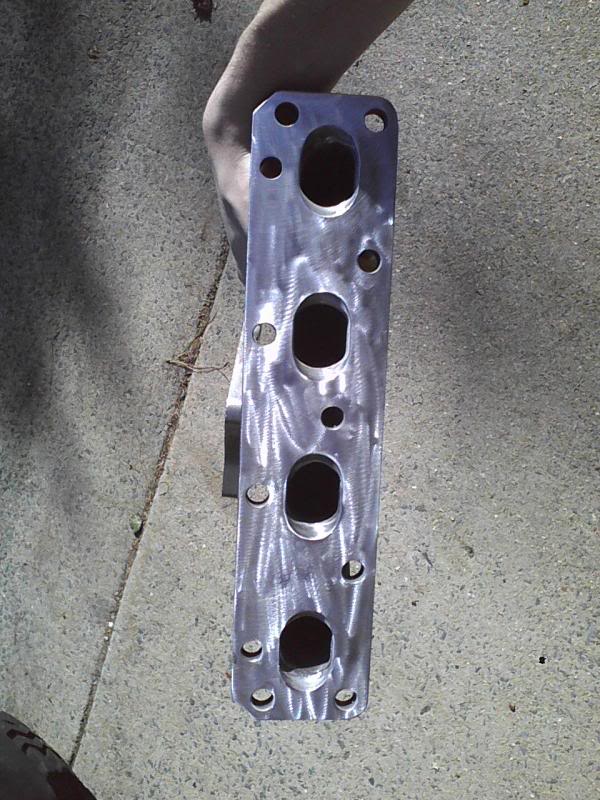

All done. Mtuned coolant reroute and 305cc injectors next weekend.


Name:  Photo10111525.jpg
Views: 20
Size:  120.2 KB
Name:  Photo10111525_1.jpg
Views: 20
Size:  96.7 KB
Name:  Photo10111525_2.jpg
Views: 20
Size:  64.8 KB
Name:  Photo10111525_3.jpg
Views: 20
Size:  80.6 KB
Name:  Photo10111754.jpg
Views: 20
Size:  47.8 KB
Name:  Photo10111754_1.jpg
Views: 20
Size:  77.6 KB
Name:  Photo10111755.jpg
Views: 20
Size:  52.4 KB
wrxnova is offline   Reply With Quote
Old 10-31-2009, 02:16 AM   #29
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Just finished mtuned coolant reroute and installing supra green 305cc injectors. Cranked it up to 8 psi and holy **** is it quick.

The car shows no signs of overheating but in MS my water temp will go up to 215 sitting at a traffic light but will cool down fast once i get moving / fans turn on. Im assuming this is from my radiator fans blowing hot air into my air filter raising my IAT temp.

Next step is isolating the air filter from the engine bay and giving it proper air flow i guess.

Any recommendations are appreciated.
wrxnova is offline   Reply With Quote
Old 10-31-2009, 10:59 AM   #30
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Welcome! I'll note a couple things. I like your paint job but not the tails, but hey, your car.

I wouldn't say that your CLT is a result of your IAT when sitting, no. You're just probably not used to having a real CLT to refer to, instead of the typical guage that most cars have that reads the same whether at 160* or 220* so as not to alarm the driver.

I wouldn't bother ducting to the oil cooler unless you can come up with a really good reason to. I don't run one (I have an OE 1.8 cooler waiting to go on), and the dedicated track guys here (think Savington) don't have the oil cooler ducted either. In fact, Sav has his behind his bumper with no airflow hitting it directly at all. The important thing is to get the oil out of the block for cooling. I'm afraid if you duct it you'll be over-cooling your oil, which is bad.

I'd also recommend ditching that dead weight PS pump and reservoir and looping the PS lines (or do a full FM depower if you have time). Pick up a couple HP from the parasitic drag loss and free up a lot of space underhood, not to mention gain more communicative steering.

Quote:
Originally Posted by tronik View Post
nice to see more turbo miatas around nova. This has to be the worldwide hqs of turbo miatas.
There do seem to be concentrations: NoVa, ATL, TX, San Diego/LA/SF Bay
kotomile is offline   Reply With Quote
Old 10-31-2009, 12:32 PM   #31
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Quote:
Originally Posted by kotomile View Post
Welcome! I'll note a couple things. I like your paint job but not the tails, but hey, your car.

I wouldn't say that your CLT is a result of your IAT when sitting, no. You're just probably not used to having a real CLT to refer to, instead of the typical guage that most cars have that reads the same whether at 160* or 220* so as not to alarm the driver.

I wouldn't bother ducting to the oil cooler unless you can come up with a really good reason to. I don't run one (I have an OE 1.8 cooler waiting to go on), and the dedicated track guys here (think Savington) don't have the oil cooler ducted either. In fact, Sav has his behind his bumper with no airflow hitting it directly at all. The important thing is to get the oil out of the block for cooling. I'm afraid if you duct it you'll be over-cooling your oil, which is bad.

I'd also recommend ditching that dead weight PS pump and reservoir and looping the PS lines (or do a full FM depower if you have time). Pick up a couple HP from the parasitic drag loss and free up a lot of space underhood, not to mention gain more communicative steering.



There do seem to be concentrations: NoVa, ATL, TX, San Diego/LA/SF Bay
Thanks, I appreciate the advice. I also wasnt a big fan of the aftermarket tail lights so those have been replaced with a stock set.

As for the "ducting" I was refering to making a air filter box to keep it issolated from the hot engine bay. I was hoping that might help keep my IAT down (I would add a NACA duct or something to assist the TSI to get the filter air).

The oil cooler prior to the coolant reroute actually had me thinking that it was ineffective due to its location but since the reroute oil temps have never been lower.
wrxnova is offline   Reply With Quote
Old 10-31-2009, 05:14 PM   #32
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Quote:
Originally Posted by kotomile View Post
I wouldn't bother ducting to the oil cooler unless you can come up with a really good reason to. I don't run one (I have an OE 1.8 cooler waiting to go on), and the dedicated track guys here (think Savington) don't have the oil cooler ducted either. In fact, Sav has his behind his bumper with no airflow hitting it directly at all. The important thing is to get the oil out of the block for cooling. I'm afraid if you duct it you'll be over-cooling your oil, which is bad.
If you duct it, you can have a smaller, lighter cooler to get the same work done, which is good. An external cooler should have a thermostat somewhere controlling a bypass, just like the water cooling system. Some higher-end heat exchangers have them built into the unit itself.
SolarYellow510 is offline   Reply With Quote
Old 10-31-2009, 06:11 PM   #33
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Nice car, I'm probably going to do a WRX turbo on my car too.
jacob300zx is offline   Reply With Quote
Old 10-31-2009, 10:51 PM   #34
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

After a few adjustments the car is no longer over heating but is still running fairly hot (190 to 215). I was thinking of adding a thermostat to control my radiator fans.. having them turn on at 215 is to high right? I was thinking ideally it would be around 175-190...correct me if im wrong please.

Also im now running 12 psi and its . I really need to get this thing dyno'd now!
wrxnova is offline   Reply With Quote
Old 11-01-2009, 04:50 PM   #35
Junior Member
iTrader: (7)

Join Date: Nov 2006
Location: Makakilo
Posts: 444
Total Cats: 0
Default

Quote:
Originally Posted by wrxnova View Post
After a few adjustments the car is no longer over heating but is still running fairly hot (190 to 215). I was thinking of adding a thermostat to control my radiator fans.. having them turn on at 215 is to high right? I was thinking ideally it would be around 175-190...correct me if im wrong please.
I don't have 1.6 factory manual where I am right now but I do have a NB manual. For the 99-00 engines, which should be similar, the thermostat begins opening at a range between 183F and 190F and is fully open at 212F. Figuring that the thermostat just made it fully open at 212 F, 190-215F does not sound abnormal, too low if anything.

Of course it's possible some retard put a 160F thermostat in your car previously.

Does it get cold where you live? 175-190F might ideally suck for somebody living up north because the car won't heat the interior worth a damn.

As for the best setting for forced induction, I'll defer that answer to the forum veterans.
r808 is offline   Reply With Quote
Old 11-01-2009, 05:57 PM   #36
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

My CLT when fully warm is at 215. Stock radiator.
SKMetalworks is offline   Reply With Quote
Old 02-13-2010, 04:42 PM   #37
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

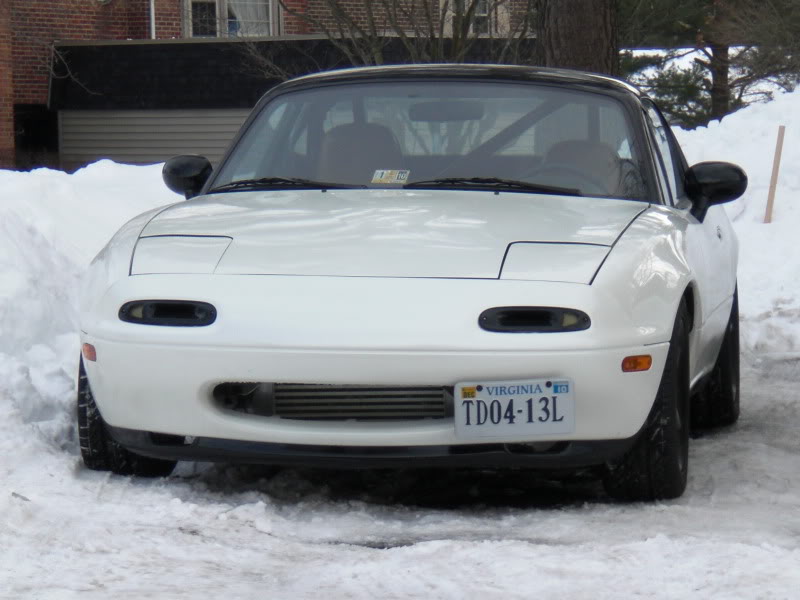

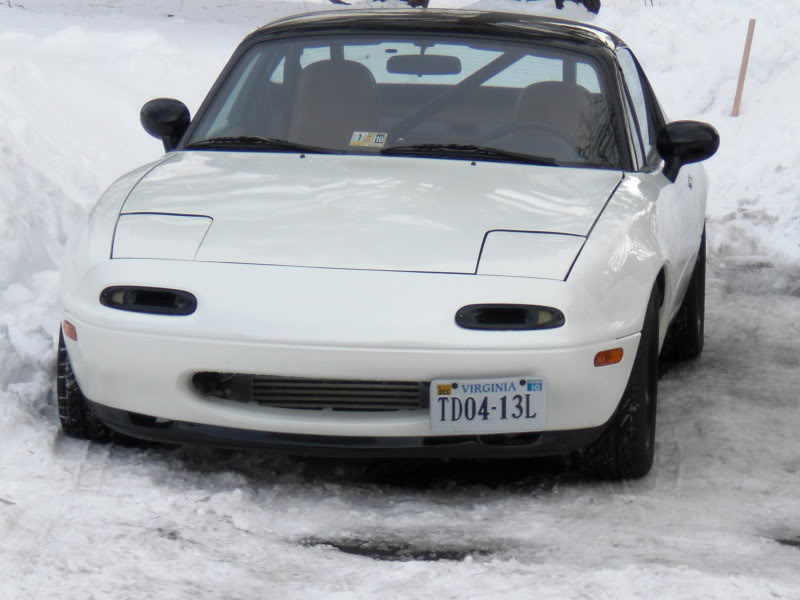

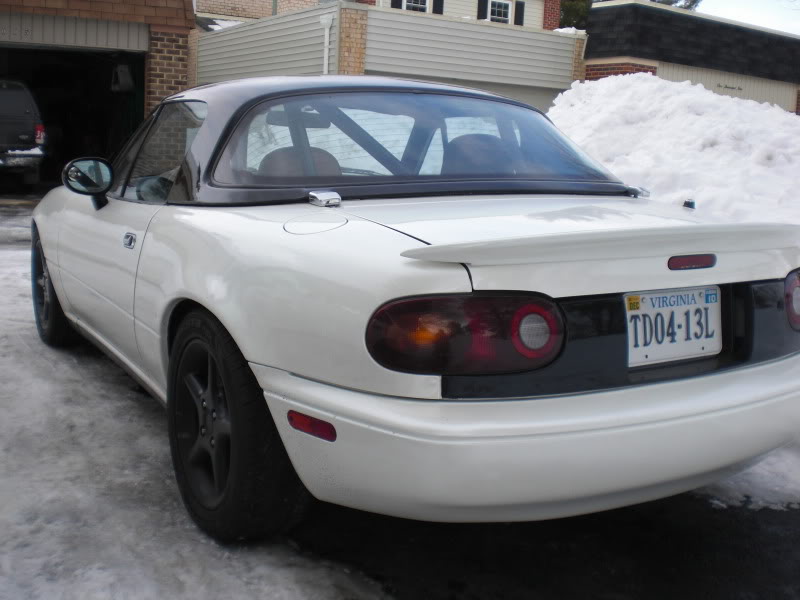

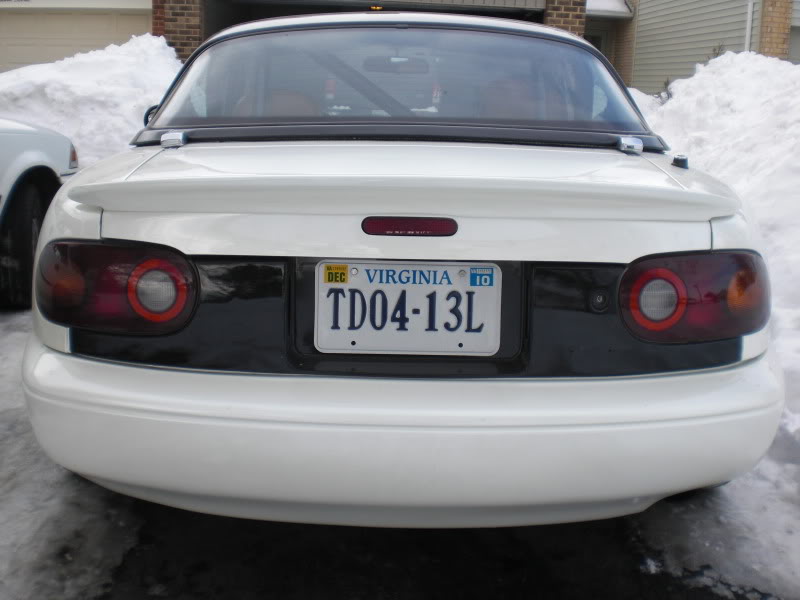

Had front lip painted black and rear lip spoiler added.

Name:  CIMG1132.jpg
Views: 20
Size:  90.3 KB
Name:  CIMG1133.jpg
Views: 20
Size:  97.5 KB
Name:  CIMG1134.jpg
Views: 20
Size:  108.8 KB
Name:  CIMG1135.jpg
Views: 20
Size:  90.6 KB
Name:  CIMG1136.jpg
Views: 20
Size:  92.7 KB
Name:  CIMG1137.jpg
Views: 20
Size:  82.8 KB
wrxnova is offline   Reply With Quote
Old 02-13-2010, 04:45 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

going up with us to the dyno on april 10th?
Braineack is offline   Reply With Quote
Old 02-13-2010, 04:50 PM   #39
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
going up with us to the dyno on april 10th?
Definitely... pending replacing my gas tank. Stopping every 30 miles would get old fast.
wrxnova is offline   Reply With Quote
Old 02-13-2010, 06:30 PM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

wattup with the gas tank? leaking? my PM about the fan control make sense?
