Default Cutting the shelf behind downpipe

I have an issue, where I can only put my downpipe on if I bolt it on before bolting the turbine housing on due to shelf clearance. This makes tightening the turbo onto the manifold propery, impossible.

Are there any negative effects if I whack a good 3'' out of the shelf that gets in the way (the piece under the heater core inlet/outlet).

Pic for reference (not my car though)

falcon is offline   Reply With Quote
Old 06-06-2010, 09:36 PM   #2
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

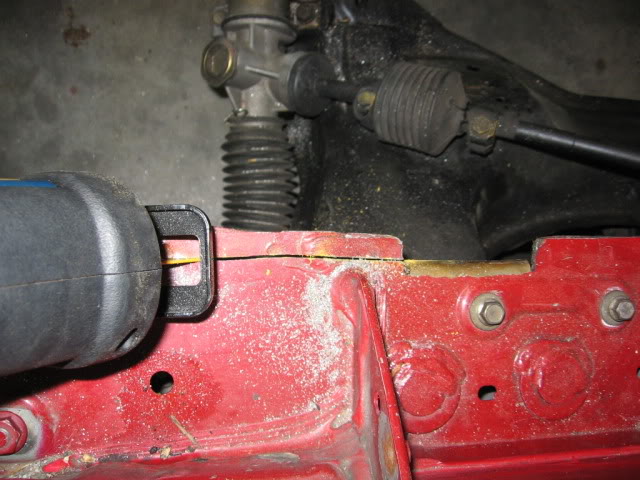

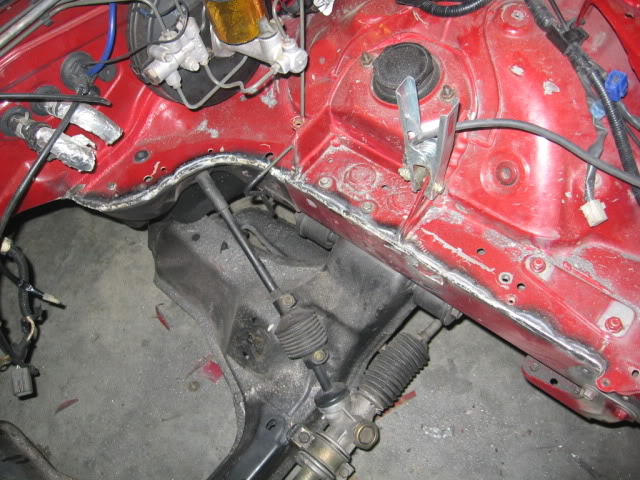

i would just cut the sheet metal lip off where you need the room, it would give you a 1/2" more room to play with!

Name:  IMG_0175.jpg
Views: 12
Size:  72.7 KB

Name:  IMG_0181.jpg
Views: 14
Size:  93.4 KB
WonTon is offline   Reply With Quote
Old 06-06-2010, 09:41 PM   #3
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

for somereason this reminds me of the guy with a zx10 that decided to do a frame mod to let more ram air in and proceeded to cut a big ****** hole in his frame.
magnamx-5 is offline   Reply With Quote
Old 06-06-2010, 09:56 PM   #4
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

haha! now that you mention it, reading this over reminds me of that as well...
WonTon is offline   Reply With Quote
Old 06-06-2010, 10:08 PM   #5
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by WonTon View Post
i would just cut the sheet metal lip off where you need the room, it would give you a 1/2" more room to play with!
Thanks. That's basically what I want to do. I haven't looked closely at it and didn't realize that it's a full bulkhead style shelf except for 1/2''. I'll just trim the sheet metal and that should give me enough space.

I don't have a welder. Do you think that if I trim that bit, if I just seam seal it it should be fine? Or should I get someone to come to my place and tack it together?
falcon is offline   Reply With Quote
Old 06-06-2010, 10:10 PM   #6
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by magnamx-5 View Post
for somereason this reminds me of the guy with a zx10 that decided to do a frame mod to let more ram air in and proceeded to cut a big ****** hole in his frame.
lol.. I saw that too on a local sportibke forum. Funny how these things make their way through the net pretty fast.
falcon is offline   Reply With Quote
Old 06-06-2010, 10:11 PM   #7
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

i would have it welded up for peace of mind! atleast paint the area when your done so it wont rust!
WonTon is offline   Reply With Quote
Old 06-06-2010, 11:04 PM   #8
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I'm going to have to do this for my setup as well.
FRT_Fun is offline   Reply With Quote
Old 06-06-2010, 11:08 PM   #9
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by WonTon View Post
i would have it welded up for peace of mind! atleast paint the area when your done so it wont rust!
I would seam seal and paint it at the min. But is tacking it really necessary?
falcon is offline   Reply With Quote
Old 06-06-2010, 11:12 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

I'd weld it too. Just to be safe
18psi is offline   Reply With Quote
Old 06-06-2010, 11:22 PM   #11
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Ok. Guess I'll have er welded up. Better safe than sorry.
falcon is offline   Reply With Quote
Old 06-07-2010, 01:27 AM   #12
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Do you guys think there is possibility to cut further into the shelf/bulkhead if need be? I think i might have to when I start putting my setup together in order to clearance everything properly
theshdwconspracy is offline   Reply With Quote
Old 06-07-2010, 01:55 AM   #13
Junior Member

Join Date: Apr 2009
Location: Conifer, CO
Posts: 48
Total Cats: 0
Default

Don't cut into it anymore than you have. There is structure behind there, and you don't want to mess with it. However, the "ears" against the firewall can be cut out entirely. Every v8 miata has them cut out. Picture of mine before paint:


edit: There are some subframe mods that can be done as well that will give you crazy room. Let me know if you want to consider that.
rugger is offline   Reply With Quote
Old 06-07-2010, 02:00 AM   #14
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Hmm... that's exactly what I was imagining. It would give me ample room to go with a 3'' DP.
falcon is offline   Reply With Quote
Old 06-07-2010, 03:15 AM   #15
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

i was gonna do the same thing, but opted the other way
WonTon is offline   Reply With Quote
Old 06-07-2010, 10:10 AM   #16
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Cut a radius in the corners if you can. It will avoid stress risers to crack.
rleete is offline   Reply With Quote
Old 06-07-2010, 10:54 AM   #17
Junior Member

Join Date: Apr 2009
Location: Conifer, CO
Posts: 48
Total Cats: 0
Default

You can radius the corners if you like, or you can cut them square to get the most room......like the 500hp miatas are doing who do not experience cracking.
rugger is offline   Reply With Quote
Old 06-07-2010, 02:00 PM   #18
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I'm first going to try to just cut the 1/2'' hang over. If it's not enough I will cut the whole thing out.
falcon is offline   Reply With Quote
Old 06-07-2010, 02:07 PM   #19
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I really think you should go with a bottom mount setup. You're still going to have a hard time getting a 3" downpipe in there with that removed.

I can seam weld it if you need me to. I could probably tote my welder up there without too much issue except I dont know how they feel about bringing pressurized gasses across the border.
wayne_curr is offline   Reply With Quote
Old 06-07-2010, 02:08 PM   #20
Junior Member
iTrader: (3)

Join Date: Mar 2010
Location: Culpeper Va
Posts: 264
Total Cats: 0
Default

Had to cut and weld mine aswell. If I had to go back I'd clock the turbo
bojanglincraig is offline   Reply With Quote
