Old 06-07-2010, 02:14 PM   #21
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Quote:
Originally Posted by wayne_curr View Post
I really think you should go with a bottom mount setup. You're still going to have a hard time getting a 3" downpipe in there with that removed.

I can seam weld it if you need me to. I could probably tote my welder up there without too much issue except I dont know how they feel about bringing pressurized gasses across the border.
No reason to sell what I already have. Even if I keep the current DP, I'll be happy. I just want to be able to put the downpipe on after the turbine housing gets bolted on.

Are you up for making me an exhaust though? From my "cat" back... I want to re-locate the magnaflow I have on the back to right after the downpipe and run a left exit "straight pipe".
falcon is offline   Reply With Quote
Old 06-07-2010, 02:22 PM   #22
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Always down to do exhaust work. This left-exit exhaust trend is really interesting.
wayne_curr is offline   Reply With Quote
Old 06-07-2010, 02:28 PM   #23
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

I'm cutting my bumper, and want to get rid of as much weight as possible. And the exhaust I have droops too low and always scrapes (and I'm not even that low!). There is ample room to re-do the exhaust a good 2-3 inches higher. And it will involve very few bends = more flow.
falcon is offline   Reply With Quote
Old 06-07-2010, 02:54 PM   #24
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

I did it for a smooth top-mount 3" dp. But wouldn't do it w/o welding some plate in.
m2cupcar is offline   Reply With Quote
Old 06-07-2010, 03:05 PM   #25
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Quote:
Originally Posted by rugger View Post
Don't cut into it anymore than you have. There is structure behind there, and you don't want to mess with it. However, the "ears" against the firewall can be cut out entirely. Every v8 miata has them cut out. Picture of mine before paint:


edit: There are some subframe mods that can be done as well that will give you crazy room. Let me know if you want to consider that.
You left a lot of meat on that! Mine is cut flush with the "frame rail" on both sides. We added in 1/8th inch steel plates to both sides for some added bracing, and was going to triangulate the corners some, but ended up getting lazy
chpmnsws6 is offline   Reply With Quote
Old 06-07-2010, 03:24 PM   #26
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by falcon View Post
I'm cutting my bumper, and want to get rid of as much weight as possible. And the exhaust I have droops too low and always scrapes (and I'm not even that low!). There is ample room to re-do the exhaust a good 2-3 inches higher. And it will involve very few bends = more flow.
Remember me telling you I was afraid of that? I can redo the hangers on that so that it will never scrape (depending on how low you are) or bang around when you go around corners at the track.
wayne_curr is offline   Reply With Quote
Old 06-07-2010, 05:02 PM   #27
Junior Member

Join Date: Apr 2009
Location: Conifer, CO
Posts: 48
Total Cats: 0
Default

Quote:
Originally Posted by chpmnsws6 View Post
You left a lot of meat on that! Mine is cut flush with the "frame rail" on both sides. We added in 1/8th inch steel plates to both sides for some added bracing, and was going to triangulate the corners some, but ended up getting lazy
I coped my cut around the steering shaft grommet/seal. I didn't feel like "fixing" that if I didn't have to!
rugger is offline   Reply With Quote
Old 06-07-2010, 11:32 PM   #28
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

I got 3" to fit just fine with out cutting the shelf.... Who needs mandrel bends? Pie cuts FTW!

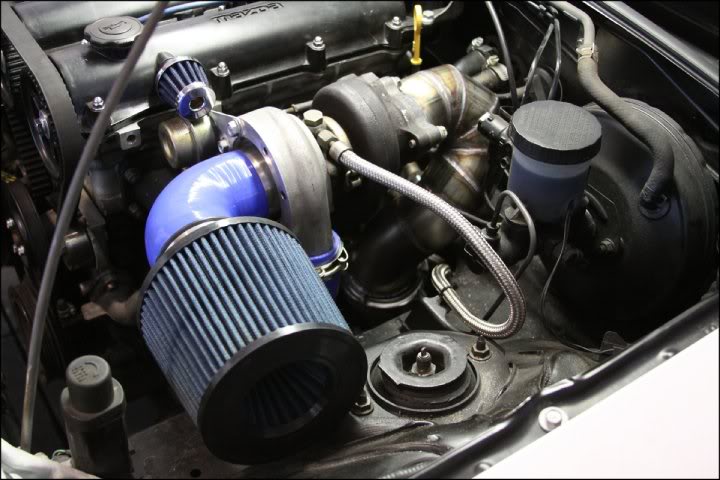

Name:  exhaust2.jpg
Views: 26
Size:  66.1 KB

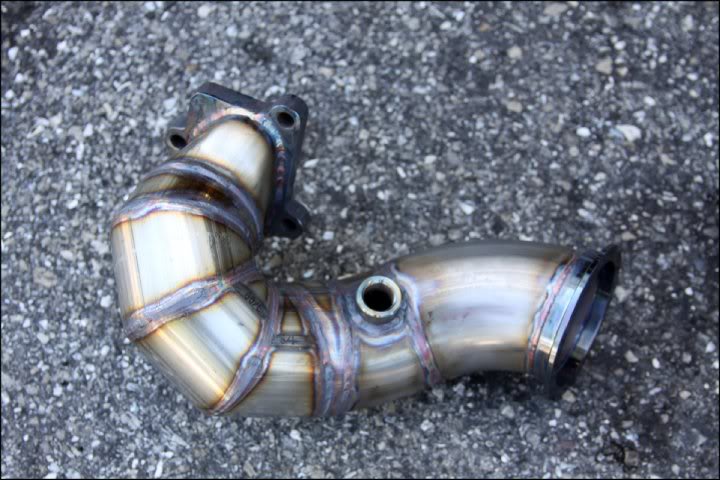

Name:  exhaust5.jpg
Views: 38
Size:  73.9 KB
Sokool is offline   Reply With Quote
Old 06-08-2010, 12:38 AM   #29
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by Sokool View Post
I got 3" to fit just fine with out cutting the shelf.... Who needs mandrel bends? Pie cuts FTW!



mad skill
magnamx-5 is offline   Reply With Quote
Old 06-08-2010, 01:12 AM   #30
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

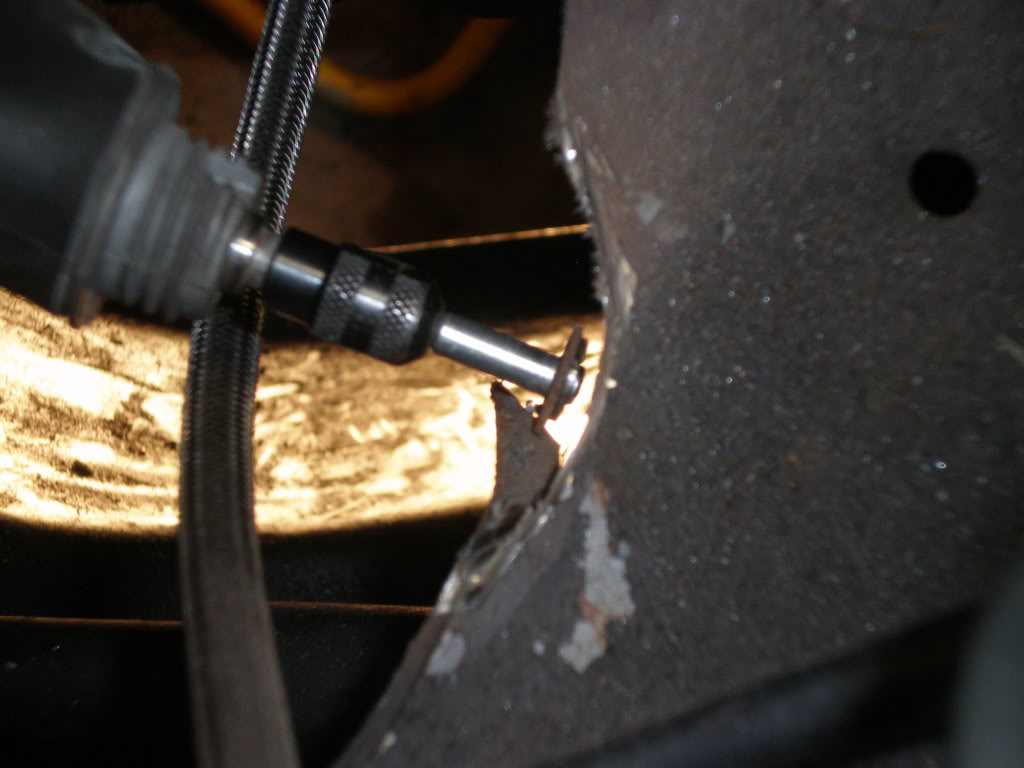

Name:  P5020020.jpg
Views: 28
Size:  71.7 KB
SKMetalworks is offline   Reply With Quote
