Default Decided on the vendor ... now the options

Looks like BEGI is getting my business. FM did nothing wrong, avalibility of parts had a large part in my decision. I was on the fence, this just sealed the deal.

Down pipe, SS or mild?
Manifold, ceramic coated?

Doing both ceramic and SS DP will stretch the budget a little too thin. I'm thinking one or the other. Which would you choose and why?

I'm leaning towards ceramic coating the mani and using a mild steel DP.

Jay
jayc72 is offline   Reply With Quote
Old 01-28-2008, 03:56 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

if it were me I'd go the other way around.
Braineack is offline   Reply With Quote
Old 01-28-2008, 03:56 PM   #3
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

I woudl do ss, and coat the manifold myself with some bbq paint or some 2500 deg paint
Loki047 is offline   Reply With Quote
Old 01-28-2008, 04:03 PM   #4
Elite Member
Thread Starter
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

What are the advantages of SS over mild steel on the DP?

I don't think I could get the manifold coated locally as cheap as BEGI will do it. I also question the durability and effectiveness of BBQ paint

Thanks for the inputs so far.
jayc72 is offline   Reply With Quote
Old 01-28-2008, 04:04 PM   #5
Junior Member

Join Date: Oct 2006
Location: Santa Rosa, CA
Posts: 244
Total Cats: 0
Default

I wouldn't worry about coating the manifold. Cast iron lasts for ever. SS DP, your call. I'm not going with SS, but California is nice that way.
kyle242gt is offline   Reply With Quote
Old 01-28-2008, 04:10 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

SS will keep more of the heat inside the pipes, so the bay is a tad cooler and it wont rust out.
Braineack is offline   Reply With Quote
Old 01-28-2008, 04:11 PM   #7
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

go get some Flameproof of whatever has the highest temp. Spray it, bake it. ANd your done. Or just save till you can get both.
Loki047 is offline   Reply With Quote
Old 01-28-2008, 04:16 PM   #8
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Jay,since you live in Alberta and the city floods the streets with salt in the winter,I would go with SS downpipe and just paint the manifold.
spike is offline   Reply With Quote
Old 01-28-2008, 04:18 PM   #9
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

Main reason to coat the manifold would be to retain heat, which would be worth it with a tubular manifold but since it's cast iron it retains that head already so there's really not a big advantage to coating it.

Do the SS downpipe and no ceramic coating on the mani.
crashnscar is offline   Reply With Quote
Old 01-28-2008, 04:18 PM   #10
Elite Member
Thread Starter
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Quote:
Originally Posted by spike View Post
Jay,since you live in Alberta and the city floods the streets with salt in the winter,I would go with SS downpipe and just paint the manifold.
No salt on the roads here. I also never drive it in the winter, it's so low it'd get stuck on a skiff of snow.
jayc72 is offline   Reply With Quote
Old 01-28-2008, 04:32 PM   #11
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,329
Default

I did no coat on the manifold and a stainless DP. Both look great after 8000 miles.
Savington is online now   Reply With Quote
Old 01-28-2008, 04:42 PM   #12
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Mild steel pipe will last you maybe 3 - 5 years, SS will last you forever. Coating has no benefits except maybe aesthetic.
Saml01 is offline   Reply With Quote
Old 01-28-2008, 04:46 PM   #13
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Wrong
Loki047 is offline   Reply With Quote
Old 01-28-2008, 04:49 PM   #14
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

My stainless dp looks nothing like new after one winter on salty roads, but if you don't drive on salty roads, it should stay nice looking. I can see more of my ceramic coated manifold than my dp when looking at the engine bay though.

cjernigan and I had a conversation about how the 304 stainless they use corrodes when exposed to salt, but it is supposedly possible to keep it nice if you clean it regularly.
SamS is offline   Reply With Quote
Old 01-28-2008, 05:06 PM   #15
Junior Member
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

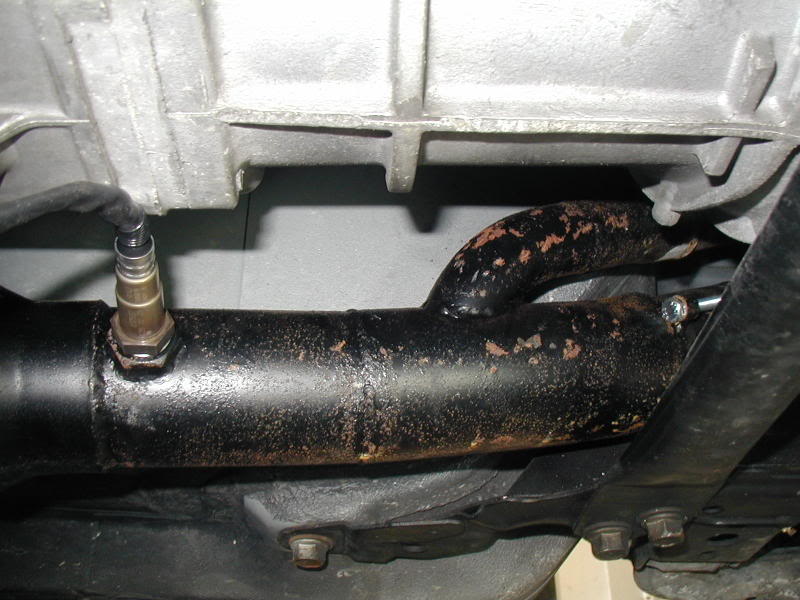

I'd go with the SS down pipe. Mine are looking pretty bad and I haven't even finished the install.

Name:  P1010072.jpg
Views: 1
Size:  71.9 KB
sv650_ck is offline   Reply With Quote
Old 01-28-2008, 05:09 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

oh teh sex0r

Braineack is offline   Reply With Quote
Old 01-28-2008, 05:15 PM   #17
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

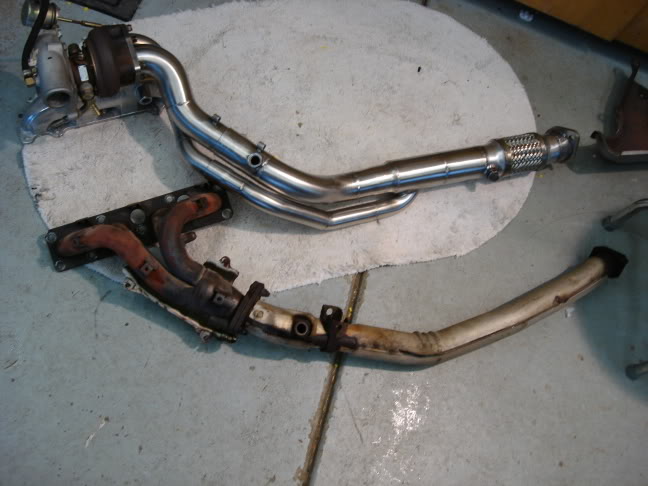

Yeah yeah, mine used to look like that.
Name:  DSC00234.jpg
Views: 1
Size:  48.8 KB

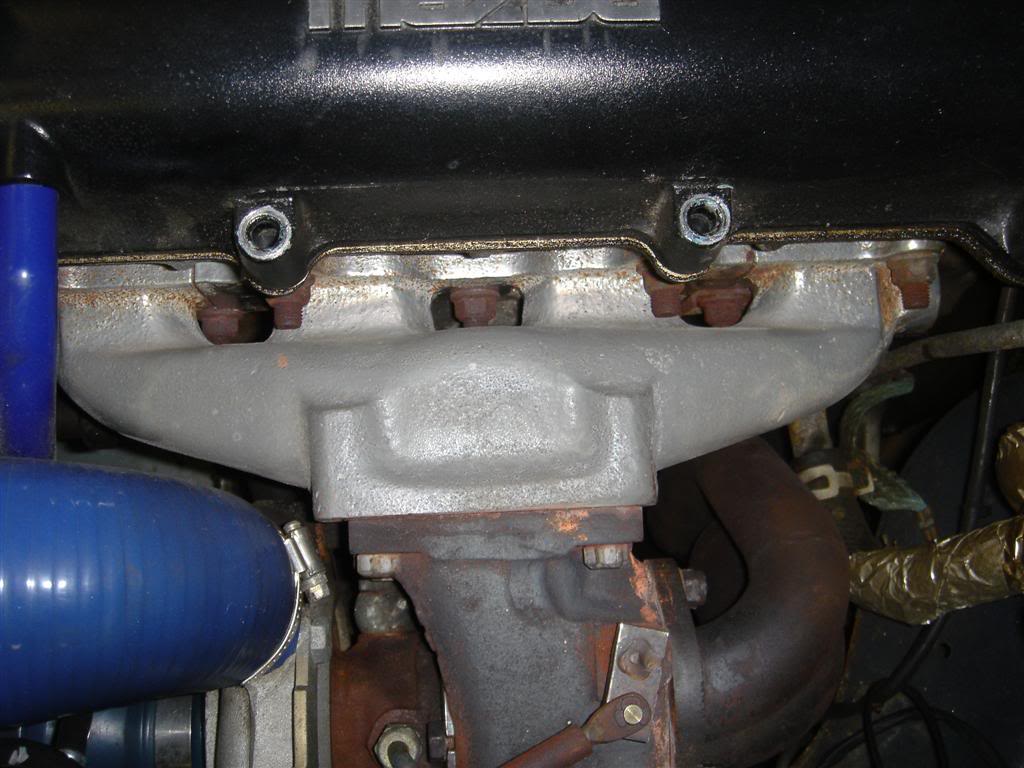

But after last winter,
Name:  DSC05936Large.jpg
Views: 1
Size:  97.3 KB
SamS is offline   Reply With Quote
Old 01-28-2008, 05:18 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

no mater what you say, i still believe you park in a salt silo
Braineack is offline   Reply With Quote
Old 01-28-2008, 05:19 PM   #19
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

Well maybe Corky should have included that possibility in the design!
:gay:
SamS is offline   Reply With Quote
Old 01-28-2008, 05:27 PM   #20
Elite Member
Thread Starter
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Order is been placed. SS downpipe and an uncoated manifold on the way.

Quick question. What size is the exhaust flange on the 1.6 DP? Is it 2.5" or does it step down to match the factory cat?
jayc72 is offline   Reply With Quote
