Default Disco potatoe spool on 1.6

Im in the process of making my track car.
The turbo is 2860RS .86 hotside internally WG with EBC
The motor is a stock 1.6L with mild polishing in the exhaust ports.
Intercooler will be CX racing with 2.5" piping.
Exhaust is full 3" with a muffler and tip
Manifold is Absurdflow design.
ECU is MSpnp
Not sure if this matters but 4.10 torsen rear end


Im hoping to start spooling at 3250 and be @ 10 psi around 4250.


I checked the spool data but i didnt know what housing size they had. Anyway just wondering what i could get away with.
SKMetalworks is offline
Old 01-09-2010, 06:39 PM
  #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,101
Total Cats: 368
Default

Considering you ganked Tim's design I will regretfully confess that yes, this turbo will probably spin-up by 4k on that shitty motor of yours. My tater with the .86AR on the ~1.9 with 3" exhaust hits 11.5psi at 3100rpm now. I also have a proper wastegate though, which you don't, peasant.
hustler is offline
Old 01-09-2010, 06:49 PM
  #3
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,731
Total Cats: 3
Default

Its a good design what can I say. I give tim credit because he deserves it.
SKMetalworks is offline
Old 01-09-2010, 07:28 PM
  #4
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,712
Total Cats: 3
Default

I'm pretty sure you're going to see 10psi much sooner than 4200rpm.

And you spelled potato wrong.

Oh and do EWG with a ms2 instead of the pnp so you can use EBC and I bet you spool by 3500.
wayne_curr is offline
Old 01-09-2010, 07:44 PM
  #5
Zel
Newb

Join Date: Nov 2007
Location: Orlando, FL
Posts: 33
Total Cats: 0
Default

The Dan Quayle patato"e" spelling. I remember!
Zel is offline
Old 01-09-2010, 08:14 PM
  #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,101
Total Cats: 368
Default

Originally Posted by wayne_curr View Post
I'm pretty sure you're going to see 10psi much sooner than 4200rpm.

And you spelled potato wrong.

Oh and do EWG with a ms2 instead of the pnp so you can use EBC and I bet you spool by 3500.
I think 3500rpm on a 1.6 is a stretch. I also seriously doubt an EBC is going to improve spoolage with a proper TiAL wastegate. According to my engineer friend at TiAL the two springs with different free-lengths, different rates, and one preloaded spring is magical.
hustler is offline
Old 01-09-2010, 08:38 PM
  #7
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,712
Total Cats: 3
Default

Originally Posted by hustler View Post
I think 3500rpm on a 1.6 is a stretch. I also seriously doubt an EBC is going to improve spoolage with a proper TiAL wastegate. According to my engineer friend at TiAL the two springs with different free-lengths, different rates, and one preloaded spring is magical.
Well i'm no expert on turbo sizing and spool so you're prolly right. I swear i remember seeing spool data on some 1.6 T3 setups that was surprisingly quick.
wayne_curr is offline
Old 01-10-2010, 12:12 AM
  #8
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 715
Total Cats: 5
Default

That t3 may have had small Comp housing, exh wheel and housing.
TURNS101 is offline
Old 01-10-2010, 10:21 AM
  #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,208
Total Cats: 514
Default

Here's Jeremy from FM's potato on a 1.6:
http://flyinmiata.com/tech/dyno_runs/Jeremy_potato.pdf

he didn't like it. maybe some intake cam advance would help with low end.
y8s is offline
Old 01-10-2010, 01:35 PM
  #10
Elite Member
iTrader: (14)

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,095
Total Cats: 176
Default

I'll post some data in a week when my T3 install is complete. It's a small .42AR with a 50 trim.
GeneSplicer is offline
Old 01-10-2010, 02:49 PM
  #11
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,137
Total Cats: 83
Default

Originally Posted by GeneSplicer View Post
I'll post some data in a week when my T3 install is complete. It's a small .42AR with a 50 trim.
Do that please, I'm interested as well. Chinacharger?
albumleaf is offline
Old 01-13-2010, 02:12 PM
  #12
Junior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 114
Total Cats: 0
Default

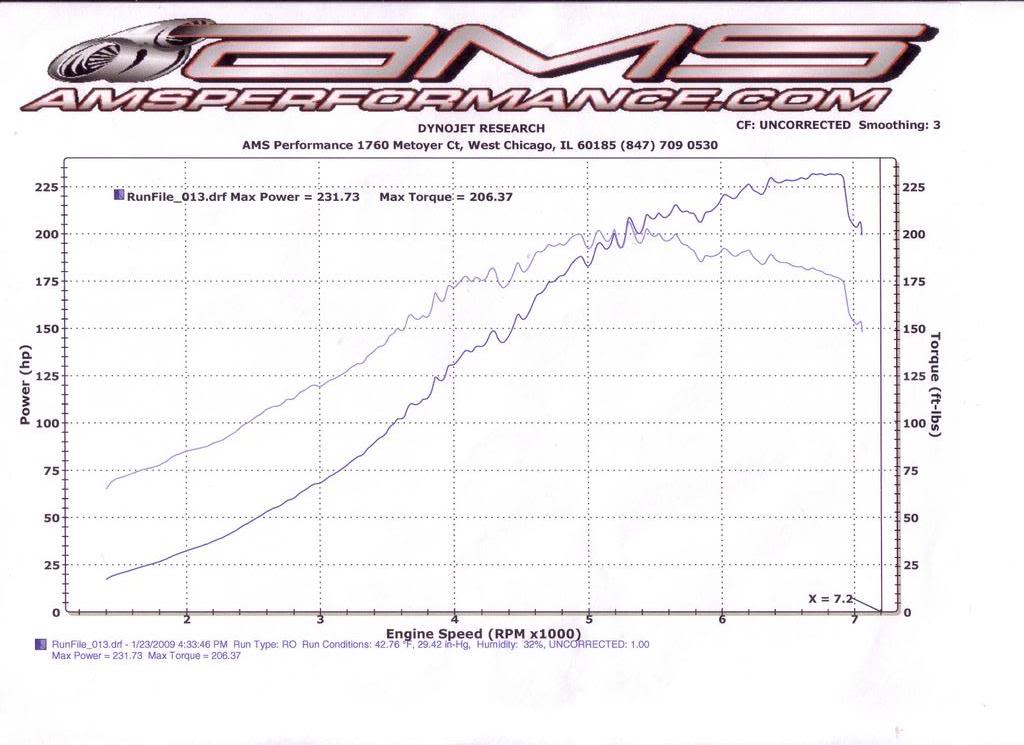

Potato on stock engine

Name:  Scan10005.jpg
Views: 69
Size:  90.3 KB

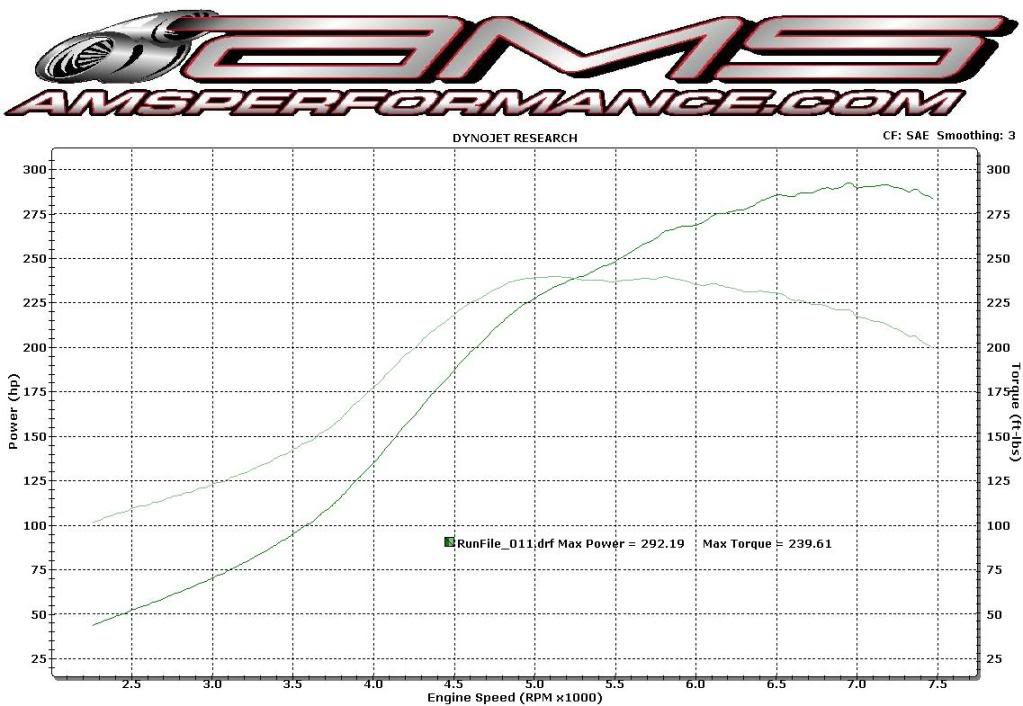

Potato on built engine and begi intake manifold

Name:  Miata-dynochart.jpg
Views: 65
Size:  112.8 KB
HKSturboMiata is offline
Old 01-13-2010, 02:16 PM
  #13
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,621
Total Cats: 2,317
Default

Originally Posted by TURNS101 View Post
That t3 may have had small Comp housing, exh wheel and housing.
Originally Posted by GeneSplicer View Post
I'll post some data in a week when my T3 install is complete. It's a small .42AR with a 50 trim.


I have a larger turbine than a disco, older less-efficient compressor wheel design of the same exact size, journal bearings, and a .48 A/R housing (.64 T2X Equivalent) and I can see 16-18psi around 3500rpm in 4th gear...


This compares my ebay T3 50 trim (blue) to my T3 Super 60 (red)
Braineack is offline
Old 01-13-2010, 02:20 PM
  #14
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,313
Total Cats: 2,019
Default

I've driven a .86 DP on a 1.6 and I didn't like it either.
__________________

High-Performance Turbo Specialists - Sunnyvale, CA - Email us!

Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 01-13-2010, 07:19 PM
  #15
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,731
Total Cats: 3
Default

Originally Posted by Savington View Post
I've driven a .86 DP on a 1.6 and I didn't like it either.
Well once i blow up my motor ill build a 1.9L Thanks for the info guys.
SKMetalworks is offline
Old 01-13-2010, 08:14 PM
  #16
Bannisheded
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 50
Default

...i read this after i just bought splitimes disco setup hahaha....
shlammed is offline
Old 01-13-2010, 08:23 PM
  #17
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,311
Total Cats: 30
Default

Originally Posted by shlammed View Post
...i read this after i just bought splitimes disco setup hahaha....
Ignore the naysayers. The miata folk have lived behind other automotive worlds for a long time for a reason
Splitime is offline
Old 01-13-2010, 09:24 PM
  #18
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,731
Total Cats: 3
Default

Im hoping for full spool (10psi) by 4250. If its 4500 or 5k it will be pretty much completely useless for the track (atleast on a 1.6L). With the manifold design (Thank you Turbotim) and uber 3" non restrictive exhaust and some port matching/polishing on the exhaust side im hoping to achieve this.
SKMetalworks is offline
Old 01-13-2010, 09:27 PM
  #19
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,313
Total Cats: 2,019
Default

Originally Posted by SKMetalworks View Post
Im hoping for full spool (10psi) by 4250. If its 4500 or 5k it will be pretty much completely useless for the track (atleast on a 1.6L). With the manifold design (Thank you Turbotim) and uber 3" non restrictive exhaust and some port matching/polishing on the exhaust side im hoping to achieve this.
You'll have no trouble making 10psi at 4200. IIRC, the car I drove was making ~15psi at around 4700rpm, which is pretty late IMO. My 1.9L 2871R .86 is more responsive and spools quite a bit better than the 1.6L 2860RS .86 I drove. I've also driven a 1.9L 2860RS .86 and it was significantly better as well.
__________________

High-Performance Turbo Specialists - Sunnyvale, CA - Email us!

Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Old 01-13-2010, 09:29 PM
  #20
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,712
Total Cats: 3
Default

Originally Posted by SKMetalworks View Post
Im hoping for full spool (10psi) by 4250. If its 4500 or 5k it will be pretty much completely useless for the track (atleast on a 1.6L). With the manifold design (Thank you Turbotim) and uber 3" non restrictive exhaust and some port matching/polishing on the exhaust side im hoping to achieve this.
Completely useless is pretty extreme. At bremerton I dont ever get below 4500 which is a track that turbo will like a lot.

Did I read that you're going to the Alfa club school?
wayne_curr is offline
