Default DIY coolant reroute from aluminum race jack

I turned my old aluminum race jack into parts for a lower coolant reroute. I used a Moss spacer for the upper reroute. I'm still waiting on the Kia thermostat housing.

The sides of the jack were used for the front blocking plate, the base for the water bump inlet and the threaded temp sensor mount on the spacer. I used the jack handle to make the tubes for the water pump inlet and the front tube to connect the radiator to the water pump inlet. It was made as an elbow to make sourcing the hose easier. All I need is two 90 degree bends to connect it.

I used a Dremel to make the thermostat groove on the spacer. I used 5/8" aluminum tube to make the heater hose nipples on the spacer and the front tube. I still have to add the small hose barb to the water pump inlet part.
Attached Thumbnails
DIY coolant reroute from aluminum race jack-dcp_4822.jpg
99mx5 is offline   Reply With Quote
Old 08-22-2011, 01:03 AM   #2
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Very cool! I'd love to see pics when when completed.

Still love my caveman reroute lol.
turotufas is offline   Reply With Quote
Old 08-22-2011, 09:08 AM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Now the jack is worth something.
hustler is offline   Reply With Quote
Old 08-22-2011, 10:54 AM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

This is ******* awesome.
Faeflora is offline   Reply With Quote
Old 08-22-2011, 01:04 PM   #5
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

This is super sweet. Is it worth it to do this on a car I daily?
Sean is offline   Reply With Quote
Old 08-22-2011, 01:09 PM   #6
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

would have been cheaper to just buy the 15$ of aluminum from a supplier?
shlammed is offline   Reply With Quote
Old 08-22-2011, 03:00 PM   #7
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,403
Total Cats: 262
Default

Quote:
Originally Posted by shlammed View Post
would have been cheaper to just buy the 15$ of aluminum from a supplier?
I first tried to source the aluminum tubes but could not find any. Then my jack broke and I realized that it had all the aluminum for the parts I needed. The handle was a perfect match for the coolant hoses.
99mx5 is offline   Reply With Quote
Old 08-23-2011, 01:03 AM   #8
Junior Member

Join Date: Nov 2010
Location: Chicagoland
Posts: 160
Total Cats: 2
Default

lol nice recycling job.
natedawg is offline   Reply With Quote
Old 08-23-2011, 11:21 AM   #9
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,050
Total Cats: 5
Default

Full of win. Good work sir.
Efini~FC3S is offline   Reply With Quote
Old 08-24-2011, 12:44 PM   #10
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

MMMMMmmm!!! I have one of those jacks that keeps blowing seals and have rebuilt it 3 times. This might be a much better use for it. Great idea!
Rallas is offline   Reply With Quote
Old 08-31-2011, 04:19 PM   #11
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,403
Total Cats: 262
Default

Thanks! I've made some changes to it, ill post pics when its fitted.
99mx5 is offline   Reply With Quote
Old 09-01-2011, 01:05 PM   #12
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by 99mx5 View Post
I first tried to source the aluminum tubes but could not find any. Then my jack broke and I realized that it had all the aluminum for the parts I needed. The handle was a perfect match for the coolant hoses.
For future reference

http://www.onlinemetals.com/

Virtually any type size or shape of material in small or large quantities to your door in within a day or two.

Nice job of recycling though. I swear it seems some of that fully manufactured **** you get at Harbor Freight cost less than you could get the raw materials for.

Bob
bbundy is offline   Reply With Quote
Old 10-03-2011, 01:07 AM   #13
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,403
Total Cats: 262
Default

OK. After taking a vacation, I finally finished this project.

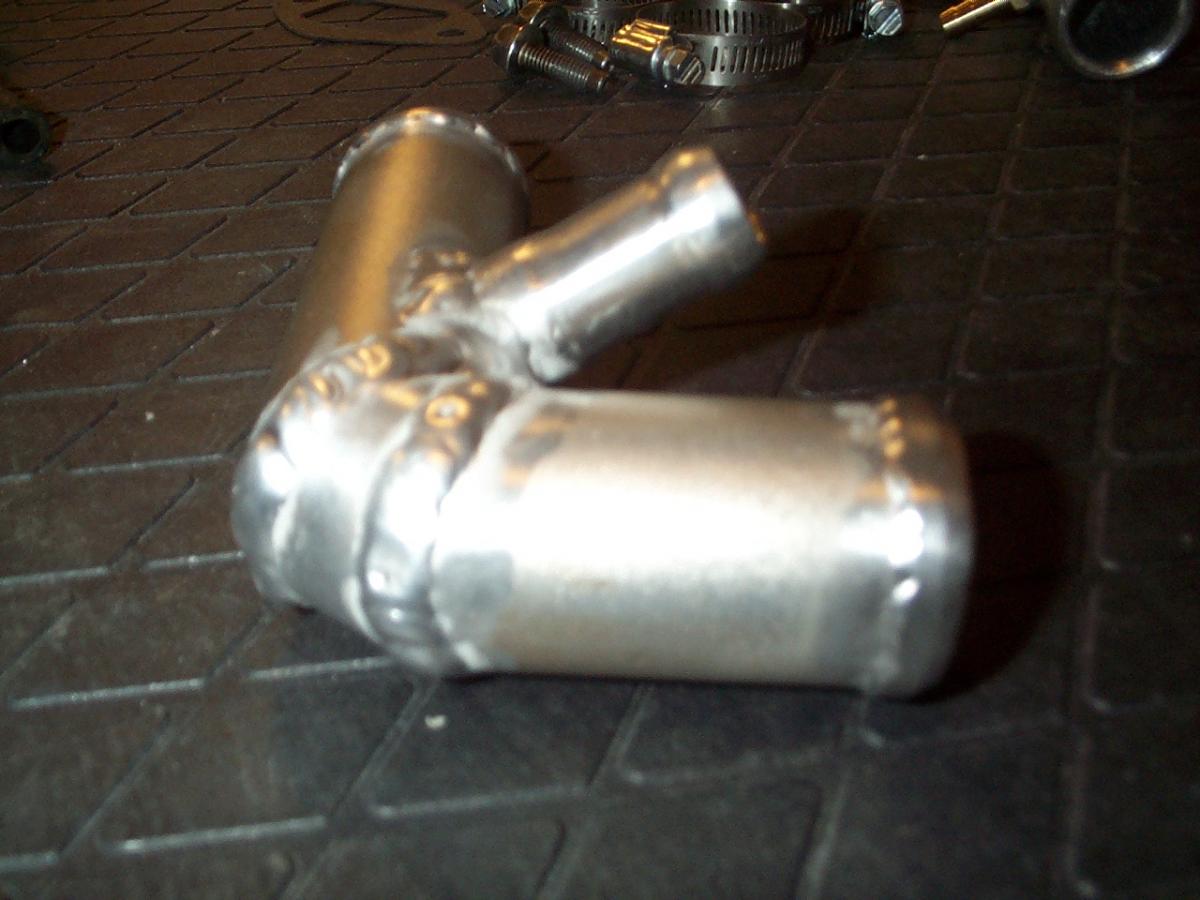

The water pump inlet ported to match the rectangular opening. The elbow has a nipple for the heater hose offset so that it doesn't interfere with the AC pulley. I also added spacers for the idler pulley bracket so that it clears the inlet.
Attached Thumbnails
DIY coolant reroute from aluminum race jack-dcp_4855.jpg   DIY coolant reroute from aluminum race jack-dcp_4858.jpg   DIY coolant reroute from aluminum race jack-dcp_4860.jpg   DIY coolant reroute from aluminum race jack-dcp_4861.jpg   DIY coolant reroute from aluminum race jack-dcp_4903.jpg

99mx5 is offline   Reply With Quote
Old 10-03-2011, 01:07 AM   #14
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,403
Total Cats: 262
Default

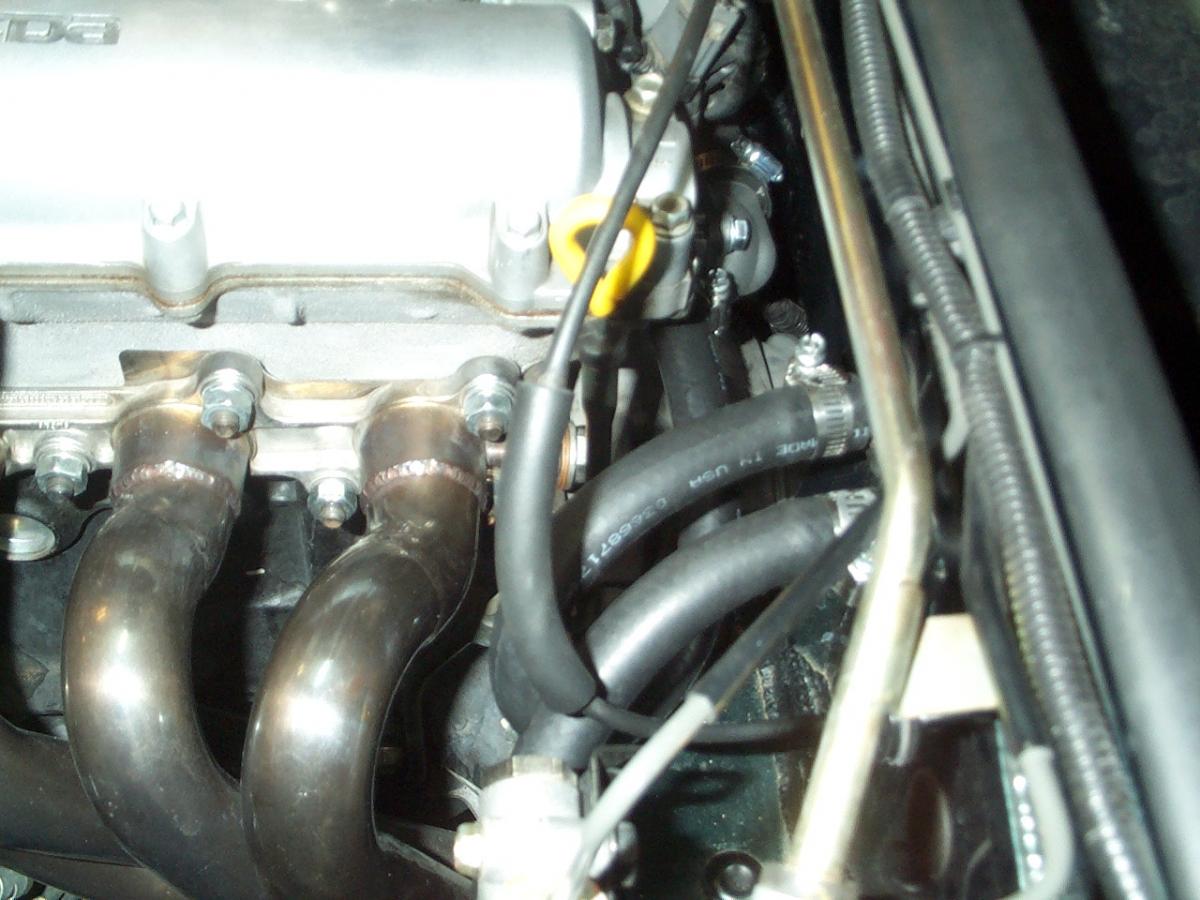

The upper reroute was also completed. I installed the spacer and Kia thermostat housing. I had to buy another hose section with two bends and join it at the rear to raise the hose so that the long GM hose would clear the AC lines. I left the front plate with the blue anodize.
Attached Thumbnails
DIY coolant reroute from aluminum race jack-dcp_4868.jpg   DIY coolant reroute from aluminum race jack-dcp_4904.jpg   DIY coolant reroute from aluminum race jack-dcp_4905.jpg   DIY coolant reroute from aluminum race jack-dcp_4869.jpg   DIY coolant reroute from aluminum race jack-dcp_4836.jpg

99mx5 is offline   Reply With Quote
Old 10-10-2011, 11:46 AM   #15
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

Quote:
Originally Posted by 99mx5 View Post
I turned my old aluminum race jack into parts for a lower coolant reroute. I used a Moss spacer for the upper reroute. I'm still waiting on the Kia thermostat housing.

The sides of the jack were used for the front blocking plate, the base for the water bump inlet and the threaded temp sensor mount on the spacer. I used the jack handle to make the tubes for the water pump inlet and the front tube to connect the radiator to the water pump inlet. It was made as an elbow to make sourcing the hose easier. All I need is two 90 degree bends to connect it.

I used a Dremel to make the thermostat groove on the spacer. I used 5/8" aluminum tube to make the heater hose nipples on the spacer and the front tube. I still have to add the small hose barb to the water pump inlet part.
Ok that's an awesome use of a crappy jack. I think I have one of those broken in my garage somewhere.
MicaCeli is offline   Reply With Quote
Old 10-13-2011, 02:51 PM   #16
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,403
Total Cats: 262
Default

Thanks! This reroute works really well. When I finished it I thought my temp sensor was bad because the temp gauge was always cold. To verify, I disconnected the fans and the temp gauge needle started to move. This mod going to be great on the track.
99mx5 is offline   Reply With Quote
Old 10-14-2011, 11:09 AM   #17
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

I would do this if I wasnt too dumb to weld alum. You using a tig?
MicaCeli is offline   Reply With Quote
Old 10-14-2011, 02:42 PM   #18
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Most of it can be done without welding if you just buy the $80 BEGI spacer. Expensive compared to the above freeness, but the original mixing manifold can be tapped for a turbo water line and/or turned around, and the elbow isn't necessary if you don't have AC. Just the Yukon hose and a 90* piece that has a bit of length off one end.
curly is offline   Reply With Quote
Old 10-14-2011, 02:52 PM   #19
Junior Member
iTrader: (8)

Join Date: Mar 2007
Location: Sarasota, FL
Posts: 334
Total Cats: 0
Default

I got my spacer from Reverend Greg on here, I've also read about people using one from Moss (I believe this part has to be drilled/tapped though):

part number is 051-046

No need to call Moss. You can order by part number directly from their web page and it will put the spacer in the cart and show a price automatically:

http://www.miatamania.com/shop/OrderByPart.aspx

Edit: It's $15 and here's more info:
http://users.telenet.be/miata/englis...nt_reroute.htm
chokeasphyxia is offline   Reply With Quote
Old 10-14-2011, 03:01 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

gotta get a lip machined for the thermostat.
