Default DIY Exhaust manifold "spanish style"

And here we go..

The good artist copies but the genius steals. Unfortunately I have no one near to steal his manifold so i decided to make my own.

Preparing a flange for a manifold:

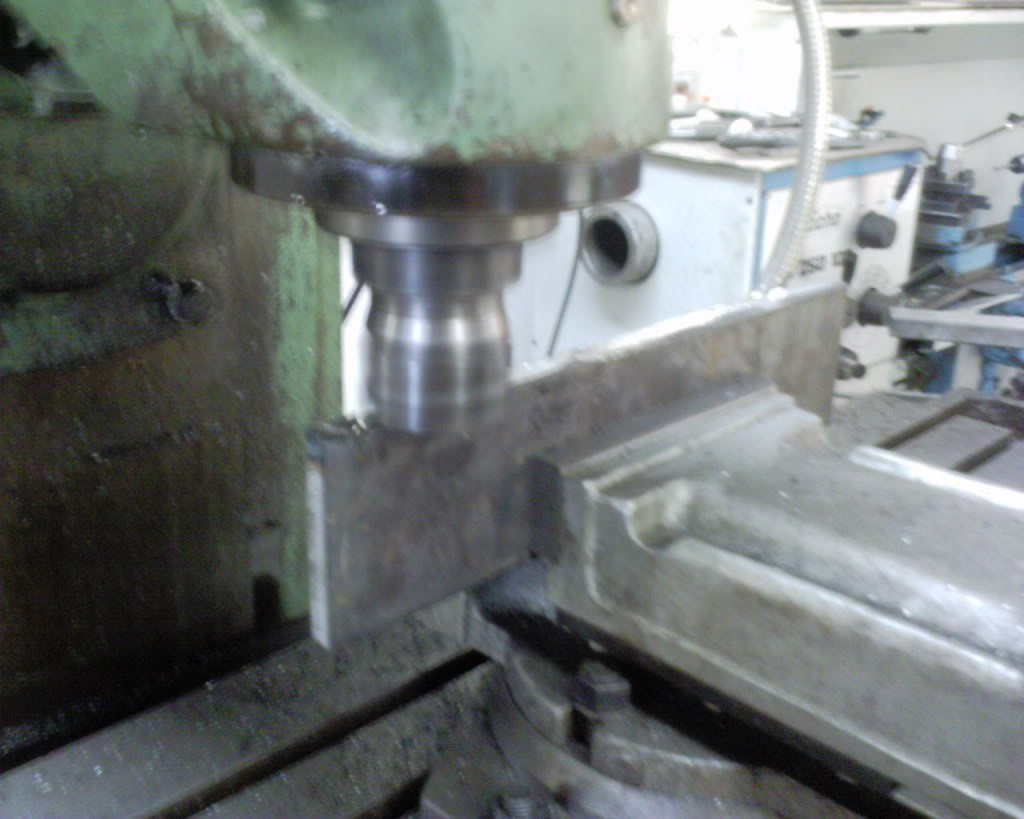

Name:  DSC00083.jpg
Views: 14
Size:  80.2 KB

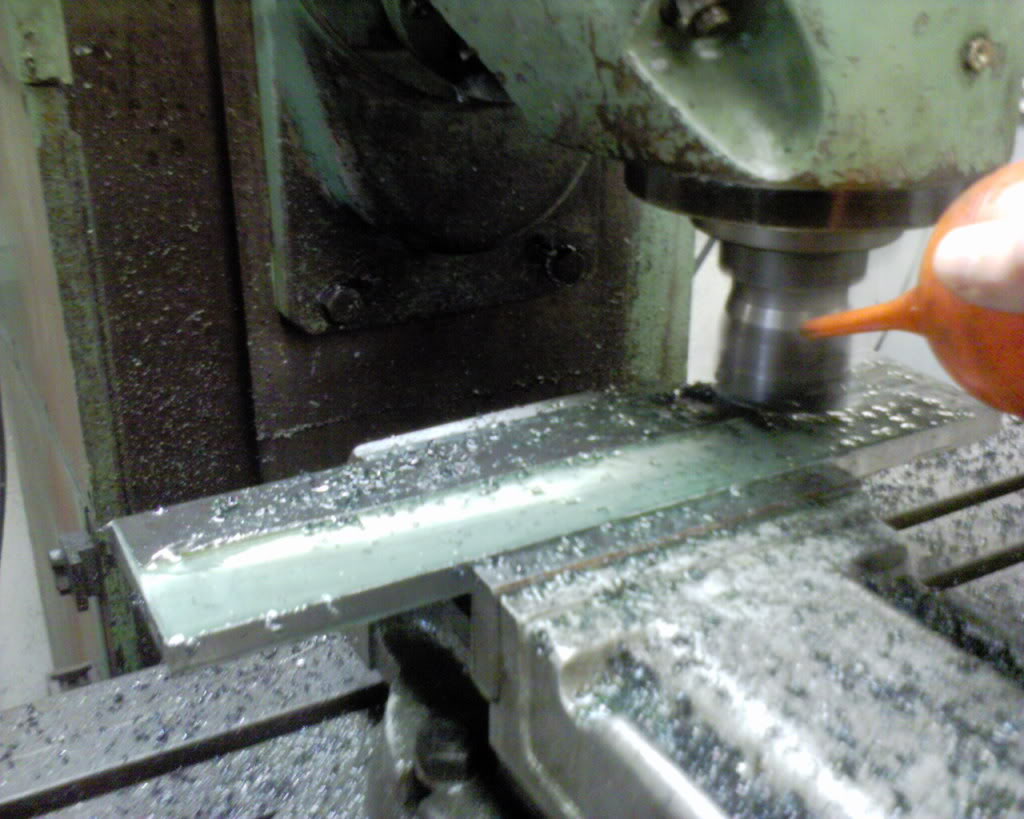

Name:  DSC00084.jpg
Views: 12
Size:  114.0 KB

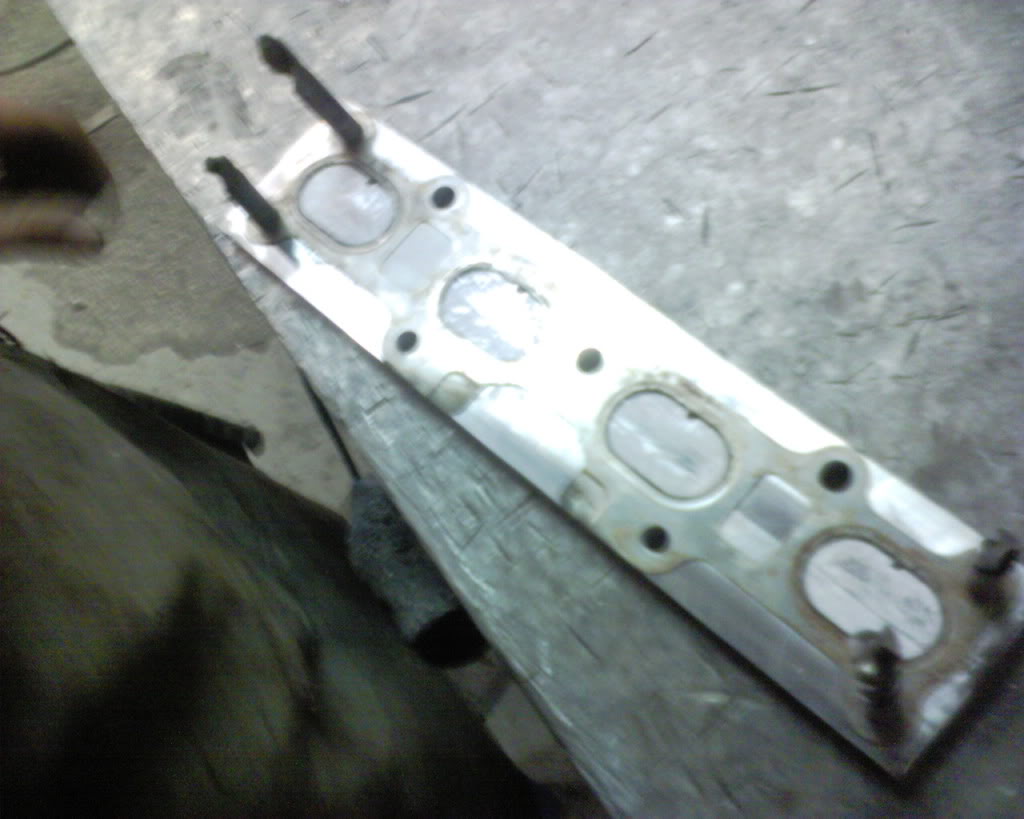

Name:  DSC00090.jpg
Views: 13
Size:  83.8 KB

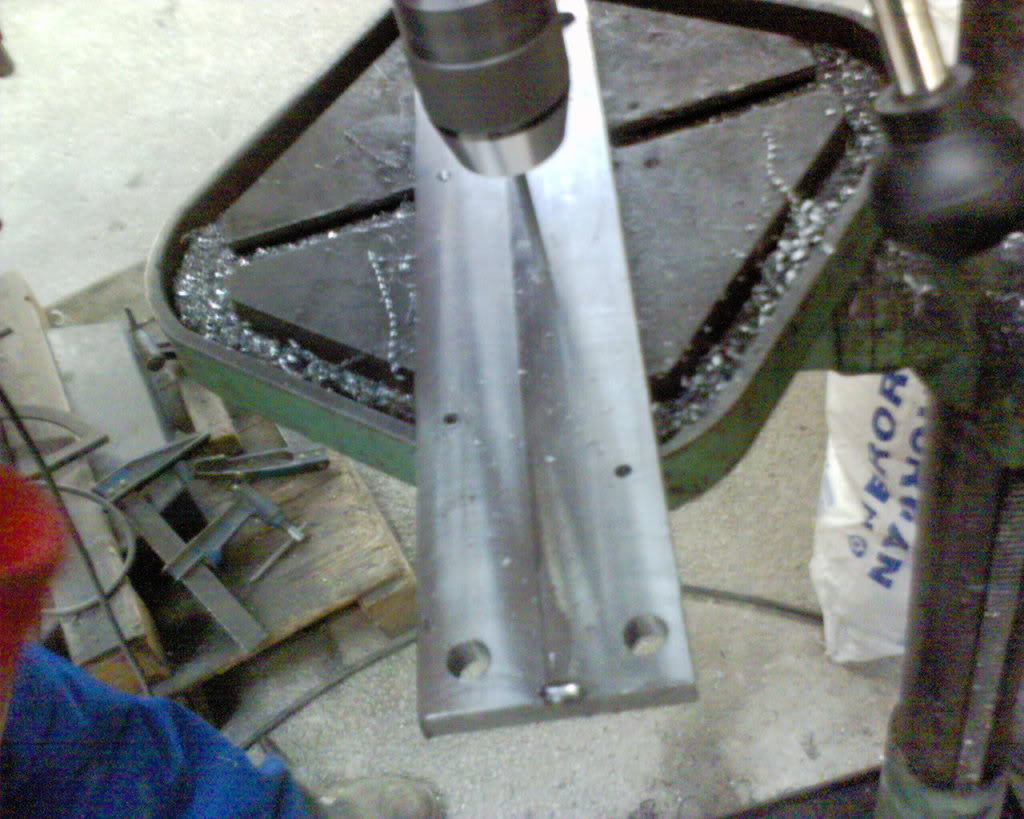

Name:  DSC00088-1.jpg
Views: 12
Size:  130.7 KB

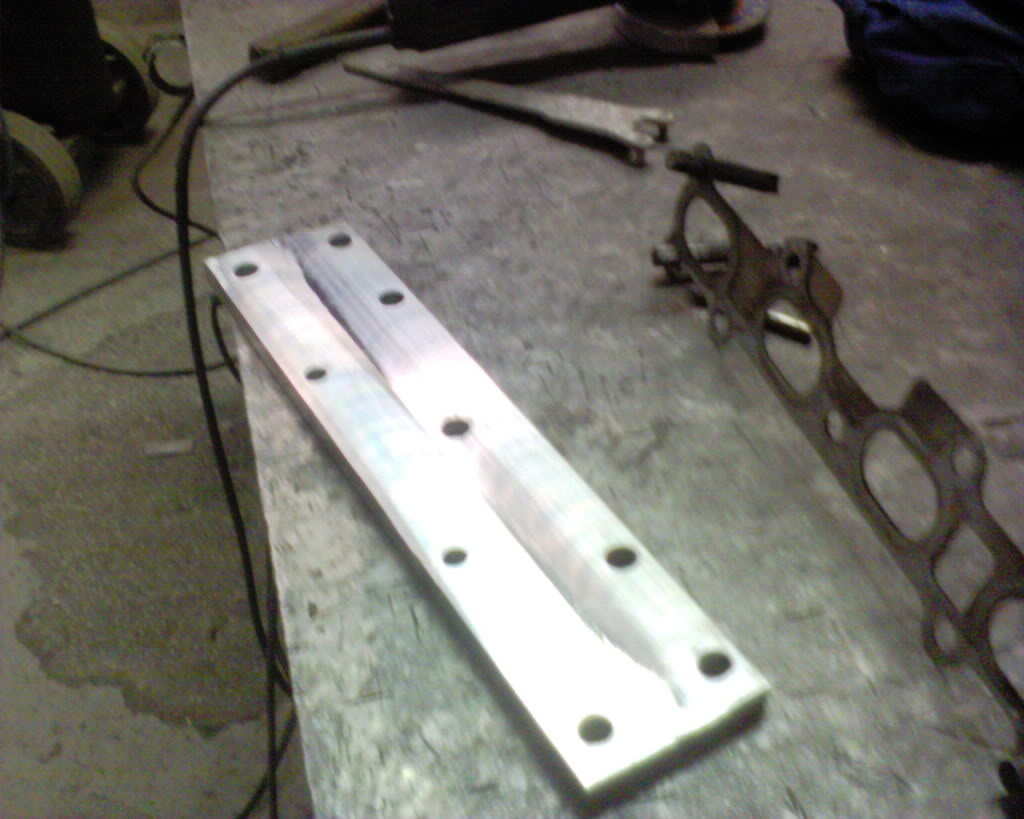

Name:  DSC00089.jpg
Views: 13
Size:  89.8 KB

I haven't pics of how I do the exhaust ports on the flange, because plasma cut and digital camera are uncompatible.

Name:  DSC00093.jpg
Views: 12
Size:  113.7 KB

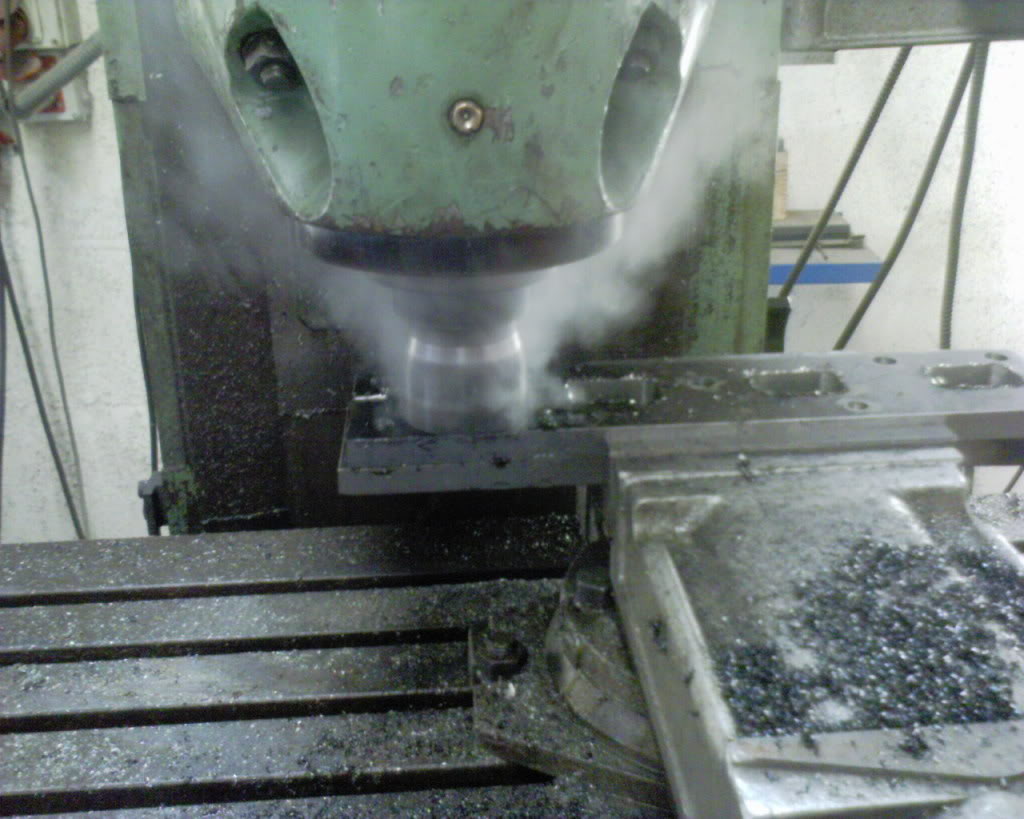

Name:  DSC00094.jpg
Views: 12
Size:  112.3 KB

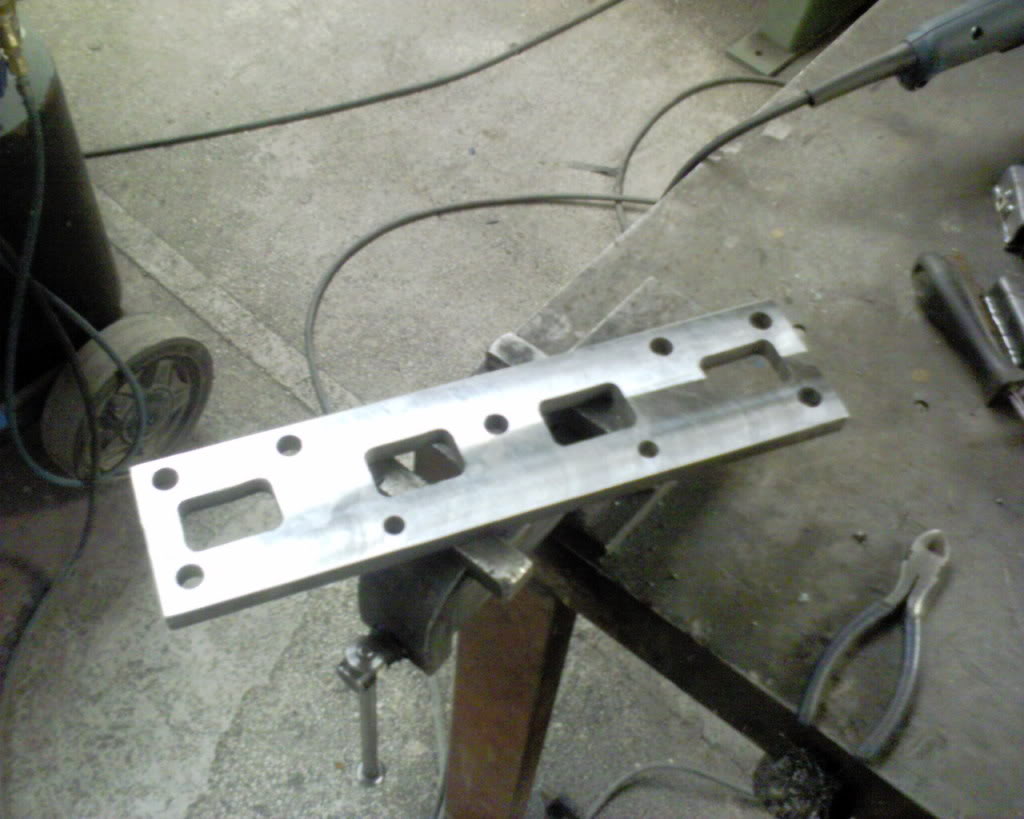

Name:  DSC00096.jpg
Views: 13
Size:  96.1 KB

T3 flange:

Name:  DSC00125.jpg
Views: 13
Size:  96.7 KB

Ancient geometers were dreaming of squaring the circle. A couple of tons can do it.

Name:  DSC00114.jpg
Views: 13
Size:  82.3 KB
Name:  DSC00122.jpg
Views: 13
Size:  127.1 KB
Name:  DSC00121.jpg
Views: 12
Size:  135.3 KB

almost finished:

Name:  DSC00127.jpg
Views: 19
Size:  128.3 KB

and... done:

Name:  DSC00128.jpg
Views: 88
Size:  114.2 KB

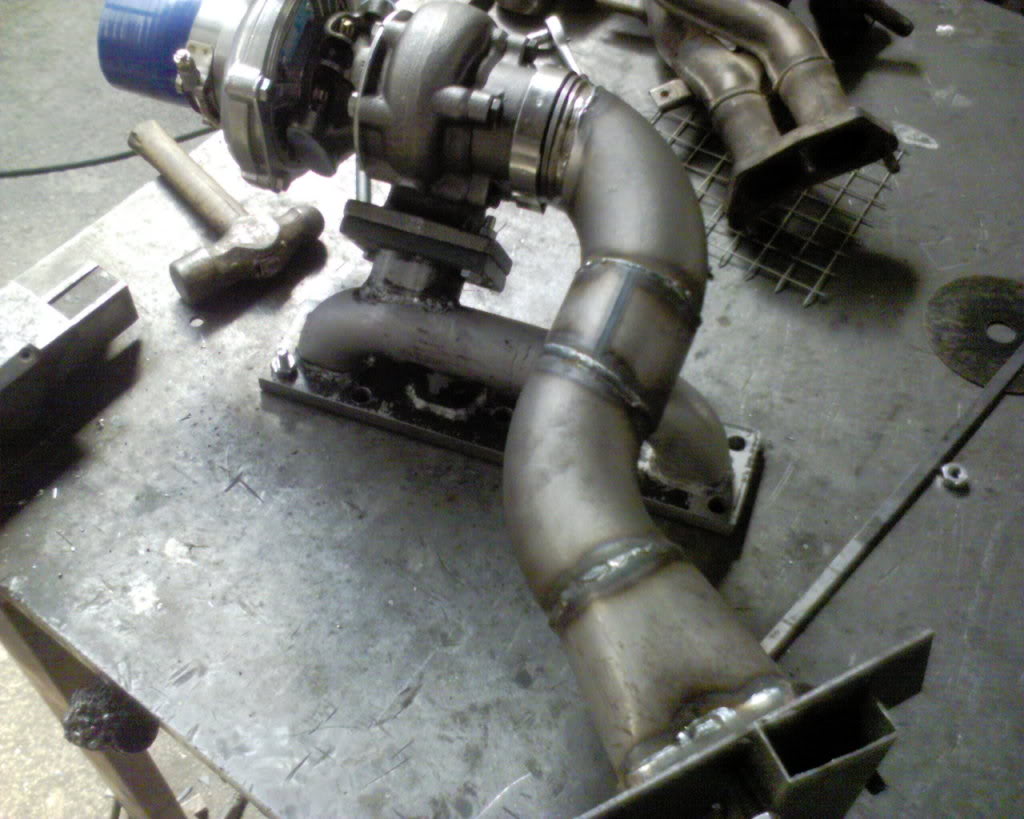

Bonus, how to make your own downpipe 3D design: attach the original exhaust manifold to a flat surface, make some marks, weld a flat piece of metal at the end of the exhaust manifold. Place the new manifold w/turbo in the marks. Start your downpipe building:

Name:  DSC00136.jpg
Views: 15
Size:  115.8 KB

I hope you like it
ismael_pt is offline   Reply With Quote
Old 04-04-2009, 10:05 PM   #2
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

and you call yourself a NOOB.

i like it! good luck.
240_to_miata is offline   Reply With Quote
Old 04-04-2009, 10:11 PM   #3
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Coņo Ismael!

Good work.
Rafa is offline   Reply With Quote
Old 04-04-2009, 10:31 PM   #4
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

That's awesome! You're not that much of a newb. A lot of here don't have fab skillz at all (myself included).
messiahx is offline   Reply With Quote
Old 04-04-2009, 10:33 PM   #5
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Nice stuff man, I wish I could make my own stuff.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-04-2009, 10:35 PM   #6
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Looks great, hadn't seen someone make their own flange before, good work! Are your ports really that square?
kotomile is offline   Reply With Quote
Old 04-04-2009, 10:47 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by kotomile View Post
Looks great, hadn't seen someone make their own flange before, good work! Are your ports really that square?
Nop, the ports are not that square, but making them more square makes easier to weld on the inner side.
ismael_pt is offline   Reply With Quote
Old 04-05-2009, 12:36 AM   #8
Junior Member

Join Date: Feb 2009
Location: Miami, FL
Posts: 61
Total Cats: 0
Default

That manifold design is time tested to flow enough and the welds look good too.
rogezeus2003 is offline   Reply With Quote
Old 04-05-2009, 04:56 AM   #9
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Wow, that looks great!! I plan to pick up a welder soon to start learning.
zoomin is offline   Reply With Quote
Old 04-05-2009, 07:37 AM   #10
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Looks good! The machine shop we use for the FSAE car has everything id need to make stuff like that... too bad I dont have anything like that at home =(. I love making things with a lathe and milling machines lol.
cardriverx is offline   Reply With Quote
Old 04-05-2009, 08:05 AM   #11
Junior Member
iTrader: (2)

Join Date: Jul 2006
Location: Birmingham, Alabama
Posts: 209
Total Cats: 0
Default

Nice job. It must be nice to have access to tools and machines like that. If I had a machine shop like that I could conquer the world.
92Black&Tan is offline   Reply With Quote
Old 04-05-2009, 09:01 AM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

there is a big FAIL in the pictures and nobody noticed yet?
ismael_pt is offline   Reply With Quote
Old 04-05-2009, 09:02 AM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

BTW is fixed in the last picture.
ismael_pt is offline   Reply With Quote
Old 04-05-2009, 09:28 AM   #14
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Great work there...nothing like having the right tools/machines for the job....I love working in a manufacturing plant, lol.
Cspence is offline   Reply With Quote
Old 04-05-2009, 02:59 PM   #15
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by ismael_pt View Post
there is a big FAIL in the pictures and nobody noticed yet?
Quote:
Originally Posted by ismael_pt View Post
BTW is fixed in the last picture.
The mani was upside-down on the flange?
kotomile is offline   Reply With Quote
Old 04-05-2009, 09:22 PM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by kotomile View Post
The mani was upside-down on the flange?
Yes
ismael_pt is offline   Reply With Quote
Old 04-05-2009, 10:21 PM   #17
Junior Member

Join Date: Mar 2009
Location: Venice, FL
Posts: 179
Total Cats: 9
Default

I assumed it was deliberate to "show off" the turbo if not make it easier to run the piping.

There are some little nit-picky things that arent perfect, but it looks like a solid piece that is much better off than a eBay junk, plus the satisfaction of building it yourself. How much did you spend on it all? Nice job
Orion ZyGarian is offline   Reply With Quote
Old 04-05-2009, 10:50 PM   #18
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

Tio, que buen trabajo!
mrtonyg is offline   Reply With Quote
Old 04-06-2009, 03:11 PM   #19
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by Orion ZyGarian View Post
I assumed it was deliberate to "show off" the turbo if not make it easier to run the piping.

There are some little nit-picky things that arent perfect, but it looks like a solid piece that is much better off than a eBay junk, plus the satisfaction of building it yourself. How much did you spend on it all? Nice job
30-40$, I can't remember exactly.

Quote:
Originally Posted by mrtonyg View Post
Tio, que buen trabajo!
Gracias Tony y puxa asturies!!
ismael_pt is offline   Reply With Quote
Old 04-06-2009, 04:58 PM   #20
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

+1 for DIY. Props for a fellow fabricator.
TheBandit is offline   Reply With Quote
