this is my car now. thanks for chopping my hood up *******. so weird seeing this thread.
martyxattack is offline   Reply With Quote
Old 11-08-2010, 07:29 PM   #22
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by martyxattack View Post
this is my car now. thanks for chopping my hood up *******. so weird seeing this thread.
Wait.. so you bought the clean *** white S/C car from the first post and you're bitching about a simple effective IC setup because he cut out some of the under structure in the hood... if that is the case... shut up and untwist your panties... or did I miss the sarcasm font?
baron340 is offline   Reply With Quote
Old 11-08-2010, 07:36 PM   #23
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

that car wasnt supercharged when he bought it! that IC set up is on my friends car. so he has a hacked up hood with no boost.....
WonTon is offline   Reply With Quote
Old 11-08-2010, 10:12 PM   #24
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by WonTon View Post
that car wasnt supercharged when he bought it! that IC set up is on my friends car. so he has a hacked up hood with no boost.....
Ah.. now that makes more sense (and sucks more)... but at least he has a nice DIY so he knows exactly how the pipes were run to fit the holes in the hood.
baron340 is offline   Reply With Quote
Old 11-09-2010, 11:02 PM   #25
I'm Miserable!

Join Date: Oct 2010
Location: Fort Bragg, NC
Posts: 189
Total Cats: 0
Default

so he bought a car that WASNT s/c anymore, knowing that it was at one time and has a chopped up hood but is bitching about it?

this sounds more correct...??

or unless that is sarcasm indeed?
BoostedTrixx is offline   Reply With Quote
Old 11-13-2010, 04:20 PM   #26
Roo
Newb

Join Date: Aug 2009
Location: Lake Orion, Michigan
Posts: 12
Total Cats: 0
Default

beautiful work on the intercooler and oil cooler jobs - thanks for sharing!

what would the advantage be of putting the oil cooler up front as oppose to the rear bumper like on the flyin' miata track dog?
Roo is offline   Reply With Quote
Old 11-14-2010, 01:27 AM   #27
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Lines that aren't 10ft long.

Honestly, They did that because it was a good location that didn't block there intercooler and radiator setup what so ever. For 99% of the cars on here, blocking those two heat exchangers partially with a small oil cooler isn't a big deal.

I thought I remembered hearing that their rear bumper location didn't end up working correctly.
curly is offline   Reply With Quote
Old 11-14-2010, 09:02 AM   #28
Newb

Join Date: Sep 2010
Location: Basingstoke, UK
Posts: 17
Total Cats: 0
Default

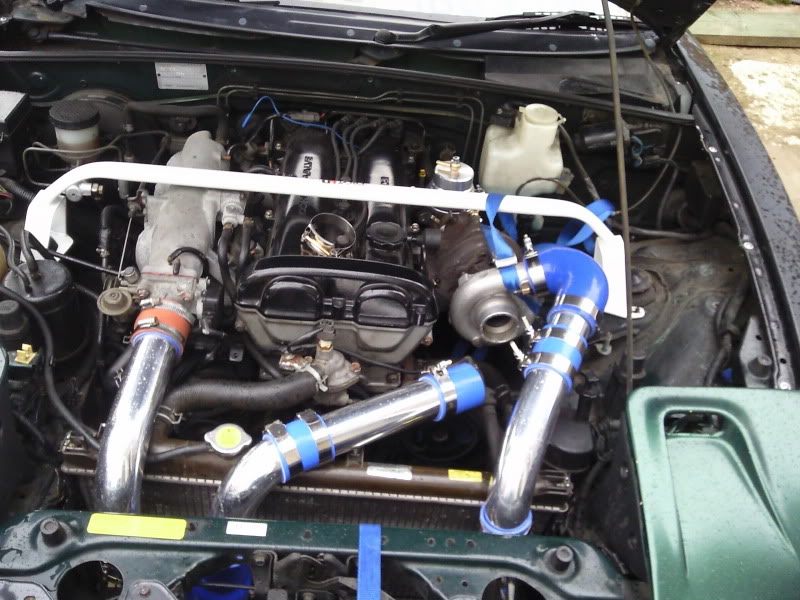

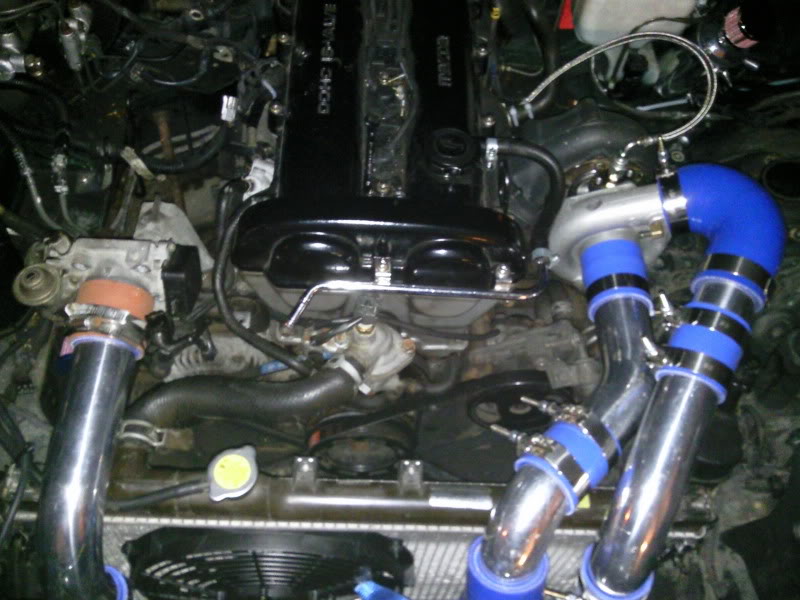

You don't need to cut the hood


Name:  Photo0058.jpg
Views: 86
Size:  114.8 KB


Name:  Photo0096.jpg
Views: 86
Size:  92.0 KB

Haven't got the car at the moment, It's off for paint, I will post better pics when it is back.

I used the same pipe kit mentioned earlier and a similar intercooler.

Just move the radiator and buy another fan....
dean.L is offline   Reply With Quote
Old 11-14-2010, 10:50 AM   #29
Junior Member

Join Date: Jan 2010
Location: Atlanta GA
Posts: 167
Total Cats: 0
Default

The setup from the white car is actually on my car now. I had to cut the hood as well although apparently my 97 is slightly different because I had to adjust my hood to be about 1/16 of an inch higher so there's a small panel gap.

Doesn't bother me though. The only thing I don't like is having to press down on the hood to shut it completely but so far there's no dents.
D.dutton9512 is offline   Reply With Quote
Old 11-15-2010, 12:00 PM   #30
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by dean.L View Post
You don't need to cut the hood







Haven't got the car at the moment, It's off for paint, I will post better pics when it is back.

I used the same pipe kit mentioned earlier and a similar intercooler.

Just move the radiator and buy another fan....

What did you do - move the radiator back ?
poobs is offline   Reply With Quote
Old 11-15-2010, 12:49 PM   #31
Newb

Join Date: Sep 2010
Location: Basingstoke, UK
Posts: 17
Total Cats: 0
Default

Yes, back and down a bit, then just use a 'push' fan on the other side.
It gets more air too as it isn't as obstructed by the front panel...
leaves a nice space for the air filter too.
dean.L is offline   Reply With Quote
Old 11-16-2010, 07:19 AM   #32
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Quote:
Originally Posted by dean.L View Post
Yes, back and down a bit, then just use a 'push' fan on the other side.
It gets more air too as it isn't as obstructed by the front panel...
leaves a nice space for the air filter too.

Thanks !
poobs is offline   Reply With Quote
Old 11-17-2010, 11:31 AM   #33
Newb

Join Date: Jul 2008
Location: MIA, FLA
Posts: 9
Total Cats: 0
Default

Looks Good!!!
fla-miata is offline   Reply With Quote
Old 11-19-2010, 09:40 AM   #34
Newb

Join Date: Nov 2009
Location: ratlanta
Posts: 19
Total Cats: 0
Default

Quote:
Originally Posted by WonTon View Post
that car wasnt supercharged when he bought it! that IC set up is on my friends car. so he has a hacked up hood with no boost.....
thankyou for clearing things up for everyone. and i wasnt bitching. just loling at seeing my car and making a relevant post.
martyxattack is offline   Reply With Quote
Old 02-01-2012, 04:32 PM   #35
Newb

Join Date: Feb 2011
Location: Irvine, CA
Posts: 35
Total Cats: 0
Default

Very nice. I will be putting together a similar set up this weekend! Wish me luck. Quick question! Is there a reason why the inter cooler is sitting tilted or was that just for a funny shot?

Dan
DanMardik is offline   Reply With Quote
Old 02-02-2012, 01:08 AM   #36
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Wowza old thread.

If you look at his brackets they're not exactly high quality, it's probably more that then anything, or it's only being held in partially for that picture. I made similar brackets out of thicker steel from Home Depot and if you take your time, measure for the holes, and bend them at the same time, it holds it straight.

I wouldn't suggest tilting the radiator unless you duct it afterwords and have an aftermarket all metal unit. The extra force on top of the brittle plastic end tanks can't be good.
curly is offline   Reply With Quote
Old 02-02-2012, 01:35 AM   #37
Newb

Join Date: Feb 2011
Location: Irvine, CA
Posts: 35
Total Cats: 0
Default

I noticed the hood latch mechanism has some bracketry that extends toward the front bumper side. Did you just move the intercooler further down or did you modify it?
DanMardik is offline   Reply With Quote
Old 02-02-2012, 01:57 AM   #38
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Hood pins. It's completely gone. That lower bracket you speak of can be removed and the OEM latch system will still work, just with a little more flex I guess.
curly is offline   Reply With Quote
Old 02-09-2012, 03:04 PM   #39
Newb

Join Date: Feb 2011
Location: Irvine, CA
Posts: 35
Total Cats: 0
Default

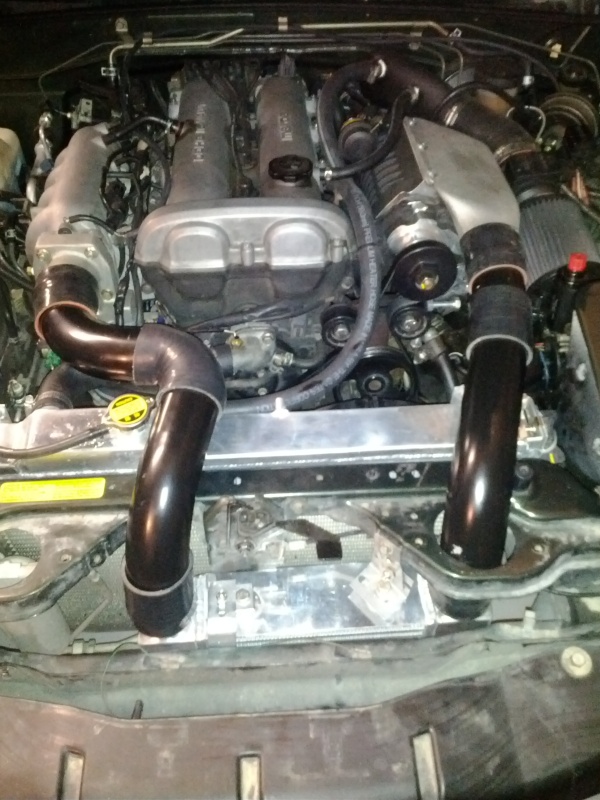

So this is where I sit with this as of today. This is a quick mock up of the position. Will be taking out all the pipes and sanding the insides for a smooth finish. Then onto cutting the hood.. Definitely not looking forward to it, I'm also concerned even with cutting that I may have a problem with the hood closing.. I won't know until I start cutting.

Attached Thumbnails
DIY: Over the radiator intercooler install-c8c28d87.jpg
DanMardik is offline   Reply With Quote
Old 02-09-2012, 06:42 PM   #40
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by DanMardik View Post
I'm also concerned even with cutting that I may have a problem with the hood closing.. I won't know until I start cutting.
This is why my 2" pipes were smashed. Probably not quite needed, but might be with your 2.5" pipes.

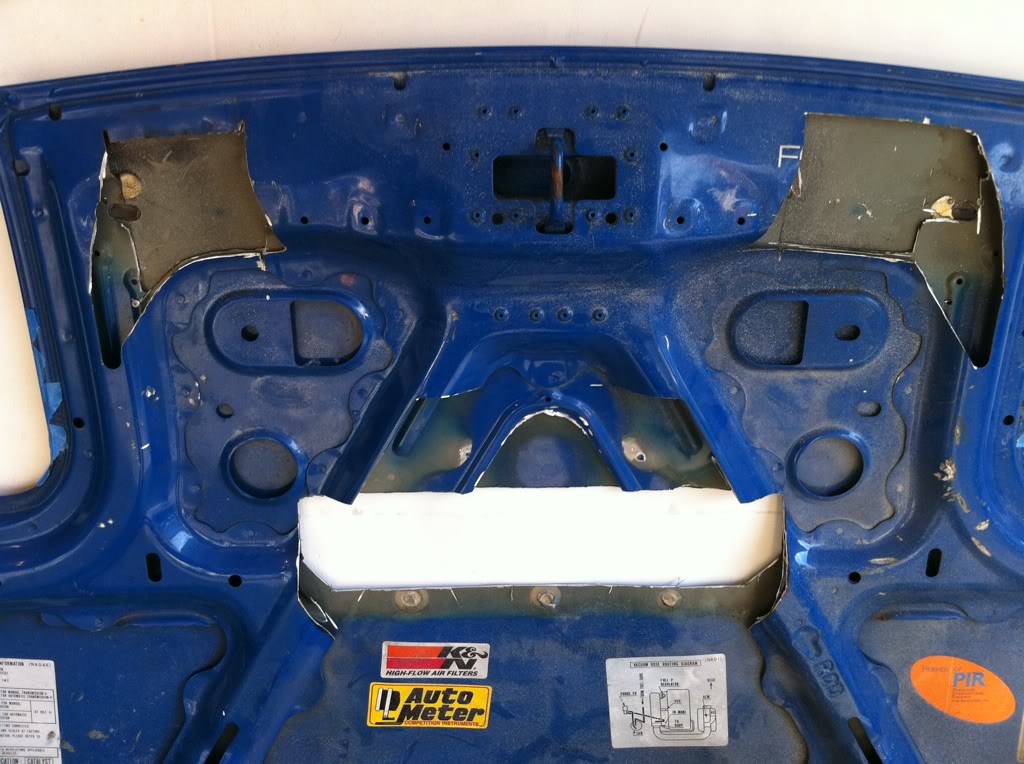

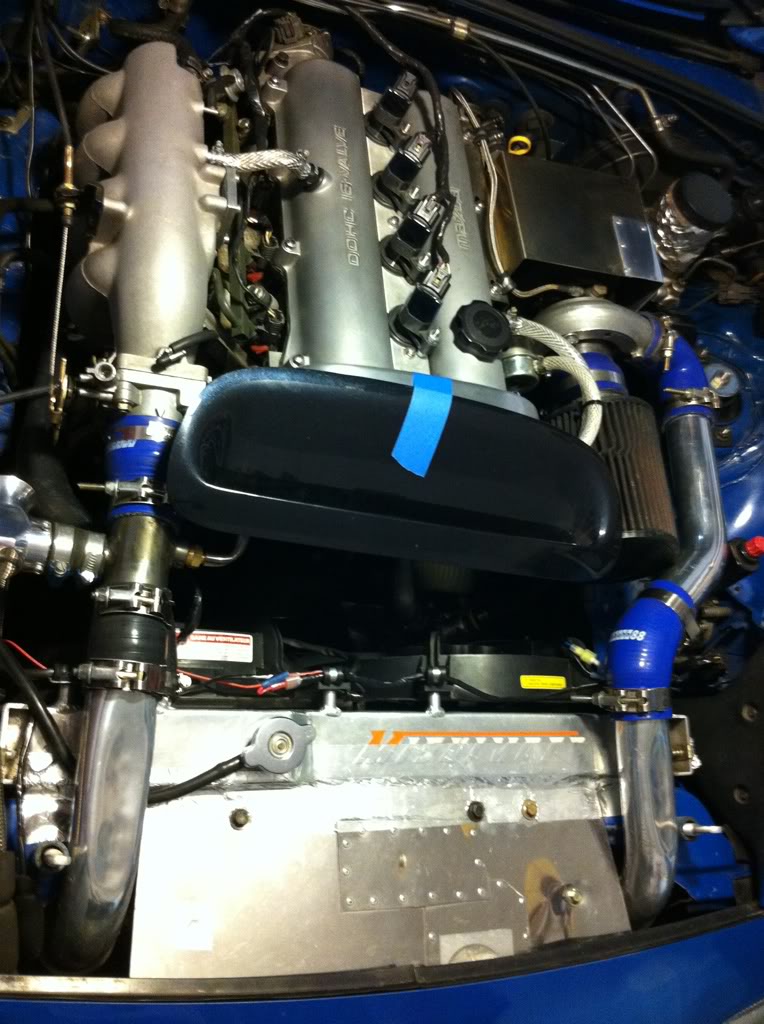

hood relief reference:
Attached Thumbnails
DIY: Over the radiator intercooler install-b1b5d8f9.jpg   DIY: Over the radiator intercooler install-b9d0db06.jpg
curly is offline   Reply With Quote
