Thumbs up DIY: Over the radiator intercooler install

Well I have a supercharger but you get the idea. I spent the weekend on this and I must say, the IAT readings have gone from 160-190 to 90-111! Here's the original thread:

DIY: Over the radiator supercharger intercooler install - MX5 Miata Atlanta Owners Club

For many supercharger owners who want more boost we're left with two main intercooler options: a turbo one, or the 30 thousand dollar Track Dog Racing one.

This is the third option, full on DIY. I bought the IC core from Tommy on here for $100 but also found something similar on ebay here:

http://cgi.ebay.com/ebaymotors/ws/eB...%3AMEWAX%3AVRI

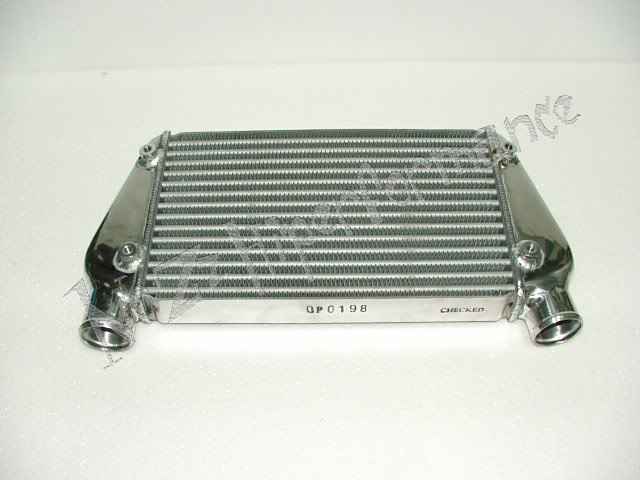

Name:  235418921_o.jpg
Views: 225
Size:  48.2 KB

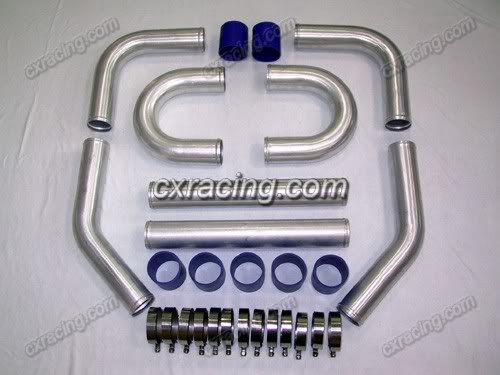

And I then went and bought this piping:

http://cgi.ebay.com/ebaymotors/ws/eB...m=370226563594

Name:  AU-KIT-250-U.jpg
Views: 217
Size:  36.7 KB

And accompanied it all with some bolts and brackets from Lowe's.

So in total I've spent about $220 for absolutely everything, that's including brackets, bolts and other **** I've needed.

So first step is to remove that plastic thing in the mouth of the car. That's pretty self-explanatory as to where all the bolts are. The next step is to mount the IC.

... more to come

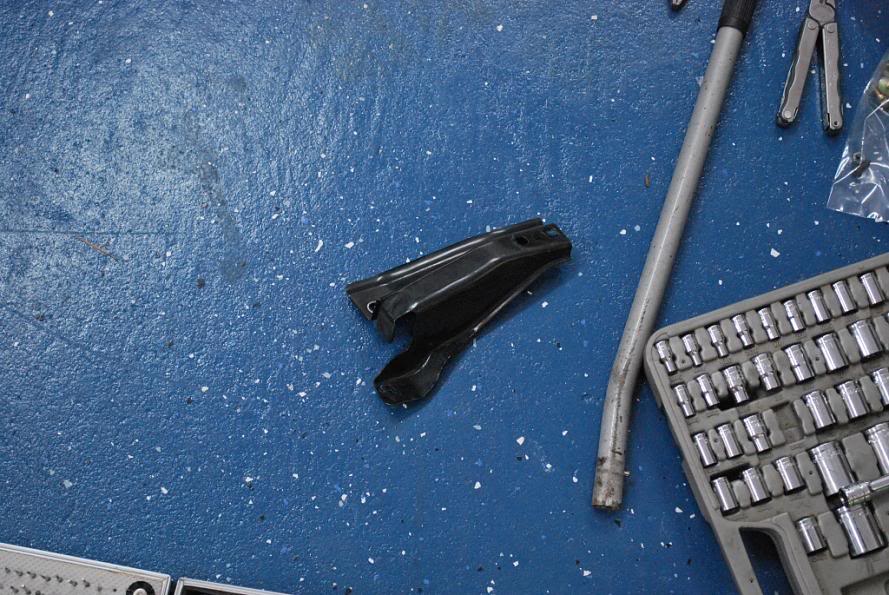

Remove this from the hood mounting thing:

Name:  resized007.jpg
Views: 218
Size:  115.6 KB

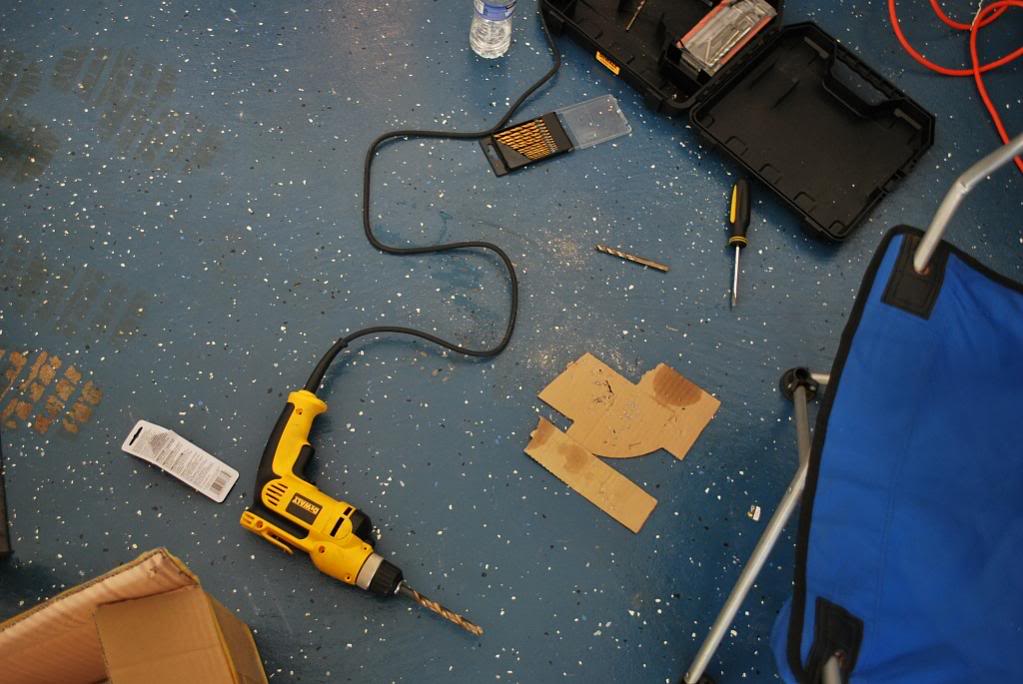

Drill holes in the brackets after you've done some lining up and trying to figure out where to drill. This is all diy, depends on what brackets you have. It's where I wish I had a vice.

Name:  resized008.jpg
Views: 215
Size:  87.1 KB

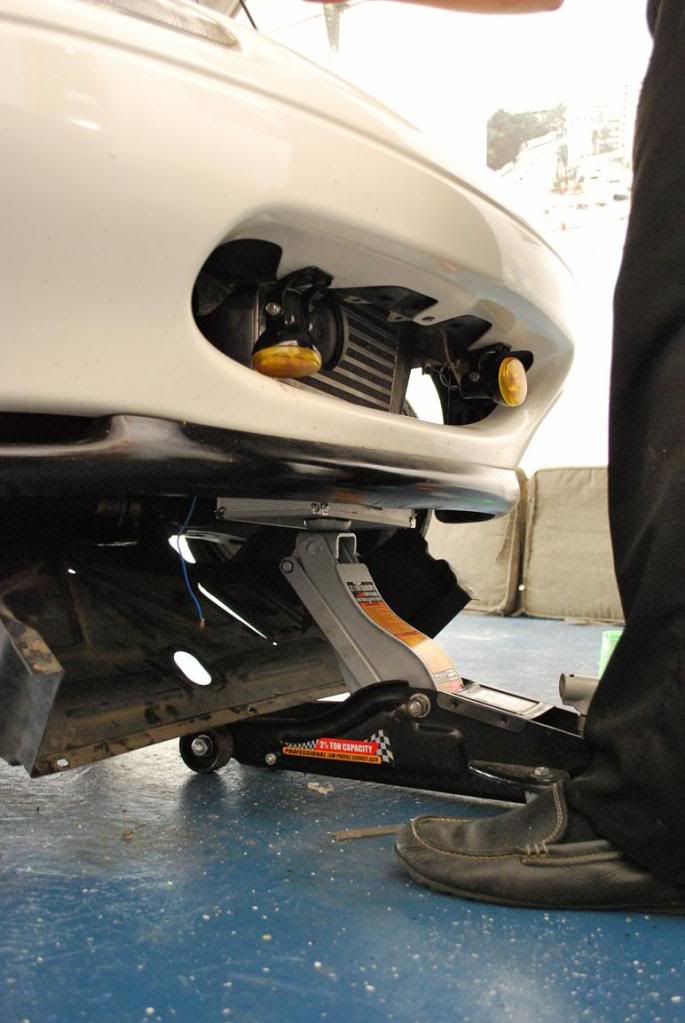

Here's how I had it held in place, made things a **** ton easier.

Name:  resized010.jpg
Views: 217
Size:  71.1 KB

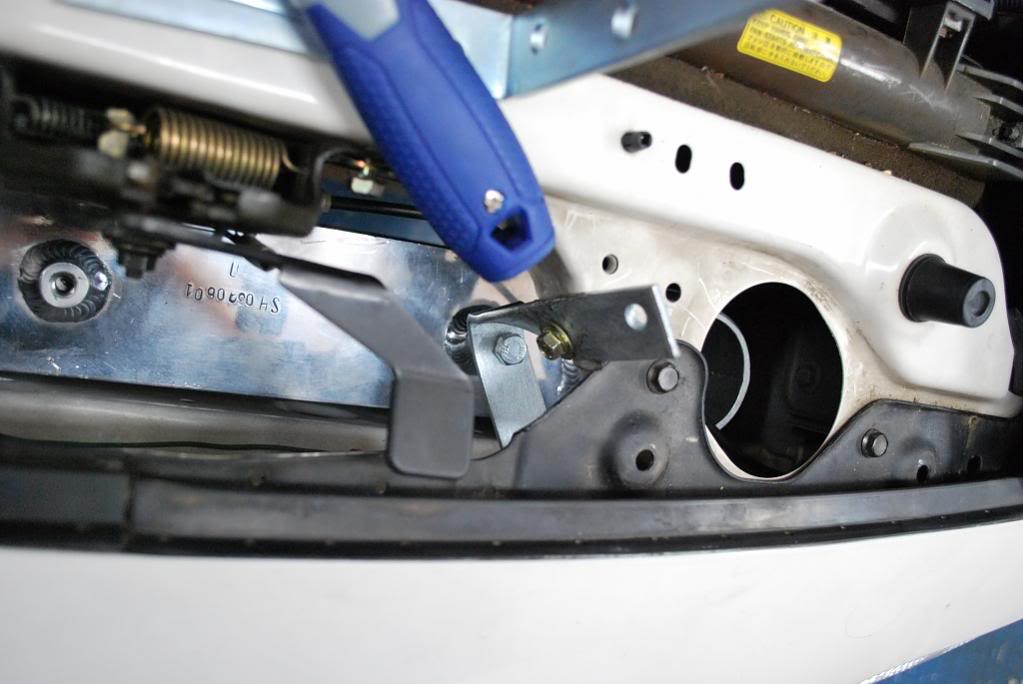

Pic of one of the brackets

Name:  resized003.jpg
Views: 214
Size:  66.9 KB

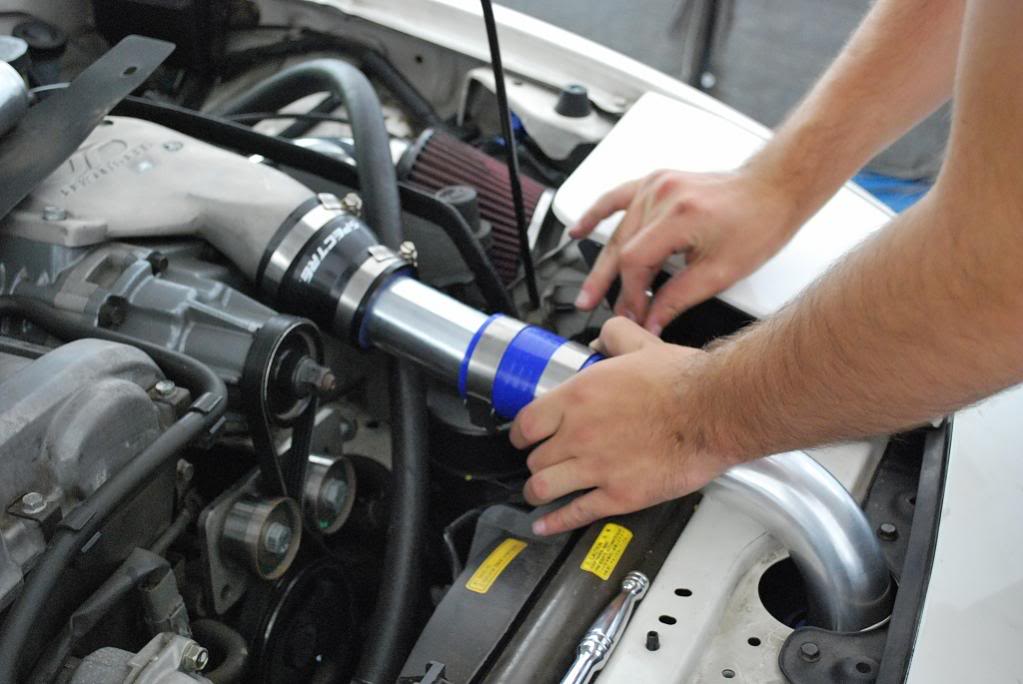

Pipe being lined up

Name:  resized014.jpg
Views: 217
Size:  76.6 KB

How the pipes are laid out

Name:  resized043.jpg
Views: 555
Size:  95.4 KB

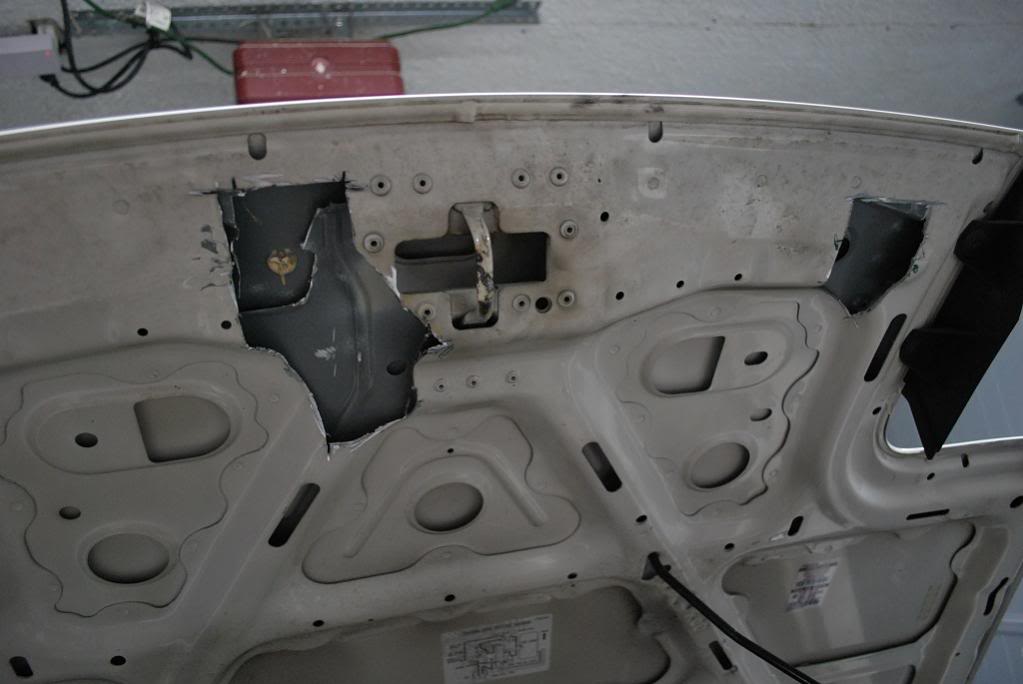

Rough cuts in the hood made to accommodate the new piping.

Name:  resized044.jpg
Views: 217
Size:  55.9 KB

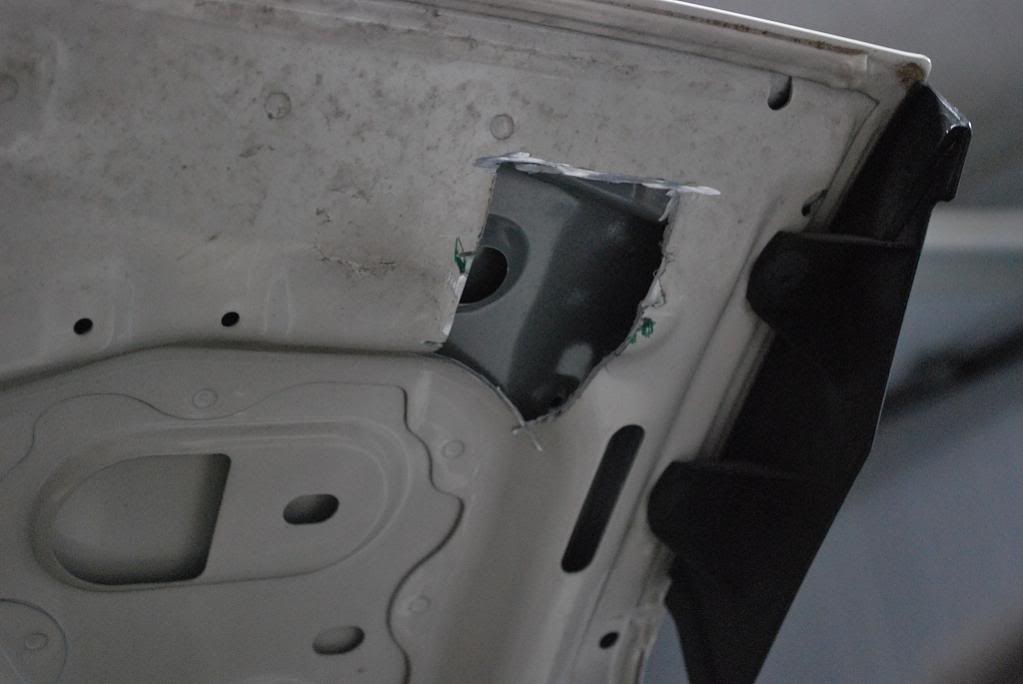

Hot side pipe cuts

Name:  resized045.jpg
Views: 214
Size:  46.6 KB

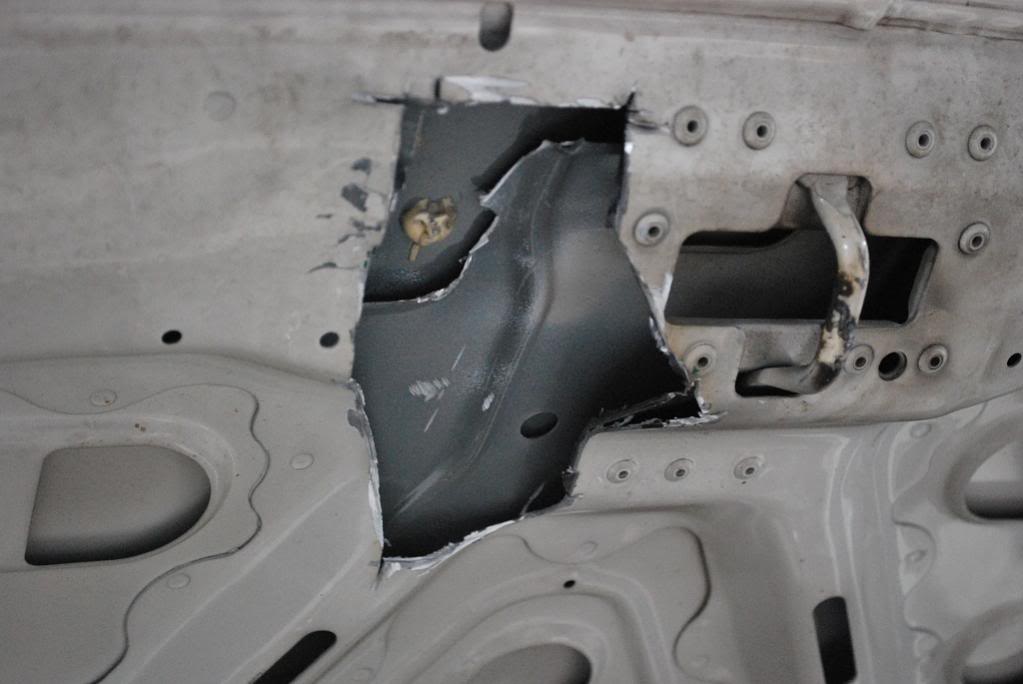

Picture of the cold side cuts, was a bit of a bitch to do.

Name:  resized047.jpg
Views: 218
Size:  54.9 KB

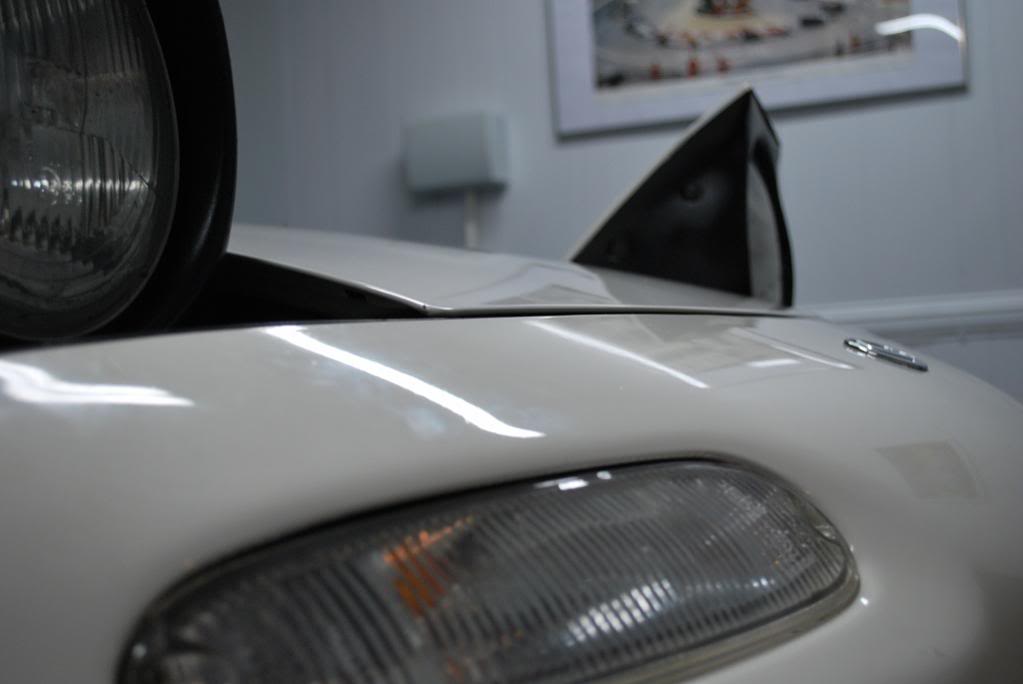

Hood closes great, just make sure the hood assembly thing is back in the original position. I had mine in the wrong place after I used one of the bolts to hold on the cold side mounting bracket.

Name:  resized050.jpg
Views: 217
Size:  38.0 KB

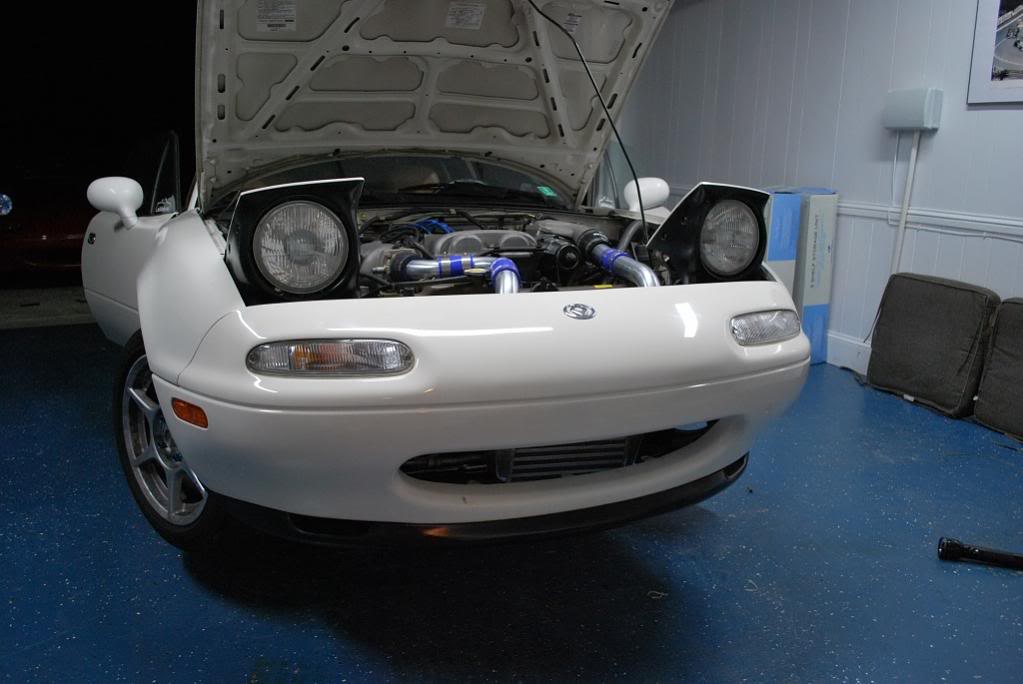

Check out that sick JDM tilt installed intercooler! Job Done!

Name:  resized052.jpg
Views: 213
Size:  64.9 KB

Last edited by jdmaddox88; 07-21-2009 at 05:39 AM.
jdmaddox88 is offline   Reply With Quote
Old 07-21-2009, 05:11 AM   #2
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

well none of the pictues are showing up in the first place
p51hellfire is offline   Reply With Quote
Old 07-21-2009, 05:27 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Well then I guess I'll up them to photobucket and get them up in here asap!
jdmaddox88 is offline   Reply With Quote
Old 07-21-2009, 05:27 AM   #4
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Can only see the pictures if you are a member of that forum.
zoomin is offline   Reply With Quote
Old 07-21-2009, 05:40 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Sorted! It's not going to be good for 300whp but for cheap and cheerful fun it certainly gets the job done. I've had massive drops in the IAT readings since the install!
jdmaddox88 is offline   Reply With Quote
Old 07-21-2009, 05:49 AM   #6
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

I like!! good job mate!!!
p51hellfire is offline   Reply With Quote
Old 07-21-2009, 09:21 AM   #7
Junior Member

Join Date: Aug 2008
Posts: 118
Total Cats: 0
Default

Admirable fitting mate now file the bonnet cutting and repaint and it will be uber.
rrjwilson is offline   Reply With Quote
Old 07-21-2009, 09:27 AM   #8
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

Looks like a decent solution to me!
skidude is offline   Reply With Quote
Old 07-21-2009, 09:31 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

Quote:
Originally Posted by skidude View Post
Looks like a decent solution to me!

I'm so very proud you typed decent and not descent.
Braineack is online now   Reply With Quote
Old 07-21-2009, 10:25 AM   #10
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

lookin good
leatherface24 is offline   Reply With Quote
Old 07-21-2009, 10:37 AM   #11
Junior Member

Join Date: Apr 2009
Location: Miami Florida
Posts: 84
Total Cats: 0
Default

looks good, try to come up on a bigg radiator now.
papo is offline   Reply With Quote
Old 07-21-2009, 01:01 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Quote:
Originally Posted by rrjwilson View Post
Admirable fitting mate now file the bonnet cutting and repaint and it will be uber.
Yep! I have some paint for it already just not the patience to let it dry and be immobile for a couple hours.

All these "mate" comments, how many other brits are on here? I'm a Stokie.
jdmaddox88 is offline   Reply With Quote
Old 08-03-2009, 07:46 PM   #13
Newb

Join Date: Jul 2009
Location: Denver, Co
Posts: 28
Total Cats: 0
Default

admirable in my eyes!

phil
ph!L is offline   Reply With Quote
Old 08-05-2010, 10:56 AM   #14
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,436
Total Cats: 58
Default

This is awesome! I made some rough cuts in the radiator cross bracing to get my piping to fit over the radiator. I didnīt realize the hood could be modified like that to get the piping to fit. Iīll try this once I get home. I want to fit a 55mm radiator, therefore I donīt think tilting the radiator is a viable option...over the top is the best bet to go just like you did it seems.
Enginerd is offline   Reply With Quote
Old 08-05-2010, 11:07 AM   #15
Junior Member
iTrader: (4)

Join Date: Jan 2008
Location: South Carolina
Posts: 262
Total Cats: 0
Default

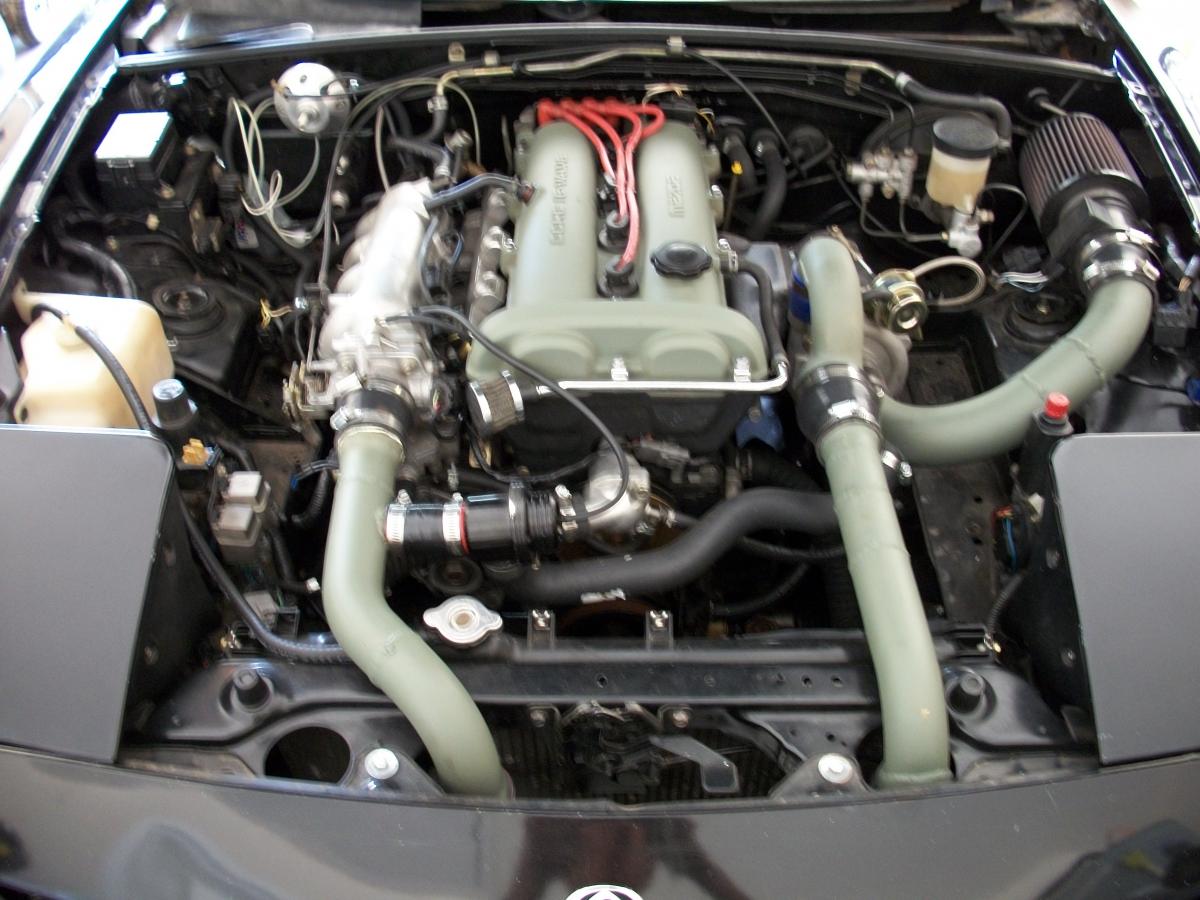

some minds think alike...
Attached Thumbnails
DIY: Over the radiator intercooler install-100_0744.jpg
localtech is offline   Reply With Quote
Old 08-05-2010, 02:07 PM   #16
Junior Member
iTrader: (1)

Join Date: May 2010
Posts: 103
Total Cats: 0
Default

Name:  resized010.jpg
Views: 215
Size:  71.1 KB

where are you lifting your car from?
old_s13 is offline   Reply With Quote
Old 08-05-2010, 05:24 PM   #17
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

He's just keeping the intercooler raised.

Sometime when I'm not lazy I'll post a picture or two of my setup and hood cut reliefs, this would be a good thread to show people who have been interested in my over-the-rad setup. There's been at least 3 in the past month who have PM'ed me.
curly is offline   Reply With Quote
Old 08-05-2010, 05:26 PM   #18
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

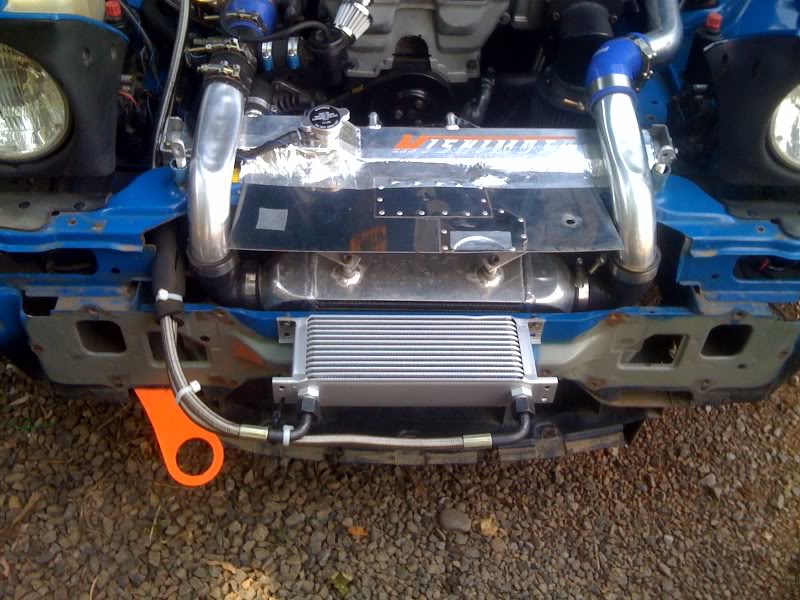

Oops, forgot I was on the interwebz. You get the jist:
Name:  photo-7.jpg
Views: 617
Size:  110.7 KB
curly is offline   Reply With Quote
Old 11-08-2010, 05:39 PM   #19
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Curly, could you post a pic of the relief cuts? I'm looking into IC's at this point and would like to see how your hood looks. Thanks!
matthewdesigns is offline   Reply With Quote
Old 11-08-2010, 06:12 PM   #20
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

Quote:
Originally Posted by matthewdesigns View Post
Curly, could you post a pic of the relief cuts? I'm looking into IC's at this point and would like to see how your hood looks. Thanks!
I have that exact intercooler just sitting in the garage. It needs a good home just let me know if you want it.
seraph is offline   Reply With Quote
