Default DIY Port and Polish

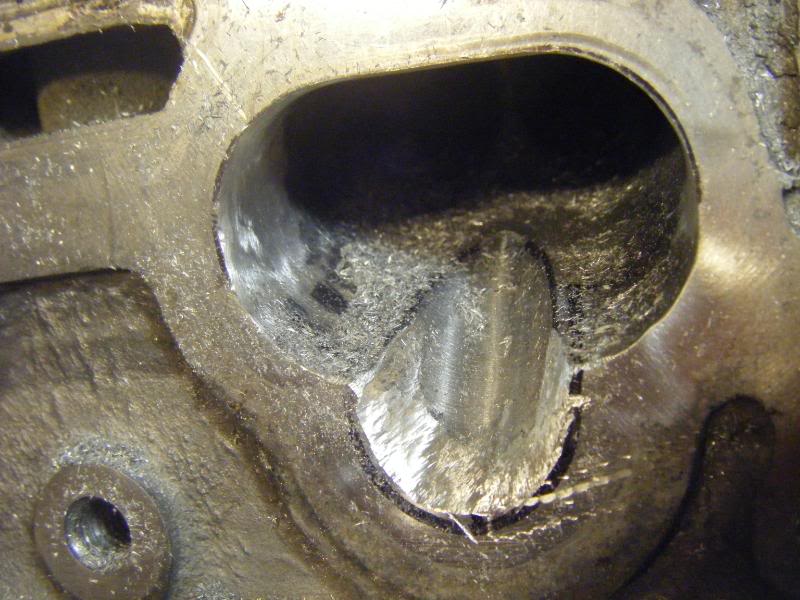

i put the gasket on the intake side of the cylinder head and
outlined the inside part with a sharpie marker to use as a reference point.
I then used my dremmel with several tips to get this ported...

Name:  headpolish4015.jpg
Views: 3927
Size:  80.4 KB

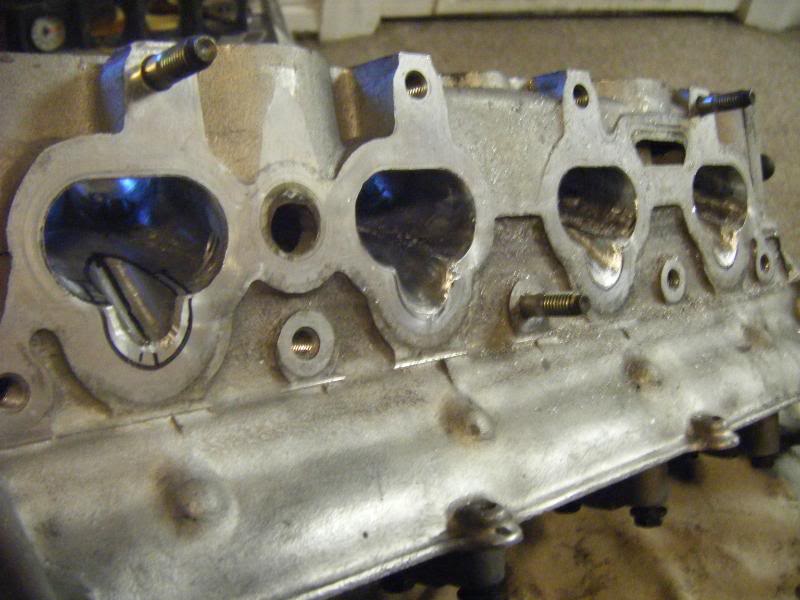

here's a different picture...
Name:  headpolish4013.jpg
Views: 3432
Size:  63.4 KB

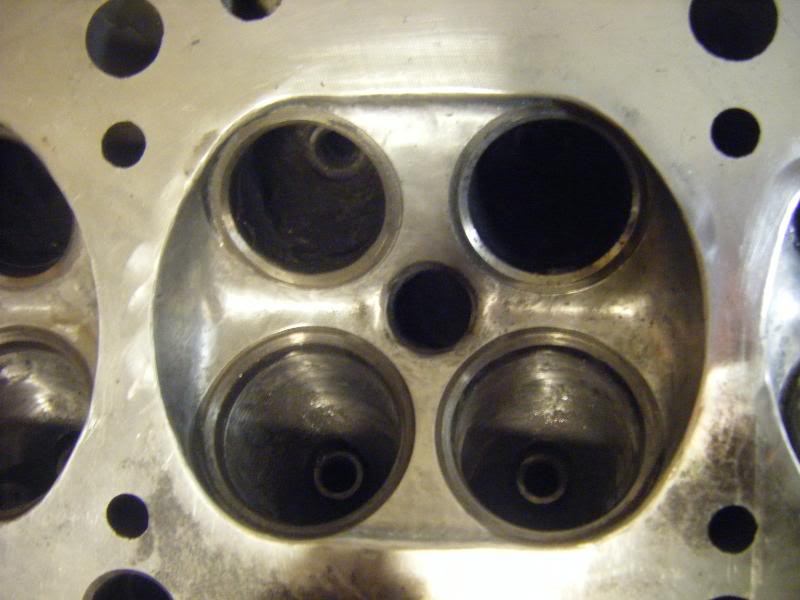

a mild polish...
Name:  headpolish4009.jpg
Views: 1764
Size:  52.1 KB

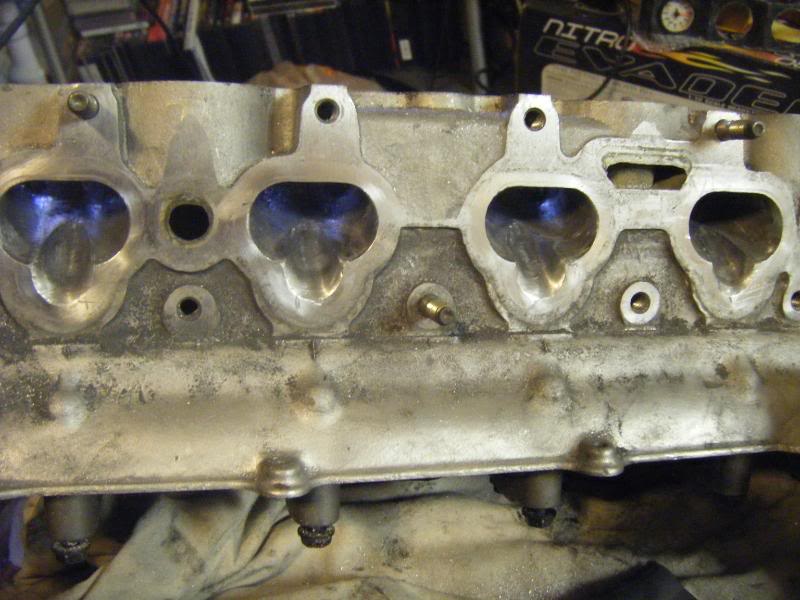

and the final pic before i take it back to the machine shop today...
Name:  headpolish4019.jpg
Views: 1344
Size:  71.9 KB
Old Sep 22, 2008 | 09:35 AM
  #2
mazda/nissan's Avatar
Elite Member
iTrader: (2)

Joined: Jan 2007
Posts: 2,075
Total Cats: 0
From: Lexington, SC
Default

dem some nice pictars
Old Sep 22, 2008 | 10:05 AM
  #3
patsmx5's Avatar
Elite Member
iTrader: (16)

Joined: Aug 2007
Posts: 9,406
Total Cats: 559
From: Houston, TX
Default

Meh, I wouldn't have done it like that. Your efforts could have been better spend doing other things. The "port matching" you did is not necessarily an improvement and could actually make it worse. Better, you would have spent your time ushrouding the combustion chambers and blending the combustion chambers into the seats and the seats into the throat. You need to get a book on cylinder head modifications.
Old Sep 22, 2008 | 10:05 AM
  #4
neogenesis2004's Avatar
Elite Member
iTrader: (12)

Joined: Aug 2006
Posts: 4,413
Total Cats: 20
Default

I hope you had valves in those chambers to protect the seat. Also, it looks like all you did was open up where the injector sits? You won't really see any gains from what you have done so far. You might need a valve job from your chamber polishing actually.
Old Sep 22, 2008 | 10:20 AM
  #5
Braineack's Avatar
Boost Czar
iTrader: (62)

Joined: May 2005
Posts: 80,552
Total Cats: 4,368
From: Chantilly, VA
Default

Originally Posted by neogenesis2004
I hope you had valves in those chambers to protect the seat. Also, it looks like all you did was open up where the injector sits? You won't really see any gains from what you have done so far. You might need a valve job from your chamber polishing actually.

I heart you neo.
Old Sep 22, 2008 | 01:58 PM
  #6
Mouglie's Avatar
Thread Starter
Junior Member

Joined: Aug 2005
Posts: 338
Total Cats: 0
From: Iowa
Default

Originally Posted by neogenesis2004
I hope you had valves in those chambers to protect the seat.

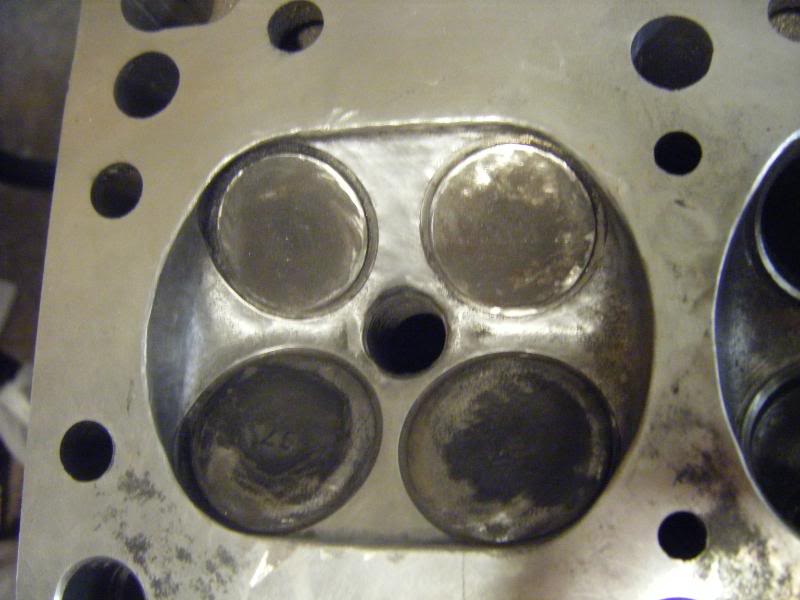

the old valves were in place as i was sanding, i have the FM valves going
in so i'm not too worried about scratching the old ones...
Name:  headpolish4008.jpg
Views: 1335
Size:  52.7 KB

Originally Posted by neogenesis2004
Also, it looks like all you did was open up where the injector sits?

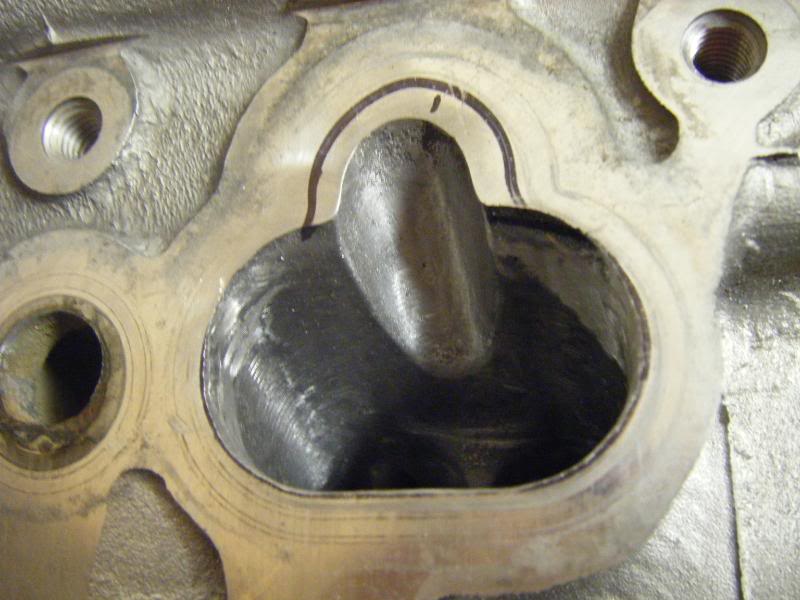

yeah thats one thing i worked on alot
Name:  headpolish2004.jpg
Views: 1385
Size:  63.2 KB

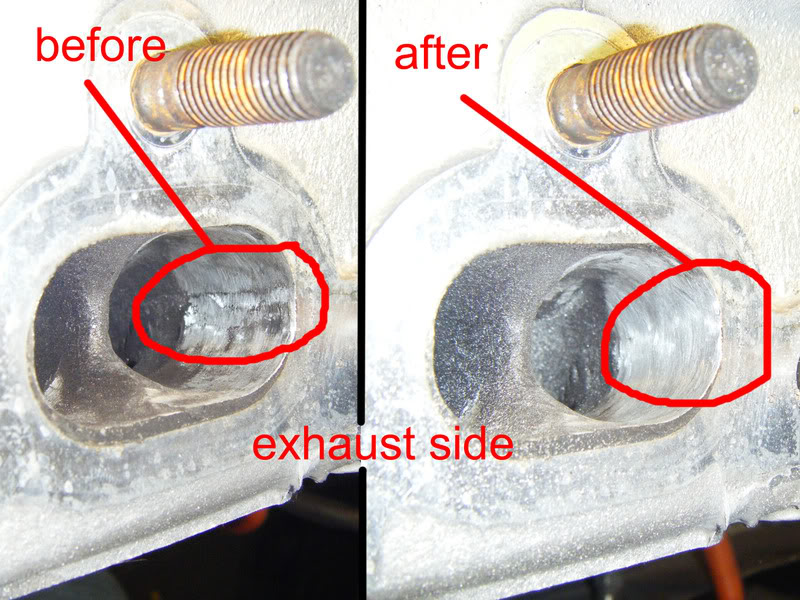

but there were also alot of rough areas that needed to be smoothed
Name:  polishexhaust.jpg
Views: 2137
Size:  129.8 KB

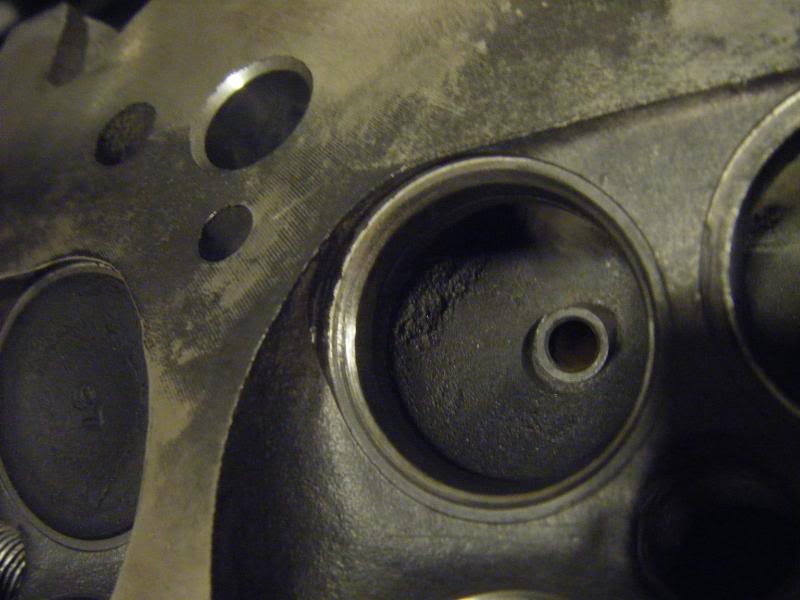

Name:  headpolish020.jpg
Views: 1284
Size:  51.3 KB

Originally Posted by neogenesis2004
You won't really see any gains from what you have done so far. You might need a valve job from your chamber polishing actually.
and here is the valve seats for the new FM valves
Old Sep 22, 2008 | 02:38 PM
  #7
locomonkeyboricua's Avatar
Junior Member

Joined: Sep 2008
Posts: 295
Total Cats: -216
From: ATL GA
Default

looks nice maybe if i rebuild my engine i will do the same thing.
Old Sep 22, 2008 | 02:47 PM
  #8
neogenesis2004's Avatar
Elite Member
iTrader: (12)

Joined: Aug 2006
Posts: 4,413
Total Cats: 20
Default

You didnt post those pics before, so I was just commenting on what I saw at the time. Decent job, takes a steady hand doesnt it.
Old Sep 22, 2008 | 09:35 PM
  #9
Efini~FC3S's Avatar
Elite Member
iTrader: (4)

Joined: Sep 2006
Posts: 3,317
Total Cats: 99
From: Charlotte, NC
Default

where in Iowa are you?
Old Sep 23, 2008 | 12:02 AM
  #10
AlexO35's Avatar
Junior Member
iTrader: (7)

Joined: Aug 2006
Posts: 448
Total Cats: 1
From: Binghamton, NY
Default

I may be too late.... But if your not done, I used standard 1/4" shank carbide burrs in my drill to do mine. A little awkward to hold, but it takes off material a lot easier than a Dremel.
--Alex

Last edited by AlexO35; Sep 23, 2008 at 12:52 AM.
Old Sep 23, 2008 | 05:29 AM
  #11
zoom2zoom's Avatar
I'm Miserable!
iTrader: (5)

Joined: Sep 2005
Posts: 1,589
Total Cats: 0
From: SLC, Utah
Default

more details on which Dremel bits you used?
Old Sep 23, 2008 | 09:22 AM
  #12
yertnamreg1218's Avatar
Junior Member

Joined: Aug 2007
Posts: 115
Total Cats: 0
Default

I did this exact same thing this weekend to my head while my engine is apart. I used a die grinder and some sandpaper cartridge rolls. Seem to work well for me. I cleaned up the casting marks mainly, didn't really enlarge the passages or ports. Then I went back over it with some polishing compound.

They look real good, but we'll see how they perform when I get the engine back together.

Also BTW reassembling the valve train sucks. Once you get the hang of getting the retainers to seat on the valve its not to bad though. Grease is your friend.
Old Sep 23, 2008 | 11:26 PM
  #13
yertnamreg1218's Avatar
Junior Member

Joined: Aug 2007
Posts: 115
Total Cats: 0
Default

I don't have a factory service manual, but I need some torque specs for the head. Could someone enlighten me as to what I should torque the camshaft cap bolts to? I'm thinking that since its going into aluminum the torques should be similar to that of the spark plugs???

Also could someone tell me the torque pattern for the head bolts. I've searched the forums and the intarwebs and have not come up with good answers to these questions.
Old Sep 23, 2008 | 11:36 PM
  #14
patsmx5's Avatar
Elite Member
iTrader: (16)

Joined: Aug 2007
Posts: 9,406
Total Cats: 559
From: Houston, TX
Default

Originally Posted by yertnamreg1218
I don't have a factory service manual, but I need some torque specs for the head. Could someone enlighten me as to what I should torque the camshaft cap bolts to? I'm thinking that since its going into aluminum the torques should be similar to that of the spark plugs???

Also could someone tell me the torque pattern for the head bolts. I've searched the forums and the intarwebs and have not come up with good answers to these questions.
Search miata.net. 99.999% sure that info is posted there. I shall restrain from quoting crucial torque specs from memory for fear of error and you not confirming them.
