Old 08-09-2016, 02:32 PM   #21
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,867
Total Cats: 87
Default

I used a short stub length drill with a right angle drill to do mine. AC was removed but PS was still in and plumbed. I'll look for the drill when I get back from TX.
bahurd is offline   Reply With Quote
Old 08-09-2016, 02:58 PM   #22
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,908
Total Cats: 1,077
Default

I typically unbolt some of the brackets holding the A/C and/or P/S lines down to get enough clearance. I don't think the AC compressor moves.
Savington is offline   Reply With Quote
Old 08-09-2016, 03:00 PM   #23
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,494
Total Cats: 289
Default

If I were drilling a pan in the car, I'd look for a right-angle drill. Something like this:



--Ian
codrus is offline   Reply With Quote
Old 08-09-2016, 03:14 PM   #24
afm
Senior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 538
Total Cats: 47
Default

That's an impact

HF has your back for $29. I've used it for other projects (never a pan), and it is crappy but usable.

http://www.harborfreight.com/38-in-v...ill-60610.html
afm is offline   Reply With Quote
Old 08-09-2016, 03:21 PM   #25
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,908
Total Cats: 1,077
Default

All my power tools are Makita 18v, but their right angle drill is only a 3/8" chuck. I haven't looked to see if you can get a 37/64 or 9/16 drill in 3/8" chuck.
Savington is offline   Reply With Quote
Old 08-09-2016, 03:29 PM   #26
afm
Senior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 538
Total Cats: 47
Default

afm is offline   Reply With Quote
Old 08-09-2016, 04:17 PM   #27
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,068
Total Cats: 913
Default

Quote:
Originally Posted by Savington View Post
All my power tools are Makita 18v, but their right angle drill is only a 3/8" chuck. I haven't looked to see if you can get a 37/64 or 9/16 drill in 3/8" chuck.
That was going to be my next question. All the correctly sized drill bits that I had seen were 1/2" while all the right angle drills ae 3/8". Looks like poster below found a drill bit that works.
shuiend is offline   Reply With Quote
Old 08-09-2016, 04:49 PM   #28
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,494
Total Cats: 289
Default

Quote:
Originally Posted by afm View Post
That's an impact
Home Depot claimed it was a drill.

Half inch right-angle drill:


http://www.homedepot.com/p/Milwaukee...7-20/205462851

Another option is to put the 37/64 drill in a lathe so it fits in the 3/8" chuck. You don't need a lot of torque to drill an aluminum pan.

--Ian
codrus is offline   Reply With Quote
Old 08-09-2016, 04:54 PM   #29
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 25,542
Total Cats: 1,751
Default

Joe Perez is online now   Reply With Quote
Old 08-09-2016, 04:56 PM   #30
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,890
Total Cats: 1,268
Default

Put bit in lathe. Turn down to 3/8.

Put bit in mill. Cut face for drill.

Put bit in drill. Drill pan.
aidandj is offline   Reply With Quote
Old 08-09-2016, 05:01 PM   #31
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,908
Total Cats: 1,077
Default

Quote:
Originally Posted by aidandj View Post
Put bit in lathe. Turn down to 3/8.

Put bit in mill. Cut face for drill.

Put bit in drill. Drill pan.
In the time it took you to write this post, I bought the one afm linked to on Amazon with One-click
Savington is offline   Reply With Quote
Old 08-09-2016, 05:08 PM   #32
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,068
Total Cats: 913
Default

Quote:
Originally Posted by Savington View Post
In the time it took you to write this post, I bought the one afm linked to on Amazon with One-click
Amazon now has that drill bit and the correct tap as items comment purchased together.
shuiend is offline   Reply With Quote
Old 08-09-2016, 06:19 PM   #33
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,867
Total Cats: 87
Default

Quote:
Originally Posted by afm
Same drill I used.
bahurd is offline   Reply With Quote
Old 08-09-2016, 10:08 PM   #34
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,068
Total Cats: 913
Default

shuiend is offline   Reply With Quote
Old 08-10-2016, 07:13 AM   #35
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 25,542
Total Cats: 1,751
Default

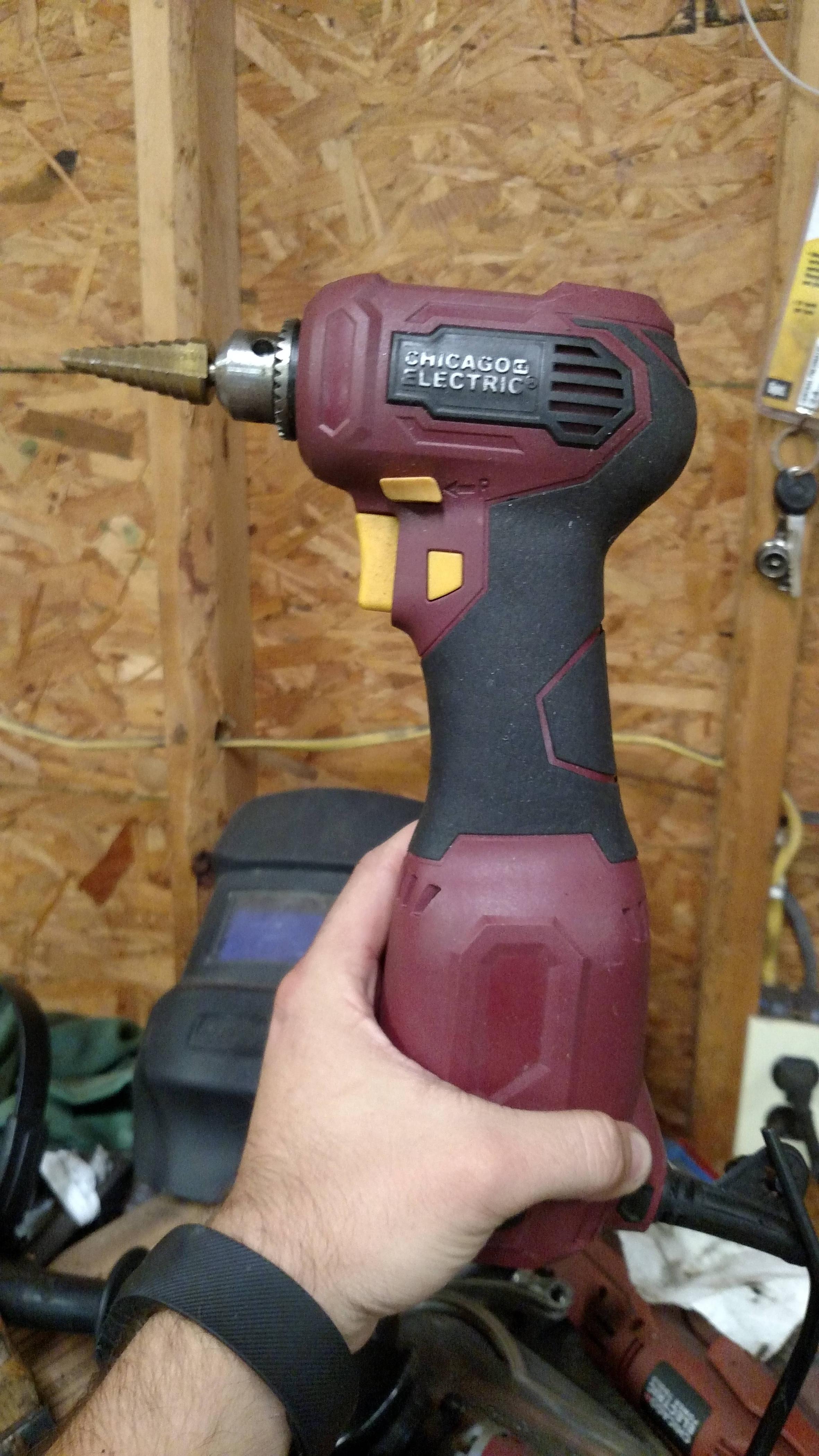

Step drill not hit pickup tube?

Last edited by Joe Perez; 08-10-2016 at 10:49 AM.
Joe Perez is online now   Reply With Quote
Old 08-10-2016, 10:42 AM   #36
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,068
Total Cats: 913
Default

Quote:
Originally Posted by Joe Perez View Post
Step drill not not pickup tube?
I have only used the step drill bit on a pan off the car. I wouldn't dare to do it on the car. For those I used the correctly sized drill bit with a layer of tape to stop it from going in to far. So far I have only drilled and tapped oil pans on the car in NA's.
shuiend is offline   Reply With Quote
Old 11-09-2016, 10:08 PM   #37
Newb

Join Date: Jun 2016
Location: Fort Myers, FL
Posts: 15
Total Cats: 1
Default

So is the feed high enough? As in is it above the oil level in pan when the car is running so that the turbo oil can drain easily?
Micztor is offline   Reply With Quote
