Default A/C Relay Wires?

Could someone look at their engine compartment for me? I asked over at the other forum and no one wants to pop their hood

Ok not everyone has to do this just the ones with a early Miata (mine's '92) with A/C.

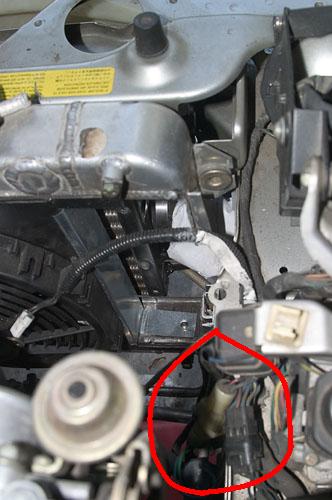

Next look at the connector from the relay that I've circled in the picture.

There should be two wires coming from the pressure switch on the A/C line. Seen at the bottom of the first pic as the green wire and a Blue wire with a black stripe.

Coming from the relay side there are another two wires, a Black with red stripe and a black with blue stripe.

****I need to know which color goes to which color?

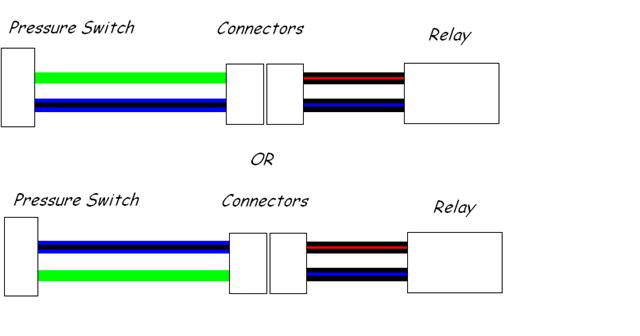

The second picture is a drawing that I made when no one could figure out what I wanted. Which one is correct?

Thank you for your time guys... If my post is indeed confusing please let me know and I will try to explain better.

Attached Thumbnails
A/C Relay Wires?-pic-1.jpg   A/C Relay Wires?-switch.jpg
IntrnlStorm is offline   Reply With Quote
Old 06-30-2006, 09:09 PM   #2
AFM Crusader
iTrader: (18)
olderguy's Avatar
Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,473
Total Cats: 90

Your pressure switch must have been changed as on mine the colors are the same on both sides of the connector. It really shouldn't matter since the switch is just in-line to the clutch. There is no grounding involved.
