Default dsm turbo, what size?

So I have recently learned that instead of my car having a GT2560r turbo, it has an old DSM turbo-___- and I don't know what size it is. I tried looking for an ID tag, and I found one, but it has no ID number on it. All it says is DSM T25/T28. I can only assume its very small because I make full boost before 3500 rpm but I just want to know which one it is. It has .64 AR on the hot side and M16 imprinted on it too.
mccyjcb is offline   Reply With Quote
Old 08-23-2013, 01:20 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

its probably a fake egay one
18psi is offline   Reply With Quote
Old 08-23-2013, 01:25 PM   #3
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

There's no such thing as a T25/T28 so if that's what it says it's probably a chinacharger 2871.
thenuge26 is offline   Reply With Quote
Old 08-23-2013, 01:27 PM   #4
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2013
Location: Vancouver, WA
Posts: 80
Total Cats: 0
Default

Oh really? Thats lame. . I went from thinking I have an authentic Garrett turbo to a DSM turbo ( which is probably Garrett too) and now I might have a Chinacharger?
mccyjcb is offline   Reply With Quote
Old 08-23-2013, 01:29 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

yeah, but on the bright side......wait, there's not bright side to this...nvm
18psi is offline   Reply With Quote
Old 08-23-2013, 02:10 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2013
Location: Vancouver, WA
Posts: 80
Total Cats: 0
Default

I see what you did there
mccyjcb is offline   Reply With Quote
Old 08-23-2013, 02:11 PM   #7
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

The bright side is that authentic Garrets are made in China anyway, and yours was probably made in the same factory with some of the same tooling as the real ones.

Brain's T3 50 trim setup outperforms the authentic S13 T25. So it's not all bad.

That 2871 clone though is not great.
thenuge26 is offline   Reply With Quote
Old 08-23-2013, 02:11 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2013
Location: Vancouver, WA
Posts: 80
Total Cats: 0
Default

There might be one bright side..a shimmer of light. Now everyone can know that chinachargers are reliable since it is has been on my car for 48000 miles.
mccyjcb is offline   Reply With Quote
Old 08-23-2013, 02:15 PM   #9
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2013
Location: Vancouver, WA
Posts: 80
Total Cats: 0
Default

You just had to post that link comparing the two didn't you. This thread is going downhill for me. But at least I know now I suppose. I'm definitely gonna be on the lookout for an sr20 T25 turbo
mccyjcb is offline   Reply With Quote
Old 08-23-2013, 02:23 PM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

DSM=mitsubishi, don't they make their own turbos? I didn't think it'd be a garrett.
curly is offline   Reply With Quote
Old 08-23-2013, 02:32 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,171
Total Cats: 2,574
Default

Yep. And mitsu turbos are arguably just as reliable.
18psi is offline   Reply With Quote
Old 08-23-2013, 03:01 PM   #12
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

If it was a mitsu wouldn't it say TD04 instead of T25/T28?

What does the manifold->turbo flange look like? If it is actually a DSM turbo or even a DSM chinacharger replacement shouldn't it have the funky triangle flange? That should be easy enough to check.
thenuge26 is offline   Reply With Quote
Old 08-23-2013, 03:31 PM   #13
Junior Member

Join Date: Oct 2010
Location: las vegas
Posts: 244
Total Cats: 4
Default

Dsm turbos have a square(ish) flange with a round hole.
hochkis is offline   Reply With Quote
Old 08-23-2013, 03:47 PM   #14
Junior Member

Join Date: May 2013
Location: wisconsin
Posts: 58
Total Cats: 0
Default

post a pic
lieske is offline   Reply With Quote
Old 08-23-2013, 03:47 PM   #15
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2013
Location: Vancouver, WA
Posts: 80
Total Cats: 0
Default

I'm not at home right now, but Ill be sure to check when I get home.
mccyjcb is offline   Reply With Quote
Old 08-23-2013, 05:09 PM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

DSMs could be had with both. Much like Saabs. Depends on year and trans, primarily.
concealer404 is offline   Reply With Quote
Old 08-23-2013, 08:43 PM   #17
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

DSMs came with t25s from the factory ... Lots of guys upgraded to 16g turbos from the early evos. If you're gonna do a Mitsubishi turbo go with a twin scroll 16g from an evo 8-9 better spool not to mention a host of upgrades available for it and the ability to run copious amounts of boost.
greddygalant is offline   Reply With Quote
Old 08-24-2013, 11:43 PM   #18
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

OP if you care to know for sure post up a pic. It's probably a Chinese knockoff as previously mentioned.

Just to clear some things up...

14b uses a two-bolt compressor housing outlet flange where an elbow can be bolted on. Evo3 16G turbos, and their knockoffs, use this kind of compressor outlet, too.

T25 has an elbow cast in place.

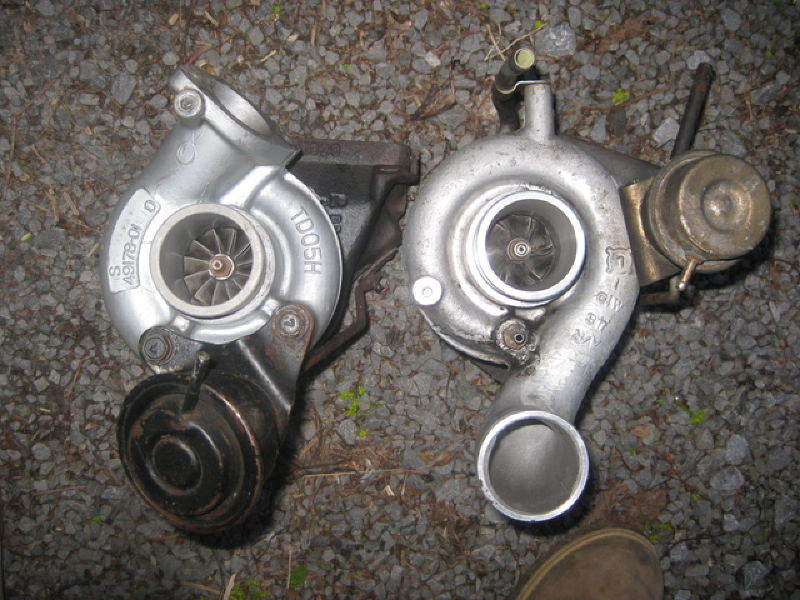

14b on left, T25 on right. Also of note are the compressor wheels, with any "B" turbo having equally spaced blades at the same height. All "G" turbos (and the T25) have equally spaced pairs of blades which are stepped in height.


All DSM turbos have a 4-bolt turbine-to-manifold flange that is rectangular (oriented 90* when compared to a Garrett rectangle, if that makes sense), with a round inlet. The location and size of the inlet within that rectangle varies based on the turbo application. Some smaller Mitsu turbos from commercial trucks use a triangular, 3-bolt turbine/manifold flange, like the turbo used in some HKS kits for Miata.

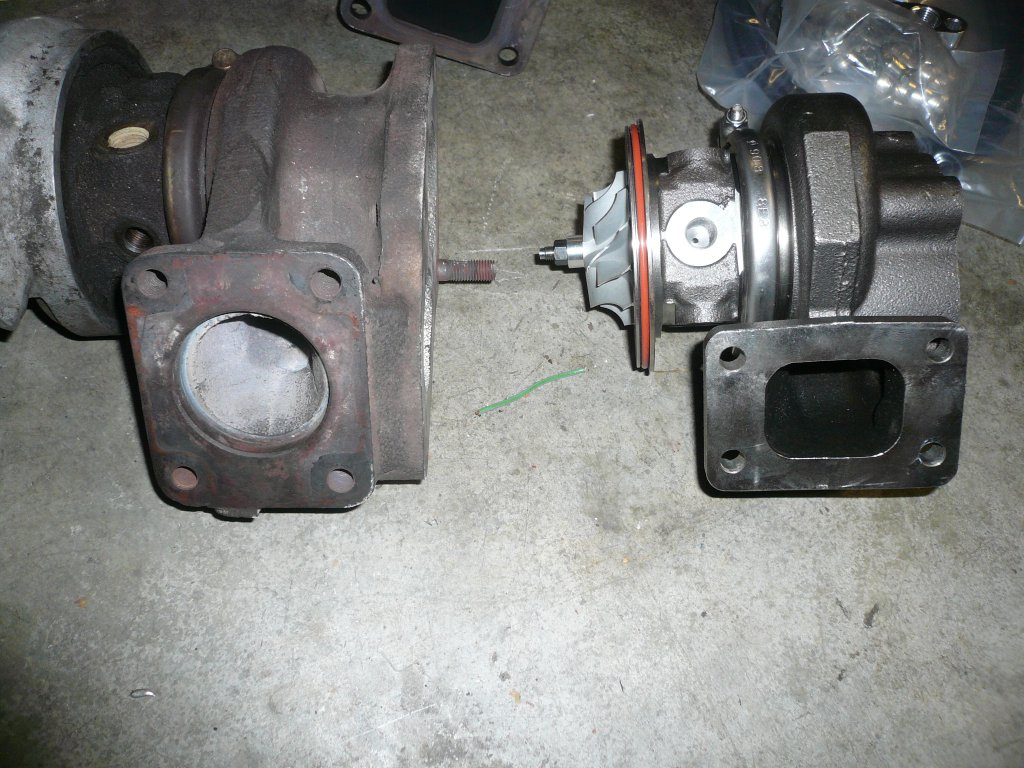

Mitsu flange on the left, Garrett on the right.
Attached Thumbnails
dsm turbo, what size?-img0278ju.jpg   dsm turbo, what size?-td05_turbine_housings.jpg
matthewdesigns is offline   Reply With Quote
Old 08-25-2013, 12:00 AM   #19
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2013
Location: Vancouver, WA
Posts: 80
Total Cats: 0
Default

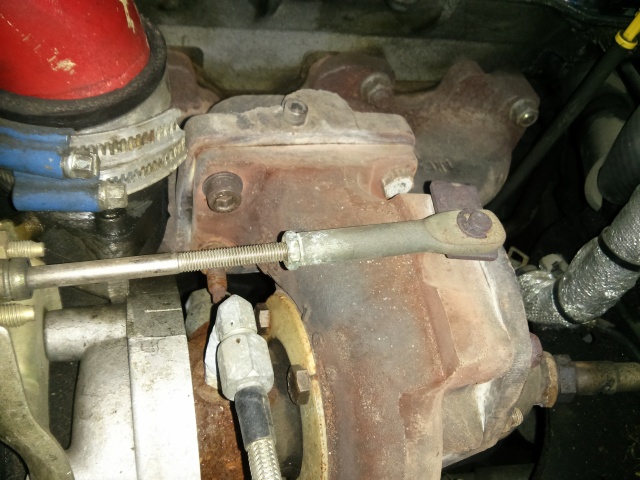

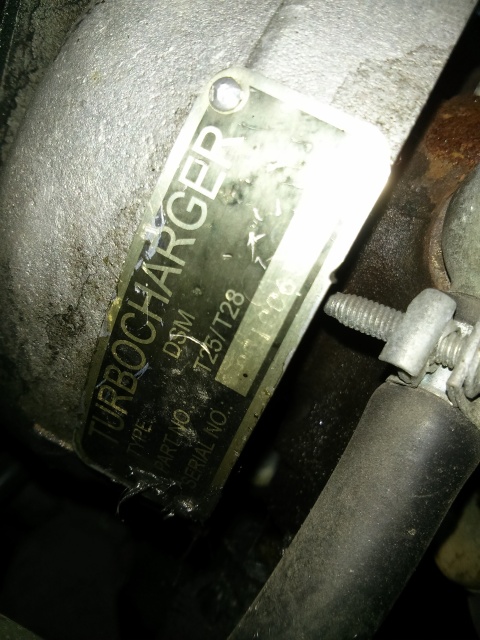

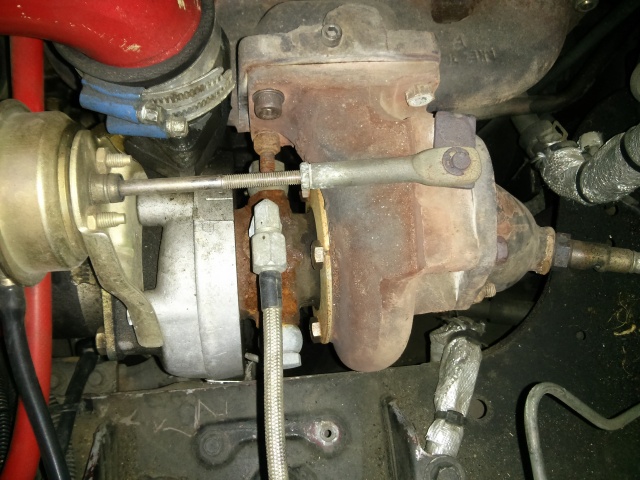

sorry, I got busy. But here it is. very small I would say. I can't take it apart or off my car because there is broken bolt that connects the downpipe and the turbo and I dont have the knowledge or experience to take one of those out. You can almost see an ID number on the ID tag looking at it now but it isnt very clear.
Attached Thumbnails
dsm turbo, what size?-2n86b81.jpg   dsm turbo, what size?-dqhum8.jpg   dsm turbo, what size?-2q03ogp.jpg
mccyjcb is offline   Reply With Quote
Old 08-25-2013, 02:46 AM   #20
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Chinese Garrett knockoff, no idea what model specifically.
